maserati merak 3.0 moving parts parts diagram

003 - moving parts

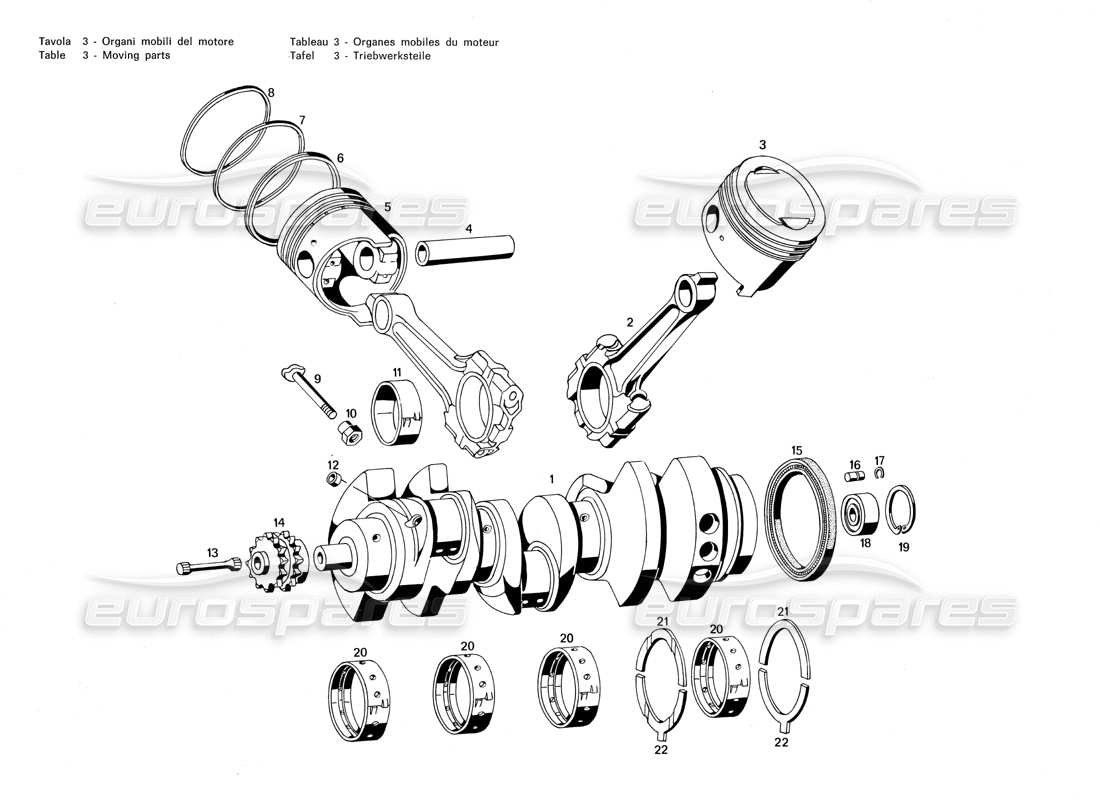

Maserati Merak 3.0 Moving Parts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 5 439 758 E
                                            ALBERO MOTORE CLASSE = 10 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 759 R
                                            ALBERO MOTORE CLASSE = 15 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 760 B
                                            ALBERO MOTORE CLASSE = 25 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 761 M
                                            ALBERO MOTORE CLASSE = 30 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 762 Y
                                            ALBERO MOTORE CLASSE = 35 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 763 J
                                            ALBERO MOTORE CLASSE = 40 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 764 V
                                            ALBERO MOTORE CLASSE = 45 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 765 F
                                            ALBERO MOTORE CLASSE = 50 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 766 S
                                            ALBERO MOTORE CLASSE = 55 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 767 C
                                            ALBERO MOTORE CLASSE = 60 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 768 N
                                            ALBERO MOTORE CLASSE = 65 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 769 Z
                                            ALBERO MOTORE CLASSE = 70 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 770 K
                                            ALBERO MOTORE CLASSE = 75 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 771 W
                                            ALBERO MOTORE CLASSE = 80 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 772 G
                                            ALBERO MOTORE CLASSE = 85 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 773 T
                                            ALBERO MOTORE CLASSE = 90 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 774 D
                                            ALBERO MOTORE CLASSE = 95 COMPLETO DI TAPPI E INGRANAGGIO COMANDO DISTRIBUZIONE
                                            # 001
                                            MPN: 5 439 775
                                            ALBERO MOTORE CON BIELLA

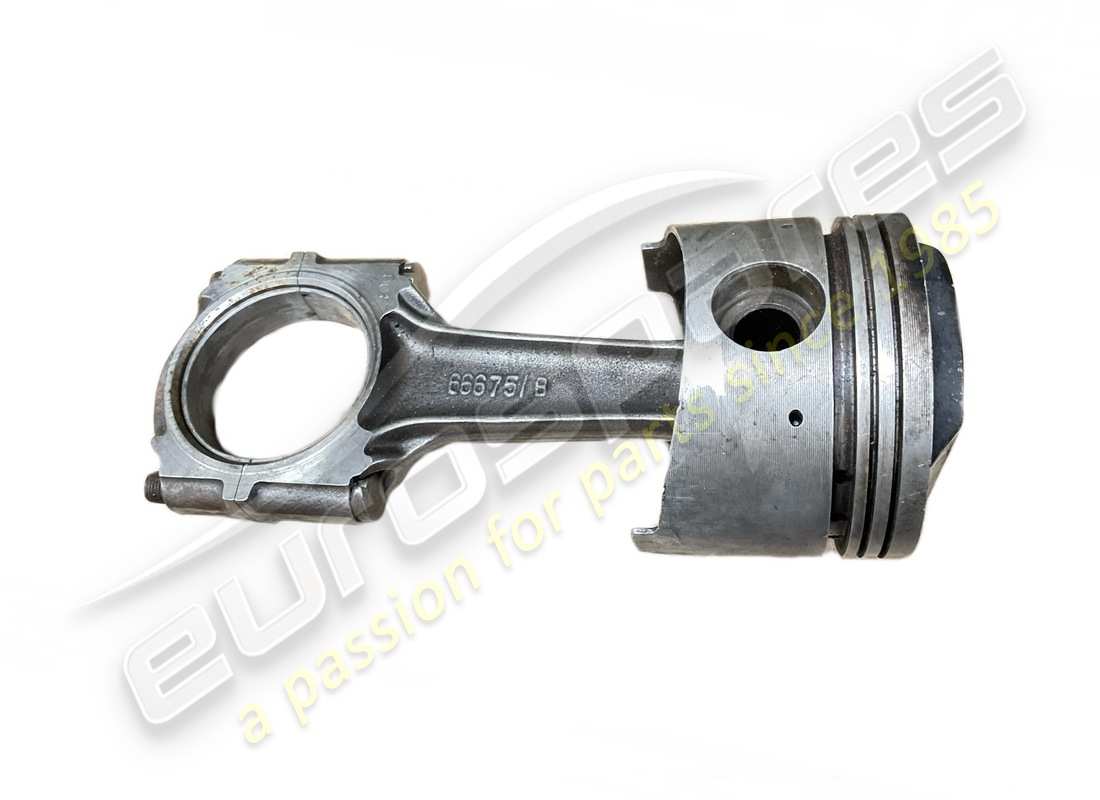

                                            # 002
                                            MPN: 5 413 505
                                            BIELLA COMPLETA: CLASSE = 10
                                            # 002
                                            MPN: 5 413 506
                                            BIELLA COMPLETA: CLASSE = 15
                                            # 002
                                            MPN: 5 413 507
                                            BIELLA COMPLETA: CLASSE = 25
                                            # 002
                                            MPN: 5 413 508
                                            BIELLA COMPLETA: CLASSE = 30
                                            # 002
                                            MPN: 5 413 509
                                            BIELLA COMPLETA: CLASSE = 35
                                            # 002
                                            MPN: 5 413 510
                                            BIELLA COMPLETA: CLASSE = 40
                                            # 002
                                            MPN: 5 413 511
                                            BIELLA COMPLETA: CLASSE = 45
                                            # 002
                                            MPN: 5 413 512
                                            BIELLA COMPLETA: CLASSE = 50
                                            # 002
                                            MPN: 5 413 513
                                            BIELLA COMPLETA: CLASSE = 55
                                            # 002
                                            MPN: 5 413 514
                                            BIELLA COMPLETA: CLASSE = 60
                                            # 002
                                            MPN: 5 413 515
                                            BIELLA COMPLETA: CLASSE = 65
                                            # 002
                                            MPN: 5 413 516
                                            BIELLA COMPLETA: CLASSE = 70
                                            # 002
                                            MPN: 5 413 517
                                            BIELLA COMPLETA: CLASSE = 75
                                            # 002
                                            MPN: 5 413 518
                                            BIELLA COMPLETA: CLASSE = 80
                                            # 002
                                            MPN: 5 413 519
                                            BIELLA COMPLETA: CLASSE = 85
                                            # 002
                                            MPN: 5 413 520
                                            BIELLA COMPLETA: CLASSE = 90
                                            # 002
                                            MPN: 5 413 521
                                            BIELLA COMPLETA: CLASSE = 95
                                            # 003
                                            MPN: 5
                                            PISTONE PER CANNA Ø 91,6 COMPLETO DI SPINOTTO E SEGMENTI (DAL MOTORE N. 0.41 IN POI)
                                            # 003
                                            MPN: 5
                                            PISTONE PER CANNA Ø 91,8 COMPLETO DI SPINOTTO E SEGMENTI (DAL MOTORE N. 0.41 IN POI)
                                            # 003
                                            MPN: 5
                                            Pistone per canna Ø 91,8 completo di spinotto e segmenti (fino al motore n. 040)
                                            # 003
                                            MPN: 5 432 189
                                            Pistone per canna Ø 91,6 completo di spinotto e segmenti (fino al motore n. 040)
                                            from £315.00
                                            from £315.00
                                            # 006
                                            MPN: 5432193
                                            RASCHIAOLIO PER CANNA Ø 91,6
                                            from £66.08
                                            from £66.08
                                            # 006
                                            MPN: MSRIN001
                                            PISTON RING SET
                                            Complete engine piston ring set. 91.6 STD.
                                            # 007
                                            MPN: 5432192
                                            SEGMENTO INFERIORE PER CANNA Ø 91,6
                                            from £4.47
                                            from £4.47
                                            # 008
                                            MPN: 5432191
                                            SEGMENTO SUPERIORE PER CANNA Ø 91,6
                                            from £7.31
                                            from £7.31
                                            # 009
                                            MPN: 5 410 070
                                            BOLT
                                            # 010
                                            MPN: 5 405 674
                                            NUT
                                            # 011
                                            MPN: 5 405 666
                                            BRONZINA DI BIELLA (STD)
                                            # 011
                                            MPN: 5405667
                                            BRONZINA DI BIELLA (1A)
                                            from £1.00
                                            from £1.00
                                            # 011
                                            MPN: 5405668
                                            BRONZINA DI BIELLA (2A)
                                            from £2.48
                                            from £2.48
                                            # 011
                                            MPN: 5405669
                                            BRONZINA DI BIELLA (3A)
                                            from £1.00
                                            from £1.00
                                            # 012
                                            MPN: 5 405 676
                                            TAPPO PER FORO ALBERO MOTORE
                                            # 013
                                            MPN: 5422549
                                            BARRA TRAINO POMPA OLIO
                                            from £18.92
                                            from £18.92
                                            # 014
                                            MPN: 5 405 681
                                            Ingranaggio comando distribuzione sull'albero motore .
                                            # 015
                                            MPN: 5 405 675
                                            SEALING RING
                                            from £224.34
                                            from £224.34
                                            # 016
                                            MPN: 5 405 678
                                            Grano Ø 10 X 15 fra abero motore e volano
                                            # 017
                                            MPN: 5 405 679
                                            RING
                                            # 018
                                            MPN: ZC 9620 111 U
                                            Cuscinetto Ø 15 X 42 X 13 sull'albero motore
                                            # 019
                                            MPN: ZC 9620 501 U
                                            RING
                                            # 020
                                            MPN: 5 405 629
                                            BRONZINA DI BANCO (1A)
                                            # 020
                                            MPN: 5 405 630
                                            BRONZINA DI BANCO (2A)
                                            # 020
                                            MPN: 5 405 631
                                            BRONZINA DI BANCO (3A)
                                            # 020
                                            MPN: 5457504
                                            BRONZINA DI BANCO (STD)
                                            from £66.96
                                            from £66.96
                                            # 021
                                            MPN: 5 405 634
                                            WASHER
                                            # 021
                                            MPN: 5 405 635
                                            WASHER
                                            # 021
                                            MPN: 5405632
                                            WASHER
                                            from £2.74
                                            from £2.74
                                            # 022
                                            MPN: 5 405 633
                                            WASHER
                                            from £104.34
                                            from £104.34
                                            # 022
                                            MPN: 5 405 636
                                            WASHER
                                            # 022
                                            MPN: 5 405 637
                                            WASHER
