004 - timing

Maserati Merak 3.0 Timing Parts Diagram

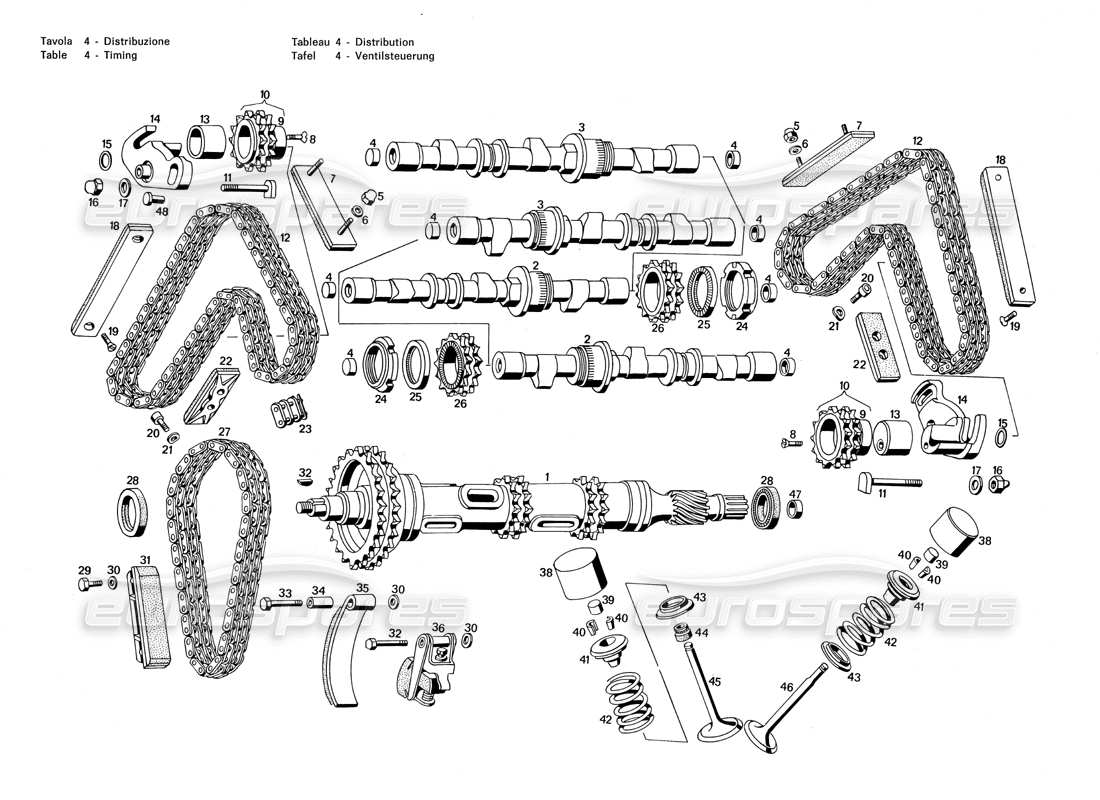

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Key
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 5 405 685

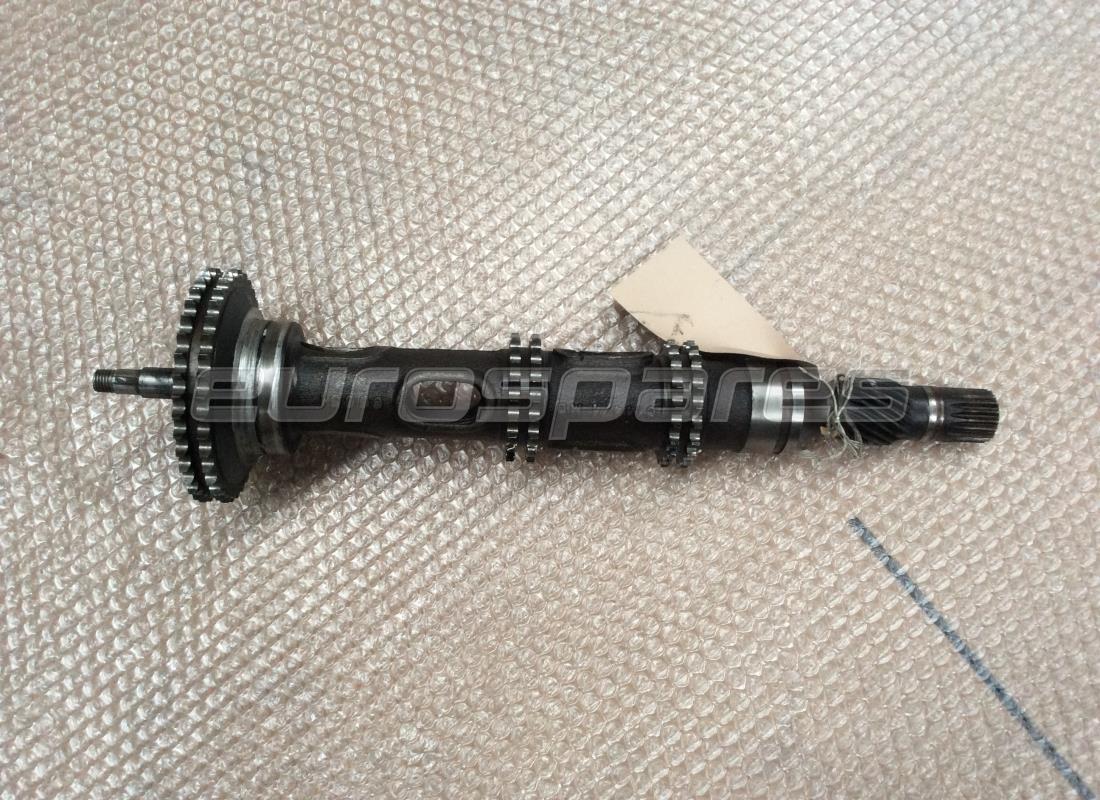

                                                                                            ALBERO CENTRALE COMANDO DISTRIBUZIONE COMPLETO
                                                                                            from £1,155.00
                                                                                            from £1,155.00
                                                                                            ALBERO CENTRALE COMANDO DISTRIBUZIONE COMPLETO Genuine Maserati Part - New (to order)
                                                                                            ALBERO CENTRALE COMANDO DISTRIBUZIONE COMPLETO Genuine Maserati Part - Used In stock
                                                                                            # 002
                                                                                            MPN: 5 413 848
                                                                                            ALBERO DISTRIBUZIONE LATO SCARICO COMPLETO
                                                                                            Supersession
                                                                                            Supersession
                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                            # 003
                                                                                            MPN: 5 413 847
                                                                                            ALBERO DISTRIBUZIONE LATO ASPIRAZIONE
                                                                                            from £1,130.44
                                                                                            from £1,130.44
                                                                                            ALBERO DISTRIBUZIONE LATO ASPIRAZIONE Genuine Maserati Part - New (to order)
                                                                                            # 004
                                                                                            MPN: 5 405 725
                                                                                            TAPPO PER ALBERO DISTRIBUZIONE
                                                                                            TAPPO PER ALBERO DISTRIBUZIONE Genuine Maserati Part - New (to order)
                                                                                            # 005
                                                                                            MPN: 5 422 304
                                                                                            NUT
                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                            # 006
                                                                                            MPN: 5422303
                                                                                            GASKET OR SEAL
                                                                                            from £0.74
                                                                                            from £0.74
                                                                                            Maserati PART 5422303 Genuine Maserati Part - New (to order)
                                                                                            GASKET Genuine Ferrari Part - New (to order)
                                                                                            # 007
                                                                                            MPN: 5 422 302
                                                                                            PATTINO PER CATENA SULLA TESTA
                                                                                            PATTINO PER CATENA SULLA TESTA Genuine Maserati Part - New (to order)
                                                                                            # 008
                                                                                            MPN: 5 405 709
                                                                                            SCREW
                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                            # 009
                                                                                            MPN: 5 405 693
                                                                                            BUSH
                                                                                            BUSH Genuine Maserati Part - New (to order)
                                                                                            # 010
                                                                                            MPN: 5 405 692

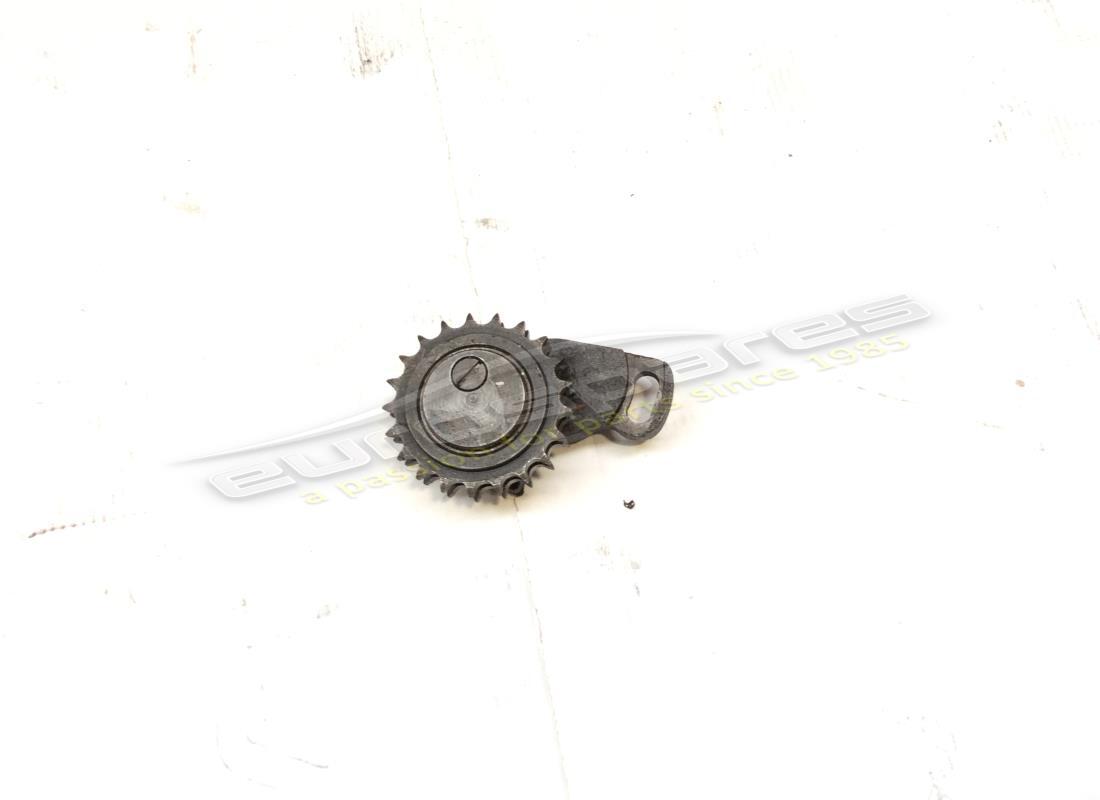

                                                                                            PIGNONE PER TENDICATENA COMPLETO
                                                                                            PIGNONE PER TENDICATENA COMPLETO Genuine Maserati Part - New (to order)
                                                                                            # 011
                                                                                            MPN: 5 421 042
                                                                                            PIVOT
                                                                                            PIVOT Genuine Maserati Part - New (to order)
                                                                                            # 012
                                                                                            MPN: 5 405 684
                                                                                            CATENA DOPPIA SUPERIORE
                                                                                            from £191.30
                                                                                            from £191.30
                                                                                            TIMING CHAIN Genuine Maserati Part - New (to order)
                                                                                            TIMING CHAIN Eurospares Approved Part - New In stock
                                                                                            # 012
                                                                                            MPN: 54056890
                                                                                            TIMING CHAINS KIT
                                                                                            TIMING CHAINS KIT Genuine Maserati Part - New (to order)
                                                                                            # 013
                                                                                            MPN: 5 405 708
                                                                                            BUSSOLA SUL SUPPORTO TENDICATENA
                                                                                            BUSSOLA SUL SUPPORTO TENDICATENA Genuine Maserati Part - New (to order)
                                                                                            # 014
                                                                                            MPN: 5 421 108
                                                                                            SUPPORT
                                                                                            from £126.00
                                                                                            from £126.00
                                                                                            SUPPORT Genuine Maserati Part - New (to order)
                                                                                            SUPPORT Genuine Maserati Part - Used In stock
                                                                                            With no 14/13/10/9
                                                                                            # 015
                                                                                            MPN: 5405705
                                                                                            RUBBER Ø 12,37 X 17,67 X 2,65 FOR CHAIN ​​TENSIONER ON THE HEAD
                                                                                            from £0.74
                                                                                            from £0.74
                                                                                            RUBBER TIP Genuine Maserati Part - New (to order)
                                                                                            PLUG Genuine Ferrari Part - New (to order)
                                                                                            # 016
                                                                                            MPN: 5 405 707
                                                                                            NUT
                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                            # 017
                                                                                            MPN: 5 405 706
                                                                                            GASKET OR SEAL
                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                            # 018
                                                                                            MPN: 5 405 689
                                                                                            PATTINO PER CATENA SUL COPERCHIO TESTA
                                                                                            PATTINO PER CATENA SUL COPERCHIO TESTA Genuine Maserati Part - New (to order)
                                                                                            # 019
                                                                                            MPN: ZD 9464 00011
                                                                                            Vilte Ø 5 X 0,8 X 12 per detto
                                                                                            Vilte Ø 5 X 0,8 X 12 per detto Genuine Maserati Part - New (to order)
                                                                                            # 020
                                                                                            MPN: 5 405 699
                                                                                            SCREW
                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                            # 021
                                                                                            MPN: ZD 9236 300 U
                                                                                            WASHER
                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                            # 022
                                                                                            MPN: 5405690
                                                                                            PATTINO PER CATENA SUL BASAMENTO
                                                                                            from £4.47
                                                                                            from £4.47
                                                                                            PAD Genuine Maserati Part - New (to order)
                                                                                            KIT Genuine Ferrari Part - New (to order)
                                                                                            # 023
                                                                                            MPN: 5 423 424
                                                                                            GIUNTO PER CATENA DISTRIBUZIONE
                                                                                            GIUNTO PER CATENA DISTRIBUZIONE Genuine Maserati Part - New (to order)
                                                                                            # 024
                                                                                            MPN: 5 405 698
                                                                                            Ghiera sull'albero distribuzione
                                                                                            Ghiera sull'albero distribuzione Genuine Maserati Part - New (to order)
                                                                                            # 025
                                                                                            MPN: 5 405 697
                                                                                            GHIERA DENTATA TRAINO ALBERO DISTRIBUZIONE
                                                                                            GHIERA DENTATA TRAINO ALBERO DISTRIBUZIONE Genuine Maserati Part - New (to order)
                                                                                            # 026
                                                                                            MPN: 5 405 696
                                                                                            INGRANAGGIO TRAINO ALBERO DISTRIBUZIONE
                                                                                            INGRANAGGIO TRAINO ALBERO DISTRIBUZIONE Genuine Maserati Part - New (to order)
                                                                                            # 027
                                                                                            MPN: 5 405 683
                                                                                            CATENA DOPPIA INFERIORE
                                                                                            from £173.92
                                                                                            from £173.92
                                                                                            CATENA DOPPIA INFERIORE Genuine Maserati Part - New (to order)
                                                                                            TIMING CHAIN Eurospares Approved Part - New In stock
                                                                                            # 028
                                                                                            MPN: 5405710

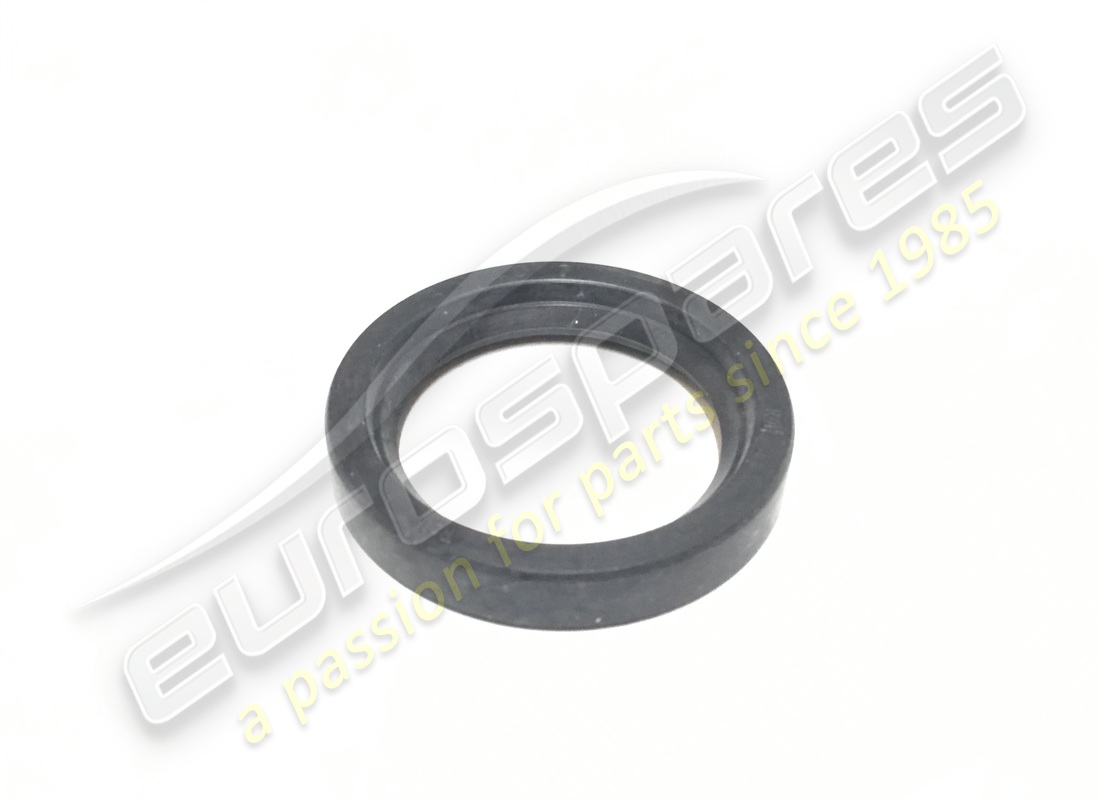

                                                                                            SEALING RING
                                                                                            from £11.03
                                                                                            from £11.03
                                                                                            GASKET Genuine Maserati Part - New In stock
                                                                                            OIL SEAL Genuine Ferrari Part - New (to order)
                                                                                            # 029
                                                                                            MPN: ZD 9368 100 U
                                                                                            BOLT
                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                            # 030
                                                                                            MPN: ZD 9236 300 U
                                                                                            WASHER
                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                            # 031
                                                                                            MPN: 5405686
                                                                                            PATTINO PER CATENA INFERIORE
                                                                                            from £17.02
                                                                                            from £17.02
                                                                                            PAD Genuine Maserati Part - New (to order)
                                                                                            KIT Genuine Ferrari Part - New (to order)
                                                                                            # 032
                                                                                            MPN: 5 405 266
                                                                                            LINGUETTA PER ALBERO CENTRALE COMANDO DISTRIBUZIONE
                                                                                            LINGUETTA PER ALBERO CENTRALE COMANDO DISTRIBUZIONE Genuine Maserati Part - New (to order)
                                                                                            # 033
                                                                                            MPN: 5 405 714
                                                                                            BOLT
                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                            # 034
                                                                                            MPN: 5 405 712
                                                                                            BUSSOLA PER PATTINO TENDICATENA
                                                                                            BUSSOLA PER PATTINO TENDICATENA Genuine Maserati Part - New (to order)
                                                                                            # 035
                                                                                            MPN: 5426216
                                                                                            PATTINO PER TENDICATENA AUTOMATICO «RENOLD»
                                                                                            from £7.40
                                                                                            from £7.40
                                                                                            Maserati PART 5426216 Genuine Maserati Part - New (to order)
                                                                                            PLUG CAP Genuine Ferrari Part - New (to order)
                                                                                            # 036
                                                                                            MPN: 5426217
                                                                                            TENDICATENA «RENOLD»
                                                                                            from £15.04
                                                                                            from £15.04
                                                                                            Maserati PART 5426217 Genuine Maserati Part - New (to order)
                                                                                            LEAD SET Genuine Ferrari Part - New (to order)
                                                                                            # 038
                                                                                            MPN: 5 405 726
                                                                                            BICCHIERINO COMANDO VALVOLA
                                                                                            BICCHIERINO COMANDO VALVOLA Genuine Maserati Part - New (to order)
                                                                                            # 039
                                                                                            MPN: 5 402 894
                                                                                            PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3,5 A 4 MM. CON VARIAZIONE DI 0,025 IN 0,025MM
                                                                                            PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3,5 A 4 MM. CON VARIAZIONE DI 0,025 IN 0,025MM Genuine Maserati Part - New (to order)
                                                                                            # 039
                                                                                            MPN: 5 402 913
                                                                                            PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3,5 A 4 MM. CON VARIAZIONE DI 0,025 IN 0,025MM
                                                                                            PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3,5 A 4 MM. CON VARIAZIONE DI 0,025 IN 0,025MM Genuine Maserati Part - New (to order)
                                                                                            # 039
                                                                                            MPN: 5 405 818
                                                                                            PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3 A 3,5 MM. CON VARIAZIONE DI 0,025 IN 0,025MM
                                                                                            PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3 A 3,5 MM. CON VARIAZIONE DI 0,025 IN 0,025MM Genuine Maserati Part - New (to order)
                                                                                            # 039
                                                                                            MPN: 5405798
                                                                                            PASTIGLIA PER REGOLAZIONE GIOCO VALVOLA, NUMERAZIONE PROGRESSIVA DA LA 3 A 3,5 MM. CON VARIAZIONE DI 0,025 IN 0,025MM
                                                                                            from £1.66
                                                                                            from £1.66
                                                                                            PAD Genuine Maserati Part - New (to order)
                                                                                            ADJUSTING PAD Genuine Ferrari Part - New (to order)
                                                                                            # 040
                                                                                            MPN: 5 405 734
                                                                                            SEMICONI PER VALVOLE
                                                                                            SEMICONI PER VALVOLE Genuine Maserati Part - New (to order)
                                                                                            # 041
                                                                                            MPN: 5 434 450
                                                                                            PIATTELLO SUPERIORE PER MOLLA VALVOLA
                                                                                            PIATTELLO SUPERIORE PER MOLLA VALVOLA Genuine Maserati Part - New (to order)
                                                                                            # 042
                                                                                            MPN: 5 434 449
                                                                                            SPRING
                                                                                            Supersession
                                                                                            Supersession
                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                            # 043
                                                                                            MPN: 5 432 608
                                                                                            PIATTELLO INFERIORE PER MOLLA VALVOLA
                                                                                            PIATTELLO INFERIORE PER MOLLA VALVOLA Genuine Maserati Part - New (to order)
                                                                                            # 044
                                                                                            MPN: 5412026
                                                                                            VALVE STEM SEAL FOR INLET VALVE
                                                                                            from £6.30
                                                                                            from £6.30
                                                                                            VALVE Genuine Maserati Part - New In stock
                                                                                            VALVE OIL SEAL Genuine Ferrari Part - New (to order)
                                                                                            # 045
                                                                                            MPN: 5405729
                                                                                            VALVOLA DI SCARICO
                                                                                            from £50.40
                                                                                            from £50.40

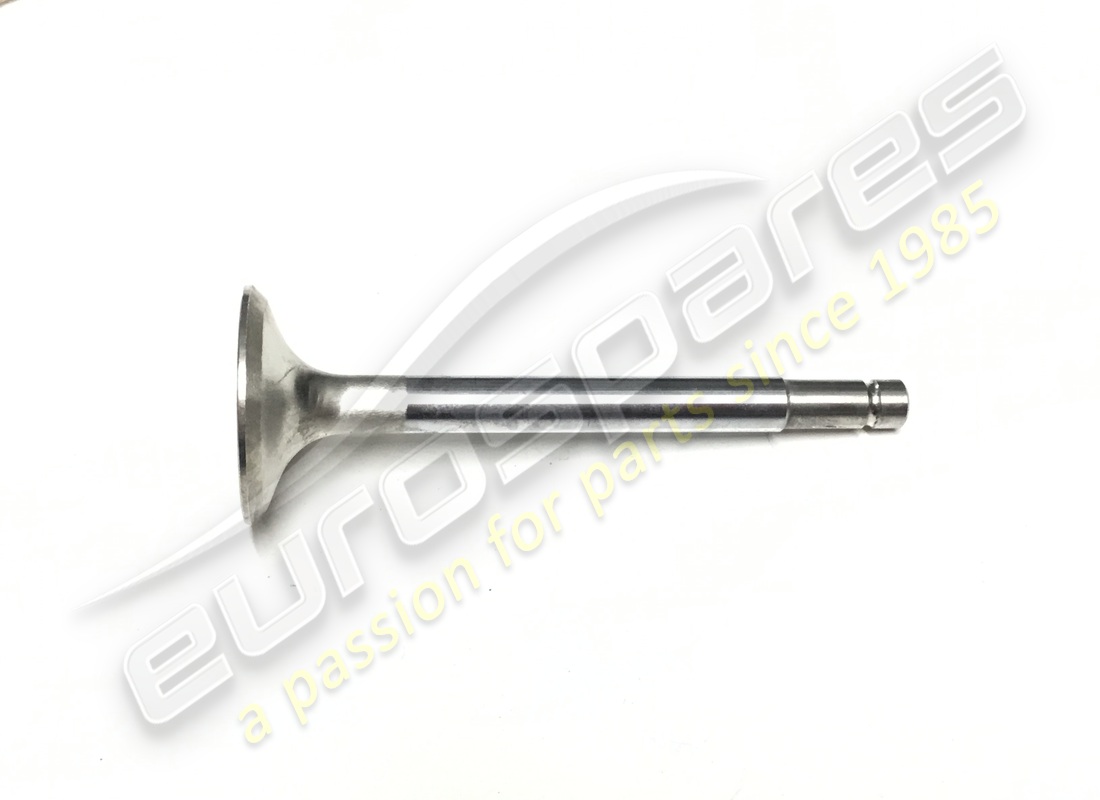

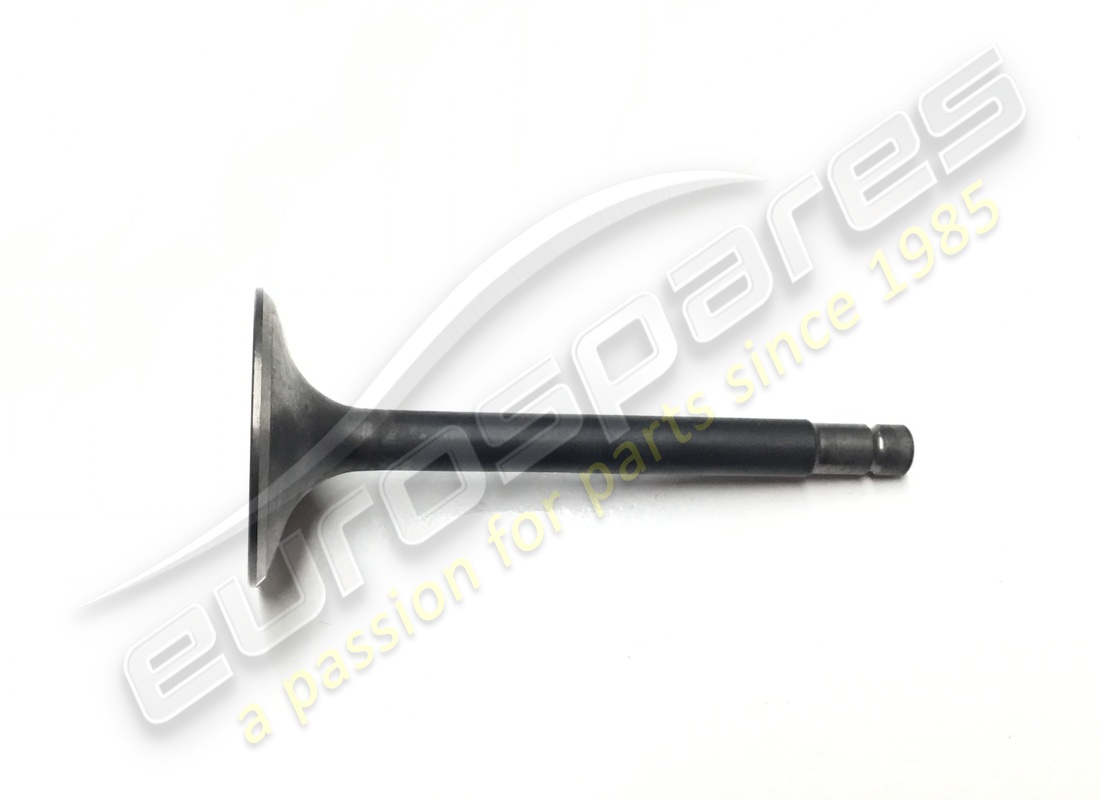

                                                                                            EXHAUST VALVE Genuine Maserati Part - New In stock
                                                                                            # 045
                                                                                            MPN: MD82385
                                                                                            EXHAUST VALVE SS TYPE
                                                                                            VALID FOR SS ENGINES
                                                                                            from £51.98
                                                                                            from £51.98
                                                                                            EXHAUST VALVE SS TYPE Genuine Maserati Part - New (to order)
                                                                                            SS EXHAUST VALVE Eurospares Approved Part - New In stock
                                                                                            # 046
                                                                                            MPN: 5405728
                                                                                            VALVOLA DI ASPIRAZIONE
                                                                                            from £8.83
                                                                                            from £8.83

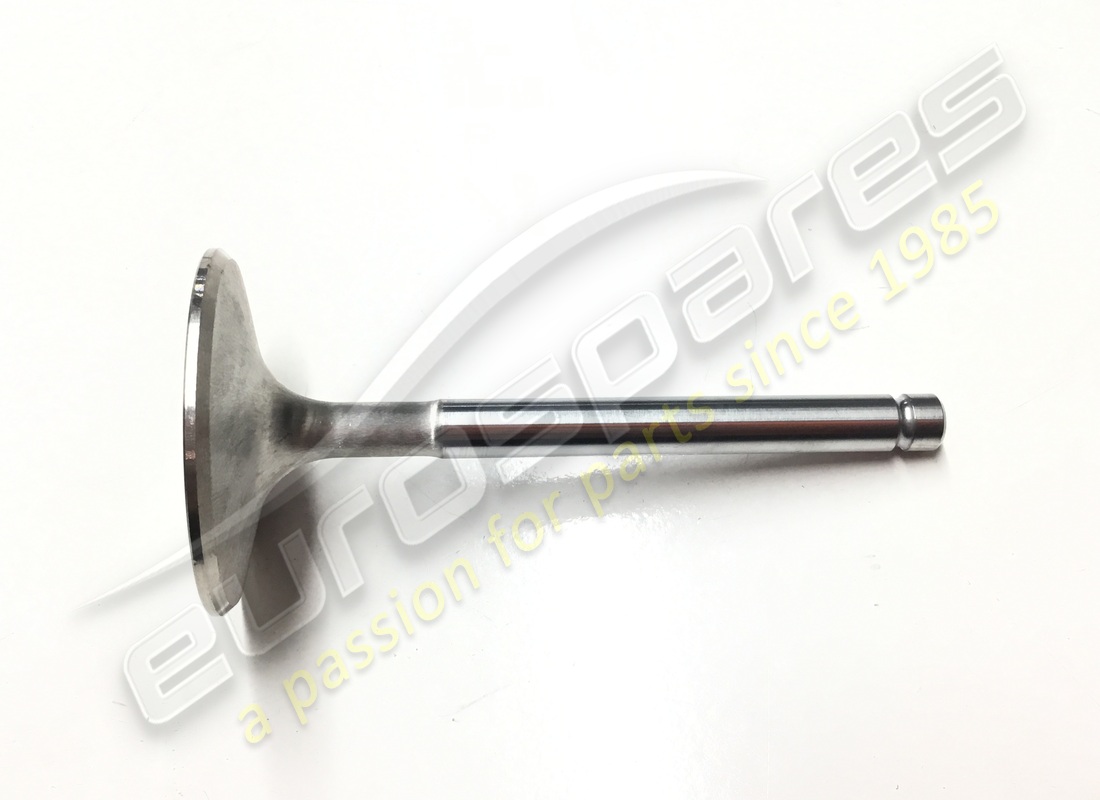

                                                                                            INTAKE VALVE Genuine Maserati Part - New (to order)
                                                                                            Eurospares PART 5405728 Eurospares Approved Part - New In stock
                                                                                            # 046
                                                                                            MPN: MD71055
                                                                                            INLET VALVE SS TYPE
                                                                                            VALID FOR SS ENGINES
                                                                                            from £50.93
                                                                                            from £50.93
                                                                                            INLET VALVE SS TYPE Genuine Maserati Part - New (to order)
                                                                                            SS INLET VALVE Eurospares Approved Part - New In stock
                                                                                            # 047
                                                                                            MPN: 5 405 704
                                                                                            TAPPO PER ALBERO CENTRALE COMANDO DISTRIBUZIONE
                                                                                            TAPPO PER ALBERO CENTRALE COMANDO DISTRIBUZIONE Genuine Maserati Part - New (to order)
                                                                                            # 048
                                                                                            MPN: 5 422 844
                                                                                            TAPPO CHIUSURA FORO ALLOGGIAMENTO TENDICATENA
                                                                                            TAPPO CHIUSURA FORO ALLOGGIAMENTO TENDICATENA Genuine Maserati Part - New (to order)
