maserati merak 3.0 oil pump and filter parts diagram

005 - oil pump and filter

Maserati Merak 3.0 Oil Pump and Filter Parts Diagram

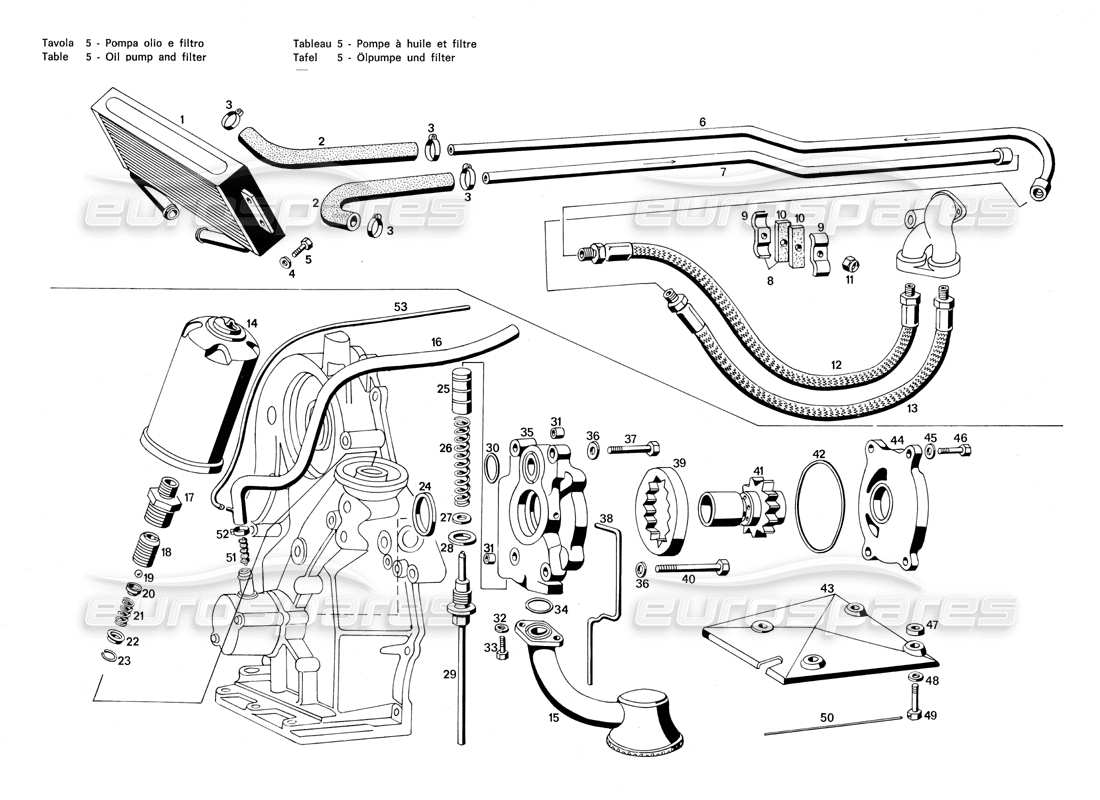

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 122 CS 77229
                                                                                                            RADIATORE PER RAFFREDDAMENTO OLIO MOTORE
                                                                                                            # 002
                                                                                                            MPN: MN 76991
                                                                                                            Manicotto Ø 20 X 300 collegamento Tubi intermedi at radiatore olio
                                                                                                            # 003
                                                                                                            MPN: FRN37827
                                                                                                            CLAMP Ø 25 X 35 FIXING THE SLEEVE TO THE INTERMEDIATE Tubi
                                                                                                            # 004
                                                                                                            MPN: RNT 6701,1
                                                                                                            WASHER
                                                                                                            # 006
                                                                                                            MPN: 122 CS 77051
                                                                                                            COMPLESSIVO TUBO INTERMEDIO SUPERIORE MANDATA OLIO AT RADIA,TORE (MONTATO FINO AT TELAIO N. 186)
                                                                                                            # 006
                                                                                                            MPN: 122 CS 79678
                                                                                                            COMPLESSIVO TUBO INTERMEDIO SUPERIORE MANDATA OLIO AT RADIATORE (MONTATO DAL TELAIO N. 188 IN POI)
                                                                                                            # 007
                                                                                                            MPN: 122 CS 77050
                                                                                                            COMPLESSIVO TUBO INTERMEDIO INFERIORE RITORNO OLIO DAL RADIATORE (MONTATO FINO AT TELAIO N. 186)
                                                                                                            # 007
                                                                                                            MPN: 122 CS 79677
                                                                                                            COMPLESSIVO TUBO INTERMEDIO INFERIORE RITORNO OLIO DAL RADIATORE (MONTATO DAL TELAIO N. 188 IN POI)
                                                                                                            # 008
                                                                                                            MPN: 122 CS 77162
                                                                                                            SUPPORT BRACKET ASSEMBLY Tubi INTERMEDIATE
                                                                                                            # 009
                                                                                                            MPN: 122 CS 77163
                                                                                                            BRACKET / SUPPORT
                                                                                                            # 010
                                                                                                            MPN: 122 CS 77164
                                                                                                            ISOLAMENTO IN FELTRO PER STAFFA
                                                                                                            # 011
                                                                                                            MPN: DNT 47047
                                                                                                            NUT
                                                                                                            # 012
                                                                                                            MPN: 122 CS 77347
                                                                                                            FLEXIBLE PIPE
                                                                                                            from £355.94
                                                                                                            from £355.94
                                                                                                            # 013
                                                                                                            MPN: 122 CS 77346
                                                                                                            FLEXIBLE PIPE
                                                                                                            # 014
                                                                                                            MPN: ML78049

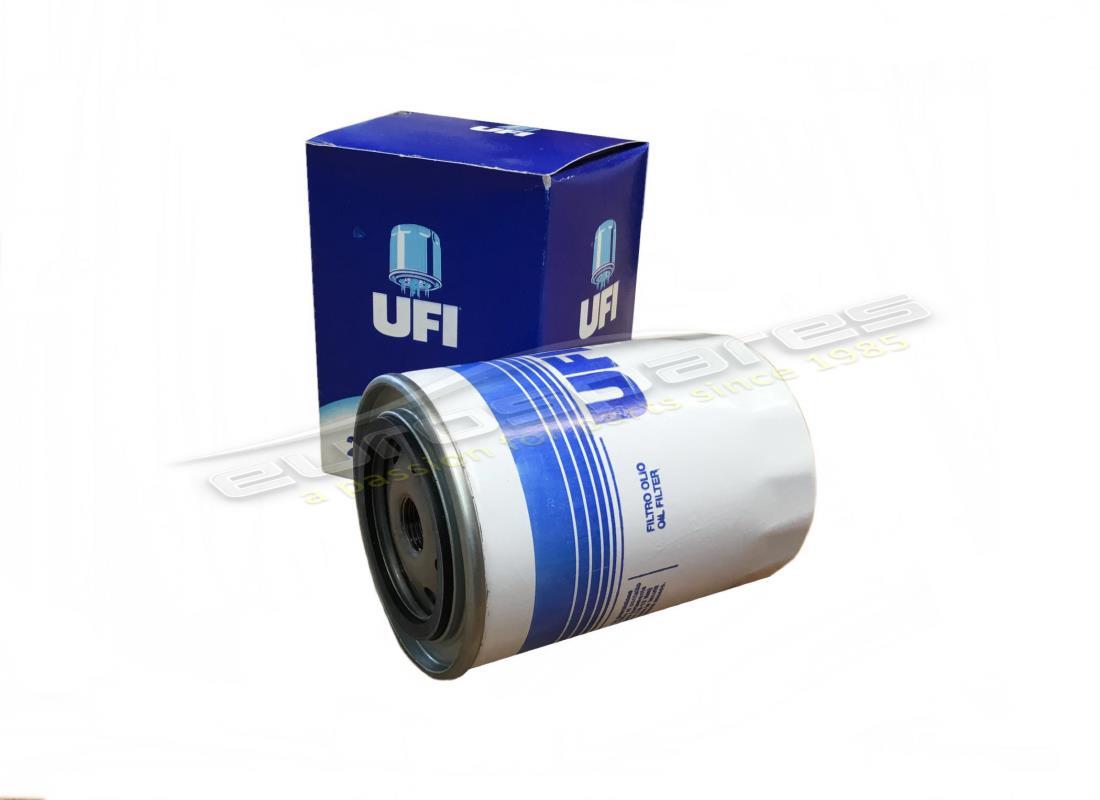

                                                                                                            OIL FILTER
                                                                                                            from £30.98
                                                                                                            from £30.98
                                                                                                            # 015
                                                                                                            MPN: 114.5030 MB 79001
                                                                                                            PESCANTE POMPA OLIO
                                                                                                            from £126.00
                                                                                                            from £126.00
                                                                                                            # 016
                                                                                                            MPN: 5 423 094
                                                                                                            TUBO IN GUAINA DAL SOFFIANTE AT FILTRO ARIA
                                                                                                            # 017
                                                                                                            MPN: 5 406 243
                                                                                                            PIVOT
                                                                                                            # 018
                                                                                                            MPN: 5 406 231
                                                                                                            CORPO VALVOLINA REGOLAZIONE PRESSIONE OLIO
                                                                                                            # 019
                                                                                                            MPN: 5 406 232
                                                                                                            SFERA1PER VALVOLINA PRESSIONE OLIO
                                                                                                            # 020
                                                                                                            MPN: 5 406 233
                                                                                                            ALLOGGIAMENTO PER SFERA VALVOLINA PRESSIONE OLIO
                                                                                                            # 021
                                                                                                            MPN: 5 406 234
                                                                                                            MOLIA PER VALVOLINA PRESSIONE OLIO
                                                                                                            # 022
                                                                                                            MPN: 5 406 235
                                                                                                            SCODELLINO INFERIORE MOLLA VALVOLINA
                                                                                                            # 023
                                                                                                            MPN: 5 406 241
                                                                                                            RING
                                                                                                            # 024
                                                                                                            MPN: 5406228
                                                                                                            SEALING RING
                                                                                                            from £0.69
                                                                                                            from £0.69
                                                                                                            # 025
                                                                                                            MPN: 5 406 217
                                                                                                            VALVOLINA DI REGOLAZIONE PRESSIONE OLIO
                                                                                                            # 026
                                                                                                            MPN: 5 406 216
                                                                                                            MALLA PER VALVOLINA PRESSIONE OLIO
                                                                                                            # 027
                                                                                                            MPN: 5 406 921
                                                                                                            WASHER
                                                                                                            # 028
                                                                                                            MPN: 5 406 222
                                                                                                            GASKET OR SEAL
                                                                                                            # 029
                                                                                                            MPN: 5 406 218
                                                                                                            TAPPO CON PERNO DI GUIDA
                                                                                                            # 030
                                                                                                            MPN: 5405827
                                                                                                            RUBBER Ø 25 X 2,62 ON THE OIL PUMP BODY
                                                                                                            from £1.92
                                                                                                            from £1.92
                                                                                                            # 031
                                                                                                            MPN: 5 405 609
                                                                                                            Grano Ø 10 X6 per corpo pompa olio
                                                                                                            from £6.36
                                                                                                            from £6.36
                                                                                                            This part replaces part number GRN 56859
                                                                                                            # 032
                                                                                                            MPN: ZD 9236 300 U
                                                                                                            WASHER
                                                                                                            # 033
                                                                                                            MPN: ZD 9368 100
                                                                                                            BOLT
                                                                                                            # 034
                                                                                                            MPN: 5 406 167
                                                                                                            Gommino Ø 30 X 36 X 3 per pescante olio
                                                                                                            # 035
                                                                                                            MPN: 5 406 238
                                                                                                            CORPO POMPA OLIO COMPLETA
                                                                                                            from £236.25
                                                                                                            from £236.25
                                                                                                            # 036
                                                                                                            MPN: ZD 9254 100 U
                                                                                                            WASHER
                                                                                                            # 037
                                                                                                            MPN: ZD 9377 300 U
                                                                                                            BOLT
                                                                                                            # 038
                                                                                                            MPN: 5 406 240
                                                                                                            TUBO DI SCARICO SUL CORPO POMPA OLIO
                                                                                                            # 039
                                                                                                            MPN: 5 406 203
                                                                                                            INGRANAGGIO CONDOTTO POMPA OLIO
                                                                                                            # 040
                                                                                                            MPN: ZD 9377 900 W
                                                                                                            BOLT
                                                                                                            # 041
                                                                                                            MPN: 5 406 204
                                                                                                            INGRANAGGIO CONDUTTORE POMPA OLIO
                                                                                                            # 042
                                                                                                            MPN: 5406205
                                                                                                            RUBBER Ø 86,64 X 1,78 FOR OIL PUMP COVER
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            # 043
                                                                                                            MPN: 5 425 912
                                                                                                            PARATIA SUPERIORE PESCANTE OLIO
                                                                                                            # 044
                                                                                                            MPN: 5 406 239
                                                                                                            COVER
                                                                                                            # 045
                                                                                                            MPN: 5 406 223
                                                                                                            WASHER
                                                                                                            # 046
                                                                                                            MPN: ZD 9345 100 U
                                                                                                            BOLT
                                                                                                            # 047
                                                                                                            MPN: 5 425 909
                                                                                                            DISTANZIALE IN GOMMA PER PARATIA PESCANTE
                                                                                                            # 048
                                                                                                            MPN: ZD 9236 300 U
                                                                                                            WASHER
                                                                                                            # 049
                                                                                                            MPN: 5 425 910
                                                                                                            BOLT
                                                                                                            # 050
                                                                                                            MPN: 5 436 644
                                                                                                            FILO 0 250 FISSAGGIO PARATIA PESCANTE
                                                                                                            # 051
                                                                                                            MPN: 5 408 838
                                                                                                            RETINA SPEGNI FIAMMA PER SOFFIANTE
                                                                                                            # 052
                                                                                                            MPN: ZD 9614 039 U
                                                                                                            FASCETTA PER TUBO SOFFIANTE
                                                                                                            # 053
                                                                                                            MPN: 5 423 093
                                                                                                            TUBO IN PLASTICA PER TUBO SOFFIANTE
