006 - engine cooling

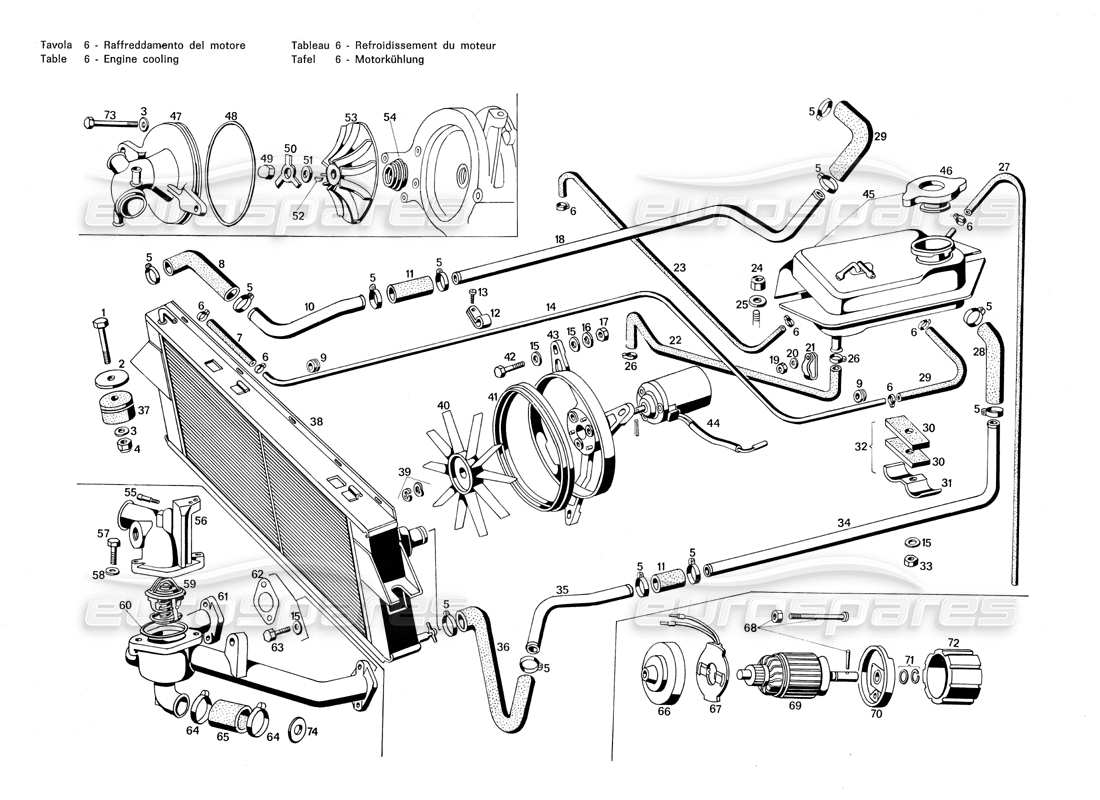

Maserati Merak 3.0 Engine Cooling Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: BNT/47014
BOLT
# 002
MPN: RN 76734
WASHER
# 003
MPN: RNT 55379
WASHER
# 004
MPN: DST 53397
NUT 8 X 1.25
This part replaces part number 53397
# 005
MPN: FRN 37832
CLAMP FOR FIXING THE RUBBER SLEEVE ON THE Tubi INTERMEDIATE
# 006
MPN: FRN 66995
FASCETTA Ø 7X 11 FISSAGGIO MANICOTTO AT TUBO DI RAME
Supersession
Supersession
# 007
MPN: MN 65943/1050
Manicotto Ø 6X 12 X 1050 dal radiatore al tubo di rame
# 008
MPN: 122 CR 76168
MANICOTTO IN GOMMA DAL RADIATORE AT TUBO MANDATA ACQUA AT MOTORE (DEX.)
# 010
MPN: 122 CR 77092
TUBO DESTRO RITARNO ACQUA DAL RADIATORE
# 011
MPN: MN 57231/0090
Sleeve Ø 40X49 between the Tubi radiator water delivery and return lines
# 012
MPN: FRN 44674
FASCETTA FISSAGGIO TUBO DI RAME
# 013
MPN: VAT 49513
SCREW
# 014
MPN: TRN 73689
TUBO IN RAME Ø 6X 3200 DAL RADIATORE AT SERBAT. DI SCARICO
# 015
MPN: RNT 6701,1
WASHER
# 016
MPN: RDI 2690
WASHER
# 017
MPN: DNT 47047
NUT
# 018
MPN: 122 CR 76165
TUBO RITORNO ACQUA DAL RADIATORE (FINO ALLA VETTURA N. 186)
# 018
MPN: 122 CR 79692
TUBO RITORNO ACQUA DAL RADIATORE (DALLA VETT, N. 188 IN POI)
# 019
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 020
MPN: RNT 35345
WASHER
# 021
MPN: FRN 64861
FASCETTA FISSAGGIO TUBO CARICAMENTO ACQUA AT RADIATORE
# 022
MPN: 122 CR 76242
TUBO IN GOMMA PER CARICAMENTO ACQUA AL RADIATORE
from £163.48
from £163.48
# 023
MPN: MN 65943/900
Manicotto Ø 6 X 12 X 900 collegamento serbatoio supplem
# 024
MPN: DNT. 47031
NUT 8 X 1.25
# 025
MPN: RNT 55379
WASHER
# 026
MPN: FRN 64861
FASCETTA FISSAGGIO TUBO CARICAMENTO RADIATORE ACQUA
# 027
MPN: TPN 56118
TUBO IN PLASTICA Ø 7 X 12X 800 PER SFIATO SERBATOIO SUPPL
# 028
MPN: 122 OR 76169
WATER INLET OUTLET SLEEVE FROM THE ENGINE TO THE INTERNAL Tubi
# 029
MPN: MN 65943/800
Manicotto Ø 6 X 12 X 800 collegamento tubo di rame at serbatoio supplementare
# 030
MPN: 122 CR 77168
FELT UNDER THE WATER SUPPORT BRACKET Tubi
# 031
MPN: 122 CR 77170
BRACKET / SUPPORT
# 032
MPN: 122 CR 77169
WATER SUPPORT BRACKET ASSEMBLY Tubi
# 033
MPN: DST 68045
NUT
# 034
MPN: 122 CR 76164
Tubo mandata acqua at radiatore (firm alla 186' vettura)
# 034
MPN: 122 CR 79691
TUBO MANDATA ACQUA AL RADIATORE (DALLA 188E VETTURA IN POI)
# 035
MPN: 122 CR 77091
TUBO MANDATA ACQUA AD RADIATORE SINISTRO
# 036
MPN: 122 CR 76166
MANICOTTO COLLEGAMENTO TUBO MANDATA ACQUA AT RADIATORE (SINIX.)
# 037
MPN: 5 406 284
SILENTBIOC PER RADIATORE ACQUA
from £34.78
from £34.78
# 038
MPN: 122 CR 76163
Radiatore acqua tp «CHAUSSON» completo di motorino convogliatore e ventole
from £939.75
from £939.75
# 038
MPN: BR77190
WATER RADIATOR
(suitable for cars with air cond.)
from £939.75
from £939.75
# 039
MPN: 5 414 714
FERMO E RONDELLA TENUTA VENTOLA MOTORINO VENTILATORE RADIATORE ACQUA
# 040
MPN: 5 406 309
VENTOLA A 10 PALE PER MOTORINO VENTILATORE
# 041
MPN: 5 414 713
GASKET OR SEAL
# 042
MPN: ZD 9368 500 U
BOLT
# 043
MPN: 5 414 712
SUPPORT
# 044
MPN: 5 415 427
MOTORINO VENTILATORE
from £519.75
from £519.75

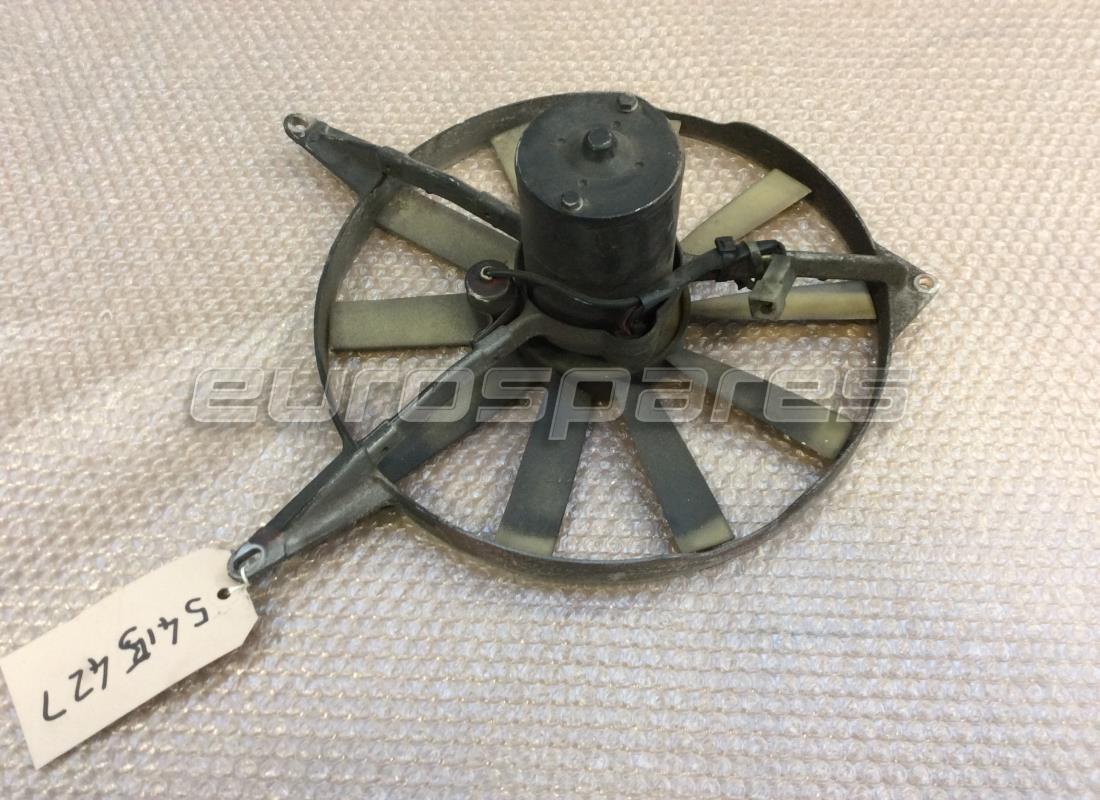

MOTORINO VENTILATORE Genuine Maserati Part - Used In stock
COMPLETE WITH FAN BLADE , SUPPORT AND MOTOR
COMPLETE WITH FAN BLADE , SUPPORT AND MOTOR
# 045
MPN: 5 406 272
SERBATOIO SUPPLEM. RPER CARICAMENTO ACQUA AT SERBATOIO
from £414.75
from £414.75
# 046
MPN: 5 412 346
TAPPO DI CHIUSURA PER SERBATOIO SUPPLEMENTARE
# 047
MPN: 5 406 262
COVER
# 048
MPN: 5406268
RUBBER Ø 123,4X130,46X3,53 ON THE WATER PUMP COVER
from £0.74
from £0.74
# 049
MPN: 5406263
NUT
from £0.62
from £0.62
# 050
MPN: 5406264
WASHER
from £1.17
from £1.17
# 051
MPN: 5406265
WASHER
from £0.82
from £0.82
# 052
MPN: 5 406 266
Linguetta Ø 3 X 5 per girante pampa acqua
# 053
MPN: 5406261
GIRANTE POMPA ACQUA
# 054
MPN: 5 406 267
SEALING RING
# 055
MPN: 5 406 287
UNION
# 056
MPN: 5 406 288
COVER
# 057
MPN: ZD 9346 400 W
BOLT
# 058
MPN: ZD 9248 200 W
WASHER
from £7.83
from £7.83
# 059
MPN: 5 406 285
TERMOSTATO
# 060
MPN: 5406286
RUBBER Ø 58,42 X 63,7 X 2,12 FOR THERMOSTAT RETAINING COVER
from £0.74
from £0.74
# 061

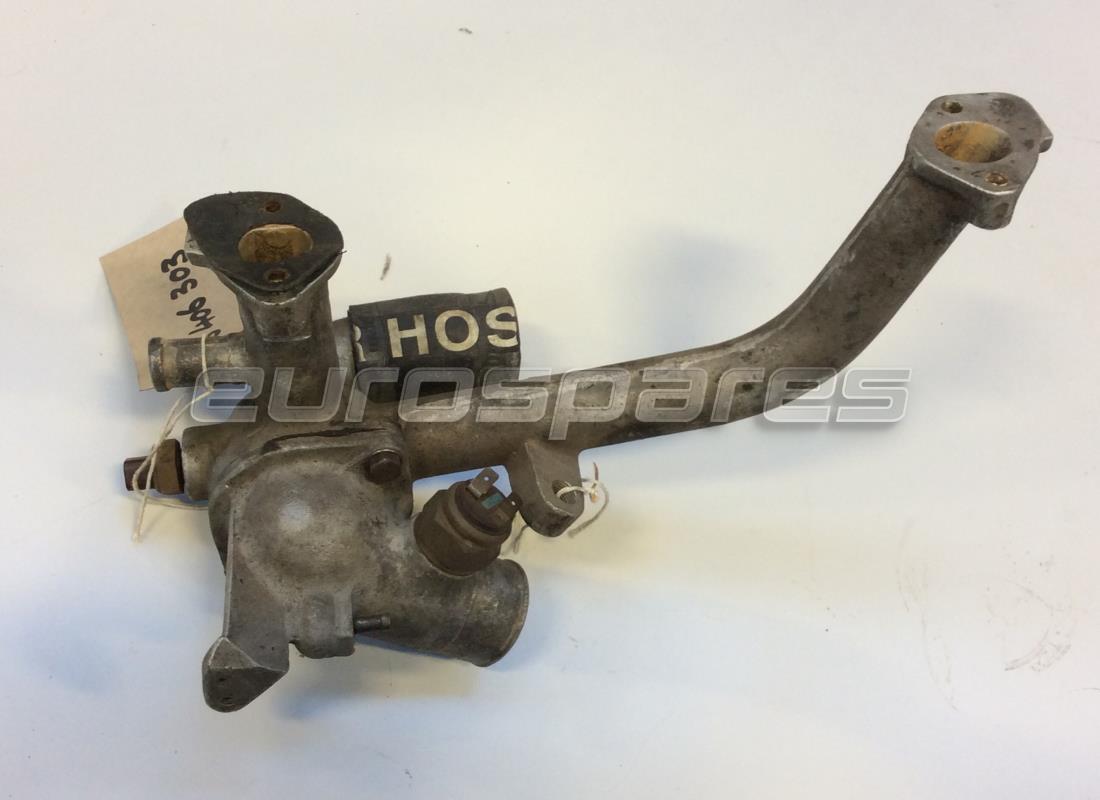

MPN: 5 406 303
CALLETTORE USCITA ACQUA DALLA TESTA
from £367.50
from £367.50
# 062
MPN: 5405618
GASKET OR SEAL
from £4.07
from £4.07
# 063
MPN: ZD 9368 300 W
BOLT
# 064
MPN: 614 039
FASCETTA FISSAGGIO MANICOTTO POMPA ACQUA . . .
# 065
MPN: 5 406 304
Manicotto Ø 35 X 43 X 55 dal tubo uscita acqua dalle teste alla pompa
# 066
MPN: 241 117
SUPPORT
# 067
MPN: 5 402 247
PORTASPAZZOLE CON SPAZZOLA
# 068
MPN: 5 402 248
Serie di pezzi
# 069
MPN: 5 402 245
INDOTTO
# 070
MPN: 5 402 246
SUPPORT
# 071
MPN: 5 414 714
Serie di pezzi
# 072
MPN: 5 406 313
GUAINA PER MOTORINO VENTILATORE
# 073
MPN: ZD 9378 700 W
BOLT
# 074
MPN: 114 5030 ML 80023
DIAFRAMMA SUL TUBO ENTRATA ACQUA AT BASAMENTO
