008 - air intake manifold and filter

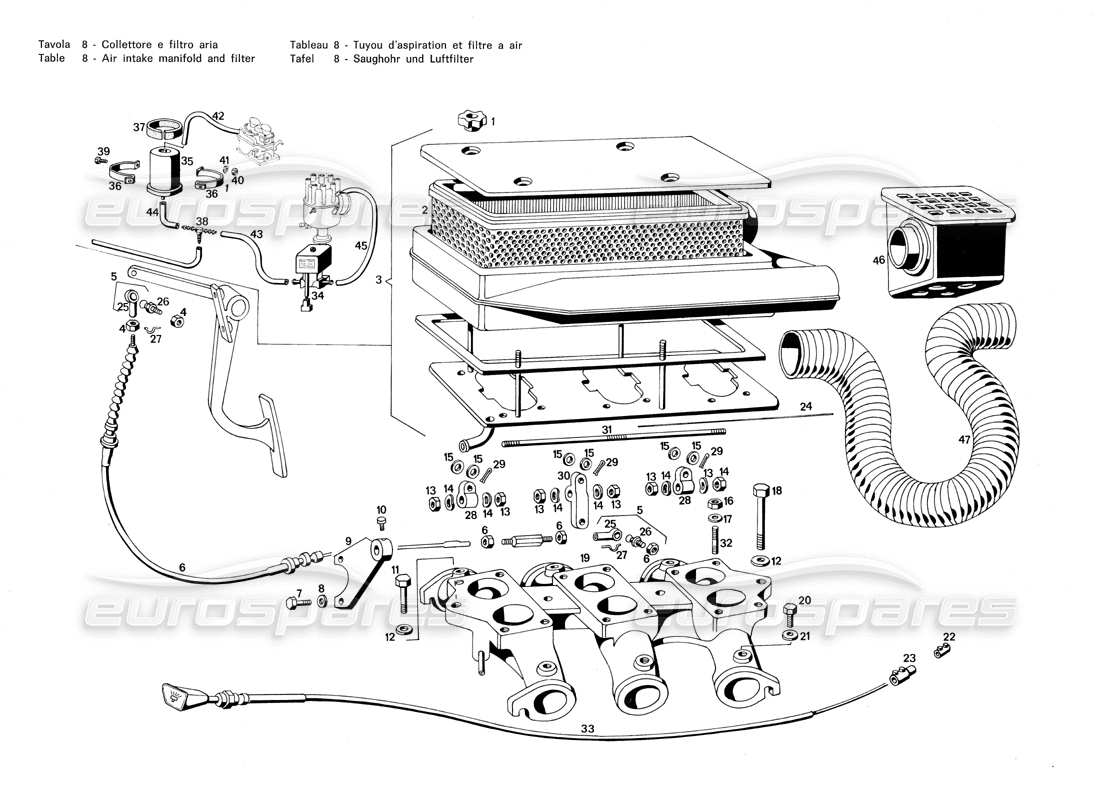

Maserati Merak 3.0 Air Intake Manifold and Filter Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 107 03 MC 72824
POMELLO PER FILTRO ARIA SUI CARBURATORI

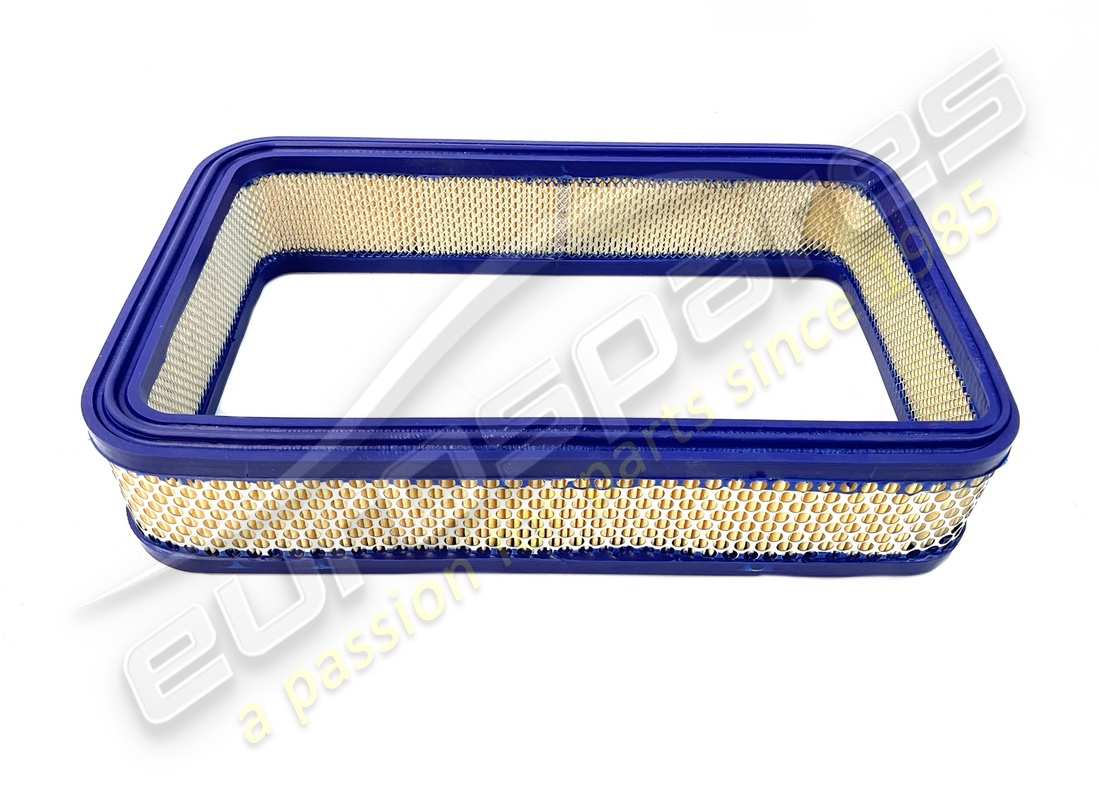

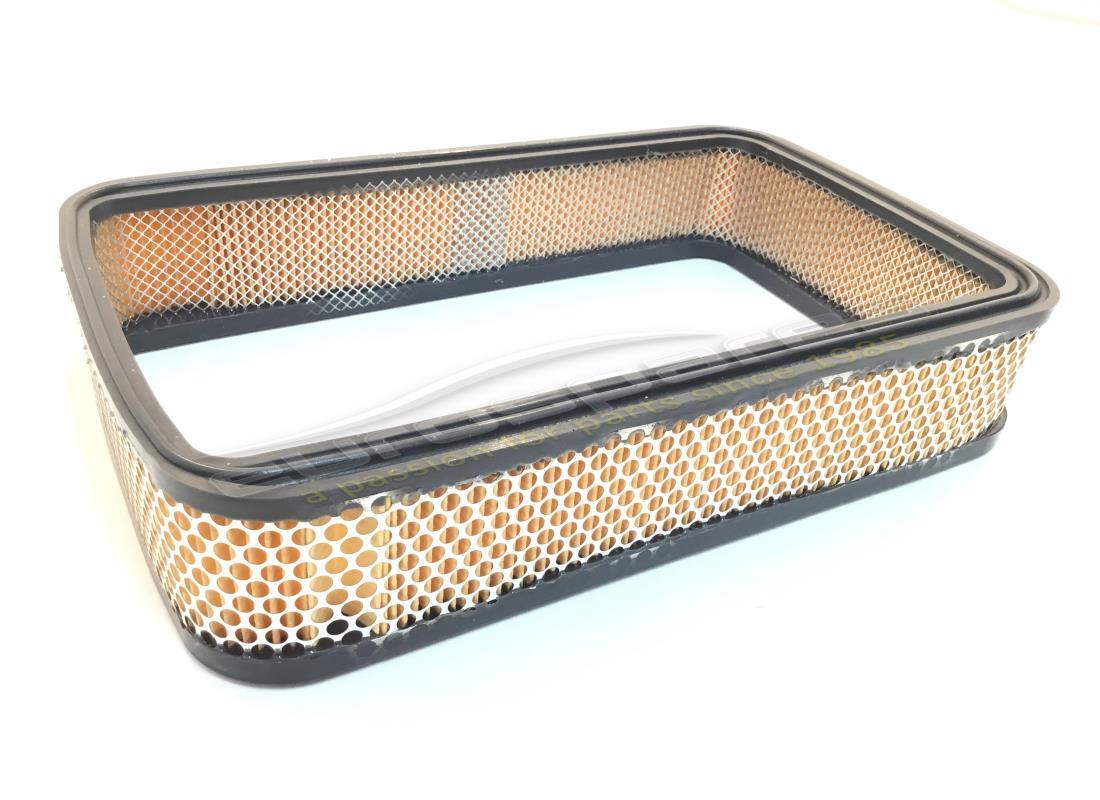

# 002
MPN: MC 78333
CARTUCCIA PER FILTRO ARIA
from £50.08
from £50.08
# 003
MPN: 114 5A MC 78357
Fi'ltro aria completo
# 004
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 005
MPN: C114/1 MC 66905
COMPLESSIVO CORPO E PERNO SFERICO
# 006
MPN: 117 FC 78408
CAVO COMANDO CARBURATORI COMPLETO
# 007
MPN: BNT/50460
BOLT
# 008
MPN: RNT 6701,1
WASHER
# 009
MPN: 122 MC 76204
FERMO GUAINA COMANDO ACCELERATORE
# 010
MPN: BNT 50309
BOLT
# 011
MPN: BNT 47475
BOLT
# 012
MPN: RNT 74163
WASHER
# 013
MPN: RNT 47047
NUT
# 014
MPN: RAT/45679
WASHER
# 015
MPN: RNT 69021
WASHER
This part replaces part number 69021
# 016
MPN: DN 66854
NUT 8 X 1.25
# 017
MPN: RN 51581
WASHER
# 018
MPN: BNT 66845
BOLT

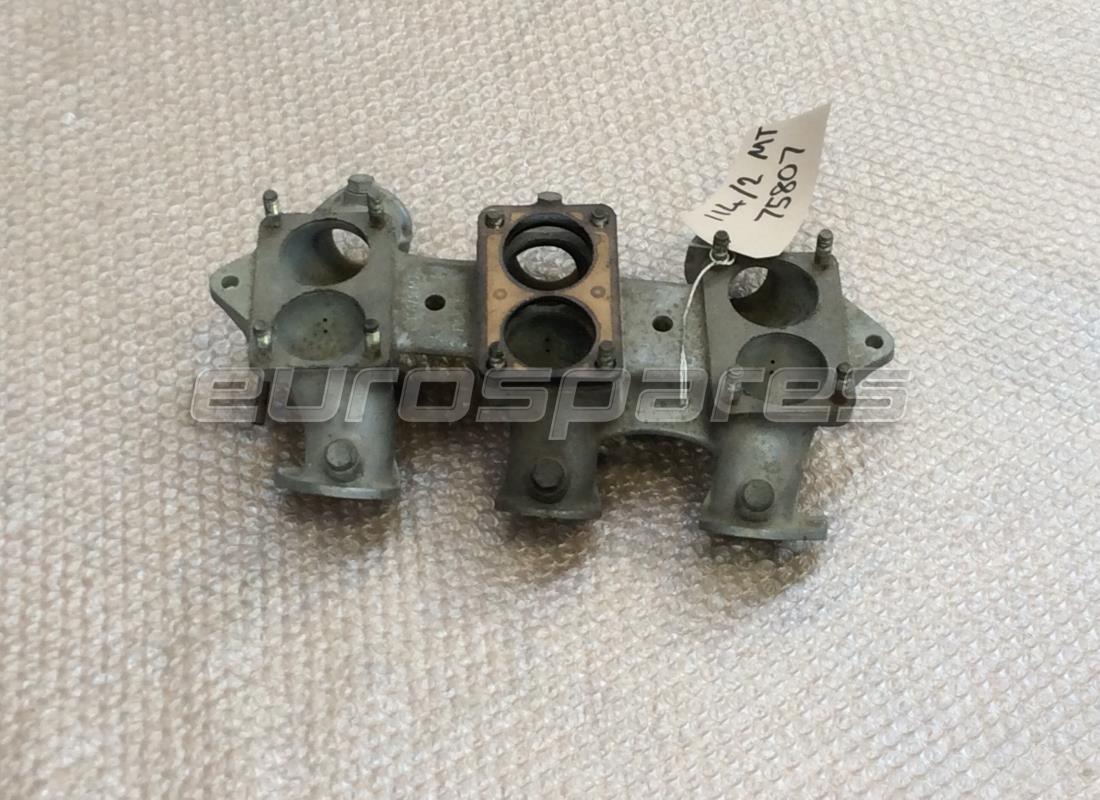

# 019
MPN: 114/2 MT 75807
Collettore d'aspirazione
from £834.75
from £834.75
# 019
MPN: 114/MT 161
COLLETTORE D ASPIRAZIONE COMPLETO DI PRIGIONIERI
from £2,094.75
from £2,094.75
# 020
MPN: BNT 67443
BOLT
# 021
MPN: GN 32001
GASKET OR SEAL
# 022
MPN: 107/3 MC 65829
NIPLES PER CAVO COMANDO STARTER
# 023
MPN: NPL 48847
NIPLES PER GUAINA COMANDO STARTER
# 024
MPN: FGN 57260
FILO D'ACCIAIO Ø 1,2 X 30 PER COMANDO STARTER
# 025
MPN: 5 405 928
CORPO PER SNODO ANGOLARE
# 026
MPN: 5 405 923
SPHERICAL PIVOT
# 027
MPN: 5 405 969
FERMO PER SNODO ANGOLARE
# 028
MPN: 5 405 939
LEVER
# 029
MPN: 5 405 932
Copiglia Ø 1,3 X 10 per detto
# 030
MPN: 5 405 947
LEVER
# 031
MPN: 5 405 946
ASTA DI COLLEGAMENTO PER CARBURATORI
# 032
MPN: 5 405 918
STUD
# 033
MPN: 5 401 680
TIRETTO COMANDO STARTER COMPLETO DI GUAINA E CAVO
# 034
MPN: 122 BV 80553
ELETTROVALVOLA PER DEPRESSIONE COMANDO SPINTEROGENO
# 035
MPN: 5 405 006
BOMBOLETTA PER DEPRESSIONE COMANDO SPINTEROGENO E FARFALLA
# 036
MPN: 5 405 008
FASCETTA DI FISSAGGIO PER BOMBOLETTA DEPRESSIONE
# 037
MPN: 5 405 007
COLLARE IN GOMMA PER SERBATOIO DEPRESSIONE
# 038
MPN: RMN 79500
UNION
# 039
MPN: BNT 61985
BOLT
# 040
MPN: DNT/62557
NUT
# 042
MPN: MN 79509
MANICOTTO Ø 3,5 X 6,5 DAL COLLETTORE ASPIRAZIONE ALLA BORNBOLA VUOTO CM. 60
# 043
MPN: MN 64444
MAINCOTTO Ø 8 X 14 FRA ELETTROVALVOLA E RACCORDI A MANINICOTTO CM. 5
# 044
MPN: MN 79509
MANICOTTO Ø 3,5 X 6,5 DALLA BOMBOLA VUOTO AT RACCORDO TREVIE CM.11
# 045
MPN: MN 79509
SLEEVE Ø 3,5 X 6,5 FROM THE HIGH SENSOR GENERATOR SOLENOID VALVE FITTING CM. 20
# 046
MPN: 122 BM 79757
SCATOLA PRESA ARIA CARBURATORI SINISTRA
from £191.30
from £191.30
# 046
MPN: 122 BM 79758
SCATOLA PRESA ARIA CARBURATORI DESTRA
from £191.30
from £191.30
# 047
MPN: TFC 79191
FLEXIBLE PIPE
