maserati merak 3.0 clutch parts diagram

010 - clutch

Maserati Merak 3.0 Clutch Parts Diagram

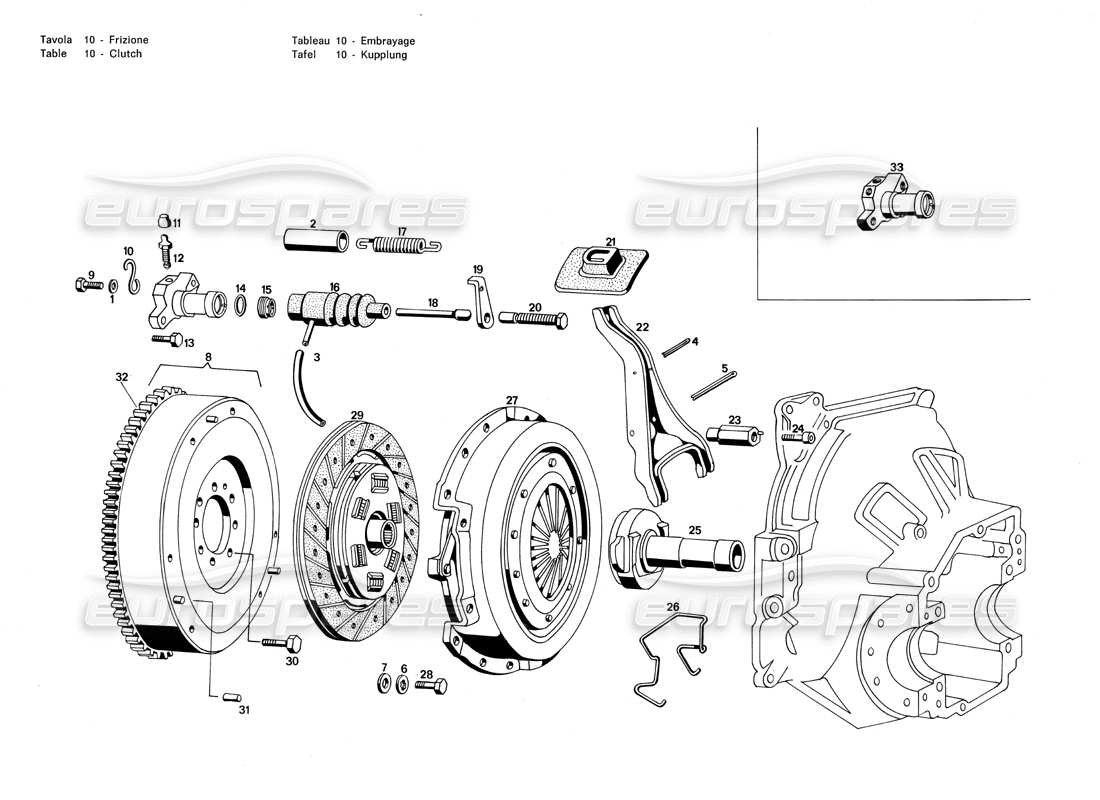

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 000
                                                                      MPN: AE4030K

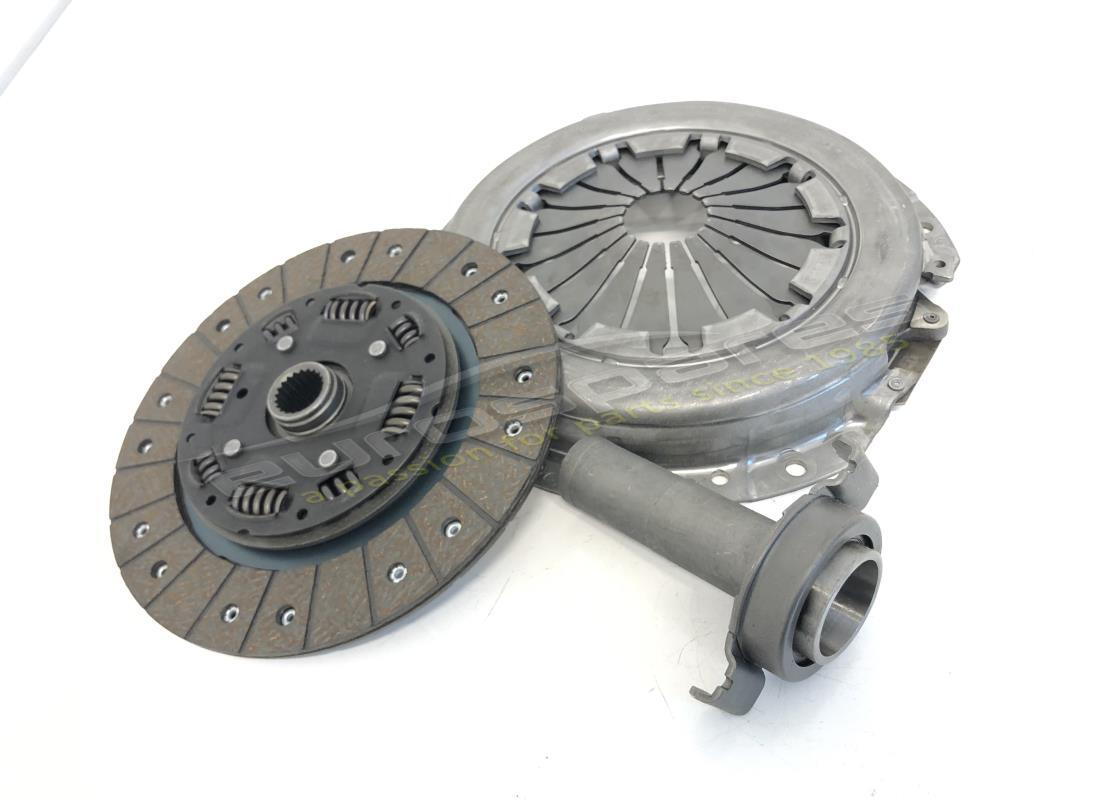

                                                                      CLUTCH KIT
                                                                      from £782.60
                                                                      from £782.60
                                                                      # 002
                                                                      MPN: TVN 47035/0. 100
                                                                      TUBO IN PLASTICA 0 18 X 0,100 SULLA MOLLA RICHIAMO LEVA FRIZIONE
                                                                      # 003
                                                                      MPN: TPN 73446/0. 350
                                                                      TUBO IN PLASTICA 0 2,4 X 5,7 X 350 PER SCARICO OLIO DALLA POMPA SECONDARIA
                                                                      # 004
                                                                      MPN: CN32502
                                                                      COPIGLIA 0 2 X 25 PER TENUTA PARAPOLVERE SULLA FORCELLA COMANDO FRIZIONE
                                                                      # 005
                                                                      MPN: CN 32723
                                                                      COPIGLIA 0 4 X 45 TENUTA FORCELLA FRIZIONE
                                                                      # 006
                                                                      MPN: RDI 32635
                                                                      RONDEILA DENTELLATA 0 8 PER FISSAGGIO COMPLESSIVO FRIZIONE
                                                                      # 008
                                                                      MPN: MN 76138

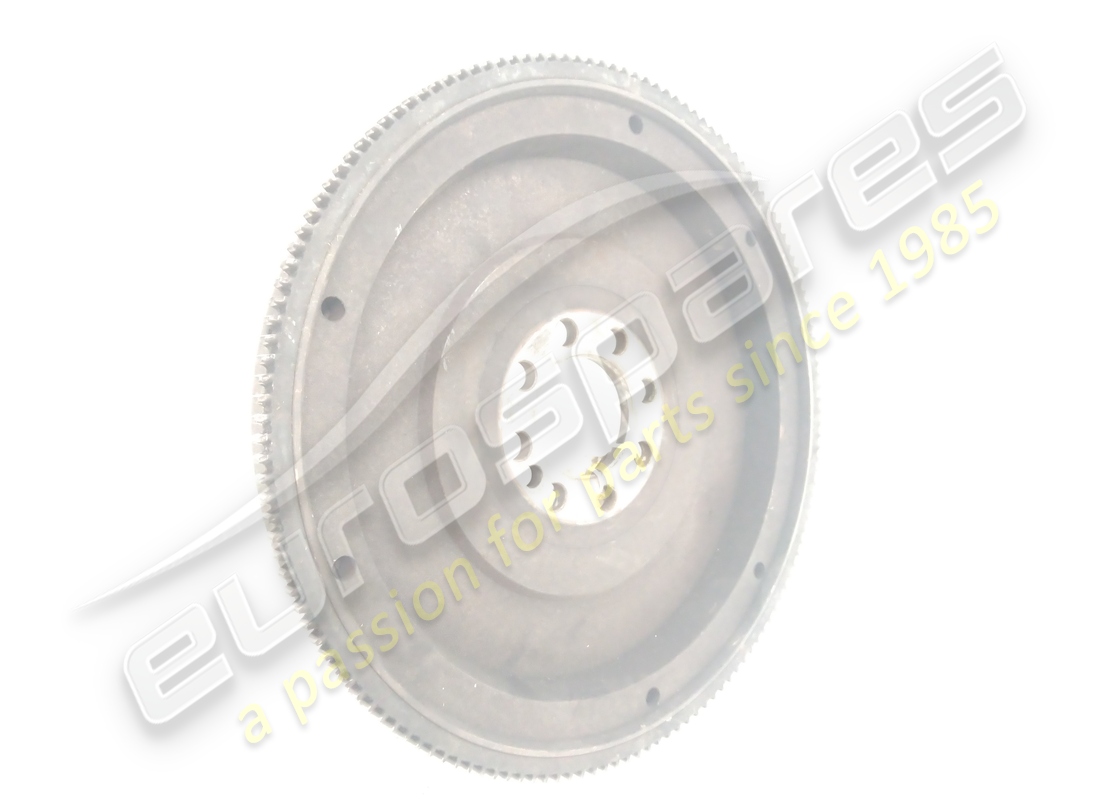

                                                                      VOLANO MOTORE COMPLETO DI CORONA
                                                                      from £1,181.25
                                                                      from £1,181.25
                                                                      # 009
                                                                      MPN: ZD 9345.030.XW
                                                                      BOLT
                                                                      # 010
                                                                      MPN: 5 411 223
                                                                      BRACKET / SUPPORT
                                                                      # 011
                                                                      MPN: 5416824
                                                                      CAPPUCCIO PARAPOLVERE
                                                                      from £0.74
                                                                      from £0.74
                                                                      # 012
                                                                      MPN: 5 407 030
                                                                      SCREW
                                                                      # 013
                                                                      MPN: ZD 371 900 U
                                                                      BOLT
                                                                      # 014
                                                                      MPN: ZD.9503.700 U
                                                                      GOMMINO 0 18,4 X 23,8 X 2,7 PER POMPA SECONDARIA FRIZIONE
                                                                      # 015
                                                                      MPN: 5 416 821
                                                                      Ghiera d'arresto per pompa secondaria frizione
                                                                      # 016
                                                                      MPN: 5405105
                                                                      CAPPUCCIO DI PROTEZIONE PER POMPA SECONDARIA FRIZIONE
                                                                      from £0.74
                                                                      from £0.74
                                                                      # 017
                                                                      MPN: 5 4063 34
                                                                      SPRING
                                                                      # 018
                                                                      MPN: 5416823
                                                                      PUNTALINO 'POMPA SECONDARIA FRIZIONE
                                                                      from £1.17
                                                                      from £1.17
                                                                      # 019
                                                                      MPN: 5 411 224
                                                                      BRACKET / SUPPORT
                                                                      # 020
                                                                      MPN: 5 406 354
                                                                      SCREW
                                                                      # 021
                                                                      MPN: 5417794
                                                                      PARAPOLVERE IN GOMMA SULLA FORCELLA COMANDO FRIZIONE
                                                                      from £1.17
                                                                      from £1.17
                                                                      # 022
                                                                      MPN: 5 411 219
                                                                      SELECTOR FORK CLUTCH
                                                                      # 023
                                                                      MPN: 5 411 221
                                                                      Rotula d'articolazione per forcella
                                                                      # 024
                                                                      MPN: ZC 9621 360 W
                                                                      SCREW
                                                                      # 025
                                                                      MPN: 5411213

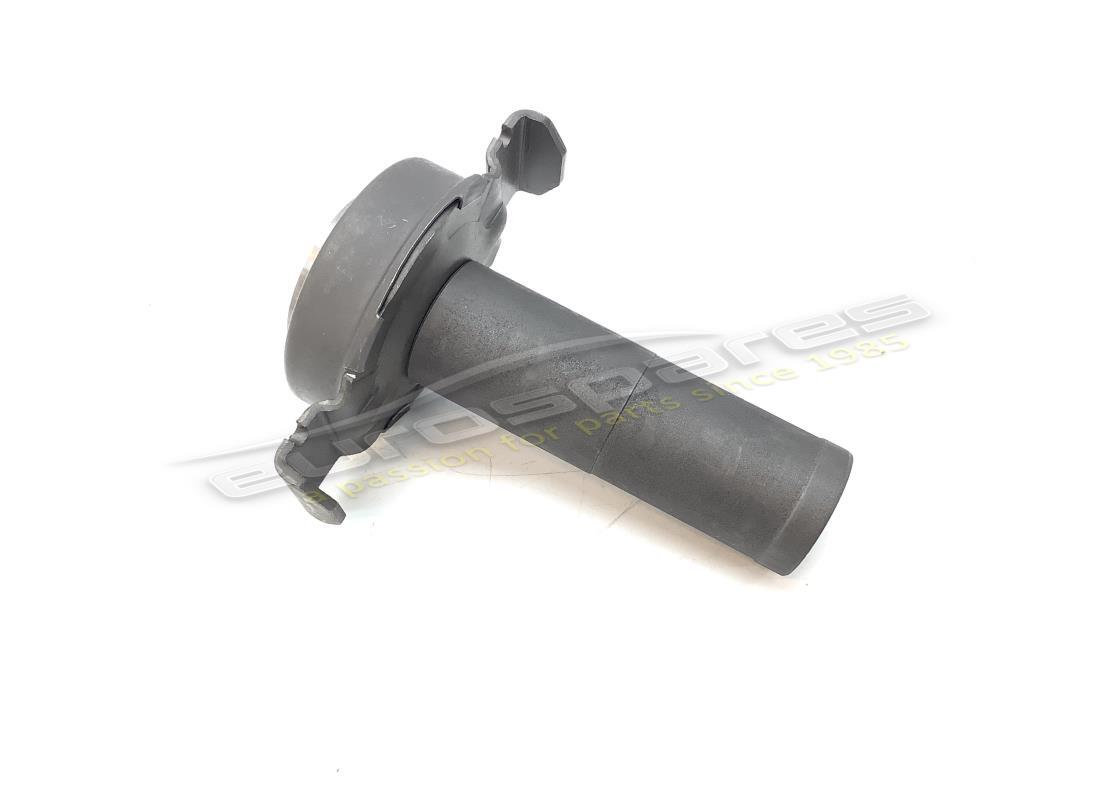

                                                                      CLUTCH RELEASE BEARING
                                                                      from £183.75
                                                                      from £183.75
                                                                      # 026
                                                                      MPN: 5 411 216
                                                                      SPRING
                                                                      # 027
                                                                      MPN: 122 TF 79715
                                                                      Complessivo frizione (dal motore 0.78 in poi - Aprile '73)
                                                                      # 027
                                                                      MPN: 5 406 315
                                                                      COMPLESSIVO FRIZIONE (FINO AL MOTORE 0.77)
                                                                      # 028
                                                                      MPN: ZD 9379 500 W
                                                                      BOLT
                                                                      # 029
                                                                      MPN: 5 406 316
                                                                      Disco frizione «FERODO»
                                                                      # 030
                                                                      MPN: 5 405 677
                                                                      BOLT
                                                                      # 031
                                                                      MPN: 9617 091 U
                                                                      GRANO DI CENTRAGGIO PER COMPLESSIVO FRIZIONE
                                                                      # 032
                                                                      MPN: 5 407 219
                                                                      Corona d'avviamento
                                                                      # 033
                                                                      MPN: 5 409 640
                                                                      PAMPA COMANDO FRIZIONE SULLA CAMPANA COMPLETA
