012 - Transmission Gears

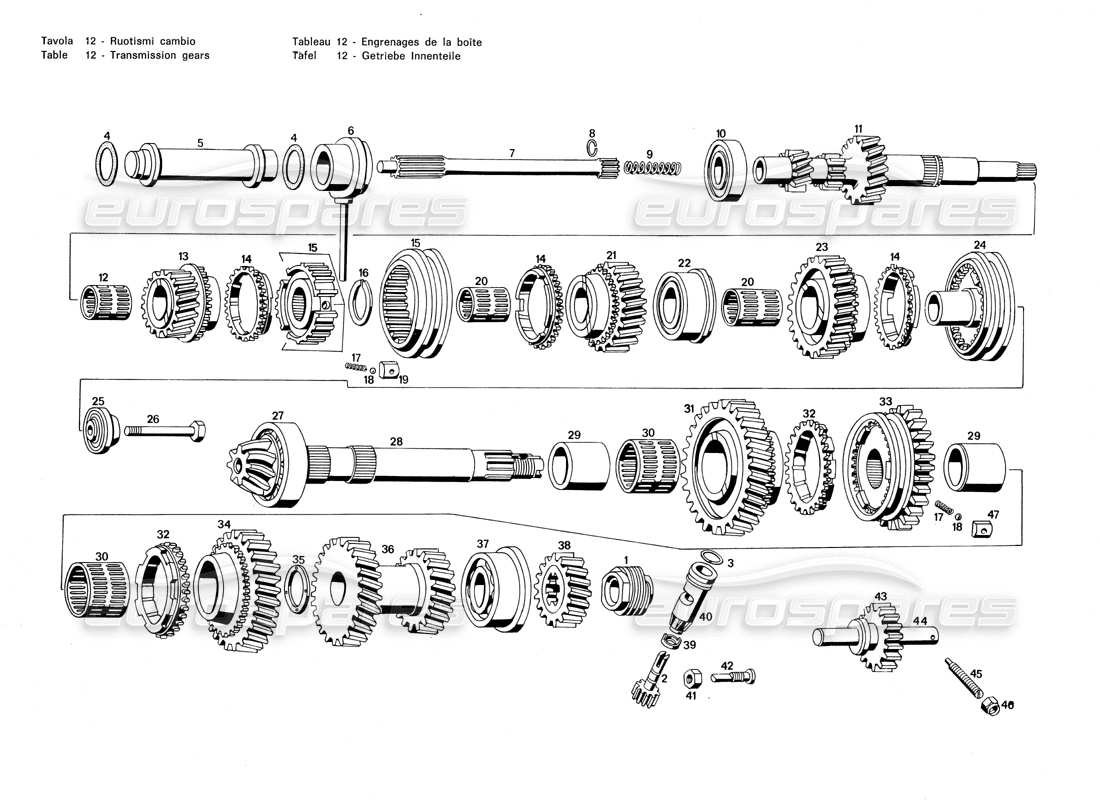

Maserati Merak 3.0 Transmission Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Key
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 122 TC 79045
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 001
                                                                                                  MPN: 122 TC 79810
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 001
                                                                                                  MPN: TC 79810
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 002
                                                                                                  MPN: 122 TC 79046
                                                                                                  PIGNONCINO CONTA KM. Z = 17 (MONTATO FINO ALLA VETTURA N )
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  Genuine Maserati Part (no longer available to order)
                                                                                                  # 002
                                                                                                  MPN: 122 TC 79307
                                                                                                  PIGNONCINO COSTA KM. Z = 18 (MONTATO DALLA VETTURA N IN POI)
                                                                                                  PIGNONCINO COSTA KM. Z = 18 (MONTATO DALLA VETTURA N IN POI) Genuine Maserati Part - New (to order)
                                                                                                  # 002
                                                                                                  MPN: 122 TC 79809
                                                                                                  PIGNONCINO CONTA KM. Z = 17 MONTATO DALLA VETTURA N IN POI)
                                                                                                  from £387.39
                                                                                                  from £387.39
                                                                                                  This part replaces part number 122 TC 79046
                                                                                                  PIGNONCINO CONTA KM. Z = 17 MONTATO DALLA VETTURA N IN POI) Genuine Maserati Part - New (to order)
                                                                                                  # 003
                                                                                                  MPN: GOM 60029
                                                                                                  RUBBER Ø 117,17 X 20,73 X 1,78 FOR OIL SEAL ON THE KM COUNTING PINION GUIDE
                                                                                                  RUBBER Ø 117,17 X 20,73 X 1,78 FOR OIL SEAL ON THE KM COUNTING PINION GUIDE Genuine Maserati Part - New (to order)
                                                                                                  # 004
                                                                                                  MPN: 5 411 397
                                                                                                  Gommino Ø 33 X 45 X 6 sul tubo collegamento flangia recupero olio
                                                                                                  Gommino Ø 33 X 45 X 6 sul tubo collegamento flangia recupero olio Genuine Maserati Part - New (to order)
                                                                                                  # 005
                                                                                                  MPN: 5 403 372
                                                                                                  TUBO SUPPORTO REGGISPINTA
                                                                                                  TUBO SUPPORTO REGGISPINTA Genuine Maserati Part - New (to order)
                                                                                                  # 006
                                                                                                  MPN: 5 411 396
                                                                                                  FLANGIA PER RITORNO OLIO CON TUBETTO
                                                                                                  FLANGIA PER RITORNO OLIO CON TUBETTO Genuine Maserati Part - New (to order)
                                                                                                  # 007
                                                                                                  MPN: 5 406 369
                                                                                                  ALBERO SEMPRE IN PRESA L = 2333
                                                                                                  ALBERO SEMPRE IN PRESA L = 2333 Genuine Maserati Part - New (to order)
                                                                                                  # 008
                                                                                                  MPN: ZC 9620 543 U
                                                                                                  Segmento d'arresto per tenuta albero sempre in presa all'albero prim.
                                                                                                  STOP SEGMENT FOR SHAFT SEAL ALWAYS IN GRIP WITH THE FIRST SHAFT Genuine Maserati Part - New (to order)
                                                                                                  # 009
                                                                                                  MPN: 5 411 393
                                                                                                  SPRING
                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                  # 010
                                                                                                  MPN: ZC 9520 159 U
                                                                                                  Cuscinetto a sfera 0 30 X 62 X 16 sull'albero primario
                                                                                                  Cuscinetto a sfera 0 30 X 62 X 16 sull'albero primario Genuine Maserati Part - New (to order)
                                                                                                  # 011
                                                                                                  MPN: 5403371
                                                                                                  ALBERO PRIMARIO Z=17=Z=13=Z= 13
                                                                                                  ALBERO PRIMARIO Z=17=Z=13=Z= 13 Genuine Maserati Part - New (to order)
                                                                                                  # 012
                                                                                                  MPN: ZC 9620 218 U
                                                                                                  GABBIA A RULLINI 0 36 X39 X 37 PER INGRANAGGIO 3 , VELOCITA
                                                                                                  GABBIA A RULLINI 0 36 X39 X 37 PER INGRANAGGIO 3 , VELOCITA Genuine Maserati Part - New (to order)
                                                                                                  # 013
                                                                                                  MPN: 5 411 400
                                                                                                  INGRANAGGIO CONDUTTORE PER 3, VELOCITA Z = 28
                                                                                                  INGRANAGGIO CONDUTTORE PER 3, VELOCITA Z = 28 Genuine Maserati Part - New (to order)
                                                                                                  # 014
                                                                                                  MPN: 5 411 557
                                                                                                  RING
                                                                                                  RING Genuine Maserati Part - New (to order)
                                                                                                  # 015
                                                                                                  MPN: 5 406 44,9
                                                                                                  SINCRONIZZATORE COMPLETO PER 3, E 4, VELOCITA
                                                                                                  SINCRONIZZATORE COMPLETO PER 3, E 4, VELOCITA Genuine Maserati Part - New (to order)
                                                                                                  # 016
                                                                                                  MPN: 411 5138
                                                                                                  Segmento d'arresto Ø 36 X 2,20
                                                                                                  Segmento d'arresto Ø 36 X 2,20 Genuine Maserati Part - New (to order)
                                                                                                  # 016
                                                                                                  MPN: 5 411 559
                                                                                                  Segmento d'arresto Ø 36 X2,25
                                                                                                  Segmento d'arresto Ø 36 X2,25 Genuine Maserati Part - New (to order)
                                                                                                  # 016
                                                                                                  MPN: 5 411 570
                                                                                                  Segmento d'arresto Ø 36 X 2,30
                                                                                                  Segmento d'arresto Ø 36 X 2,30 Genuine Maserati Part - New (to order)
                                                                                                  # 016
                                                                                                  MPN: 5 411 571
                                                                                                  Segmento d'arresto Ø 36 X 2,35
                                                                                                  Segmento d'arresto Ø 36 X 2,35 Genuine Maserati Part - New (to order)
                                                                                                  # 017
                                                                                                  MPN: 5 411 5160
                                                                                                  SPRING
                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                  # 018
                                                                                                  MPN: ZD 9271 300 U
                                                                                                  Sfera per sincronizzatore Ø 6,315
                                                                                                  Sfera per sincronizzatore Ø 6,315 Genuine Maserati Part - New (to order)
                                                                                                  # 019
                                                                                                  MPN: 5 411 533
                                                                                                  Levetta d'innesto per sincronizzatore h = 5,4
                                                                                                  Levetta d'innesto per sincronizzatore h = 5,4 Genuine Maserati Part - New (to order)
                                                                                                  # 019
                                                                                                  MPN: 5 411 561
                                                                                                  Levetta d'innesto per sincronizzatore h = 5,2
                                                                                                  Levetta d'innesto per sincronizzatore h = 5,2 Genuine Maserati Part - New (to order)
                                                                                                  # 019
                                                                                                  MPN: 5 411 562
                                                                                                  Levetta d'innesto per sincronizzatore h - 5,3
                                                                                                  Levetta d'innesto per sincronizzatore h - 5,3 Genuine Maserati Part - New (to order)
                                                                                                  # 020
                                                                                                  MPN: ZC 9620 174 U
                                                                                                  Gabbia a rullini Ø 32 X 35X 36 per ingranaggio 4 , e 5 a velocita
                                                                                                  Gabbia a rullini Ø 32 X 35X 36 per ingranaggio 4 , e 5 a velocita Genuine Maserati Part - New (to order)
                                                                                                  # 021
                                                                                                  MPN: 5 4016 374
                                                                                                  Ingranaggio conduttore per 4'a veolcita Z = 33
                                                                                                  Ingranaggio conduttore per 4'a veolcita Z = 33 Genuine Maserati Part - New (to order)
                                                                                                  # 022
                                                                                                  MPN: 26203319
                                                                                                  CUSCINETTO 66 X 71,4 X 27 PER ALBERO PRIMARIO LATO POSTERIORE
                                                                                                  CUSCINETTO 66 X 71,4 X 27 PER ALBERO PRIMARIO LATO POSTERIORE Genuine Maserati Part - New (to order)
                                                                                                  # 023
                                                                                                  MPN: 5 406 375
                                                                                                  INGRAN. CONDUTT. PER 5,A VEL. Z = 37 (MONTATO FINO ALLA VETT. N )
                                                                                                  INGRAN. CONDUTT. PER 5,A VEL. Z = 37 (MONTATO FINO ALLA VETT. N ) Genuine Maserati Part - New (to order)
                                                                                                  # 024
                                                                                                  MPN: 5 406 440
                                                                                                  SINCRONIZZATORE COMPLETO PER 5 , VELOCITA
                                                                                                  SINCRONIZZATORE COMPLETO PER 5 , VELOCITA Genuine Maserati Part - New (to order)
                                                                                                  # 025
                                                                                                  MPN: 5 41,2 310
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 026
                                                                                                  MPN: 5 412 314
                                                                                                  BOLT
                                                                                                  BOLT Genuine Maserati Part - New (to order)
                                                                                                  # 027
                                                                                                  MPN: ZC 9620 335 U
                                                                                                  Cuscinetto a rulli Ø 41 X810X 116 sul pignone
                                                                                                  Cuscinetto a rulli Ø 41 X810X 116 sul pignone Genuine Maserati Part - New (to order)
                                                                                                  # 029
                                                                                                  MPN: 5 411 422
                                                                                                  BUSH
                                                                                                  BUSH Genuine Maserati Part - New (to order)
                                                                                                  # 030
                                                                                                  MPN: ZC 9620 172 U
                                                                                                  Gabbia a rullini Ø 45 X49 X 316 per ingranaggio 1 a e 2 , velocita
                                                                                                  Gabbia a rullini Ø 45 X49 X 316 per ingranaggio 1 a e 2 , velocita Genuine Maserati Part - New (to order)
                                                                                                  # 031
                                                                                                  MPN: 5 406 373
                                                                                                  INGRANAGGIO CONDUTTORE PER ,1A VELOCITA Z = 318
                                                                                                  INGRANAGGIO CONDUTTORE PER ,1A VELOCITA Z = 318 Genuine Maserati Part - New (to order)
                                                                                                  # 032
                                                                                                  MPN: 5411565
                                                                                                  RING
                                                                                                  from £13.61
                                                                                                  from £13.61
                                                                                                  SYNCHRONIZER Genuine Maserati Part - New (to order)
                                                                                                  SYNCHRONISER Genuine Ferrari Part - New (to order)
                                                                                                  # 033
                                                                                                  MPN: 5 411 564
                                                                                                  SINCRONIZZATORE PER 1A E 2A VELOCITA COMPLETO
                                                                                                  SINCRONIZZATORE PER 1A E 2A VELOCITA COMPLETO Genuine Maserati Part - New (to order)
                                                                                                  # 034
                                                                                                  MPN: 5411412
                                                                                                  INGRANAGGIO CONDUTTORE PER 2, VELOCITA Z = 33
                                                                                                  from £7.44
                                                                                                  from £7.44
                                                                                                  GEAR Genuine Maserati Part - New (to order)
                                                                                                  OIL FEED Genuine Ferrari Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 15 411 423
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 424
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 425
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 426
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 427
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 428
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 429
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 430
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 431
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 432
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 433
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 434
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 435
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 436
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 437
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 438
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 439
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 440
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 441
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 442
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 443
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 444
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 445
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 446
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 447
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 448
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 449
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 450
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 451
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 452
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 453
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 454
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 455
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 456
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 457
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 458
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 459
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 5 411 460
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 036
                                                                                                  MPN: 5 411 413
                                                                                                  Treno interm. ingranaggio/condotto 3A e 4A velocita Z = 32 + Z = 37
                                                                                                  Treno interm. ingranaggio/condotto 3A e 4A velocita Z = 32 + Z = 37 Genuine Maserati Part - New (to order)
                                                                                                  # 037
                                                                                                  MPN: 9620 333 U
                                                                                                  Cuscinetto a doppio contatto obliquo Ø 30 X 76 X 82,515 X 33,40 Sull'albero secondario,
                                                                                                  Cuscinetto a doppio contatto obliquo Ø 30 X 76 X 82,515 X 33,40 Sull'albero secondario, Genuine Maserati Part - New (to order)
                                                                                                  # 038
                                                                                                  MPN: 5 406 3176
                                                                                                  INGRAN. CONDOTTO PER 5A VEL. Z = 23 (MONTATE FINO ALLA VETT N)
                                                                                                  INGRAN. CONDOTTO PER 5A VEL. Z = 23 (MONTATE FINO ALLA VETT N) Genuine Maserati Part - New (to order)
                                                                                                  # 039
                                                                                                  MPN: 5 411 679
                                                                                                  SCODELLINO PER GUIDA PIGNONE CONTA KM
                                                                                                  from £130.44
                                                                                                  from £130.44
                                                                                                  SCODELLINO PER GUIDA PIGNONE CONTA KM Genuine Maserati Part - New (to order)
                                                                                                  # 040
                                                                                                  MPN: 5 411 680
                                                                                                  GUIDA PER PIGNONE CONTA KM
                                                                                                  GUIDA PER PIGNONE CONTA KM Genuine Maserati Part - New (to order)
                                                                                                  # 041
                                                                                                  MPN: 95124 400 W
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 042
                                                                                                  MPN: 5 406 463
                                                                                                  Reggispinta Ø 10X 1,50 per pignone conta Km
                                                                                                  Reggispinta Ø 10X 1,50 per pignone conta Km Genuine Maserati Part - New (to order)
                                                                                                  # 043
                                                                                                  MPN: 5 411 416
                                                                                                  INGRANAGGIO RETROMARCIA Z =
                                                                                                  INGRANAGGIO RETROMARCIA Z = Genuine Maserati Part - New (to order)
                                                                                                  # 044
                                                                                                  MPN: 5 411 398
                                                                                                  Alberino Ø ,16 X 113,5 per ingranaggio retromarcia
                                                                                                  Alberino Ø ,16 X 113,5 per ingranaggio retromarcia Genuine Maserati Part - New (to order)
                                                                                                  # 045
                                                                                                  MPN: 5 411 399
                                                                                                  Ø 7 X 1 X 31 per fissaggio alberino RM
                                                                                                  Ø 7 X 1 X 31 per fissaggio alberino RM Genuine Maserati Part - New (to order)
                                                                                                  # 046
                                                                                                  MPN: ZD 9524 100 W
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 047
                                                                                                  MPN: 5 406 446
                                                                                                  Levetta d'innesto per sincronizzatore Ø 5,2 X 12,45
                                                                                                  Levetta d'innesto per sincronizzatore Ø 5,2 X 12,45 Genuine Maserati Part - New (to order)
                                                                                                  # 047
                                                                                                  MPN: 5 406 447
                                                                                                  Levetta d'innesto per sincronizzatore Ø 5,3 X 12,45
                                                                                                  Levetta d'innesto per sincronizzatore Ø 5,4 x 12,45 Genuine Maserati Part - New (to order)
                                                                                                  # 047
                                                                                                  MPN: 5 406 447
                                                                                                  Levetta d'innesto per sincronizzatore Ø 5,4 x 12,45
                                                                                                  Levetta d'innesto per sincronizzatore Ø 5,4 x 12,45 Genuine Maserati Part - New (to order)
                                                                                                  # 048
                                                                                                  MPN: 122 TC 75916
                                                                                                  COMPLESSIVO CAMBIO CAMPANA DIFFERENZIALE COMPLETO FRENI
                                                                                                  COMPLESSIVO CAMBIO CAMPANA DIFFERENZIALE COMPLETO FRENI Genuine Maserati Part - New (to order)
