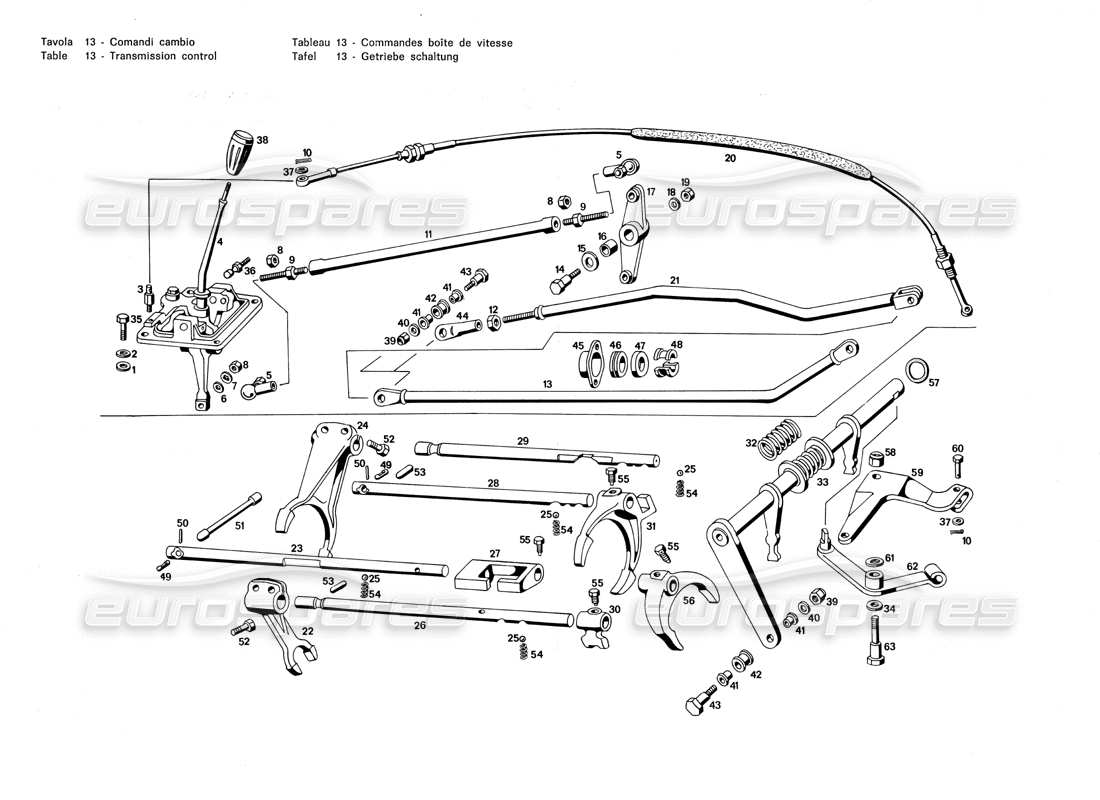

Maserati Merak 3.0 Transmission control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 5 406 223
WASHER
# 002
MPN: RDI 60333
WASHER
# 003
MPN: 122 TC 76639
COLONNETTA FISSAGGIO GUAINA COMANDO CAMBIO
# 004
MPN: 122 TC 76887
COMPLESSIVO SUPPORTO CON LEVA COMANDO CAMBIO
# 004
MPN: 122 TC 79988
COMPLESSIVO SUPPORTO CON LEVA COMANDO CAMBIO (PER GUIDA DESTRA)
# 005
MPN: 122 TC 76444
Snodo sull'asta comando caimbio
# 006
MPN: RNT 55379
WASHER
# 008
MPN: DNT. 47031
NUT 8 X 1.25
# 009
MPN: 122 TC 76432
TIE ROD
# 010
MPN: CN 64833
PIN Ø 1,3 X 10 GEAR GEAR CABLE SEAL
# 011
MPN: 122 TC 76418
ASTA ANTERIORE COMANDO CAMBIO
# 013
MPN: 122 TC 76431
ASTA POSTERIORE COMANDO CAMBIO
# 014
MPN: 122 TC 76483
PIVOT
# 016
MPN: 117 FC 71332
BUSH
# 017
MPN: 122 TC 76445
BILANCERE PER ASTA COMANDO CAMBIO COMPLETO DI BOCCOLA
# 018
MPN: RNT 47087
WASHER
# 020
MPN: 122 TC 76226
CAVO FLESSIBILE COMPLETO DI GUAINA PER COMANDO CAMBIO
from £465.52
from £465.52
# 021
MPN: 122 TC 76428
ASTA INTERMEDIA COMANDO CAMBIO
# 022
MPN: 122 TC 76222
SELECTOR FORK REVERSE
from £205.18
from £205.18
# 023
MPN: 122 TC 76123
Asta per forcella comando 5' velocita
# 024
MPN: 122 TC 76219
SELECTOR FORK 1' and 2' SPEED
from £261.20
from £261.20
# 025
MPN: SFN36593
SFERA 0 9,52 PER ARRESTO ASTA COMANDO MARCIA
# 026
MPN: 122 TC 76114
ASTA FORCELLA COMANDO RETROMARCIA
# 027
MPN: 122 TC 76221
Selettore per asta comando 5' velocita
from £213.80
from £213.80
# 028
MPN: 122 TC 76125
Asta per forcelle comando 3' e 4' velocita
# 029
MPN: 122 TC 76116
Asta per forcelle comando 1' e 2' velocita
# 030
MPN: 122 TC 76111
NASELLO PER ASTA COMANDO RETROMARCIA
# 031
MPN: 122 TC 76220
SELECTOR FORK 3' and 4A SPEED
from £370.68
from £370.68
# 032
MPN: 122 TC 79442
SPRING
# 033
MPN: 122 TC 76218
COMPLESSIVO ALBERO COMANDO MARCIA
# 034
MPN: RN 76565
WASHER
# 035
MPN: ZD 9372 000 W
BOLT
# 036
MPN: 5 406 392
PIVOT
# 037
MPN: ZD 9236 300 W
WASHER
# 038
MPN: 5406409
POMELLO PER LEVA COMANDO MARCIA
from £5.58
from £5.58
# 039
MPN: ZD 9535 300 W
NUT
from £5.16
from £5.16
# 040
MPN: ZD 9248 200 W
WASHER
from £7.77
from £7.77
# 041
MPN: 5 413 012
BUSH
from £51.72
from £51.72
# 042
MPN: 5 413 013
GROMMET
from £51.72
from £51.72
# 043
MPN: 5 406 424
PIVOT
from £27.58
from £27.58
# 044
MPN: 5 406 430
TERMINATE PER REGISTRO ASTE INTERMEDIA COMANDO CAMBIO .
# 045
MPN: 5406385
FLANGIA SUPPORTO PER ASTA COMANDO CAMBIO . . .
from £1.11
from £1.11
# 046
MPN: 5406384
PARAPOLVERE SULL'ASTA INTERMEDIA COMANDO CAMBIO
from £0.71
from £0.71
# 047
MPN: 5406414
RING
from £1.11
from £1.11
# 048
MPN: 5 406 386
SEMIBOCCOLA PER SUPPORTO ASTA INTERMEDIA CORN. CAMBIO
# 049
MPN: 5 411 464
Grano di sicurezza Ø 5X 12 per asta comando 3A, 4A, 5A vel.
# 050
MPN: 617 056
PIN
# 051
MPN: 5 406 432
Grano di sicurezza Ø 9,5 X 78 per aste comando cambio
# 052
MPN: ZD 9382 500 W
BOLT
# 053
MPN: 5 411 465
Grano di sicurezza Ø 9,5 X 22,2 per asta comando .
# 054
MPN: 5 411 466
MALLA PER SFERA ARRESTO ASTA COMANDO MARCIA
# 055
MPN: 5 411 463
BOLT
# 056
MPN: DX 334 20
SELECTOR FORK 5' SPEED
# 057
MPN: ZD 9502 900 U
Gommino sull'albero comando marce
# 058
MPN: ZD 9530 400 U
NUT
# 059
MPN: 5 413 198
SUPPORT
# 060
MPN: 5 413 014
PIN
# 061
MPN: 5 413 015
WASHER
# 062
MPN: 5 406 402
LEVER
# 063
MPN: 5 413 195
PIVOT
