maserati merak 3.0 steering parts and pedals parts diagram

018 - Steering Parts and Pedals

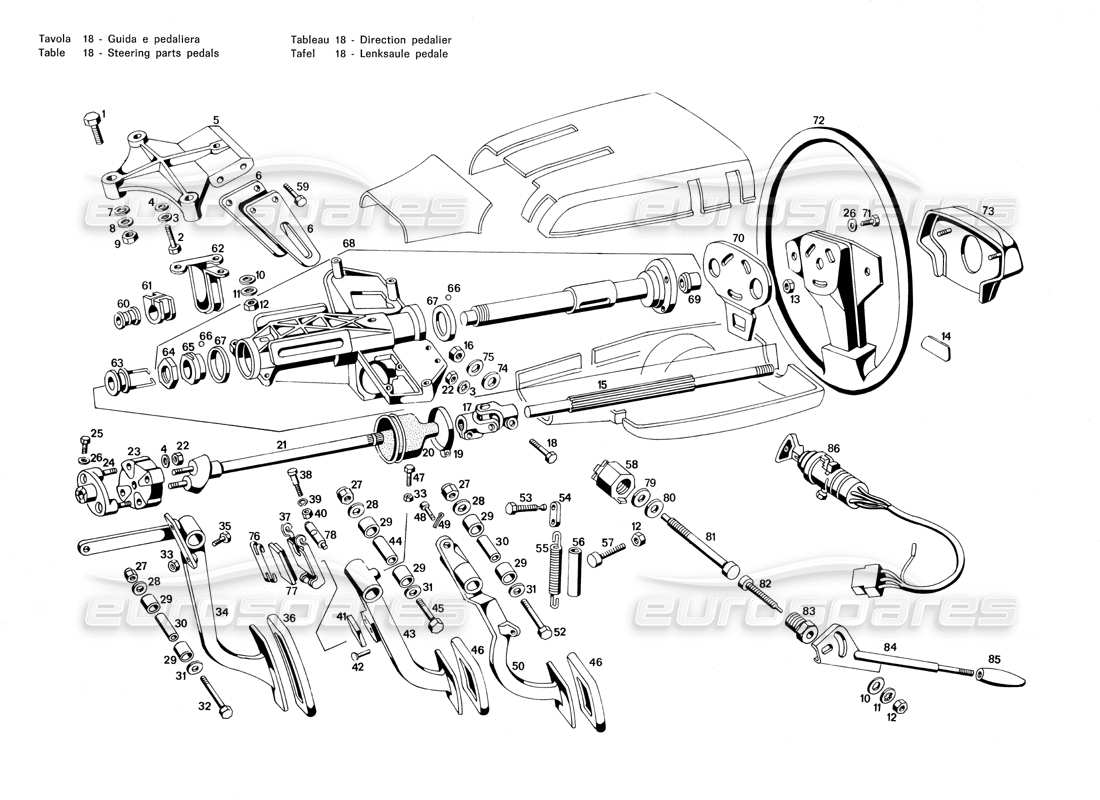

Maserati Merak 3.0 Steering Parts and Pedals Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                              #
                                                                                                                                                                              Part number
                                                                                                                                                                              Description
                                                                                                                                                                              Price
                                                                                                                                                                              # 000
                                                                                                                                                                              MPN: 122 GC 81308
                                                                                                                                                                              CHIAVE ACCENSIONE E BLOCCASTERZO
                                                                                                                                                                              # 001
                                                                                                                                                                              MPN: BNT/47028
                                                                                                                                                                              BOLT
                                                                                                                                                                              # 002
                                                                                                                                                                              MPN: BNT 49097
                                                                                                                                                                              BOLT
                                                                                                                                                                              # 003
                                                                                                                                                                              MPN: RAT/47078
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 004
                                                                                                                                                                              MPN: RAT 47210
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 005
                                                                                                                                                                              MPN: 122 GS 77416
                                                                                                                                                                              SUPPORT
                                                                                                                                                                              # 005
                                                                                                                                                                              MPN: 122 GS 79169
                                                                                                                                                                              SUPPORT
                                                                                                                                                                              # 006
                                                                                                                                                                              MPN: 122 GS 77417
                                                                                                                                                                              FLANGIA PER POSIZIONAMENTO VOLANTE
                                                                                                                                                                              # 007
                                                                                                                                                                              MPN: ANT 52733
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 008
                                                                                                                                                                              MPN: RNT 45681
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 012
                                                                                                                                                                              MPN: DNT. 47031
                                                                                                                                                                              NUT 8 X 1.25
                                                                                                                                                                              # 013
                                                                                                                                                                              MPN: DNT 47046
                                                                                                                                                                              NUT
                                                                                                                                                                              from £0.86
                                                                                                                                                                              from £0.86
                                                                                                                                                                              This part replaces part number 47046
                                                                                                                                                                              # 014
                                                                                                                                                                              MPN: TRG 78498
                                                                                                                                                                              Targhetta Maserati sul volante guida
                                                                                                                                                                              # 015
                                                                                                                                                                              MPN: 122 GS 76268
                                                                                                                                                                              ALBERO DI DIREZIONE
                                                                                                                                                                              # 016
                                                                                                                                                                              MPN: DST 67431
                                                                                                                                                                              NUT
                                                                                                                                                                              # 017
                                                                                                                                                                              MPN: 122 GS 78680
                                                                                                                                                                              GIUNTO CARDANICO PER ALBERO COMANDO STERZO . .
                                                                                                                                                                              # 019
                                                                                                                                                                              MPN: FRN 73126
                                                                                                                                                                              FASCETTA FISSAGGIO CUFFIA PER GIUNTO ELASTICO . .
                                                                                                                                                                              # 020
                                                                                                                                                                              MPN: 117 GS 75223
                                                                                                                                                                              CUFFIA DI PROTEZIONE GIUNTO PIANTONE
                                                                                                                                                                              # 021
                                                                                                                                                                              MPN: 122 GS 76237
                                                                                                                                                                              COMPLESSIVO DI SALDATURA FORCELLA E CANOTTO . .
                                                                                                                                                                              # 022
                                                                                                                                                                              MPN: DST 48038
                                                                                                                                                                              NUT
                                                                                                                                                                              # 023
                                                                                                                                                                              MPN: 1011353148119
                                                                                                                                                                              GIUNTO ELASTICO SUL PIANTONE STERZO
                                                                                                                                                                              # 024
                                                                                                                                                                              MPN: 122 GS 73237
                                                                                                                                                                              FORK
                                                                                                                                                                              # 025
                                                                                                                                                                              MPN: VN 78925
                                                                                                                                                                              SCREW
                                                                                                                                                                              # 027
                                                                                                                                                                              MPN: DST 65794
                                                                                                                                                                              NUT
                                                                                                                                                                              # 028
                                                                                                                                                                              MPN: RNT 71349
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 029
                                                                                                                                                                              MPN: 122 FC 75957
                                                                                                                                                                              BUSH
                                                                                                                                                                              # 030
                                                                                                                                                                              MPN: 122 FC 78615
                                                                                                                                                                              DISTANZIALE PER PEDALE ACCELERATORE E FRIZIONE . .
                                                                                                                                                                              # 031
                                                                                                                                                                              MPN: RN 78638
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 033
                                                                                                                                                                              MPN: DNT 32484
                                                                                                                                                                              NUT
                                                                                                                                                                              # 034
                                                                                                                                                                              MPN: 122 FC 122.028
                                                                                                                                                                              PEDALE ACCELERATORE COMPLETO D,I BOCCOLA E COPRIPEDALE .
                                                                                                                                                                              from £168.00
                                                                                                                                                                              from £168.00
                                                                                                                                                                              # 034
                                                                                                                                                                              MPN: 122 FC 75951
                                                                                                                                                                              PEDALE ACCELERATORE NUDO (FINO ALLA VETTURA N. 186) .
                                                                                                                                                                              # 034
                                                                                                                                                                              MPN: 122 FC 79893
                                                                                                                                                                              PEDALE ACCELERATORE NUDO (DALLA VETTURA N. 188 IN POI)
                                                                                                                                                                              # 036
                                                                                                                                                                              MPN: 117 FC 68337
                                                                                                                                                                              CAPRI PEDALE ACCELERATORE
                                                                                                                                                                              # 037
                                                                                                                                                                              MPN: 122 Fl 78483
                                                                                                                                                                              BIELLA PORTARULLI PER RIPARTITORE DI FRENATA SULLA POMPA FRENI
                                                                                                                                                                              # 038
                                                                                                                                                                              MPN: 122 FC 76160
                                                                                                                                                                              THREADED PIVOT
                                                                                                                                                                              # 039
                                                                                                                                                                              MPN: ART 45863
                                                                                                                                                                              RING
                                                                                                                                                                              # 040
                                                                                                                                                                              MPN: DNT 47046
                                                                                                                                                                              NUT
                                                                                                                                                                              from £0.86
                                                                                                                                                                              from £0.86
                                                                                                                                                                              This part replaces part number 47046
                                                                                                                                                                              # 041
                                                                                                                                                                              MPN: 122 FC 75955
                                                                                                                                                                              PIASTRINO SUL PEDALE COMANDO FRENI
                                                                                                                                                                              # 042
                                                                                                                                                                              MPN: CHN 72912
                                                                                                                                                                              Chiodo Ø 3 X 14 fissaggio piastrino sul 'pedale freno
                                                                                                                                                                              # 043
                                                                                                                                                                              MPN: 122 FC 122 026
                                                                                                                                                                              PEDALE COMANDO FRENI COMPLETO DI BOCCOLE E COPRIPEDALE .
                                                                                                                                                                              # 043
                                                                                                                                                                              MPN: 122 FC 75956
                                                                                                                                                                              PEDALE COMANDO FRENI NUDO (FINO ALLA VETTURA N. 186)
                                                                                                                                                                              # 043
                                                                                                                                                                              MPN: 122 FC 79863
                                                                                                                                                                              PEDALE COMANDO FRENI NUDO (DALLA VETTURA N. 188 IN POI)
                                                                                                                                                                              # 044
                                                                                                                                                                              MPN: 122 FC 78616
                                                                                                                                                                              DISTANZIALE PER PEDALE FRENI
                                                                                                                                                                              # 045
                                                                                                                                                                              MPN: BNT 65444
                                                                                                                                                                              BOLT
                                                                                                                                                                              # 046
                                                                                                                                                                              MPN: 109 FC 57849
                                                                                                                                                                              COPRI PEDALE FRENI E FRIZIONE
                                                                                                                                                                              # 047
                                                                                                                                                                              MPN: BNT. 53968
                                                                                                                                                                              BOLT
                                                                                                                                                                              # 049
                                                                                                                                                                              MPN: ON 33539
                                                                                                                                                                              COPIGLIA TENUTA SNODO PEDALE FRIZIONE
                                                                                                                                                                              # 050
                                                                                                                                                                              MPN: 122 FC 122 027
                                                                                                                                                                              PEDALE COMANDO FRIZIONE COMPLETO DI BOCCOLA E COPRIPEDALE
                                                                                                                                                                              # 050
                                                                                                                                                                              MPN: 122 FC 75948
                                                                                                                                                                              PEDALE COMANDO FRIZIONE (FINO ALLA VETTURA N. 186)
                                                                                                                                                                              # 050
                                                                                                                                                                              MPN: 122 FC 79889
                                                                                                                                                                              PEDALE COMANDO FRIZIONE (DALLA VETTURA N. 188 IN POI) .
                                                                                                                                                                              # 052
                                                                                                                                                                              MPN: BN 79349
                                                                                                                                                                              BOLT
                                                                                                                                                                              # 053
                                                                                                                                                                              MPN: 122 FC 77564
                                                                                                                                                                              PIVOT
                                                                                                                                                                              # 054
                                                                                                                                                                              MPN: 122 FC 77560
                                                                                                                                                                              PIASTRINO PER REGISTRO SERVO ASSISTENZA FRIZIONE . .
                                                                                                                                                                              # 055
                                                                                                                                                                              MPN: 122 FC 77853
                                                                                                                                                                              SPRING
                                                                                                                                                                              # 056
                                                                                                                                                                              MPN: 122 FC 79355
                                                                                                                                                                              GUAINA COPRI MOLLA SERVO ASSISTENZA FRIZIONE
                                                                                                                                                                              # 057
                                                                                                                                                                              MPN: 117 BM 74730
                                                                                                                                                                              TAMPONE FINE CORSA PEDALE FRIZIONE
                                                                                                                                                                              # 058
                                                                                                                                                                              MPN: 122 GS 79194
                                                                                                                                                                              BUSH
                                                                                                                                                                              # 059
                                                                                                                                                                              MPN: ZD 9382 300 W
                                                                                                                                                                              BOLT
                                                                                                                                                                              # 060
                                                                                                                                                                              MPN: 5 406 818
                                                                                                                                                                              BUSH
                                                                                                                                                                              # 061
                                                                                                                                                                              MPN: 5 406 817
                                                                                                                                                                              SUPPORT
                                                                                                                                                                              # 062
                                                                                                                                                                              MPN: 5 406 819
                                                                                                                                                                              COLLARE SUPERIORE
                                                                                                                                                                              # 063
                                                                                                                                                                              MPN: 5 406 802
                                                                                                                                                                              BUSH
                                                                                                                                                                              # 064
                                                                                                                                                                              MPN: 5 406 793
                                                                                                                                                                              NUT
                                                                                                                                                                              # 065
                                                                                                                                                                              MPN: 5 406 789
                                                                                                                                                                              BUSH
                                                                                                                                                                              # 066
                                                                                                                                                                              MPN: ZD.92.70.900 U
                                                                                                                                                                              SFERA PER MOZZO PIANTONE
                                                                                                                                                                              # 067
                                                                                                                                                                              MPN: 5 406 788
                                                                                                                                                                              Boocola interna Ø 36 X 45 X 48 X 10
                                                                                                                                                                              # 068
                                                                                                                                                                              MPN: 5 408 786
                                                                                                                                                                              SUPPORT
                                                                                                                                                                              # 069
                                                                                                                                                                              MPN: 5 406 824
                                                                                                                                                                              SUPPORT
                                                                                                                                                                              # 070
                                                                                                                                                                              MPN: 5 406 803
                                                                                                                                                                              LAMIERA DI CHIUSURA VOLANTE
                                                                                                                                                                              # 071
                                                                                                                                                                              MPN: ZD 9345 500 W
                                                                                                                                                                              BOLT
                                                                                                                                                                              # 072
                                                                                                                                                                              MPN: 5 406 809
                                                                                                                                                                              VOLANTE GUIDA NUDO
                                                                                                                                                                              # 073
                                                                                                                                                                              MPN: 5 406 807
                                                                                                                                                                              MODANATURA CON IMBOTTITURA PER VOLANTE
                                                                                                                                                                              # 074
                                                                                                                                                                              MPN: 5 406 796
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 075
                                                                                                                                                                              MPN: 9275 200 W
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 076
                                                                                                                                                                              MPN: 5411 231
                                                                                                                                                                              GRAFFETTA DI RITEGNO PER PIATTELLO RIPARTIZIONE FRENATA SULFA POMPA
                                                                                                                                                                              # 077
                                                                                                                                                                              MPN: 5411 232
                                                                                                                                                                              PIATTELLO PER RIPARTIZIONE DI FRENATA SULLA POMPA FRENI .
                                                                                                                                                                              # 078
                                                                                                                                                                              MPN: 5 410 184
                                                                                                                                                                              PIVOT
                                                                                                                                                                              # 079
                                                                                                                                                                              MPN: 5 406 782
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 080
                                                                                                                                                                              MPN: ZC 9624 016 U
                                                                                                                                                                              WASHER
                                                                                                                                                                              # 081
                                                                                                                                                                              MPN: 5 406 794
                                                                                                                                                                              PIVOT
                                                                                                                                                                              # 082
                                                                                                                                                                              MPN: 5 406 783
                                                                                                                                                                              SCREW
                                                                                                                                                                              # 083
                                                                                                                                                                              MPN: 5 406 798
                                                                                                                                                                              MANICOTTO BLOCCAGGIO PIANTONE
                                                                                                                                                                              # 084
                                                                                                                                                                              MPN: 5 406 800
                                                                                                                                                                              LEVER
                                                                                                                                                                              # 085
                                                                                                                                                                              MPN: 5 410 644
                                                                                                                                                                              POMELLO PER LEVA DI REGOLAZIONE
                                                                                                                                                                              # 086
                                                                                                                                                                              MPN: 5 403 117
                                                                                                                                                                              COMMUTATORE CON ANTIFURTO
