022 - Rear Cooled Brakes

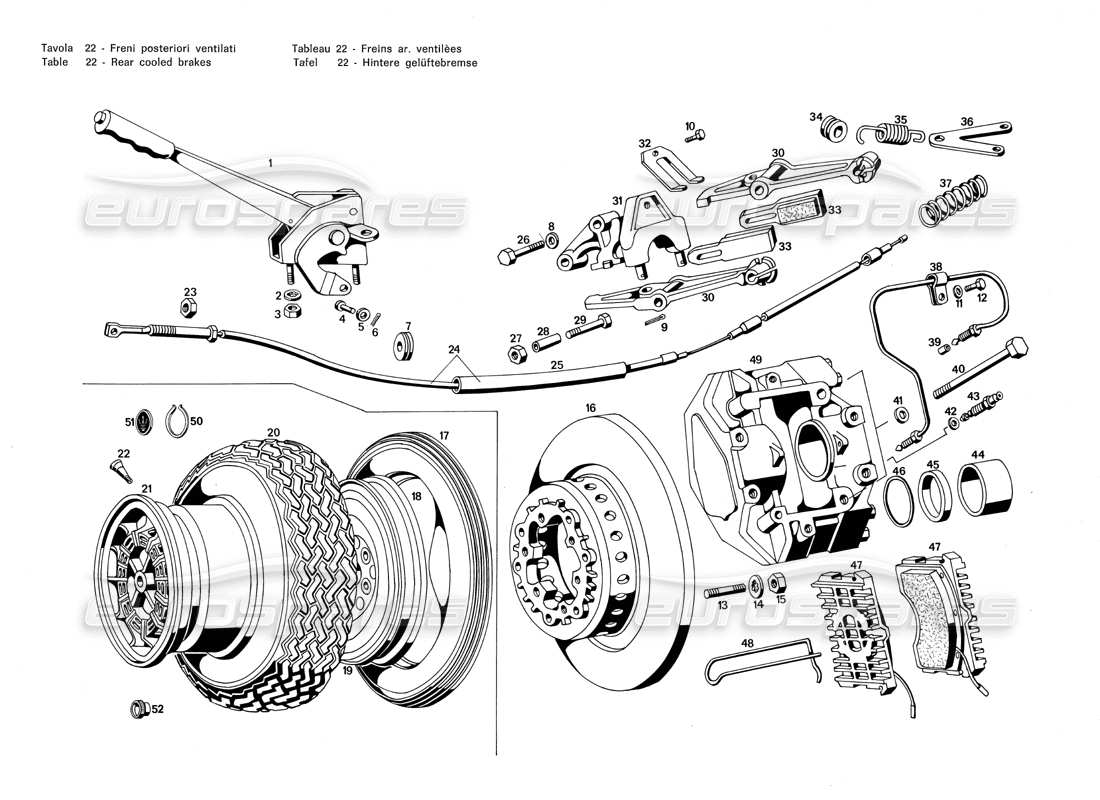

Maserati Merak 3.0 Rear Cooled Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 000

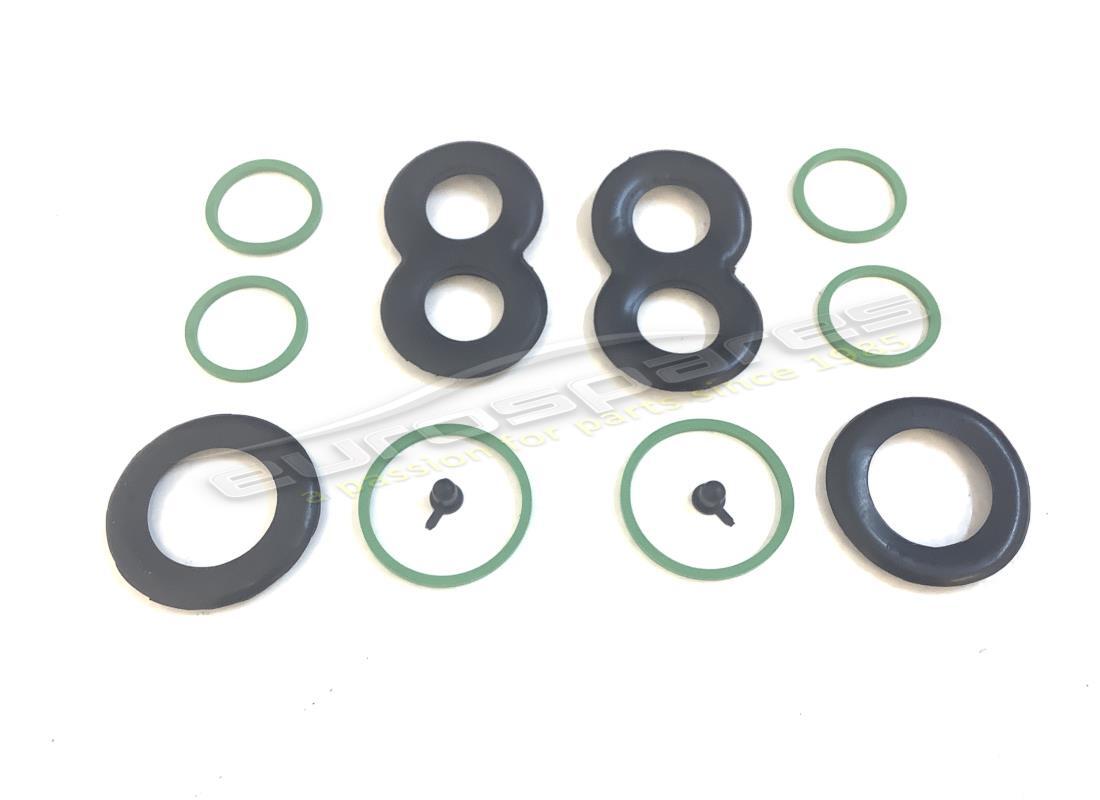

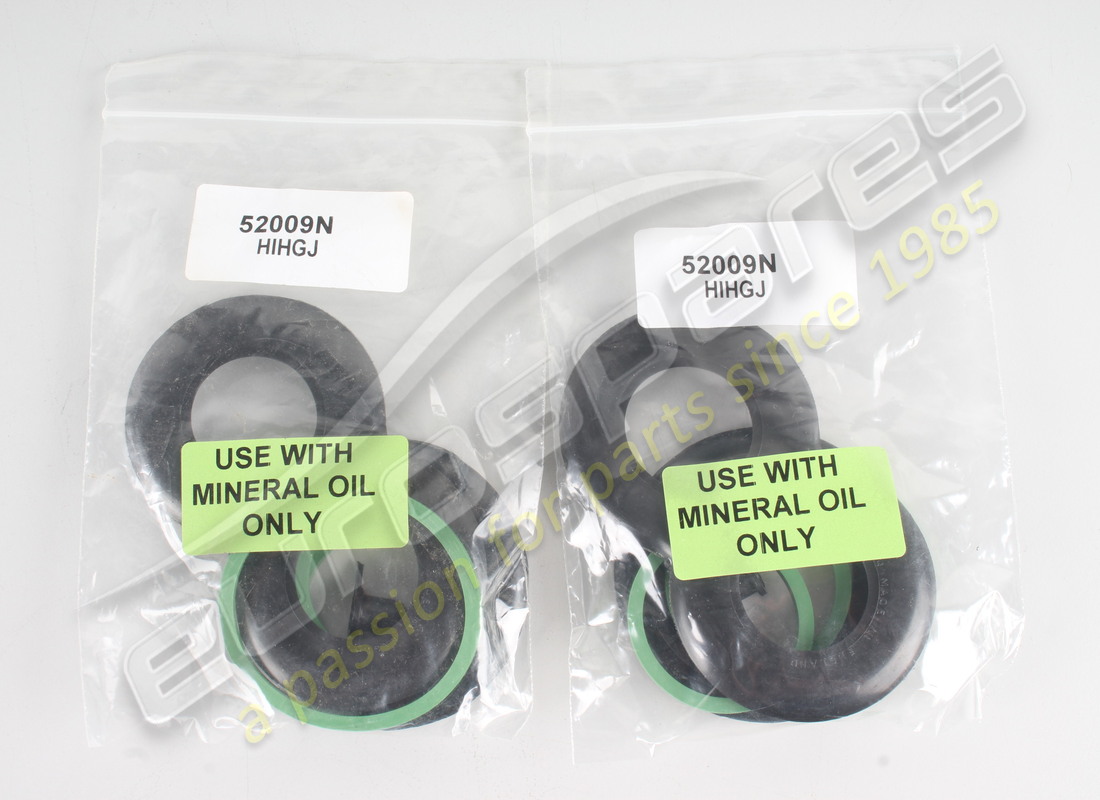

                                                                                                          MPN: FA71099
                                                                                                          REAR CALIPERS REPAIR KIT
                                                                                                          Not Suitable for the SS - (Mineral Oil only) - Axle Set
                                                                                                          from £144.00
                                                                                                          from £144.00
                                                                                                          # 001
                                                                                                          MPN: 122 FM 77067
                                                                                                          LEVER
                                                                                                          from £157.50
                                                                                                          from £157.50
                                                                                                          # 001
                                                                                                          MPN: 122 FM 79635
                                                                                                          LEVER
                                                                                                          # 003
                                                                                                          MPN: DNT/47064
                                                                                                          NUT 8 X 1.25
                                                                                                          # 005
                                                                                                          MPN: RNT 71306
                                                                                                          WASHER
                                                                                                          # 006
                                                                                                          MPN: CN. 43776
                                                                                                          COPIGLIA SUL PERNO PER LEVA FRENO A MANO
                                                                                                          from £1.74
                                                                                                          from £1.74
                                                                                                          # 008
                                                                                                          MPN: RNT47085
                                                                                                          WASHER
                                                                                                          from £3.48
                                                                                                          from £3.48
                                                                                                          # 009
                                                                                                          MPN: CN 48195
                                                                                                          COPIGLIA TENUTA LEVA SUL SUPPORTO FRENO A MANO
                                                                                                          # 010
                                                                                                          MPN: BNT 34770
                                                                                                          BOLT
                                                                                                          # 011
                                                                                                          MPN: RDI 60333
                                                                                                          WASHER
                                                                                                          # 012
                                                                                                          MPN: BNT 36402
                                                                                                          BOLT
                                                                                                          # 013
                                                                                                          MPN: PN 75891
                                                                                                          Prigianiero Ø 12 X 1;75 X 35 fissaggio disco freni al semiasse interno .
                                                                                                          from £10.44
                                                                                                          from £10.44
                                                                                                          # 015
                                                                                                          MPN: DNT 64309
                                                                                                          NUT
                                                                                                          # 016
                                                                                                          MPN: 122 FP 75514
                                                                                                          PIATTO PER DISCHI FRENI POSTERIORI
                                                                                                          # 017
                                                                                                          MPN: PNM 76713
                                                                                                          PNEUMATICO PIRELLI 5.00X16 4 PR PER RUOTA DI SCORTA 3X16
                                                                                                          # 018
                                                                                                          MPN: PNM 76714
                                                                                                          CAMERA D'ARIA PIRELLI 5.00 X 16 PER IDETTO
                                                                                                          # 019
                                                                                                          MPN: 122 SR 77118
                                                                                                          RUOTA STAMPATA 3 X 16 DI SCORTA
                                                                                                          # 020
                                                                                                          MPN: PNM 76712
                                                                                                          PNEUMATICO MICHELIN 205/70 VR 15X IPER RUOTE FUSE POST.
                                                                                                          # 020
                                                                                                          MPN: PNM 78482
                                                                                                          PNEUMATICO MICHELIN 185/70 VR 15X PER RUOTE FUSE ANTER.
                                                                                                          # 021
                                                                                                          MPN: 122 SR 77412
                                                                                                          RUOTA FUSA 71/2 X 15
                                                                                                          # 021
                                                                                                          MPN: 122 SR 80001
                                                                                                          RUOTA FUSA COMPLETA
                                                                                                          from £1,105.22
                                                                                                          from £1,105.22
                                                                                                          # 022
                                                                                                          MPN: 117 SR 73349
                                                                                                          COMPLESSIVO VALVOLA TABLES
                                                                                                          # 023
                                                                                                          MPN: ZD 9522 800 U
                                                                                                          NUT
                                                                                                          # 024
                                                                                                          MPN: 5 407 064
                                                                                                          CAVO FRENO A MANO COMPLETO DI PROTEZIONE
                                                                                                          # 025
                                                                                                          MPN: 5 407 068
                                                                                                          RIVESTIMENTO DI PROTEZIONE PER CAVO FRENO A MANO
                                                                                                          # 026
                                                                                                          MPN: ZC 9621 105 W
                                                                                                          BOLT
                                                                                                          # 027
                                                                                                          MPN: ZD 9522 300 W
                                                                                                          NUT
                                                                                                          # 028
                                                                                                          MPN: 5 411 048
                                                                                                          BUSH
                                                                                                          # 029
                                                                                                          MPN: 5 411 051
                                                                                                          BOLT
                                                                                                          # 030
                                                                                                          MPN: 5 411 049
                                                                                                          LEVER
                                                                                                          # 031
                                                                                                          MPN: 5 405 568
                                                                                                          SUPPORT
                                                                                                          from £262.50
                                                                                                          from £262.50
                                                                                                          # 032
                                                                                                          MPN: 5 407 075
                                                                                                          SPRING
                                                                                                          # 033
                                                                                                          MPN: 5 405 569
                                                                                                          TASSELLO FRENANTE PER FRENO A MANO (SERIE DI 4 IPEZZI)
                                                                                                          # 034
                                                                                                          MPN: 5 407 062
                                                                                                          BUSH
                                                                                                          # 035
                                                                                                          MPN: 5 407 072
                                                                                                          SPRING
                                                                                                          # 036
                                                                                                          MPN: 5 407 070
                                                                                                          ATTACCO PER MOLLA
                                                                                                          # 037
                                                                                                          MPN: 5 413 919
                                                                                                          SPRING
                                                                                                          # 038
                                                                                                          MPN: 5 406 640
                                                                                                          TUBO COLLEGAMENTO CALIPER POSTERIORE DESTRO
                                                                                                          # 038
                                                                                                          MPN: 5406639
                                                                                                          TUBO COLLEGAMENTO CALIPER POSTERIORE SINISTRO
                                                                                                          from £21.40
                                                                                                          from £21.40
                                                                                                          # 039
                                                                                                          MPN: ZD 9188 900 U
                                                                                                          GOMMINO PER TUBO COLLEGAMENTO CALIPER POSTERIORI
                                                                                                          # 040
                                                                                                          MPN: ZC 9621 102 U
                                                                                                          BOLT
                                                                                                          # 041
                                                                                                          MPN: ZD 9272 200 W
                                                                                                          WASHER
                                                                                                          # 042
                                                                                                          MPN: ZD 9482 800 U
                                                                                                          GOMMINI DI TENUTA PER VITE DI SPURGO
                                                                                                          # 043
                                                                                                          MPN: 5 413 215
                                                                                                          SCREW
                                                                                                          from £34.78
                                                                                                          from £34.78
                                                                                                          # 044
                                                                                                          MPN: 1D 5 405 436 P
                                                                                                          PISTONE PER CALIPER POSTERIORI
                                                                                                          # 045
                                                                                                          MPN: 1 D 5 405 43,7 A
                                                                                                          GASKET OR SEAL
                                                                                                          # 046
                                                                                                          MPN: ZD 9503 800 U
                                                                                                          Gommino Ø 59,2 X 69 X 5,3 di tenuta sui caliper posteriori
                                                                                                          # 047

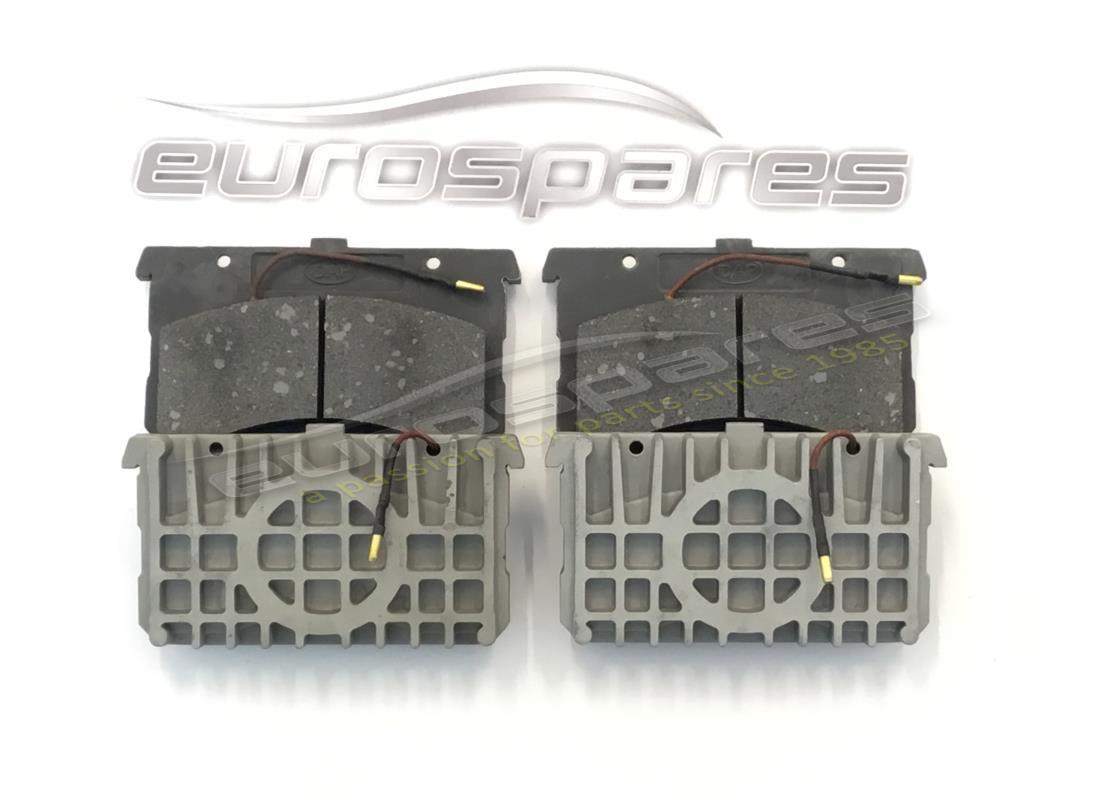

                                                                                                          MPN: 5 401 458
                                                                                                          REAR BRAKE PADS SET
                                                                                                          # 048
                                                                                                          MPN: 5 401 954
                                                                                                          SPRING
                                                                                                          # 049

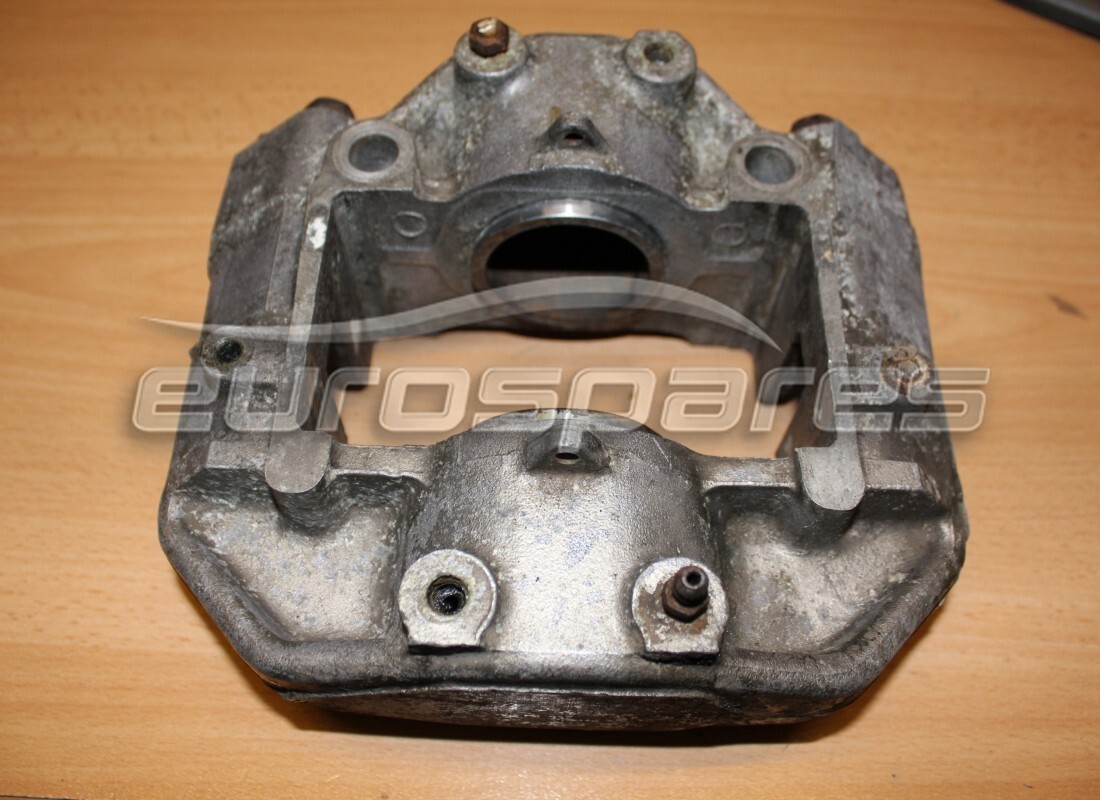

                                                                                                          MPN: 5409687
                                                                                                          CALIPER POSTERIORE FRENI COMPLETO
                                                                                                          from £210.00
                                                                                                          from £210.00
                                                                                                          # 050
                                                                                                          MPN: 122 SR 79999
                                                                                                          RING
                                                                                                          # 051
                                                                                                          MPN: 122 SR 80000
                                                                                                          WHEEL CENTRE
                                                                                                          from £48.50
                                                                                                          from £48.50
                                                                                                          # 052
                                                                                                          MPN: 117 SR 79998
                                                                                                          BUSH
