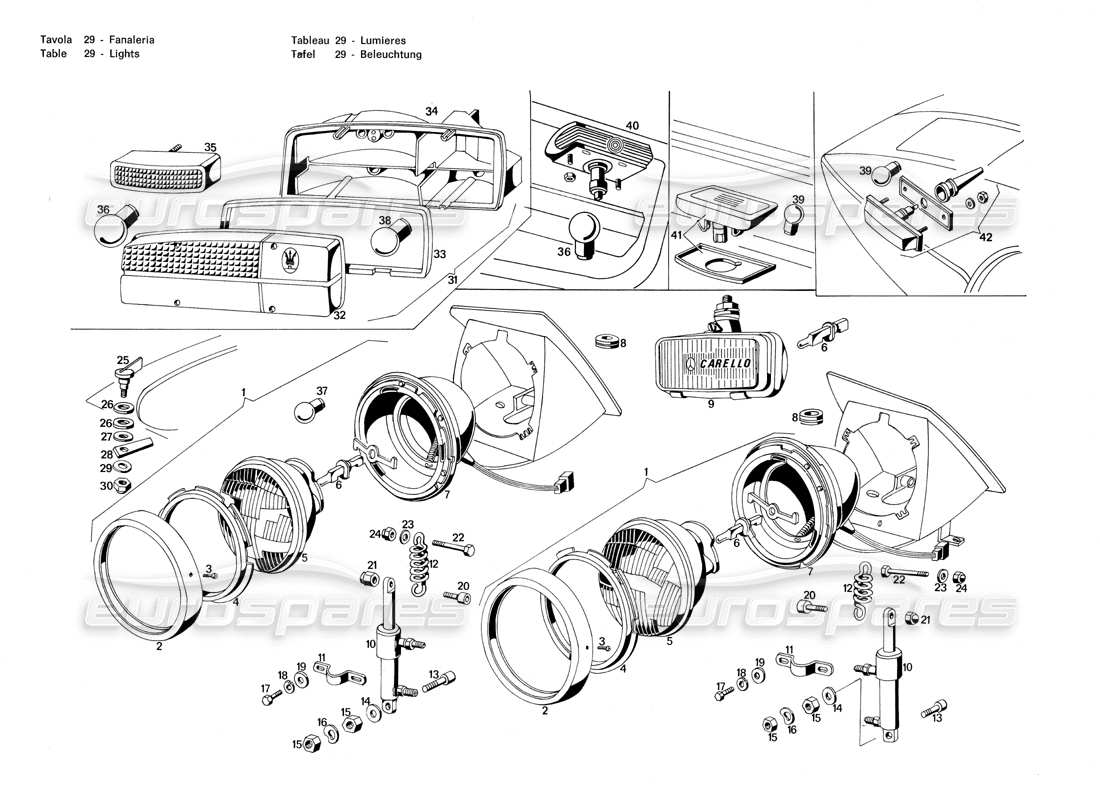

029 - Lights
Maserati Merak 3.0 Lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 122 BL 80956
PROIETTORE ANTERIORE COMPLETO (SENZA CORNICE)
# 001
MPN: 122 BL 80957
PROIETTORE ANTERIORE COMPLETO PER GUIDA DESTRA
# 002
MPN: 117 BL 75323
CORNICE GREZZA COPERTURA FANALI ANTERIORI
# 003
MPN: VAT 59185
SCREW
# 004
MPN: 117 BL 77297
RING
# 005
MPN: 117 BL 73977
GRUPPO OTTICO ALLO JODIO LUTE GIALLA PER FRANCIA
# 005
MPN: 117 BL 77517
GRUPPO OTTICO COMPLETO DI LAMPADA BILUCE ALTO IODIO
# 005
MPN: 122 BL 79487
GRUPPO OTTICO ALTO JODIO PER GUIDA DESTRA
# 006
MPN: LPN 63257
LAMP
# 006
MPN: LPN 79129
LAMP
# 007
MPN: 122 BL 77194
CONTENITORE PER FARI ANTERIORI
# 008
MPN: PFN/50304
GROMMET
# 009
MPN: 117 BL 75892
FARO SUPPLEMENTARE GIALLO ALLO JODIO
# 009
MPN: 117 BL 75893
FARO SUPPLEMENTARE BIANCO ALTO JODIO
# 010
MPN: 117 Fl 73321
CILINDRO PER COMANDO SOLLEVAMENTO FARI ANTERIORI
# 011
MPN: 117 Fl 74172
FASCETTA TENUTA CILINDRO COMANDO SOLLEVAMENTO FARI ANTER.
# 012
MPN: 117 Fl 73404
SPRING
from £43.10
from £43.10
# 013
MPN: BNT 48831
BOLT
# 014
MPN: RNT 65593
WASHER
# 016
MPN: RAT 68720
WASHER
# 017
MPN: BNT/47370
BOLT
from £3.30
from £3.30
This part replaces part number 47370
# 018
MPN: RSN 3 2 4 9 7
WASHER
# 019
MPN: RNT 52530
WASHER
# 021
MPN: DST 53397
NUT
This part replaces part number 53397
# 022
MPN: BNT 54584
BOLT
# 023
MPN: RNT 6701,1
WASHER
# 024
MPN: DST 68045
NUT
# 025
MPN: 117 BM 75518
PIVOT
# 026
MPN: RN 75246
WASHER
# 027
MPN: RN 75247
WASHER
# 028
MPN: 117 BM 75245
LEVER
# 029
MPN: RNT 6701,1
WASHER
# 030
MPN: DST 51417
NUT
# 031
MPN: 115/A BL 70726
FANALE POSTERIORE DESTRO PER FRANCIA
# 031
MPN: 115/A BL 70727
FANALE POSTERIORE SINISTRO PER FRANCIA

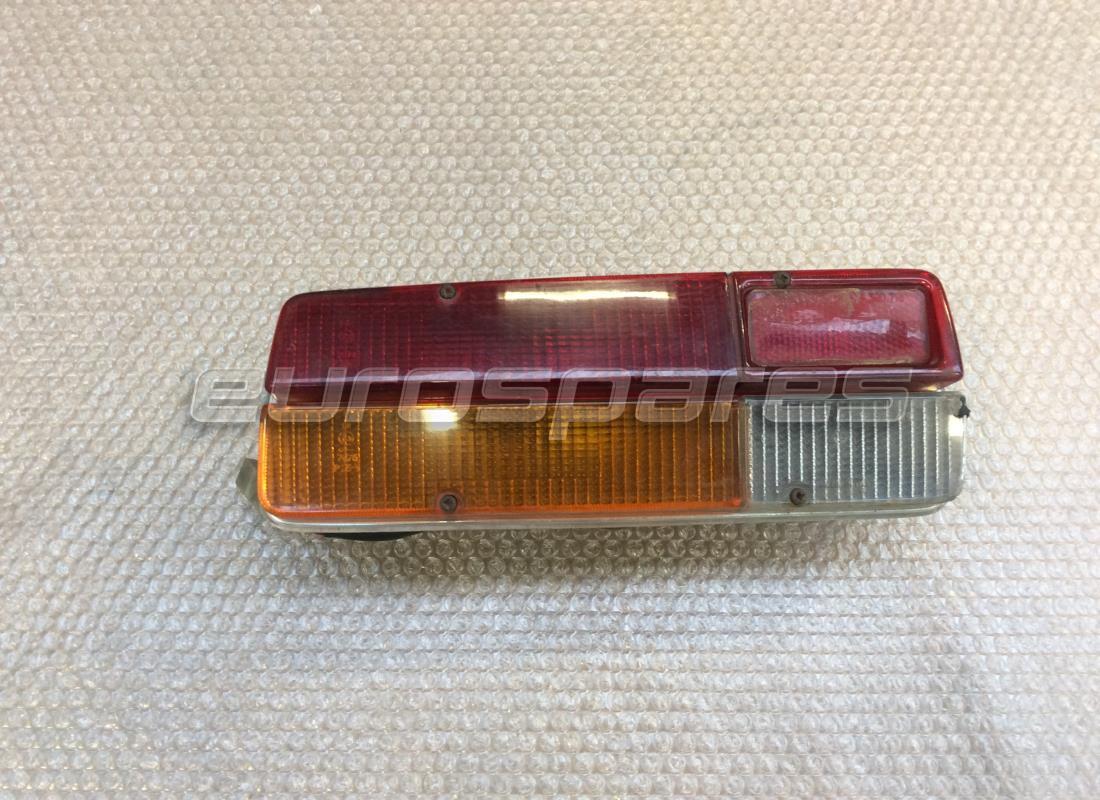

# 031
MPN: 115/A BL 73230
FANALE POSTERIORE DESTRO COMPLETO
from £162.75
from £162.75

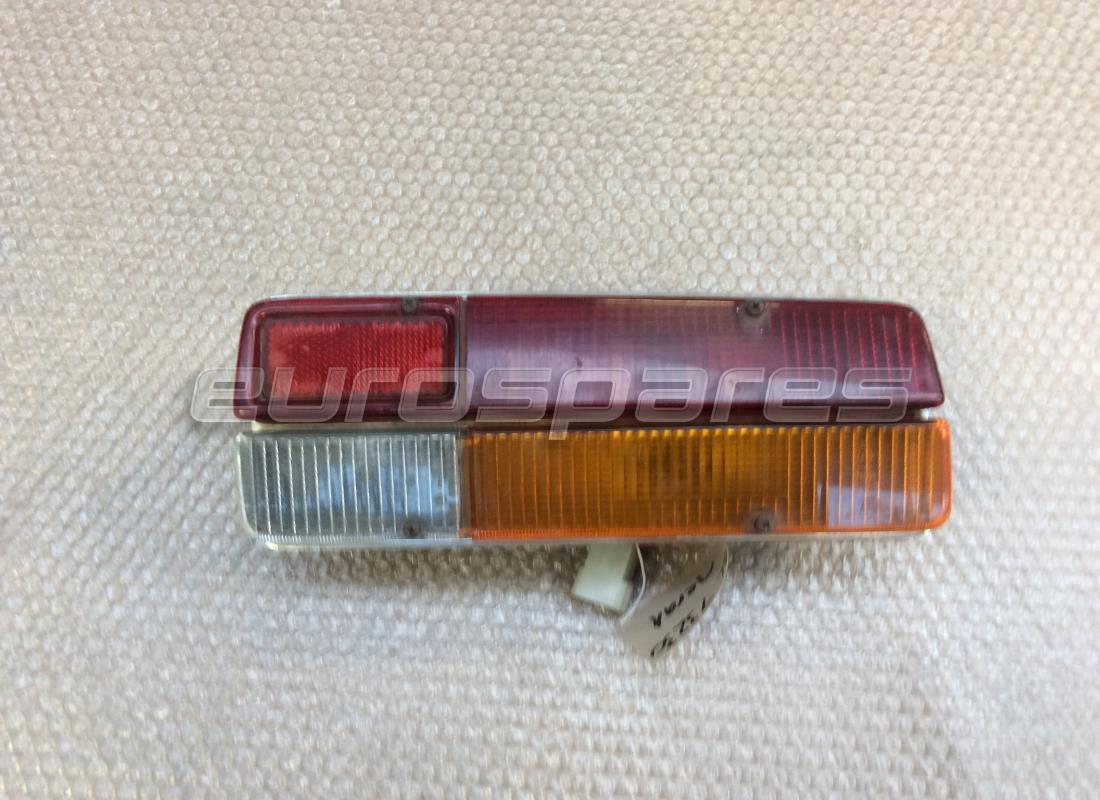

# 031
MPN: 115/A BL 73231
FANALE POSTERIORE SINISTRO COMPLETO
from £162.75
from £162.75
# 032
MPN: 115/A BL 70728
METACRILATO POSTERIORE DESTRO PER FRANCIA
# 032
MPN: 115/A BL 70729
METACRILATO POSTERIORE SINISTRO PER FRANCIA
# 032
MPN: 115/A BL 72232
METACRILATO POSTERIORE DESTRO

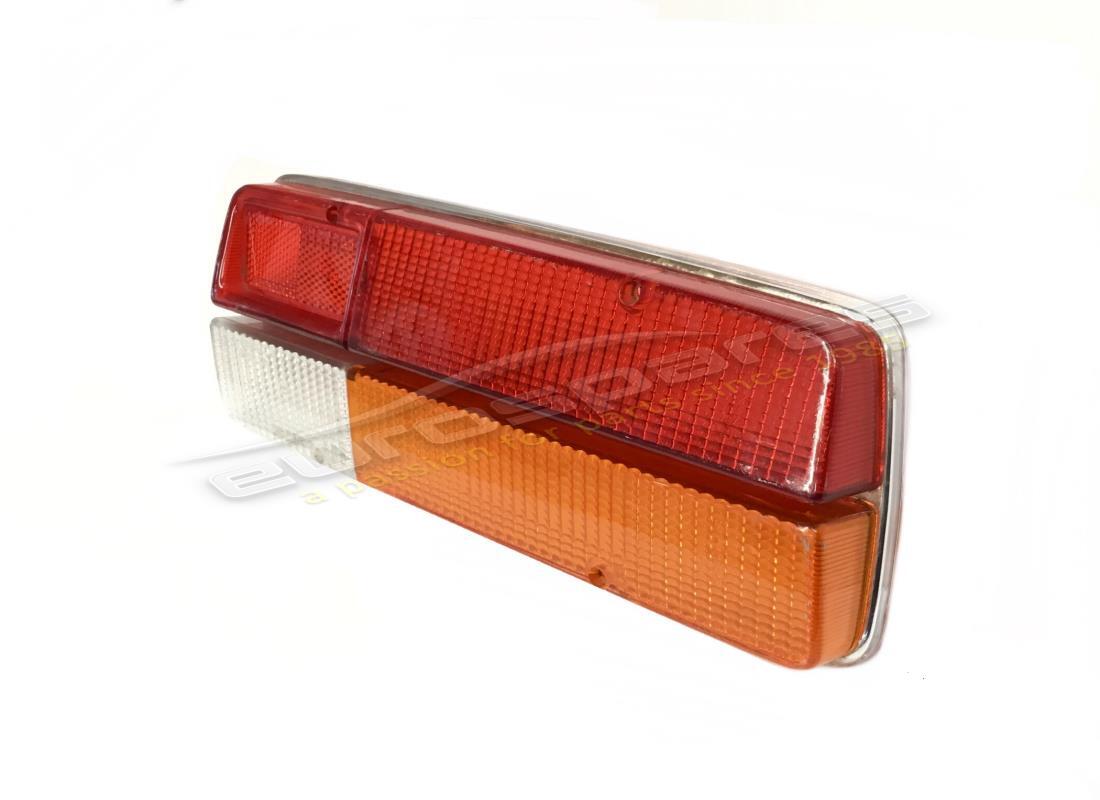

# 032
MPN: 115/A BL 72233
METACRILATO POSTERIORE SINISTRO
# 033
MPN: 115/A BL 75034
GUARNITURA FANALE POSTERIORE DESTRO
# 033
MPN: 115/A BL 75035
GUARNITURA FANALE POSTERIORE SINISTRO
# 034
MPN: 117 BL 77300
CORPO PER FANALE POSTERIORE DESTRO (NON FORNIBILE SEPARATO)
# 034
MPN: 117 BL 77301
CORPO PER FANALE POSTERIORE SIN. (NON FORNIBILE SEPARATO)
# 035
MPN: 116 BL 69005
CATARIFRANGENTE POSTERIORE
from £204.75
from £204.75
# 036
MPN: LPN 48146
LAMP 12 V 5 W LUCI DIREZIONE PER FRANCIA E GERMANIA
# 036
MPN: LPN 48147
LAMP 12V 5/20 W
# 036
MPN: LPN 50810
LAMP 12 V 5 W LUCI POSIZIONE PER FRANCIA E GERMANIA
# 037
MPN: LPN 57254
LAMP 12 V 5 W LUCI POSIZ. NEI PROIETTORI PER GERMANIA
# 038
MPN: LPN 48146
LAMP 12 V 20 W PER INTERMITTENZA POSTERIORE E RETROM
# 039
MPN: LPN 48151
LAMP 12 V 5/20 W PER LUCI DIREZ. LATERALI E LUCI TARGA

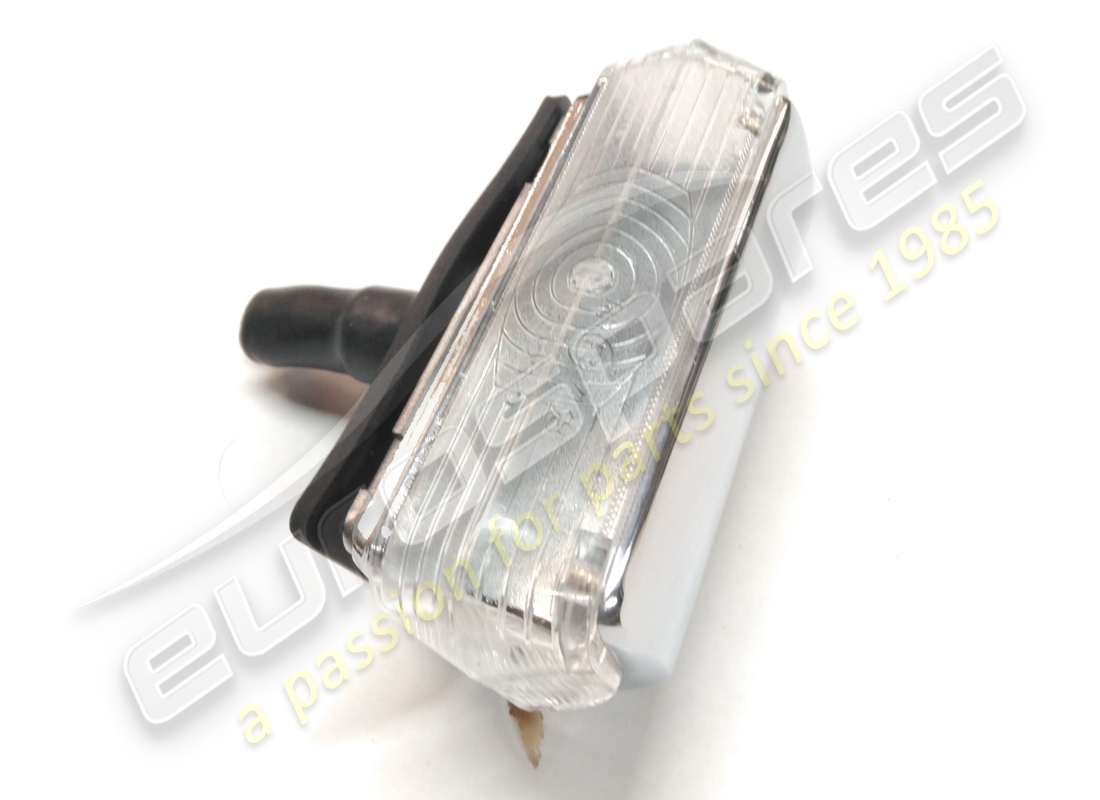

# 040
MPN: BL70718
RH FRONT INDICATOR LAMP
from £290.95
from £290.95
# 040
MPN: BL70719
LH FRONT INDICATOR LAMP
from £290.95
from £290.95

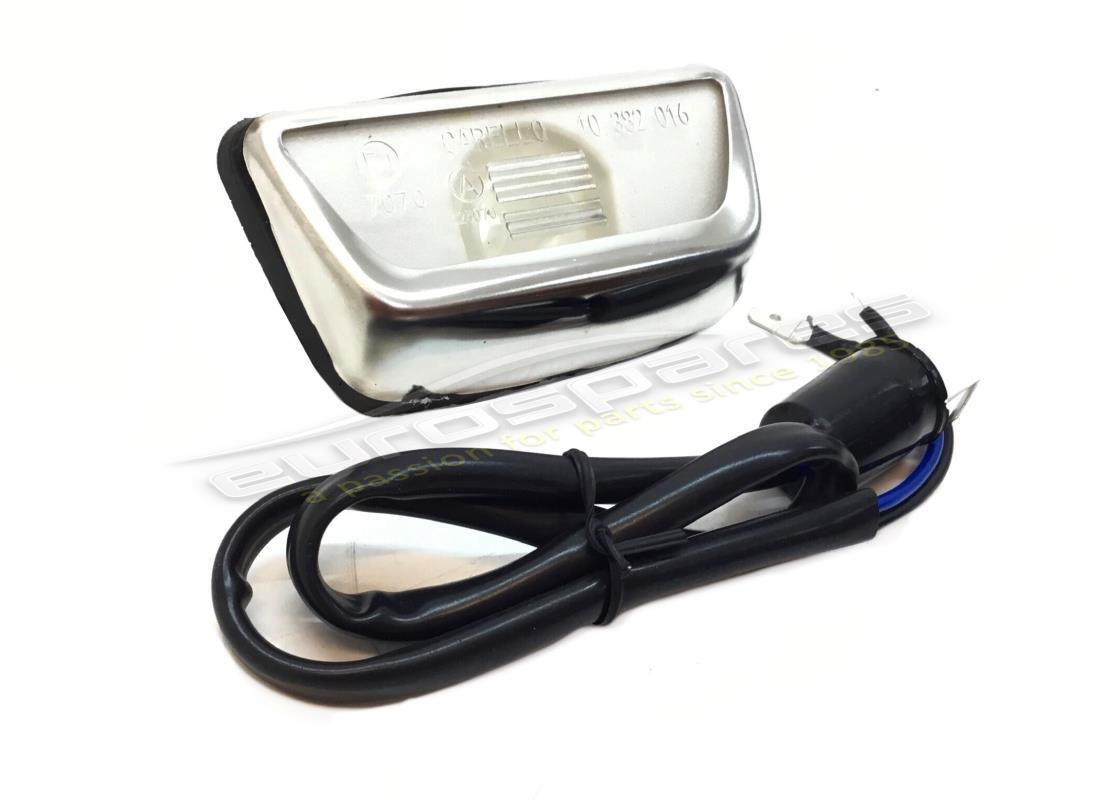

# 041
MPN: 115 BL 70721
REAR NUMBER PLATE LIGHT

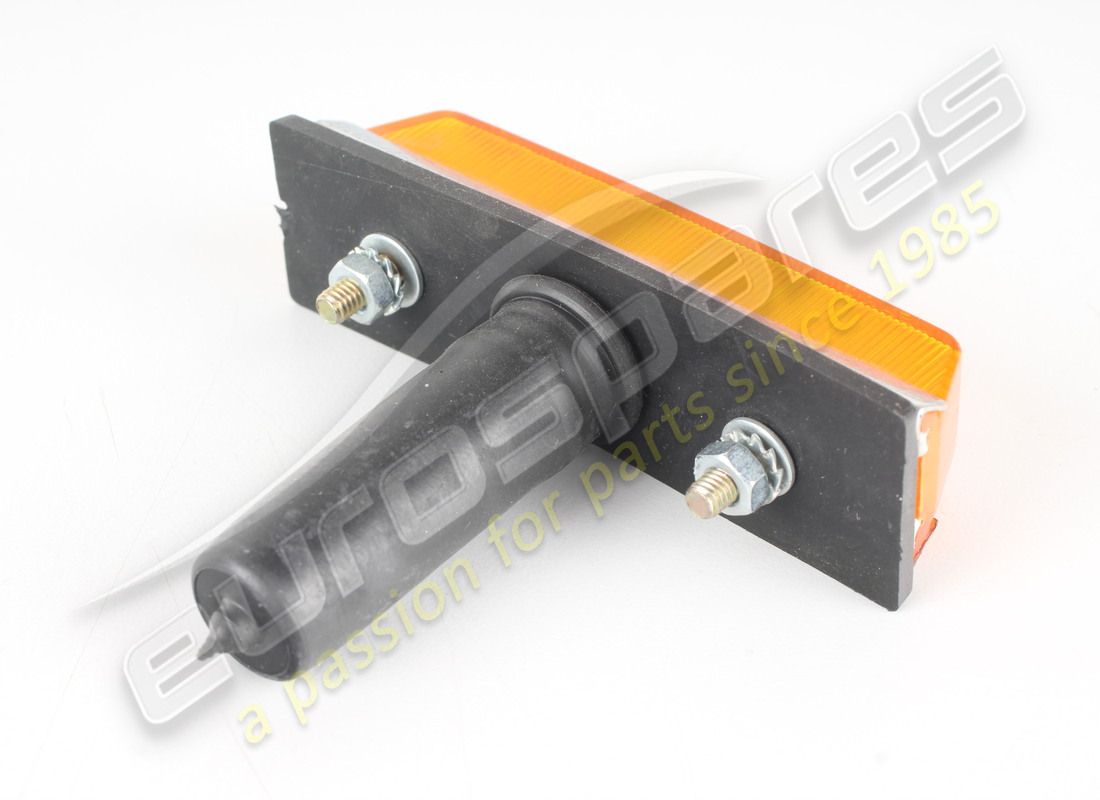

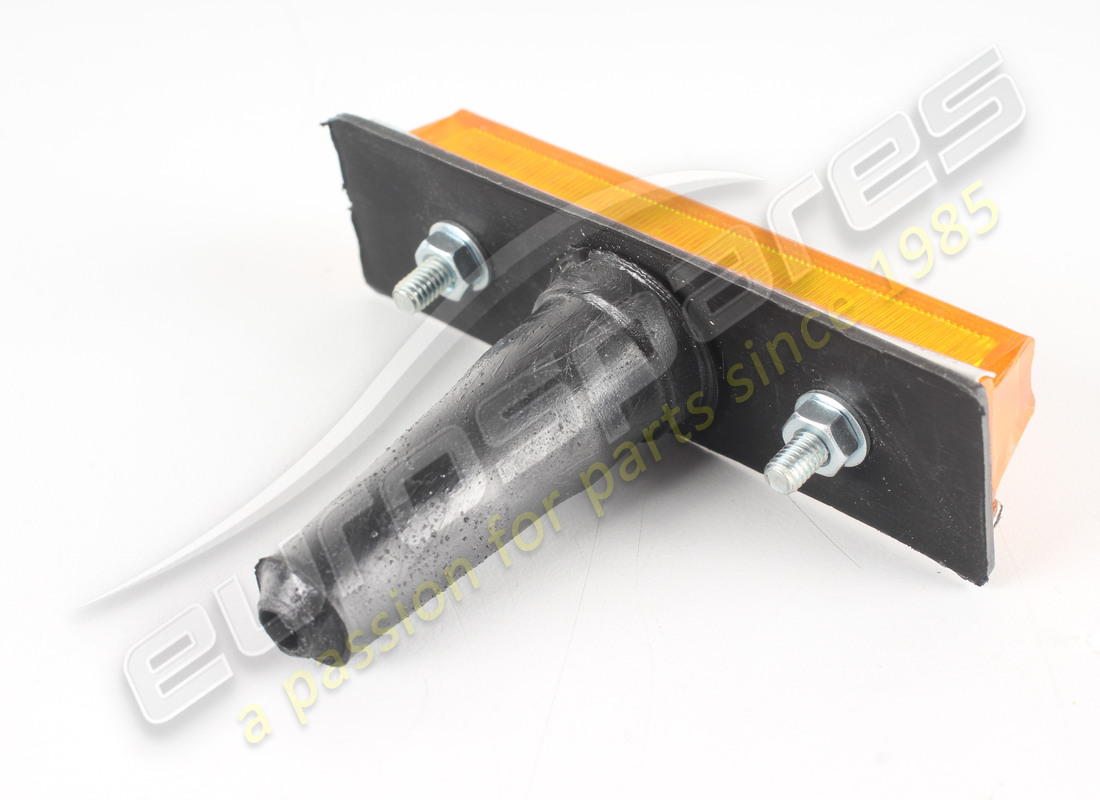

# 042
MPN: 117 BL 73561
FANALINO LATERALE LUCI DIREZIONE
