maserati merak 3.0 conditioning compressor parts diagram

042 - Conditioning Compressor

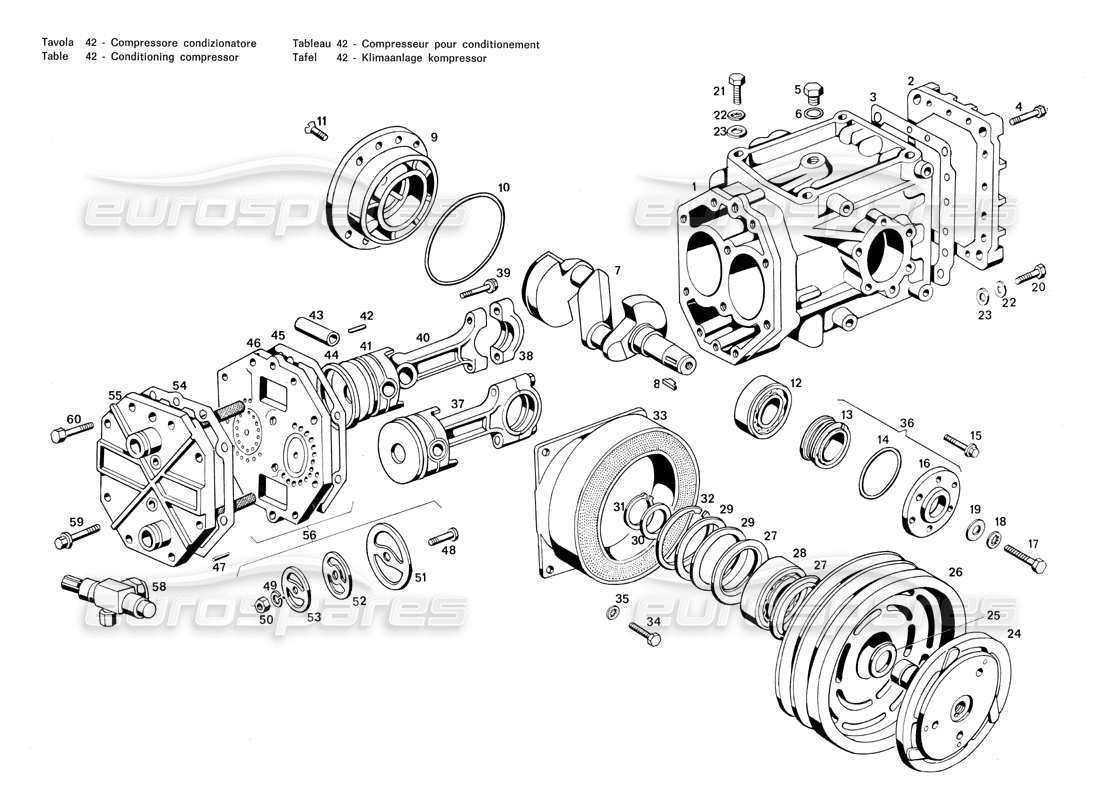

Maserati Merak 3.0 Conditioning Compressor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                    #
                                                                                                                                    Part number
                                                                                                                                    Description
                                                                                                                                    Price

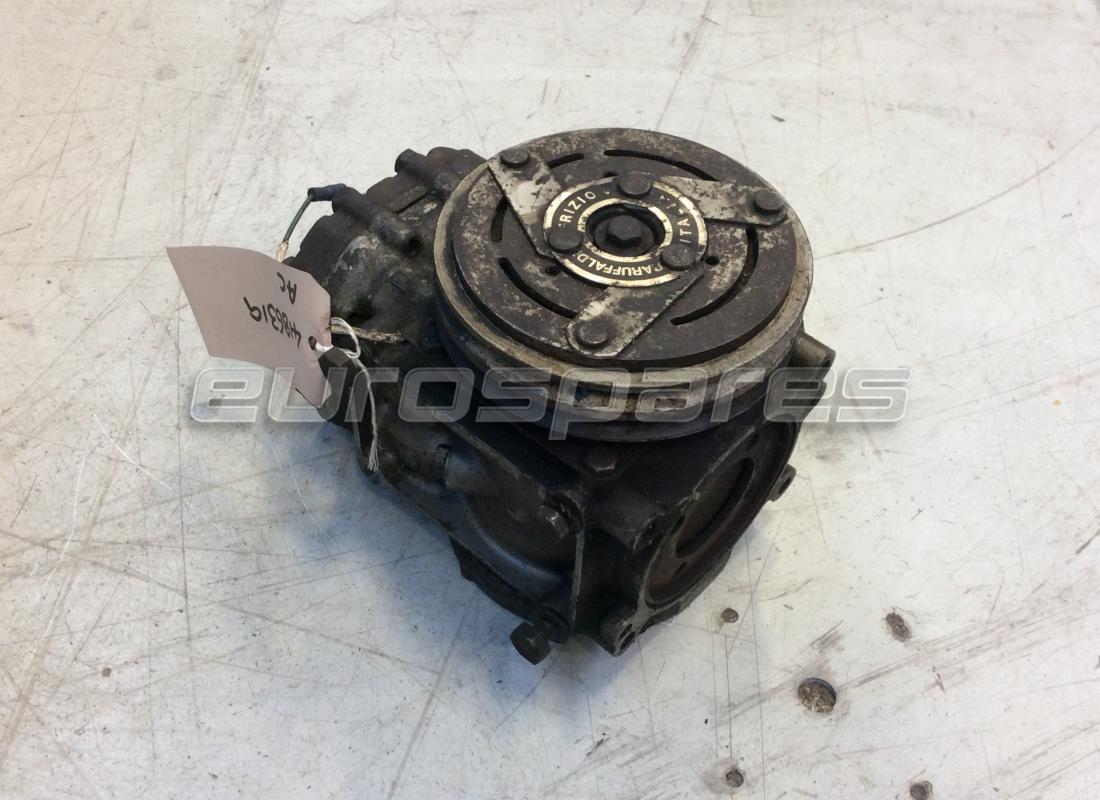

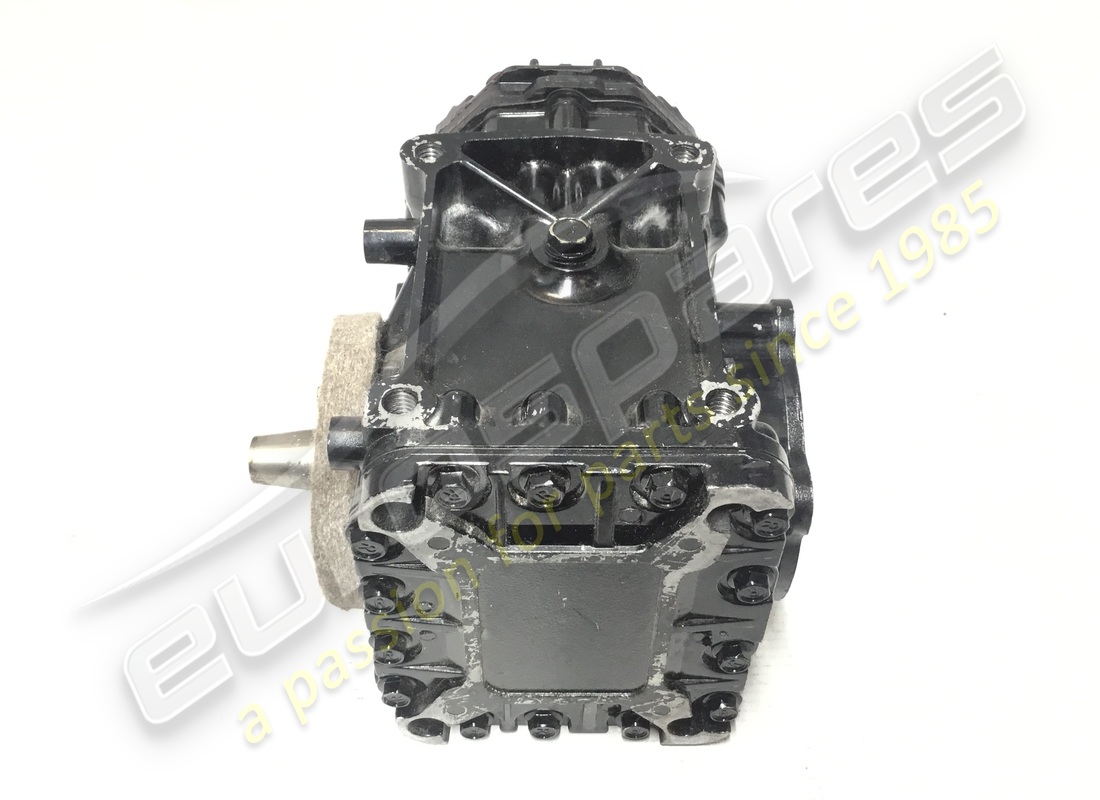

                                                                                                                                    # 000
                                                                                                                                    MPN: 4186319
                                                                                                                                    COMPLETE AC COMPRESSOR
                                                                                                                                    from £939.75
                                                                                                                                    from £939.75
                                                                                                                                    # 001
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    CORPO COMPRESSORE
                                                                                                                                    # 002
                                                                                                                                    MPN: 107 BR 66056
                                                                                                                                    COVER
                                                                                                                                    # 004
                                                                                                                                    MPN: BNT 66113
                                                                                                                                    BOLT
                                                                                                                                    # 005
                                                                                                                                    MPN: BNT 66103
                                                                                                                                    TAPPO 0 3/8 - 24 X 1/2 UNF LIVELLO OLIO
                                                                                                                                    # 006
                                                                                                                                    MPN: GOM 61051
                                                                                                                                    GOMMINO Ø 9,25 X 1,78 PER DETTO
                                                                                                                                    # 007
                                                                                                                                    MPN: 116 BR 67722
                                                                                                                                    ALBERO MANOVELLA
                                                                                                                                    # 008
                                                                                                                                    MPN: LN 66108
                                                                                                                                    Key
                                                                                                                                    # 009
                                                                                                                                    MPN: 107 BR 66083
                                                                                                                                    COVER
                                                                                                                                    # 010
                                                                                                                                    MPN: GOM 66109
                                                                                                                                    Gommino Ø 31/4X1/16 per detto
                                                                                                                                    # 011
                                                                                                                                    MPN: VNT 66104
                                                                                                                                    SCREW
                                                                                                                                    # 012
                                                                                                                                    MPN: CSC 66105
                                                                                                                                    Cuscinetto Ø 25X 52 X 12 sull'albero manovella
                                                                                                                                    # 013
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    SEAL
                                                                                                                                    # 014
                                                                                                                                    MPN: GOM 66096
                                                                                                                                    Gommino quadro Ø 54 X 1,6 tenuta coperchio posteriore
                                                                                                                                    # 015
                                                                                                                                    MPN: BNT 66097
                                                                                                                                    BOLT
                                                                                                                                    # 016
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    COVER
                                                                                                                                    # 017
                                                                                                                                    MPN: BNT 57391
                                                                                                                                    BUL LONE 3/8 - 24 X 1 1 /4 FISSAGGIO FRIZIONE ELETTROMAGNETICA
                                                                                                                                    # 020
                                                                                                                                    MPN: BNT 55118
                                                                                                                                    BOLT
                                                                                                                                    # 021
                                                                                                                                    MPN: BNT 55,117
                                                                                                                                    BOLT
                                                                                                                                    # 024
                                                                                                                                    MPN: 107 BR 66084
                                                                                                                                    CLUTCH DISC 1PER ELECTRIC MAGNET
                                                                                                                                    # 025
                                                                                                                                    MPN: 107 BR 66085
                                                                                                                                    Disco di rasamento tra puleggia e disco d'innesto
                                                                                                                                    # 026
                                                                                                                                    MPN: 122 BR 77258
                                                                                                                                    PULEGGIA PER FRIZIONE ELETTROMAGNETICA COMPLETA
                                                                                                                                    # 027
                                                                                                                                    MPN: ANT 45425
                                                                                                                                    PARAPOLVERE Ø 36,5 X.62 X 3 PER CUSCINETTO
                                                                                                                                    # 028
                                                                                                                                    MPN: CSC 43387
                                                                                                                                    CUSCINETTO Ø 30 X 62 X 20 PER DETTO
                                                                                                                                    # 029
                                                                                                                                    MPN: 107 BR 66086
                                                                                                                                    DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE
                                                                                                                                    # 030
                                                                                                                                    MPN: 107 BR 66087
                                                                                                                                    DISCO DI RASAMENTO TRA ANELLO DI ARRESTO E PARAPOLVERE
                                                                                                                                    # 031
                                                                                                                                    MPN: ART 47848
                                                                                                                                    RING
                                                                                                                                    # 032
                                                                                                                                    MPN: ART 46754
                                                                                                                                    RING
                                                                                                                                    # 033
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    ELETTROMAGNETE
                                                                                                                                    # 034
                                                                                                                                    MPN: BNT 49969
                                                                                                                                    BOLT
                                                                                                                                    # 036
                                                                                                                                    MPN: 107 BR 66100
                                                                                                                                    COMPLESSIVO GUARNIZIONI TENUTA ALBERO MOTORE
                                                                                                                                    # 037
                                                                                                                                    MPN: 116 BR 67721
                                                                                                                                    COMPLESSIVO BIELLA, PISTONE, SPINOTTO E RASCHIAOLIO
                                                                                                                                    # 038
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    BEARING CAP
                                                                                                                                    # 039
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    BOLT
                                                                                                                                    # 040
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    CORPO DI BIELLA
                                                                                                                                    # 041
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    PISTONE
                                                                                                                                    # 042
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    PORNO PER PISTONE
                                                                                                                                    # 043
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    Spinotto per biella
                                                                                                                                    # 044
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    RASCHIAOLIO
                                                                                                                                    # 046
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    CORPO INTERMEDIO PORTA VALVOLE
                                                                                                                                    # 047
                                                                                                                                    MPN: GRN 66089
                                                                                                                                    Grano Ø 3,2 X 12,5 per detto
                                                                                                                                    # 048
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    PIVOT
                                                                                                                                    # 049
                                                                                                                                    MPN: RSN 3 2 4 9 7
                                                                                                                                    WASHER
                                                                                                                                    # 050
                                                                                                                                    MPN: DNT 61459
                                                                                                                                    NUT
                                                                                                                                    # 051
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    DISCO INFERIORE VALVOLA
                                                                                                                                    # 052
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    DISCO SUPERIORE VALVOLA
                                                                                                                                    # 053
                                                                                                                                    MPN: Non fornibile sep.
                                                                                                                                    SEAL
                                                                                                                                    # 054
                                                                                                                                    MPN: 107 BR 66901
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    # 055
                                                                                                                                    MPN: 107 BR 66092
                                                                                                                                    CYLINDER HEAD COMPLETE
                                                                                                                                    # 056
                                                                                                                                    MPN: 107 BR 66093
                                                                                                                                    COMPLESSIVO CORPO INTERMEDIO PORTA VALVOLE INCLUSE LE GUARNIZIONI
                                                                                                                                    # 058
                                                                                                                                    MPN: 107 BR 66095
                                                                                                                                    VALVOLA ROTALOCK DA 7/8
                                                                                                                                    # 059
                                                                                                                                    MPN: BNT 66101
                                                                                                                                    BOLT
                                                                                                                                    # 060
                                                                                                                                    MPN: BNT 66102
                                                                                                                                    BOLT
                                                                                                                                    # 061
                                                                                                                                    MPN: GOM 70065 *
                                                                                                                                    GOMMINO PER VALVOLA ISOBARICA
                                                                                                                                    # 062
                                                                                                                                    MPN: 107 BR 73843
                                                                                                                                    SERIE GUARNIZIONI E GOMMINI PER COPERCHI
                                                                                                                                    # 063
                                                                                                                                    MPN: 107 BR 70063
                                                                                                                                    SERIE GUARNIZIONI E GOMMINI PER VALVOLA A FLANGIA
                                                                                                                                    # 064
                                                                                                                                    MPN: 107 BR 70064
                                                                                                                                    SERIE GUARNIZIONI E GOMMINI PER VALVOLA ROTALOCK
                                                                                                                                    # 065
                                                                                                                                    MPN: 117 BR 72433
                                                                                                                                    PULEGGIA CON FRIZIONE PER COMPRESSORE
