maserati mistral 3.7 moving parts parts diagram

002 - moving parts

Maserati Mistral 3.7 Moving Parts Parts Diagram

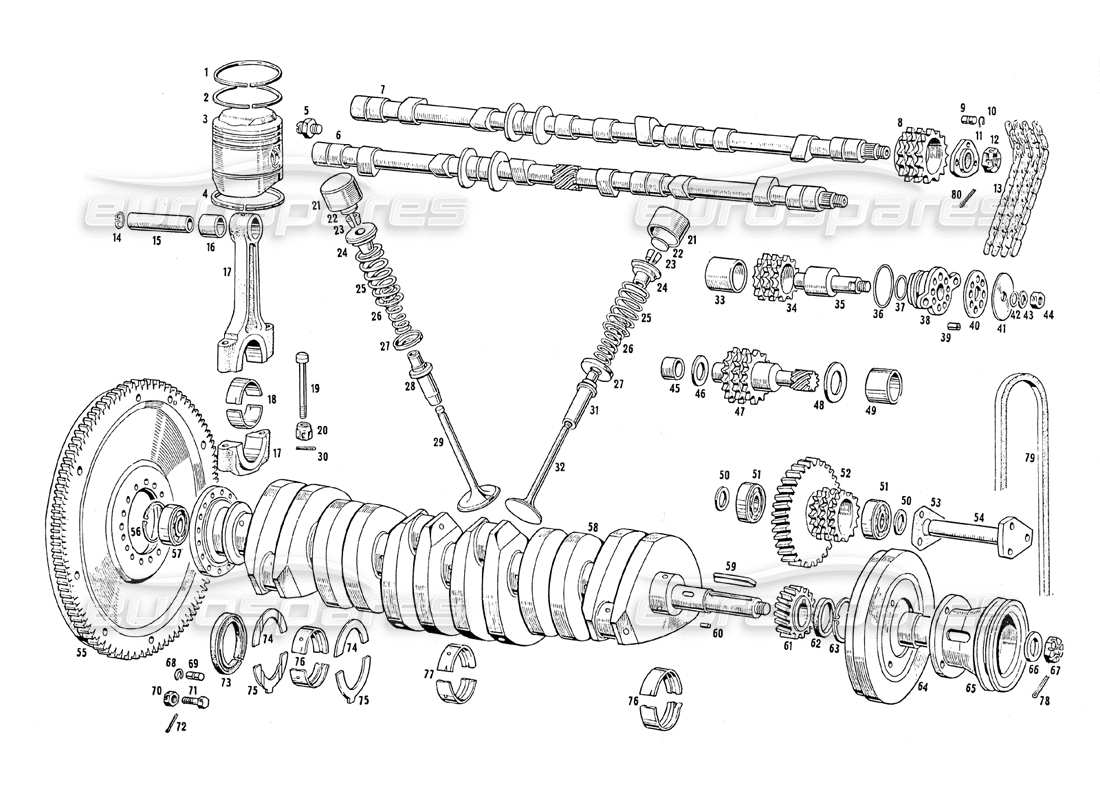

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                          #
                                                                                                                                          Part number
                                                                                                                                          Description
                                                                                                                                          Price
                                                                                                                                          # 001
                                                                                                                                          MPN: 101/3 - 2754 50192
                                                                                                                                          SEALING RING
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 001
                                                                                                                                          MPN: 109/1 - MM 60522
                                                                                                                                          Anella di tenuta torsionale Ø 86 **
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 002
                                                                                                                                          MPN: 101/3 - 2754 50362
                                                                                                                                          SEALING RING
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 002
                                                                                                                                          MPN: 109/1 - MM 61439
                                                                                                                                          SEALING RING
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 003
                                                                                                                                          MPN: 106 - MM 55864
                                                                                                                                          Pistone per canna Ø 86 *
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 003
                                                                                                                                          MPN: 109/1 - MM 60526
                                                                                                                                          Pistono per canna Ø 88 **
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 004
                                                                                                                                          MPN: 101 - 2804 47584
                                                                                                                                          RING
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 004
                                                                                                                                          MPN: 106 - MM 55609
                                                                                                                                          RING
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 004
                                                                                                                                          MPN: 109/1 - MM 60524
                                                                                                                                          RING
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 004
                                                                                                                                          MPN: 109/1 - MM 60731
                                                                                                                                          RING
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 005
                                                                                                                                          MPN: 101 - 3012 47331
                                                                                                                                          CODULO PER INNESTO CONTAGIRI (SOLO PER MOTORI CON CONTAGIRI A COMANDO MECCANICO)
                                                                                                                                          # 007
                                                                                                                                          MPN: 101/9 - 3004 53260
                                                                                                                                          EXHAUST SIDE TIMING SHAFT
                                                                                                                                          # 008
                                                                                                                                          MPN: 101/9 - 3602 53489
                                                                                                                                          TIMING SHAFT CONTROL GEAR
                                                                                                                                          # 009
                                                                                                                                          MPN: CRN - 31 105
                                                                                                                                          GRAIN 6X 10 CLUTCH SEAL WITH FLANGE
                                                                                                                                          # 010
                                                                                                                                          MPN: ART 49642
                                                                                                                                          RING
                                                                                                                                          # 011
                                                                                                                                          MPN: 3022 49795
                                                                                                                                          CLUTCH WITH FLANGE FOR TIMING GEAR
                                                                                                                                          # 012
                                                                                                                                          MPN: 3014 44017
                                                                                                                                          NUT
                                                                                                                                          # 013
                                                                                                                                          MPN: 101/9 - MD 54560
                                                                                                                                          CATENA COMANDO DISTRIBUZIONE
                                                                                                                                          # 015
                                                                                                                                          MPN: 101 - 2702 46431
                                                                                                                                          SPINOTTO PER PISTONE
                                                                                                                                          from £519.48
                                                                                                                                          from £519.48
                                                                                                                                          # 016
                                                                                                                                          MPN: 2520/49214
                                                                                                                                          BUSH
                                                                                                                                          # 017
                                                                                                                                          MPN: 101/9 - 2502 53225
                                                                                                                                          CONNECTING ROD AND CAP
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 017
                                                                                                                                          MPN: 109/1 - MM 61083
                                                                                                                                          CONNECTING ROD AND CAP
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 018
                                                                                                                                          MPN: 53 - 2504 47791
                                                                                                                                          BUSHING FOR CONNECTING ROD 2 META
                                                                                                                                          # 018
                                                                                                                                          MPN: MBB001
                                                                                                                                          BIG END BEARINGS SET
                                                                                                                                          (std)
                                                                                                                                          # 019
                                                                                                                                          MPN: 53 - 2530 47790
                                                                                                                                          BOLT
                                                                                                                                          # 020
                                                                                                                                          MPN: 101/2 - 2532 49911
                                                                                                                                          NUT
                                                                                                                                          # 021
                                                                                                                                          MPN: 101341348009
                                                                                                                                          VALVE CONTROL BOWL
                                                                                                                                          # 022
                                                                                                                                          MPN: 101 3322 48003
                                                                                                                                          VALVE CLEARANCE ADJUSTMENT PAD
                                                                                                                                          # 023
                                                                                                                                          MPN: 101 - 3414 48005
                                                                                                                                          SEMICONI RITEGNO SCOCLELLINO SUPERIORE MOLLE VALVOLE
                                                                                                                                          # 024
                                                                                                                                          MPN: 101 - 3412 48008
                                                                                                                                          UPPER VALVE SPRING CAP
                                                                                                                                          from £50.22
                                                                                                                                          from £50.22
                                                                                                                                          # 025
                                                                                                                                          MPN: 101 3402 47982
                                                                                                                                          SPRING
                                                                                                                                          from £65.80
                                                                                                                                          from £65.80
                                                                                                                                          # 026
                                                                                                                                          MPN: 101 3406 47983
                                                                                                                                          SPRING
                                                                                                                                          from £43.30
                                                                                                                                          from £43.30
                                                                                                                                          # 027
                                                                                                                                          MPN: 101 - 1034 48004
                                                                                                                                          Scodellino inferiore per molle valvole
                                                                                                                                          # 028
                                                                                                                                          MPN: 101 - 1030 4801 1
                                                                                                                                          Guida valvole aspirazione
                                                                                                                                          # 029
                                                                                                                                          MPN: MD 48935
                                                                                                                                          Valvola di aspirazione Ø 49
                                                                                                                                          from £67.00
                                                                                                                                          from £67.00
                                                                                                                                          # 029
                                                                                                                                          MPN: MD 48935
                                                                                                                                          INLET VALVES
                                                                                                                                          46 mm
                                                                                                                                          from £67.00
                                                                                                                                          from £67.00
                                                                                                                                          # 029
                                                                                                                                          MPN: MD46808
                                                                                                                                          Valvola di aspirazione Ø 46
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          from £41.48
                                                                                                                                          from £41.48
                                                                                                                                          # 030
                                                                                                                                          MPN: CN. 43776
                                                                                                                                          PIN 2X 15 FOR CONNECTING ROD NUTS
                                                                                                                                          from £0.86
                                                                                                                                          from £0.86
                                                                                                                                          # 031
                                                                                                                                          MPN: 101 - 1032 48010
                                                                                                                                          GUIDA VALVOLA DI SCARICO
                                                                                                                                          # 032
                                                                                                                                          MPN: 101-3304 48006
                                                                                                                                          EXHAUST VALVE
                                                                                                                                          Valid for 3500 / 3700 Engines
                                                                                                                                          # 032
                                                                                                                                          MPN: MD48006
                                                                                                                                          VALVOLA DI SCARICO
                                                                                                                                          from £46.73
                                                                                                                                          from £46.73
                                                                                                                                          # 033
                                                                                                                                          MPN: 101/2 - 3713 49284
                                                                                                                                          BUSH FOR CHAIN ​​TENSIONER SPROCKET
                                                                                                                                          # 034
                                                                                                                                          MPN: 106 - MD 55686
                                                                                                                                          PINION FOR CHAIN ​​TENSIONER
                                                                                                                                          # 035
                                                                                                                                          MPN: 101/9 - 3744 53447
                                                                                                                                          PIVOT
                                                                                                                                          # 036
                                                                                                                                          MPN: GOM/45791
                                                                                                                                          RUBBER 18X24X3 ON THE CHAIN ​​TENSIONER SUPPORT
                                                                                                                                          # 037
                                                                                                                                          MPN: COM 43143
                                                                                                                                          RUBBER 37 X 43 X 3 ON THE CHAIN ​​TENSIONER SUPPORT
                                                                                                                                          # 038
                                                                                                                                          MPN: 101 /2 3742 49285
                                                                                                                                          SUPPORT
                                                                                                                                          # 040
                                                                                                                                          MPN: 101/2 - 3741 49287
                                                                                                                                          WASHER
                                                                                                                                          # 041
                                                                                                                                          MPN: 101/2 3743 49286
                                                                                                                                          WASHER
                                                                                                                                          # 042
                                                                                                                                          MPN: RN 47775
                                                                                                                                          WASHER
                                                                                                                                          # 043
                                                                                                                                          MPN: RSN/33114
                                                                                                                                          WASHER
                                                                                                                                          # 044
                                                                                                                                          MPN: DN 57262
                                                                                                                                          NUT
                                                                                                                                          # 045
                                                                                                                                          MPN: 101/9 - 3542 53499
                                                                                                                                          BUSH
                                                                                                                                          # 046
                                                                                                                                          MPN: 101/9 - 3509 46572
                                                                                                                                          REAR SPACER FOR GENERATOR GEAR
                                                                                                                                          # 047
                                                                                                                                          MPN: 101/9 - 3608 53523
                                                                                                                                          GENERATOR CONTROL GEAR
                                                                                                                                          # 048
                                                                                                                                          MPN: 101/9 - 3610 53493
                                                                                                                                          FRONT SPACER FOR GENERATOR GEAR
                                                                                                                                          # 049
                                                                                                                                          MPN: 101/9 - 3544 53500
                                                                                                                                          BUSH
                                                                                                                                          # 050
                                                                                                                                          MPN: 101/9 - 3509 46572
                                                                                                                                          SPACER FOR CENTRAL CHAIN ​​CONTROL GEAR
                                                                                                                                          # 051
                                                                                                                                          MPN: CSC 43892
                                                                                                                                          BEARING FOR CENTRAL GEAR
                                                                                                                                          # 052
                                                                                                                                          MPN: 101/9 - 3508 53478
                                                                                                                                          CENTRAL CRANKCASE GEAR
                                                                                                                                          # 053
                                                                                                                                          MPN: 150/S - 3571 46908
                                                                                                                                          GASKET OR SEAL
                                                                                                                                          # 054
                                                                                                                                          MPN: 106/1 - MD 61801
                                                                                                                                          SHAFT FOR CENTRAL BASE GEAR **
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 054
                                                                                                                                          MPN: A6G54 3562 44027
                                                                                                                                          SHAFT FOR CENTRAL BASE GEAR *
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 055
                                                                                                                                          MPN: 101/9 - MM 55526
                                                                                                                                          ENGINE FLYWHEEL WITH CROWN FOR STARTER MOTOR *
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 055
                                                                                                                                          MPN: 101/9 - MM 61343
                                                                                                                                          ENGINE FLYWHEEL WITH CROWN FOR STARTER MOTOR **
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 057
                                                                                                                                          MPN: CSC46424
                                                                                                                                          REAR CRANKSHAFT BEARING
                                                                                                                                          # 058
                                                                                                                                          MPN: 106 - MM 53375
                                                                                                                                          CRANKSHAFT 106 *
                                                                                                                                          Detail valid only for engine 3700cc (106)
                                                                                                                                          # 058
                                                                                                                                          MPN: 109/1 - MM 61818
                                                                                                                                          CRANKSHAFT 110**
                                                                                                                                          Detail valid only for engine 4000cc (106/1)
                                                                                                                                          # 059
                                                                                                                                          MPN: 101/9 - 2122 53494
                                                                                                                                          Key on the crankshaft
                                                                                                                                          # 060
                                                                                                                                          MPN: RUL55977
                                                                                                                                          OIL PUMP DRIVE ROLLER
                                                                                                                                          # 061
                                                                                                                                          MPN: 101/9 - 3502 53484
                                                                                                                                          Distribution control gear on the crankshaft
                                                                                                                                          # 062
                                                                                                                                          MPN: ANT 44776
                                                                                                                                          SEALING RING
                                                                                                                                          from £33.60
                                                                                                                                          from £33.60
                                                                                                                                          # 064
                                                                                                                                          MPN: 101/3 - 2310 49847
                                                                                                                                          VOLANO ANTIVIBRATORE
                                                                                                                                          # 065
                                                                                                                                          -
                                                                                                                                          Pulley on the crankshaft
                                                                                                                                          # 065
                                                                                                                                          MPN: 101/9 - 5122 53434
                                                                                                                                          Pulley on the crankshaft
                                                                                                                                          # 066
                                                                                                                                          MPN: RNT 49870
                                                                                                                                          WASHER
                                                                                                                                          # 067
                                                                                                                                          MPN: 101 - 2102 47649
                                                                                                                                          NUT
                                                                                                                                          # 068
                                                                                                                                          MPN: ART/49644
                                                                                                                                          RING
                                                                                                                                          # 069
                                                                                                                                          MPN: GRN44931
                                                                                                                                          GRAIN 10 X 15 FLYWHEEL CENTERING
                                                                                                                                          # 070
                                                                                                                                          MPN: DCN 43137
                                                                                                                                          NUT
                                                                                                                                          # 071
                                                                                                                                          MPN: BN/47629
                                                                                                                                          BOLT
                                                                                                                                          # 072
                                                                                                                                          MPN: CN. 43776
                                                                                                                                          COPIGLIA 2 X 30 FOR SAID
                                                                                                                                          from £0.86
                                                                                                                                          from £0.86
                                                                                                                                          # 073
                                                                                                                                          MPN: ANT47974
                                                                                                                                          SEALING RING
                                                                                                                                          from £131.25
                                                                                                                                          from £131.25
                                                                                                                                          # 074
                                                                                                                                          MPN: 54 - 2430 48635
                                                                                                                                          WASHER
                                                                                                                                          # 075
                                                                                                                                          MPN: 54 - 2432 48636
                                                                                                                                          WASHER
                                                                                                                                          # 076
                                                                                                                                          MPN: 54 - 2412 48501
                                                                                                                                          FRONT AND REAR BEARING SPLIT IN HALF
                                                                                                                                          # 077
                                                                                                                                          MPN: 53 - 2412 47794
                                                                                                                                          INTERMEDIATE BEARING SPLIT IN HALF
                                                                                                                                          # 077
                                                                                                                                          MPN: K420020101
                                                                                                                                          MAIN BEARINGS SET
                                                                                                                                          (std)
                                                                                                                                          # 077
                                                                                                                                          MPN: MMB003
                                                                                                                                          MAIN BEARINGS SET
                                                                                                                                          (0.30)
                                                                                                                                          from £1,044.75
                                                                                                                                          from £1,044.75
                                                                                                                                          # 077
                                                                                                                                          MPN: MMB004
                                                                                                                                          MAIN BEARINGS SET
                                                                                                                                          (010)
                                                                                                                                          from £1,044.75
                                                                                                                                          from £1,044.75
                                                                                                                                          # 078
                                                                                                                                          MPN: CN 33836
                                                                                                                                          COVER FOR CRANKSHAFT PULLEY FIXING NUT
                                                                                                                                          # 079
                                                                                                                                          MPN: CTR 53740
                                                                                                                                          BELT FOR WATER PUMP AND ALTERNATOR
