003 - Intake Manifold - Injection Equipment

Maserati Mistral 3.7 Intake Manifold - Injection Equipment Parts Diagram

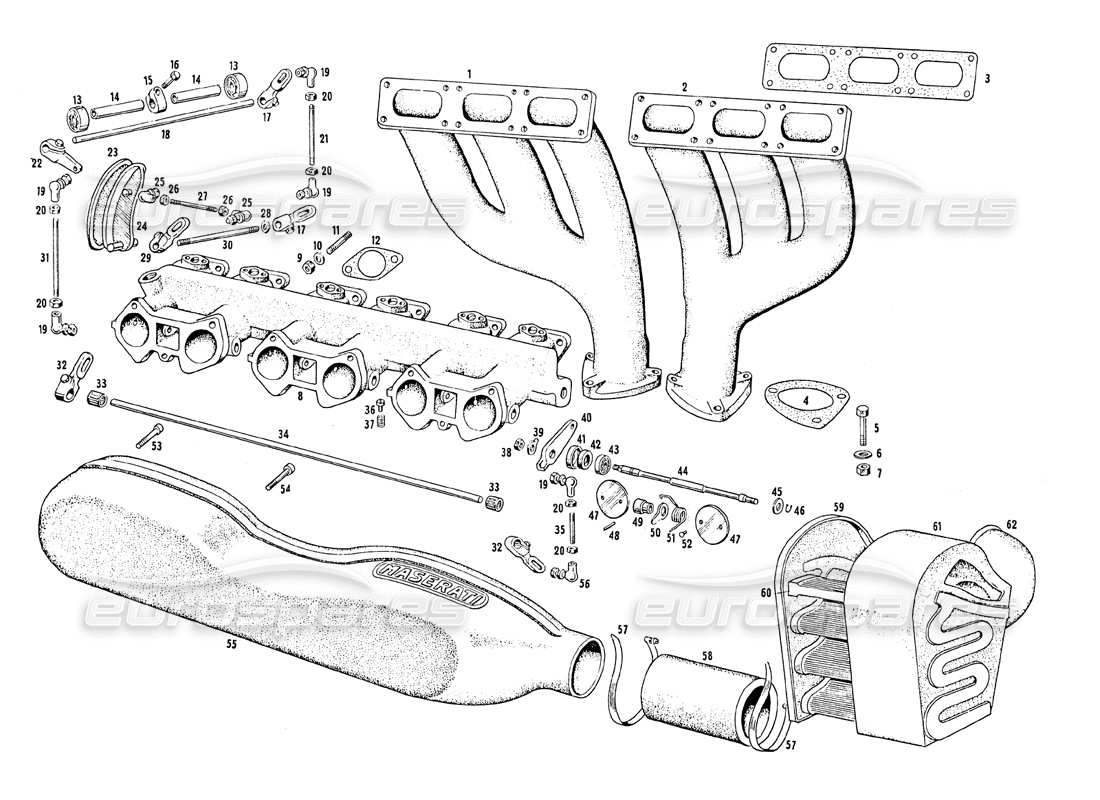

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                              #
                                                                                                                              Part number
                                                                                                                              Description
                                                                                                                              Price
                                                                                                                              # 001
                                                                                                                              MPN: 101 - 5806 46961
                                                                                                                              COLLETTORE SCARICO POSTERIORE
                                                                                                                              # 002
                                                                                                                              MPN: 101/9 MB 54594
                                                                                                                              COLLETTORE SCARICO ANTERIORE
                                                                                                                              # 003
                                                                                                                              MPN: 5814/48029
                                                                                                                              EX GASKET
                                                                                                                              # 004
                                                                                                                              MPN: 5822/44756
                                                                                                                              EX GASKET
                                                                                                                              from £13.52
                                                                                                                              from £13.52
                                                                                                                              # 005
                                                                                                                              MPN: BNT 47017
                                                                                                                              BOLT
                                                                                                                              # 006
                                                                                                                              MPN: RSN 3 2 6 3 5
                                                                                                                              WASHER
                                                                                                                              # 007
                                                                                                                              MPN: DN 48101
                                                                                                                              NUT
                                                                                                                              # 008
                                                                                                                              MPN: 101/7 - 5520 50198
                                                                                                                              Collettore d'aspirazione
                                                                                                                              from £367.50
                                                                                                                              from £367.50
                                                                                                                              # 009
                                                                                                                              MPN: DN 431 18
                                                                                                                              NUT
                                                                                                                              # 012
                                                                                                                              MPN: 101 - 5525 48061
                                                                                                                              GASKET OR SEAL
                                                                                                                              # 013
                                                                                                                              MPN: CSC 46581
                                                                                                                              Bearing on the base for the accelerator lever control rod.
                                                                                                                              # 014
                                                                                                                              MPN: 101/2 - 6069 49817
                                                                                                                              SHAFT SPACER ON THE BASE
                                                                                                                              # 016
                                                                                                                              MPN: BN 55071
                                                                                                                              BOLT
                                                                                                                              # 017
                                                                                                                              MPN: 101/7 - 6067 53785
                                                                                                                              LEVER
                                                                                                                              # 018
                                                                                                                              MPN: 101/7 - 6024 52258
                                                                                                                              ALBERINO PORTALEVE SUL BASAMENTO
                                                                                                                              # 019
                                                                                                                              MPN: 101/3 6090 50184
                                                                                                                              SNODO ANGOLARE COMPLETO TP. EHRENREICH
                                                                                                                              # 021
                                                                                                                              MPN: 101/7 - 6088 52653
                                                                                                                              TIE ROD
                                                                                                                              # 022
                                                                                                                              MPN: 101/7 - 6063 47167
                                                                                                                              Lever on the crankcase transmission shaft
                                                                                                                              # 023
                                                                                                                              MPN: 101 - 6043 47149
                                                                                                                              ACCELERATOR PEDAL COVER
                                                                                                                              # 024
                                                                                                                              MPN: 101/3 - 6041 50564
                                                                                                                              PECLALE ACCELERATORE
                                                                                                                              # 025
                                                                                                                              MPN: 103/A - 6270 50660
                                                                                                                              COMPLETE CORNER JOINT 6X1 ON THE PEDAL AND ON THE TRANSFER LEVER
                                                                                                                              # 026
                                                                                                                              MPN: DNT 47047
                                                                                                                              NUT
                                                                                                                              # 027
                                                                                                                              MPN: 101/7 - 6092 52652
                                                                                                                              TIE ROD
                                                                                                                              # 029
                                                                                                                              MPN: 101/2 - 6064 49745
                                                                                                                              Levetta sull'albsrino rinvio acceleratore
                                                                                                                              # 030
                                                                                                                              MPN: 101/7 - 6029 53655
                                                                                                                              TRANSFER SHAFT ON THE FRAME
                                                                                                                              # 031
                                                                                                                              MPN: 101/7 - 6092 52236
                                                                                                                              TIE ROD
                                                                                                                              # 032
                                                                                                                              MPN: 101/7 6063 52232
                                                                                                                              LEVETTA SULL'ALBERO PORTALEVE COMANDO FARFALLE
                                                                                                                              # 033
                                                                                                                              MPN: RUL 47155
                                                                                                                              BUSH
                                                                                                                              # 034
                                                                                                                              MPN: 101/7 - 6022 52256
                                                                                                                              ROD ON THE MANIFOLD FOR THROTTLE CONTROL LEVERS
                                                                                                                              # 035
                                                                                                                              MPN: 101/7 - 6092 52237
                                                                                                                              TIE ROD
                                                                                                                              # 036
                                                                                                                              MPN: VN 50351
                                                                                                                              SCREW
                                                                                                                              # 037
                                                                                                                              MPN: 101/7 5515 50352
                                                                                                                              SPRING
                                                                                                                              # 038
                                                                                                                              MPN: DNT 47080
                                                                                                                              NUT
                                                                                                                              # 039
                                                                                                                              MPN: 101/7 - 5563 52224
                                                                                                                              WASHER
                                                                                                                              # 040
                                                                                                                              MPN: 101/7 - 5512 52225
                                                                                                                              LEVER
                                                                                                                              # 041
                                                                                                                              MPN: 103 - 5551 50858
                                                                                                                              COVER
                                                                                                                              # 042
                                                                                                                              MPN: 103 - 5545 50857
                                                                                                                              COPRIPOLVERE
                                                                                                                              # 043
                                                                                                                              MPN: CSC50855
                                                                                                                              BEARING FOR THROTTLE CONTROL SHAFT
                                                                                                                              # 044
                                                                                                                              MPN: 101/7 - 5517 50213
                                                                                                                              ALBERO COMANCLO FARFALLE
                                                                                                                              # 045
                                                                                                                              MPN: RN/52390
                                                                                                                              WASHER
                                                                                                                              # 047
                                                                                                                              MPN: 10/7 - 5518 50214
                                                                                                                              FARFALLA
                                                                                                                              # 048
                                                                                                                              MPN: SN 50258
                                                                                                                              PIN
                                                                                                                              # 049
                                                                                                                              MPN: 101/7 - 5519 50215
                                                                                                                              THROTTLE CONTROL LEVER HUB
                                                                                                                              # 050
                                                                                                                              MPN: 101/7 - 5553 50212
                                                                                                                              LEVER
                                                                                                                              # 051
                                                                                                                              MPN: 5115 50209
                                                                                                                              SPRING
                                                                                                                              # 052
                                                                                                                              MPN: VN/52157
                                                                                                                              SCREW
                                                                                                                              # 053
                                                                                                                              MPN: BNT 54585
                                                                                                                              BOLT
                                                                                                                              # 054
                                                                                                                              MPN: BNT 54584
                                                                                                                              BOLT
                                                                                                                              # 055
                                                                                                                              MPN: MC54645
                                                                                                                              BOX ON THE INTAKE MANIFOLD
                                                                                                                              from £524.95
                                                                                                                              from £524.95
                                                                                                                              # 056
                                                                                                                              MPN: 101/9 - 6090 52233
                                                                                                                              Complete angular joint 5 X 0,8 left for throttle control levers
                                                                                                                              # 057
                                                                                                                              MPN: FRN 61802
                                                                                                                              CLAMP FOR FIXING RUBBER HOSE ON THE AIR FILTER BOX
                                                                                                                              # 058
                                                                                                                              MPN: 106 - MC 50143
                                                                                                                              TUBO COLLEGOMENTO SCATOLA FILTRO ARIA
                                                                                                                              # 059
                                                                                                                              MPN: 101/7 - 6148 52838
                                                                                                                              COVER
                                                                                                                              # 060
                                                                                                                              MPN: AF11024
                                                                                                                              AIR FILTER
                                                                                                                              from £99.84
                                                                                                                              from £99.84

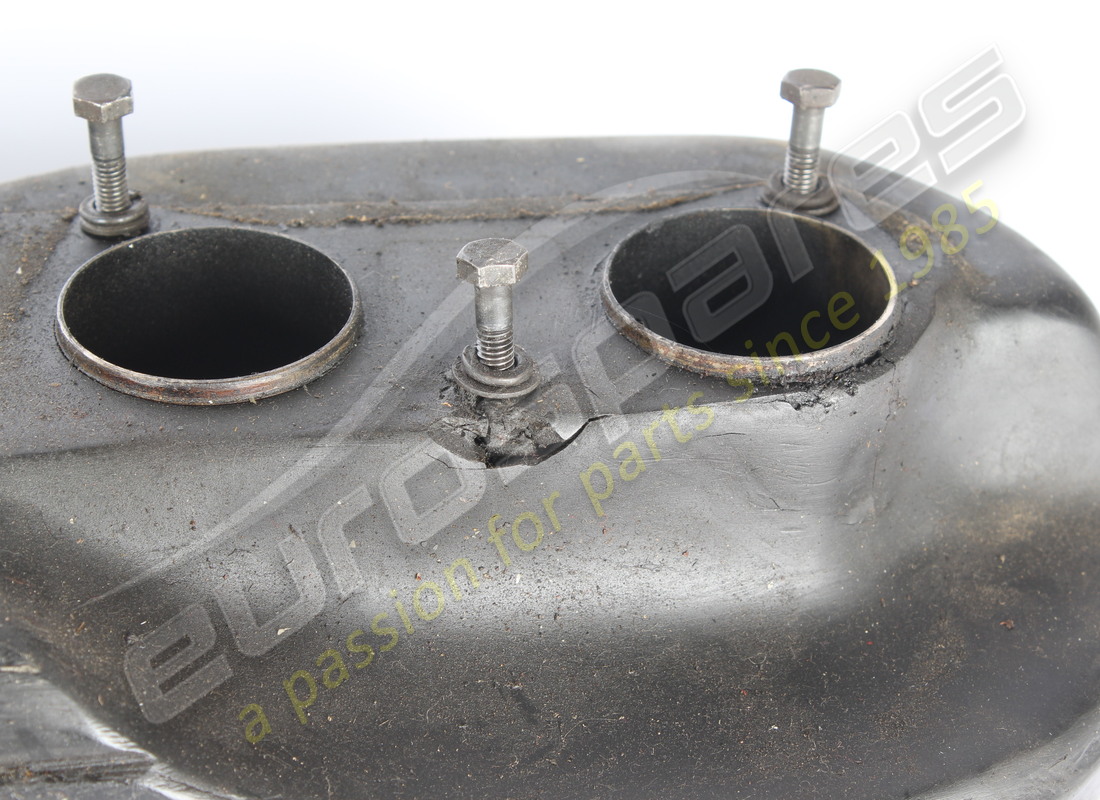

                                                                                                                              # 061
                                                                                                                              MPN: 101/9 MC 54650
                                                                                                                              AIR FILTER BOX
                                                                                                                              from £157.29
                                                                                                                              from £157.29
                                                                                                                              # 062
                                                                                                                              MPN: 101/9 MC 54650
                                                                                                                              AIR FILTER BOX
                                                                                                                              from £157.29
                                                                                                                              from £157.29
