005 - Water Pump and Fan

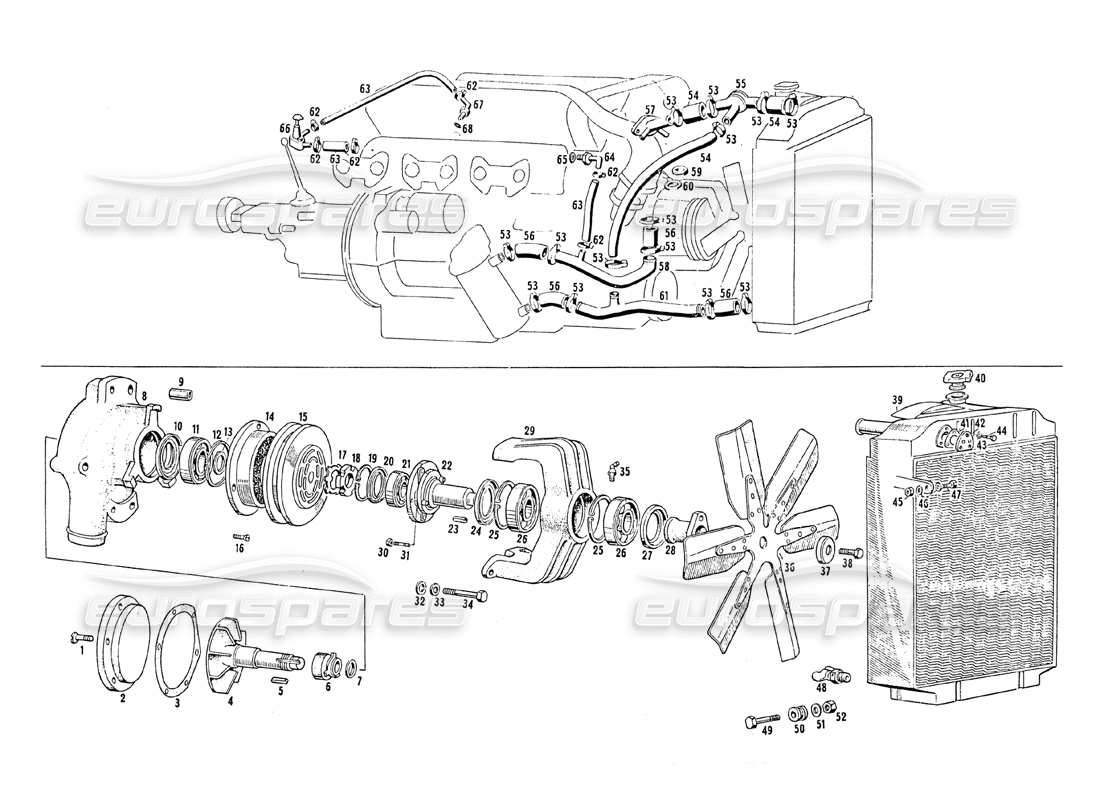

Maserati Mistral 3.7 Water Pump and Fan Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                          #
                                                                                                                                          Part number
                                                                                                                                          Description
                                                                                                                                          Key
                                                                                                                                          Price
                                                                                                                                          # 001
                                                                                                                                          MPN: VNT 47051
                                                                                                                                          SCREW
                                                                                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                                                                                          # 002
                                                                                                                                          MPN: 101 - 4522 47990
                                                                                                                                          COVER
                                                                                                                                          COVER Genuine Maserati Part - New (to order)
                                                                                                                                          # 003
                                                                                                                                          MPN: 101 - 4523 471 1 1
                                                                                                                                          GASKET OR SEAL
                                                                                                                                          GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                          # 004
                                                                                                                                          MPN: 101/9 - MA 54614
                                                                                                                                          Water pump control shaft
                                                                                                                                          Water pump control shaft Genuine Maserati Part - New (to order)
                                                                                                                                          # 005
                                                                                                                                          MPN: IN 33791
                                                                                                                                          Linguntta 23 X 6 X 5 sull'albcrino pompa acqua
                                                                                                                                          Linguntta 23 X 6 X 5 sull'albcrino pompa acqua Genuine Maserati Part - New (to order)
                                                                                                                                          # 006
                                                                                                                                          MPN: ANT 47973
                                                                                                                                          SEALING RING
                                                                                                                                          from £434.78
                                                                                                                                          from £434.78
                                                                                                                                          SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                          # 007
                                                                                                                                          MPN: 101/9 - MA 54616
                                                                                                                                          Spacer on the pump shaft
                                                                                                                                          Spacer on the pump shaft Genuine Maserati Part - New (to order)
                                                                                                                                          # 008
                                                                                                                                          MPN: 101/9 - 4502 53351
                                                                                                                                          CORPO POMPA ACQUA
                                                                                                                                          CORPO POMPA ACQUA Genuine Maserati Part - New (to order)
                                                                                                                                          # 009
                                                                                                                                          MPN: CRN 43991
                                                                                                                                          Grub screw 10X15 pump body centering with support. fan
                                                                                                                                          Grub screw 10X15 pump body centering with support. fan Genuine Maserati Part - New (to order)
                                                                                                                                          # 010
                                                                                                                                          MPN: 101/9 - 4560 53762
                                                                                                                                          RING
                                                                                                                                          RING Genuine Maserati Part - New (to order)
                                                                                                                                          # 011
                                                                                                                                          MPN: CSC 53747
                                                                                                                                          Cuscinetto RIV BLN 25 sull'albero pompa
                                                                                                                                          Cuscinetto RIV BLN 25 sull'albero pompa Genuine Maserati Part - New (to order)
                                                                                                                                          # 012
                                                                                                                                          MPN: ART 46754
                                                                                                                                          RING
                                                                                                                                          RING Genuine Maserati Part - New (to order)
                                                                                                                                          # 013
                                                                                                                                          MPN: 101/9 - 4554 53748
                                                                                                                                          Spacer on the pump shaft
                                                                                                                                          Spacer on the pump shaft Genuine Maserati Part - New (to order)
                                                                                                                                          # 014
                                                                                                                                          MPN: 101/7 - 5024 52395
                                                                                                                                          MAGNET WITH COIL
                                                                                                                                          MAGNET WITH COIL Genuine Maserati Part - New (to order)
                                                                                                                                          # 015
                                                                                                                                          MPN: 101/7 - 5026 52396
                                                                                                                                          Pulley with rotor
                                                                                                                                          Pulley with rotor Genuine Maserati Part - New (to order)
                                                                                                                                          # 016
                                                                                                                                          MPN: VN/52294
                                                                                                                                          SCREW
                                                                                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                                                                                          # 017
                                                                                                                                          MPN: RL/52535
                                                                                                                                          WASHER
                                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                                          # 018
                                                                                                                                          MPN: GH-52430
                                                                                                                                          RING 22 X 1 X 5 FIXING THE ELECTROMAGNET ON THE SHAFT
                                                                                                                                          Ghiera Ø 22x1x5 fissaggio elettromagneta sull'alberino pompa Genuine Maserati Part - New (to order)
                                                                                                                                          # 019
                                                                                                                                          MPN: ART/47948
                                                                                                                                          RING
                                                                                                                                          from £46.95
                                                                                                                                          from £46.95
                                                                                                                                          SEEGER RING Genuine Maserati Part - New (to order)
                                                                                                                                          # 020
                                                                                                                                          MPN: ANT/52433
                                                                                                                                          SEALING RING
                                                                                                                                          from £32.18
                                                                                                                                          from £32.18
                                                                                                                                          SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                          # 021
                                                                                                                                          MPN: CSC47947
                                                                                                                                          FRONT BEARING ON THE PUMP SHAFT
                                                                                                                                          Rear bearing on the distributor control shaft Genuine Maserati Part - New (to order)
                                                                                                                                          # 022
                                                                                                                                          MPN: 101/7 - 5005 52274
                                                                                                                                          Fan drive sleeve
                                                                                                                                          Fan drive sleeve Genuine Maserati Part - New (to order)
                                                                                                                                          # 023
                                                                                                                                          MPN: LN/52151
                                                                                                                                          TAB 4 X 4 X 6 ON THE FAN DRIVE SLEEVE
                                                                                                                                          TOW TAB FAN CONNECTION SLEEVE Genuine Maserati Part - New (to order)
                                                                                                                                          # 024
                                                                                                                                          MPN: ANT/52279
                                                                                                                                          SEALING RING
                                                                                                                                          from £47.82
                                                                                                                                          from £47.82
                                                                                                                                          SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                          # 025
                                                                                                                                          MPN: ART 46754
                                                                                                                                          RING
                                                                                                                                          RING Genuine Maserati Part - New (to order)
                                                                                                                                          # 026
                                                                                                                                          MPN: CSC 45702
                                                                                                                                          Bearing on fan support
                                                                                                                                          Bearing on fan support Genuine Maserati Part - New (to order)
                                                                                                                                          # 027
                                                                                                                                          MPN: ANT/52278
                                                                                                                                          SEALING RING
                                                                                                                                          SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                          # 028
                                                                                                                                          MPN: 101/9 - 5004 53950
                                                                                                                                          SLEEVE FOR FAN CONNECTION
                                                                                                                                          SLEEVE FOR FAN CONNECTION Genuine Maserati Part - New (to order)
                                                                                                                                          # 029
                                                                                                                                          MPN: CD53423
                                                                                                                                          SUPPORT
                                                                                                                                          from £519.75
                                                                                                                                          from £519.75
                                                                                                                                          SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                          SUPPORT Genuine Maserati Part - Used In stock
                                                                                                                                          # 030
                                                                                                                                          MPN: DN 49457
                                                                                                                                          NUT
                                                                                                                                          NUT Genuine Maserati Part - New (to order)
                                                                                                                                          # 031
                                                                                                                                          MPN: GRN 52708
                                                                                                                                          Wheat 8X1X16 for said
                                                                                                                                          Wheat 8X1X16 for said Genuine Maserati Part - New (to order)
                                                                                                                                          # 032
                                                                                                                                          MPN: RSN 33171
                                                                                                                                          WASHER
                                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                                          # 034
                                                                                                                                          MPN: BN 53049
                                                                                                                                          BOLT
                                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                                          # 035
                                                                                                                                          MPN: IN/48089
                                                                                                                                          GREASE GREASE 8X 1,25 ON THE FAN SUPPORT
                                                                                                                                          Grease nipple on the brake and clutch pump support Genuine Maserati Part - New (to order)
                                                                                                                                          # 036
                                                                                                                                          MPN: 101/7 - 5002 52787
                                                                                                                                          VENTOLA A 6 PALE
                                                                                                                                          VENTOLA A 6 PALE Genuine Maserati Part - New (to order)
                                                                                                                                          # 037
                                                                                                                                          MPN: 101 - 5048 48087
                                                                                                                                          WASHER
                                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                                          # 038
                                                                                                                                          MPN: BN 53954
                                                                                                                                          BOLT
                                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                                          # 039
                                                                                                                                          MPN: CR 54656
                                                                                                                                          RADIATORE ACQUA
                                                                                                                                          RADIATORE ACQUA Genuine Maserati Part - New (to order)
                                                                                                                                          # 040
                                                                                                                                          MPN: TN41374
                                                                                                                                          RADIATOR CAP
                                                                                                                                          from £47.25
                                                                                                                                          from £47.25
                                                                                                                                          RADIATOR CAP Genuine Maserati Part - New In stock
                                                                                                                                          # 042
                                                                                                                                          MPN: 101/7 5022 54237
                                                                                                                                          AUTOMATIC SWITCH ON THE RADIATOR
                                                                                                                                          Thermostat on the fan control water radiator Genuine Maserati Part - New (to order)
                                                                                                                                          # 044
                                                                                                                                          MPN: DNT 47446
                                                                                                                                          NUT
                                                                                                                                          NUT Genuine Maserati Part - New (to order)
                                                                                                                                          # 046
                                                                                                                                          MPN: RSN 3 2 6 3 5
                                                                                                                                          WASHER
                                                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                                                          # 048
                                                                                                                                          MPN: 101 - 16440 47390
                                                                                                                                          DRAIN TAP ON THE RADIATOR
                                                                                                                                          DRAIN TAP ON THE RADIATOR Genuine Maserati Part - New (to order)
                                                                                                                                          # 049
                                                                                                                                          MPN: BN 46747
                                                                                                                                          BOLT
                                                                                                                                          BOLT Genuine Maserati Part - New (to order)
                                                                                                                                          # 050
                                                                                                                                          MPN: SLN 35572
                                                                                                                                          SUPPORT
                                                                                                                                          from £43.48
                                                                                                                                          from £43.48
                                                                                                                                          SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                          # 053
                                                                                                                                          MPN: FRN37829
                                                                                                                                          FASCETTA PER MANICOTTI Ø 38 X 54
                                                                                                                                          Fascetta per tubazioni principali acqua Genuine Maserati Part - New (to order)
                                                                                                                                          # 054
                                                                                                                                          MPN: MN 50905
                                                                                                                                          SLEEVES Ø 32 X 40 X 90 FROM THE HEAD TO THE RADIATOR
                                                                                                                                          Sleeve Ø 32 x 40 x 600 from the thermostat to the exchanger inlet pipe Genuine Maserati Part - New (to order)
                                                                                                                                          # 054
                                                                                                                                          MPN: MN 50905
                                                                                                                                          Sleeve Ø 32 x 40 x 600 from the thermostat to the exchanger inlet pipe
                                                                                                                                          Sleeve Ø 32 x 40 x 600 from the thermostat to the exchanger inlet pipe Genuine Maserati Part - New (to order)
                                                                                                                                          # 055
                                                                                                                                          MPN: 101/7 - CR 54454
                                                                                                                                          FINTO TERMOSTATO (SOST. CR-54408)
                                                                                                                                          FINTO TERMOSTATO (SOST. CR-54408) Genuine Maserati Part - New (to order)
                                                                                                                                          # 055
                                                                                                                                          MPN: CR54408
                                                                                                                                          COMPLETE THERMOSTAT
                                                                                                                                          Termostato completo Genuine Maserati Part - New (to order)
                                                                                                                                          # 056
                                                                                                                                          MPN: MN 57230
                                                                                                                                          SLEEVE Ø 38 X 47 X 100 FROM WATER PUMP TO EXCHANGER INLET PIPE
                                                                                                                                          Manicotto Ø 38x47x135 dailo scambiatore al tubo entrata e uscita scabiatore Genuine Maserati Part - New (to order)
                                                                                                                                          # 056
                                                                                                                                          MPN: MN 57230
                                                                                                                                          Manicotto Ø 38x47x135 dailo scambiatore al tubo entrata e uscita scabiatore
                                                                                                                                          Manicotto Ø 38x47x135 dailo scambiatore al tubo entrata e uscita scabiatore Genuine Maserati Part - New (to order)
                                                                                                                                          # 057
                                                                                                                                          MPN: 106 - MA 56451
                                                                                                                                          WATER OUTLET PIPE FROM THE HEAD
                                                                                                                                          WATER OUTLET PIPE FROM THE HEAD Genuine Maserati Part - New (to order)
                                                                                                                                          # 058
                                                                                                                                          MPN: 106 - MA 57961
                                                                                                                                          EXCHANGER INLET PIPE AND WATER PUMP
                                                                                                                                          EXCHANGER INLET PIPE AND WATER PUMP Genuine Maserati Part - New (to order)
                                                                                                                                          # 059
                                                                                                                                          MPN: PFN 54410
                                                                                                                                          GROMMET
                                                                                                                                          GROMMET Genuine Maserati Part - New (to order)
                                                                                                                                          # 060
                                                                                                                                          MPN: 106 - MA 57861
                                                                                                                                          THERMOSTAT WATER PIPE SUPPORT PLATE
                                                                                                                                          THERMOSTAT WATER PIPE SUPPORT PLATE Genuine Maserati Part - New (to order)
                                                                                                                                          # 061
                                                                                                                                          MPN: 106 - MA 57226
                                                                                                                                          PIPE BETWEEN EXCHANGER AND RADIATOR
                                                                                                                                          PIPE BETWEEN EXCHANGER AND RADIATOR Genuine Maserati Part - New (to order)
                                                                                                                                          # 062
                                                                                                                                          MPN: FRN 37824
                                                                                                                                          FASCETTA PER MANICOTTI Ø 13 X 20
                                                                                                                                          Manifold fixing clamp Genuine Maserati Part - New (to order)
                                                                                                                                          # 063
                                                                                                                                          MPN: MN 54688
                                                                                                                                          SLEEVE Ø 140 X 20 X 250 FROM THE MANIFOLD TO THE EXCHANGER INLET PIPE
                                                                                                                                          from £84.78
                                                                                                                                          from £84.78
                                                                                                                                          PIPE (Per Metre) Genuine Maserati Part - New (to order)
                                                                                                                                          # 063
                                                                                                                                          MPN: MN 54688
                                                                                                                                          MANICOTTO Ø 14 X 20 X 380 DAL BASAMENTO AL RUBLNETTO ENTRATA COLLETTORE ASPIRAZIONE
                                                                                                                                          from £84.78
                                                                                                                                          from £84.78
                                                                                                                                          PIPE (Per Metre) Genuine Maserati Part - New (to order)
                                                                                                                                          # 063
                                                                                                                                          MPN: MN 54688
                                                                                                                                          SLEEVE Ø 14 X 20 X 40 FROM THE BASE TAP TO THE INTAKE MANIFOLD
                                                                                                                                          from £84.78
                                                                                                                                          from £84.78
                                                                                                                                          PIPE (Per Metre) Genuine Maserati Part - New (to order)
                                                                                                                                          # 064
                                                                                                                                          MPN: RMN 54669
                                                                                                                                          UNION
                                                                                                                                          UNION Genuine Maserati Part - New (to order)
                                                                                                                                          # 065
                                                                                                                                          MPN: GM 35701
                                                                                                                                          GASKET OR SEAL
                                                                                                                                          GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                          # 066
                                                                                                                                          MPN: 101/2 20370 50336
                                                                                                                                          AUXILIARY TAP FOR WATER PASSAGE CONTROL
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                                                          # 067
                                                                                                                                          MPN: RMN 48073
                                                                                                                                          UNION
                                                                                                                                          UNION Genuine Maserati Part - New (to order)
