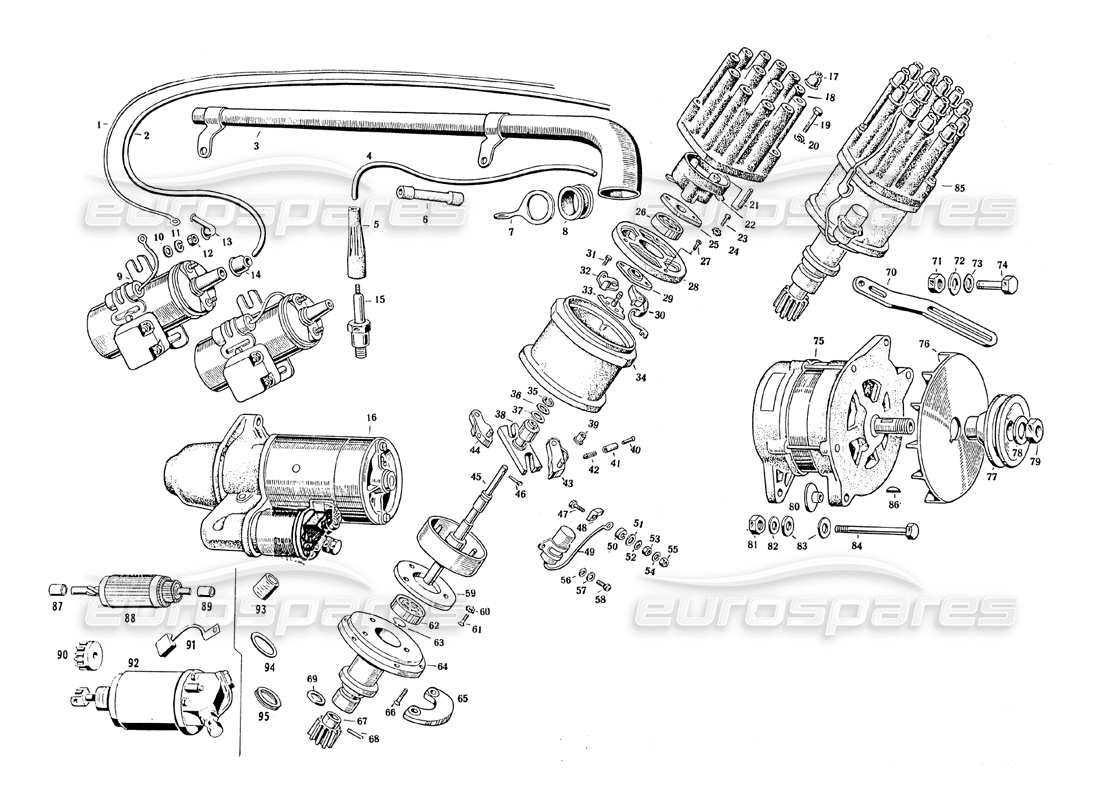

006 - ELECTRICAL EQUIPMENT - ENGINE
Maserati Mistral 3.7 Electrical Equipment - Engine Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
MHT001
Complete HT Lead Set
(valid for cars with injection)
from
£530.98
from
£530.98
#
000
MPN:
MHT002
Complete HT Lead Set
(valid for carburettor cars)
from
£517.24
from
£517.24
#
001
MPN:
CSN 54976
CAVETTO PER BASSA TENSIONE DALLA BOBINA ALLO SPINTEROQENO MT
#
002
MPN:
CSN 47374
CAVETTO PER COLLEGAMENTO ALTA TENS, FRA SPINTEROGENO E BOBINA MT
from
£99.75
from
£99.75
#
003
MPN:
106 ME 60760
MANIFOLD FOR SPARK PLUG CABLE HANK
#
004
MPN:
CSN 47374
CAVETLO PER COLLEGAMENTO ALTA TENS, FRA SPINTEROGONO E CANDELE MT
from
£99.75
from
£99.75
#
005
MPN:
101/7 - ME 52878
Shielded socket for spark plugs
#
006
MPN:
101/7 ME 52879
ROSISTORE PER SCHERMATURA CAVIALTA TENSIONE BOBINA
#
007
MPN:
54/5326/53287
LFIMIERINO PER GUIDA CAVI CANDELE
#
008
MPN:
PFN 55212
GROMMET
#
009
MPN:
101 - 5360 48137
Bobina d'accensione MARELLI tipo BZR-201-A
USE PART NUMBER: BZR 201 A
#
010
MPN:
RN/49273
WASHER
#
012
MPN:
DNT 47046
NUT
from
£0.86
from
£0.86
This part replaces part number 47046
#
013
MPN:
CRN 32934
PROTECTIVE CAP FOR LOW VOLTAGE CABLES
#
014
MPN:
CPN32926
PROTECTIVE CAP FOR HIGH VOLTAGE COIL CABLES
#
015
MPN:
CMD 62721
Spark plug for normal uses
#
015
MPN:
CND 62722
Heavy-duty spark plug
#
016
MPN:
101/9 ME 55210
MOTORINO AVVIAMENTO MARELLI TIPO MT 42C
#
016
MPN:
300 - 7000 45521
MOTORINO AVVIAMENTO MARELLI TIPO MT 23A
#
017
MPN:
CPM 32926
HIGH VOLTAGE CABLE PROTECTION CAP ON THE SHELL
#
018
MPN:
ME61867
DISTRIBUTOR CAP
from
£551.72
from
£551.72
#
019
MPN:
BNT 61860
BOLT
#
020
MPN:
RSN 3 2 4 9 7
WASHER
#
021
MPN:
ME61861
PIN
#
022
MPN:
ME61868
ROTOR ARM
from
£336.21
from
£336.21
#
023
MPN:
VNT 61863
SCREW
#
024
MPN:
RDE 61865
WASHER
#
025
MPN:
101/9 - ME 61870
FLANGETTA SUPERIORE PER RITEGNO CUSCINETTO
#
026
MPN:
CSC 48953
SHIELDED BEARING FOR SHAFT TOP PART
#
027
MPN:
VNT 59043
SCREW
#
028
MPN:
101/9 ME 61871
SUPPORT
#
029
MPN:
101/9 - ME 61872
FLANGETTA INFERIORE PER RITEGNO CUSCINETTO
#
030
MPN:
101/9 ME 61873
MOBILE HAMMER COMPLETE WITH ELECTRICAL CONNECTION
#
031
MPN:
VNT 61862
SCREW
#
032
MPN:
101/9 - ME 61874
BRACKET FOR ADJUSTING POINT DISTANCE
#
033
MPN:
101/9 ME 61875
PLATES WITH PIN FOR HAMMER POINTS
#
034
MPN:
101/9 ME 61876
GENERATOR BODY COMPLETE WITH LUBRICATED FELT
#
035
MPN:
ART. 55361
SEEGER RING
#
036
MPN:
101/9 - ME 61877
WASHER
#
037
MPN:
101/9 - ME 61878
WASHER
#
038
MPN:
101/9 ME 61879
HEX CAM COMPLETE WITH FORK
#
039
MPN:
101/9 ME 61880
ROLLER FOR PIN ON THE ADVANCE MASSES
#
040
MPN:
101/9 - ME 61881
PUNTALINO PER MOLLA MASSA ANTICIPO (CORTO)
#
040
MPN:
101/9 - ME 61882
PUNTALINO PER MOLLA MASSA ANTICIPO (LUNGO)
#
041
MPN:
101/9 ME 61883
BUSH TO HOLD THE SPRING ON THE PIN
#
042
MPN:
101/9 ME 61884
SPRING
#
042
MPN:
101/9 ME 61885
SPRING
#
042
MPN:
101/9 ME 61886
SPRING
#
043
MPN:
101/9 - ME 61887
EARTH FOR IGNITION ADVANCE
#
044
MPN:
101/9 - ME 61887
EARTH FOR IGNITION ADVANCE
#
045
MPN:
101/9 - ME 61888
SHAFT WITH AUTOMATIC ADVANCE
#
046
MPN:
VNT 61861
SCREW
#
047
MPN:
BNT 48820
BOLT
#
048
MPN:
101/9 ME 61889
INTERNAL INSULATING BLOCK FOR CLAMP
#
049
MPN:
101/9 ME 61890
CONDENSOR
#
050
MPN:
101/9 ME 61891
EXTERNAL INSULATING BLOCK FOR CLAMP
#
051
MPN:
RNT54507
WASHER
#
053
MPN:
DNT/62557
NUT
#
055
MPN:
DNT 62577
NUT
#
056
MPN:
RNT54507
WASHER
#
058
MPN:
VNT-48796
SCREW
#
059
MPN:
101/9 ME 61892
FLANGE FOR RETAINING THE LOWER BEARING
#
060
MPN:
RDE 61866
WASHER
#
061
MPN:
VNT 61864
SCREW
#
062
MPN:
CSC 48952
WATERPROOF BEARING FOR THE LOWER SHAFT PART
#
063
MPN:
ART 50195
SEEGER RING
#
064
MPN:
101/9 - ME 61893
SUPPORT
#
065
MPN:
101/9 5296 53510
BRACKET / SUPPORT
#
066
MPN:
VNT 59043
SCREW
#
067
MPN:
101/9 5294 53514
GEAR ON THE DISTRIBUTOR WITH LEFT ROTATION
#
068
MPN:
SN 35724
PIN
#
068
MPN:
SN 43846
PIN
#
068
MPN:
SN 59613
PIN
#
069
MPN:
101/9 ME 54651
CLEARING SPACER BETWEEN GEAR AND DISTRIBUTOR
#
070
MPN:
106 - ME 56052
PUNTALINO FISSAGGIO ALTERNATORE PRESTOLITE
#
070
MPN:
107ME53999
PUNTALINO FISSAGGIO ALTERNATORE BOSCH
#
071
MPN:
DNT. 47031
NUT
#
072
MPN:
RSN 3 2 6 3 5
WASHER
#
073
MPN:
RNT47075
WASHER
This part replaces part number 47075
#
074
MPN:
BNT 47475
BOLT
#
075
MPN:
101/9 - ME 55546
ALTERNATORE BOSCH
#
075
MPN:
101/9 ME 55535
ALTERNATORE PRESTOLITE
#
076
MPN:
101 /9 ME 55709
VENTOLA SULL'ALTERNATORE TIPO PRESTOLITE
#
076
MPN:
107 ME 58404
Ventola sull'alternatore tipo BOSCH
#
077
MPN:
101/9 - ME 55386
Puleggia sull'alternatore tipo PRESTOLITE
#
077
MPN:
107 ME 58748
PULLEY ON THE BOSCH ALTERNATOR COMPLETE WITH PLUG AND SPACER
#
078
MPN:
RSN33122
WASHER
#
079
MPN:
DN 55931
NUT
#
079
MPN:
DNT 43772
NUT
#
080
MPN:
101/9 - ME 55377
BUSH
#
080
MPN:
CRN 59747
GRANO 12,5 X 18 PER FISSAGGIO ALTERNATORE BOSCH
#
081
MPN:
DNT47024
NUT
#
082
MPN:
RDI54211
WASHER
#
083
MPN:
RNT52733
WASHER
#
084
MPN:
BNT 55644
BOLT
#
084
MPN:
BNT54001
BOLT
#
085
MPN:
101/9 ME 53506
SPITEROGENO PER ACCENSIONE TIPO MARELLI
#
086
MPN:
LN49771
AMERICAN TAB 4 X 6 FOR ALTERNATOR TOWING
#
087
MPN:
101/9 - ME 61896
BRONZINA ANTERIORE MOT. AVVIAMENTO MT 42 C
#
087
MPN:
101/9 ME 61895
BRONZINA ANTERIORE MOT. AVVIAMENTO MT 23 A
#
088
MPN:
101/9 - ME 61897
INDOTTO ROTANTE PER MOT. AVVIAMENTO MT 23 A
#
088
MPN:
101/9 - ME 61898
INDOTTO ROTANTE PER MOT. AVVIAMENTO MT 42 C
#
089
MPN:
101/9 - ME 61899
BRONZINA POSTERIORE MOT. AVVIAMENTO MT 23 A
#
089
MPN:
101/9 - ME 61900
BRONZINA POSTERIORE MOT. AVVIAMENTO MT 42 C
#
090
MPN:
101/9 - ME 61901
Pignone d'innesto mot. avviamento MT 23 A
#
090
MPN:
ME 61902
Pignone d'innesto mot. avviamento MT 42 C
#
091
MPN:
101/9 - ME 61903
BRUSH FOR STARTER MOTOR MT 23 A
#
091
MPN:
101/9 - ME 61904
BRUSH FOR STARTER MOTOR MT 42 C
#
092
MPN:
101/9 - ME 61905
ELECTROMAGNETIC SWITCH FOR MT MOTOR 23 A
#
092
MPN:
101/9 - ME 61906
ELECTROMAGNETIC SWITCH FOR MT MOTOR 42 C
#
093
MPN:
101/9 - ME 61894
TUBE FOR DAMPING THE GENERATOR ADVANCE MASSES
#
094
MPN:
Gom. 51396
RUBBER 21 X 27 ON THE GENERATOR STEM
#
095
MPN:
ART 56514
SEEGER RING
