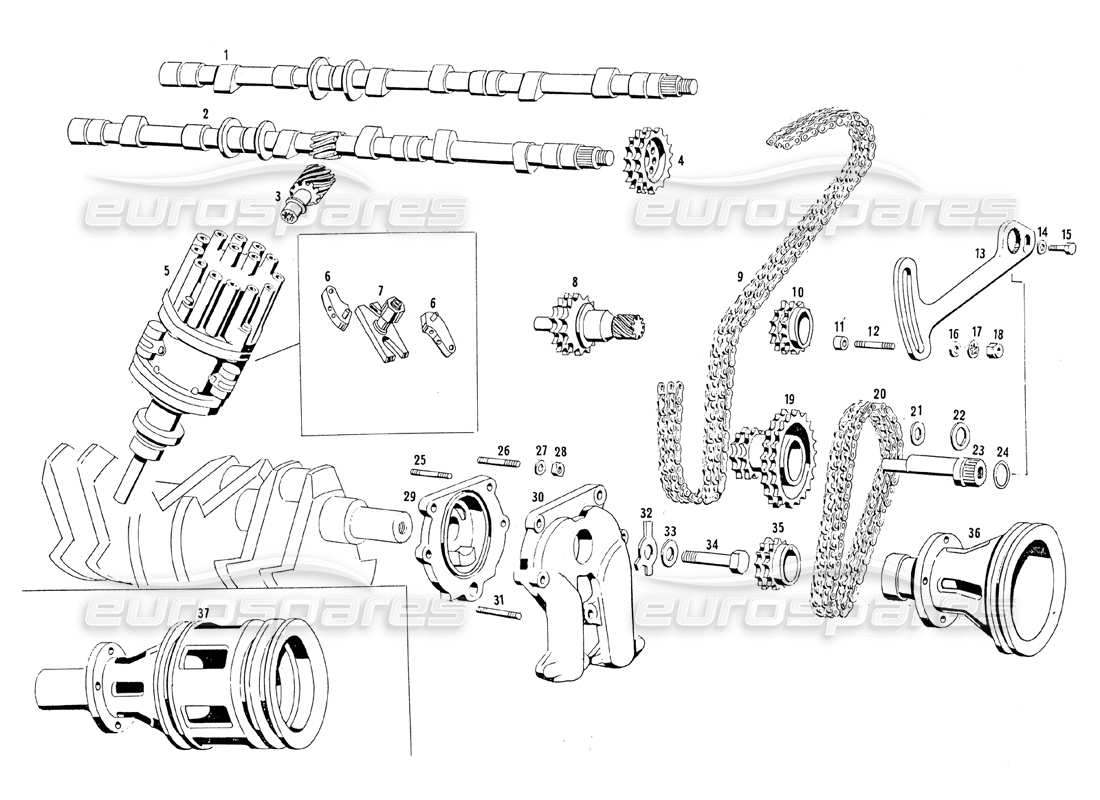

Maserati Mistral 3.7 Twin Chain Engine Parts Diagram (007)

Part number

Description

Key

Price

# 000

MPN: MD 61308

SPACERS FOR CENTRAL SPROCKET BRACKET

SPACERS FOR CENTRAL SPROCKET BRACKET Genuine Maserati Part - New (to order)

# 001

MPN: 109 - MD 57305

AIBERO DISTRIBUZIONE LATO SCARICO

AIBERO DISTRIBUZIONE LATO SCARICO Genuine Maserati Part - New (to order)

# 002

MPN: 109 - MD 57304

ALBERO DISTRIBUZIONE LATO ASPIRAZIONE

ALBERO DISTRIBUZIONE LATO ASPIRAZIONE Genuine Maserati Part - New (to order)

# 003

MPN: 109 - MC 57303

INJECTION DISTRIBUTOR CONTROL DRIVEN GEAR

INJECTION DISTRIBUTOR CONTROL DRIVEN GEAR Genuine Maserati Part - New (to order)

# 004

MPN: 109 - MD 58242

GEAR FOR TIMING SHAFT

GEAR FOR TIMING SHAFT Genuine Maserati Part - New (to order)

# 005

MPN: 109 - ME 60249

GENERATOR WITH LEFT ROTATION

GENERATOR WITH LEFT ROTATION Genuine Maserati Part - New (to order)

# 005

MPN: 109 - ME 62353

CALOTLA DISTRIBUTRICE CON SPAZZOLA (CON NUMERAZIONE INVERTITA)

CALOTLA DISTRIBUTRICE CON SPAZZOLA (CON NUMERAZIONE INVERTITA) Genuine Maserati Part - New (to order)

# 006

MPN: 109 - ME 61961

MASS FOR AUTOMATIC ADVANCE

MASS FOR AUTOMATIC ADVANCE Genuine Maserati Part - New (to order)

# 007

MPN: 109 - ME 61962

FORK

FORK Genuine Maserati Part - New (to order)

# 008

MPN: 109 - MD 58243

GENERATOR CONTROL GEAR

GENERATOR CONTROL GEAR Genuine Maserati Part - New (to order)

# 009

MPN: 109 - MD 58241

UPPER CAMSHAFT CONTROL CHAIN

UPPER CAMSHAFT CONTROL CHAIN Genuine Maserati Part - New (to order)

# 010

MPN: 109 - MD 58244

PINION FOR CHAIN TENSIONER

PINION FOR CHAIN TENSIONER Genuine Maserati Part - New (to order)

# 012

MPN: PN 32421

STUD

STUD Genuine Maserati Part - New (to order)

# 013

MPN: 109 - MD 57069

BRACKET / SUPPORT

BRACKET / SUPPORT Genuine Maserati Part - New (to order)

# 014

MPN: RNT 54593

WASHER

WASHER Genuine Maserati Part - New (to order)

# 015

MPN: BNT 47019

BOLT

Filter bolt Genuine Maserati Part - New (to order)

# 016

MPN: RN54593

WASHER

Rondella 6x18x2 ssaggio piastra sui carburatori Genuine Maserati Part - New (to order)

# 017

MPN: RDI53899

WASHER

Rondella dentellata Ø 6 per paratia olio nella coppa Genuine Maserati Part - New (to order)

# 018

MPN: DN51417

NUT

Stop nut 6x1x5 fixing pin on intake manifold Genuine Maserati Part - New (to order)

# 019

MPN: 109 - MD 57043

CENTRAL BASE SPROCKET

CENTRAL BASE SPROCKET Genuine Maserati Part - New (to order)

# 020

MPN: 109 - MD 57093

LOWER TIMING CONTROL CHAIN

LOWER TIMING CONTROL CHAIN Genuine Maserati Part - New (to order)

# 021

MPN: 109 - MD 57072

REAR SPACERS FOR CENTRAL GEAR SHAFT

REAR SPACERS FOR CENTRAL GEAR SHAFT Genuine Maserati Part - New (to order)

# 022

MPN: 109 - MD 57070

FRONT SPACER FOR CENTRAL GEAR SHAFT

FRONT SPACER FOR CENTRAL GEAR SHAFT Genuine Maserati Part - New (to order)

# 023

MPN: 109 - MD 57066

PIVOT

PIVOT Genuine Maserati Part - New (to order)

# 024

MPN: COM 45791

Rubber on the central gear wheel shaft

Rubber on the central gear wheel shaft Genuine Maserati Part - New (to order)

# 025

MPN: PN 49752

THREADED STUD

THREADED STUD Genuine Maserati Part - New (to order)

# 026

MPN: PN 43733

THREADED STUD

THREADED STUD Genuine Maserati Part - New (to order)

# 027

MPN: RN 45680

WASHER

WASHER Genuine Maserati Part - New (to order)

# 028

MPN: DN 49900

NUT

NUT Genuine Maserati Part - New (to order)

# 029

MPN: 109 - ML 57074

Corpo pompa olio

Corpo pompa olio Genuine Maserati Part - New (to order)

# 030

MPN: 109 - ML 57075

COVER

COVER Genuine Maserati Part - New (to order)

# 031

MPN: PN 49103

THREADED STUD

THREADED STUD Genuine Maserati Part - New (to order)

# 032

MPN: RDL 55950

WASHER

WASHER Genuine Maserati Part - New (to order)

# 033

MPN: RN 56938

WASHER

WASHER Genuine Maserati Part - New (to order)

# 034

MPN: BN 55948

BOLT

BOLT Genuine Maserati Part - New (to order)

# 035

MPN: 109 - MD 57051

Distribution control gear on the crankshaft

Distribution control gear on the crankshaft Genuine Maserati Part - New (to order)

# 036

MPN: 109 - MM 57073

Pulley on the crankshaft

Pulley on the crankshaft Genuine Maserati Part - New (to order)

# 037

MPN: 109 - MM 60248

Pulley on the crankshaft version with conditioner

Pulley on the crankshaft version with conditioner Genuine Maserati Part - New (to order)

007 - Twin Chain Engine

Maserati Mistral 3.7 Twin Chain Engine Parts Diagram
