015 - Transmission Gears (S5 20)

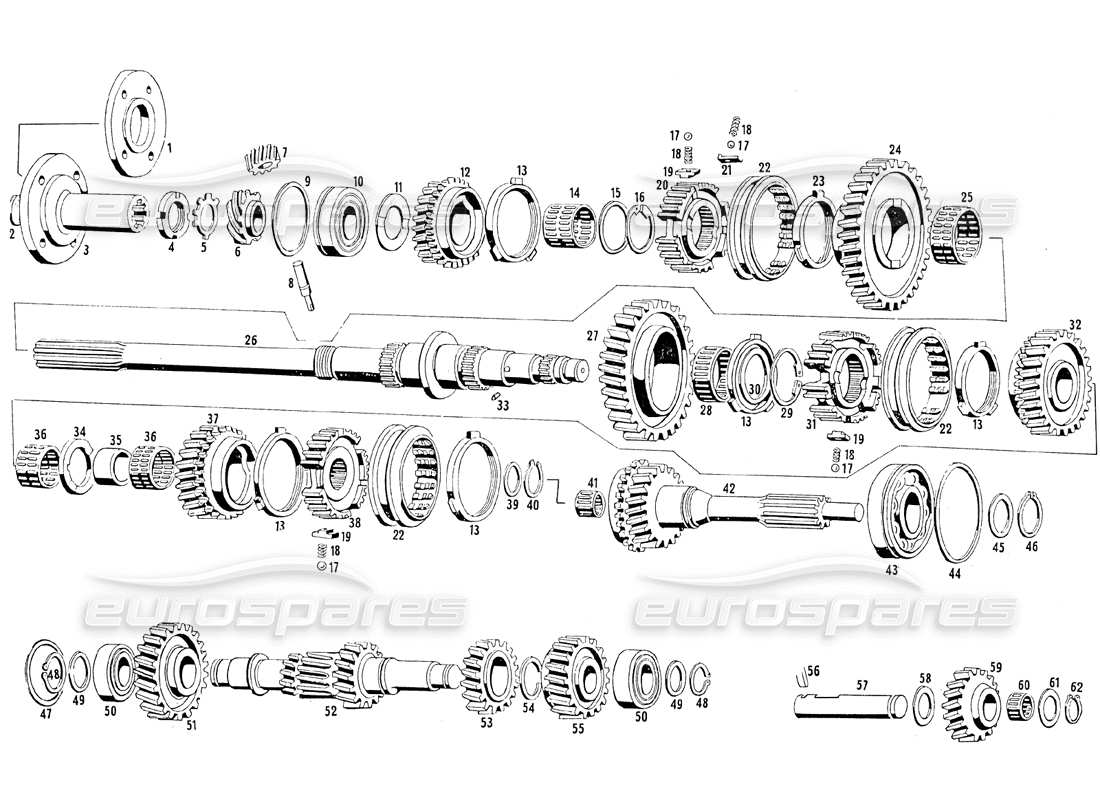

Maserati Mistral 3.7 Transmission Gears (S5 20) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 101/5 - 9549 51243
SPACER FLANGE BETWEEN GEARBOX AND DRIVE SHAFT
# 002
MPN: TN 38309
CAP ON SLIDING SLEEVE FLANGE
from £119.14
from £119.14
# 003
MPN: 107 TC 60946
SLIDING SLEEVE FLANGE
from £1,463.82
from £1,463.82
# 004
MPN: GH 42628
GHIERA Ø 35 X 1 ,5 X 8 SULL'ALBERO PRIMARIO
# 005
MPN: RDL 49574
WASHER
# 006
MPN: 101/10 - TC 61087
PRIMARY GEAR COUNTS KM. Z.9 WITH BRIDGE R. 13/49
# 006
MPN: 107 - TC 60947
PRIMARY GEAR COUNTS KM. Z.9 WITH BRIDGE R. 13/46
# 007
MPN: 101/10 TC 61988
SECONDARY GEAR COUNTS KM. ZI 6 WITH BRIDGE R. 13/49
# 007
MPN: 107 TC 60948
SECONDARY GEAR COUNTS KM. Z.15 WITH BRIDGE R. 13/ 46
# 008
MPN: 107 TC 60949
SHAFT WITH SHEATH FITTING COUNTS KM
# 009
MPN: 101/9 TC 60789
RING
# 010
MPN: CSC 55093
Cuscinetto a sfere Ø 80 X 35 X 21
# 011
MPN: 107 - TC 60950
Distanziale per ingranaggio 5ª
# 012
MPN: 107 TC 60951
Ingranaggio primario 5ª velocita Z.27
# 013
MPN: 107 TC 60952
RING
# 014
MPN: 107 TC 60989
BUSH
# 015
MPN: 107 TC 60953
WASHER
# 016
MPN: ART. 43191
RING
# 017
MPN: SFN 60770
SFERA Ø 5,5 PER SINCRONIZZATORI
# 018
MPN: 107 TC 60954
SPRING
# 019
MPN: 107 TC 60955
PLUG FOR SYNCHRONIZERS
# 020
MPN: 107 - TC 60956
Synchronizer sleeve hub 5ª and R
# 021
MPN: 107 - TC 60957
Synchronizer gauge block 5ª and R
# 022
MPN: 107 TC 60958
MANICOTTO SINCRONIZZATORE 1ª-2ª - 3ª-4ª - 5ª R
# 023
MPN: 107 - TC 60959
RING
from £377.88
from £377.88
# 024
MPN: 107 - TC 60960
Primary gear for RZ33
# 025
MPN: 107 TC 60990
BUSH
# 026
MPN: 107 TC 60961
ALBERO PRIMARIO
# 027
MPN: 107 - TC 60962
Ingranaggio primario 1ª velocita Z.31
# 028
MPN: 107 - TC 60991
BUSH
# 029
MPN: ART/47948
RING
# 030
MPN: 107 - TC 60963
WASHER
# 031
MPN: 107 TC 60964
Mozzo per manicotto sincronizzatore 1ª e 2ª
# 032
MPN: 107 - TC 60965
Ingranaggio primario 2ª velocita Z.38
# 033
MPN: GRN 45859
Locking screw on the main shaft
# 034
MPN: 107 - TC 60966
Distanziale ingranaggio 2ª velocita
# 035
MPN: 107 TC 60967
BUSH
# 036
MPN: 107 TC 60992
BUSH
# 037
MPN: 107 TC 60968
PRIMARY GEAR 3VELOCITA Z.33
# 038
MPN: 107 - TC 60969
Mozzo per manicotto sincronizzatore 3ª e 4ª
# 039
MPN: 107 - TC 60970
WASHER
# 040
MPN: ART 58451
RING
# 041
MPN: RUL 59740
BUSH
# 042
MPN: 107 - JC 60971
Albero sempre in presa con ingranaggio 4ª velocita Z.30
# 043
MPN: CSC 60779
BALL BEARING Ø 80 X 35 X 21 ON THE SHAFT ALWAYS ENGAGED
# 044
MPN: 101/9 TC 60789
RING
# 045
MPN: 107 TC 60972
RING
# 046
MPN: ART. 58972
RING
# 047
MPN: 107 - TC 60973
WASHER
# 048
MPN: ART. 53117
RING
# 049
MPN: 107 TC 60974
WASHER
# 050
MPN: CSC 60212
TAPERED ROLLER BEARING Ø 31,75 X 59,15 X 15,85 ON THE SECONDARY SHAFT
# 051
MPN: 107 TC 60975
Ingranaggio secondario 5ª velocita Z.37
# 052
MPN: 107 TC 60976
Albero secondario con ingranaggio 1ª Z.12 e 2ª Z.26
# 053
MPN: 107 TC 60977
Ingranaggio secondario 3ª velocita Z.31
# 054
MPN: 107 TC 60978
RING
# 055
MPN: 107 - TC 60979
Ingranaggio secondario 4ª velocita Z.35
# 056
MPN: 107 - TC 60980
Anchor on secondary gear shaft R
# 057
MPN: 107 TC 60981
AIBERINO PER INGRANAGGIO SECONDARIO R
# 058
MPN: 107 TC 60982
WASHER
# 059
MPN: 107 - TC 60983
SECONDARY REVERSE GEAR Z.21
# 061
MPN: 101/9 TC 60760
WASHER
# 062
MPN: ART 43993
RING
