maserati mistral 3.7 brake control parts diagram

024 - Brake Control

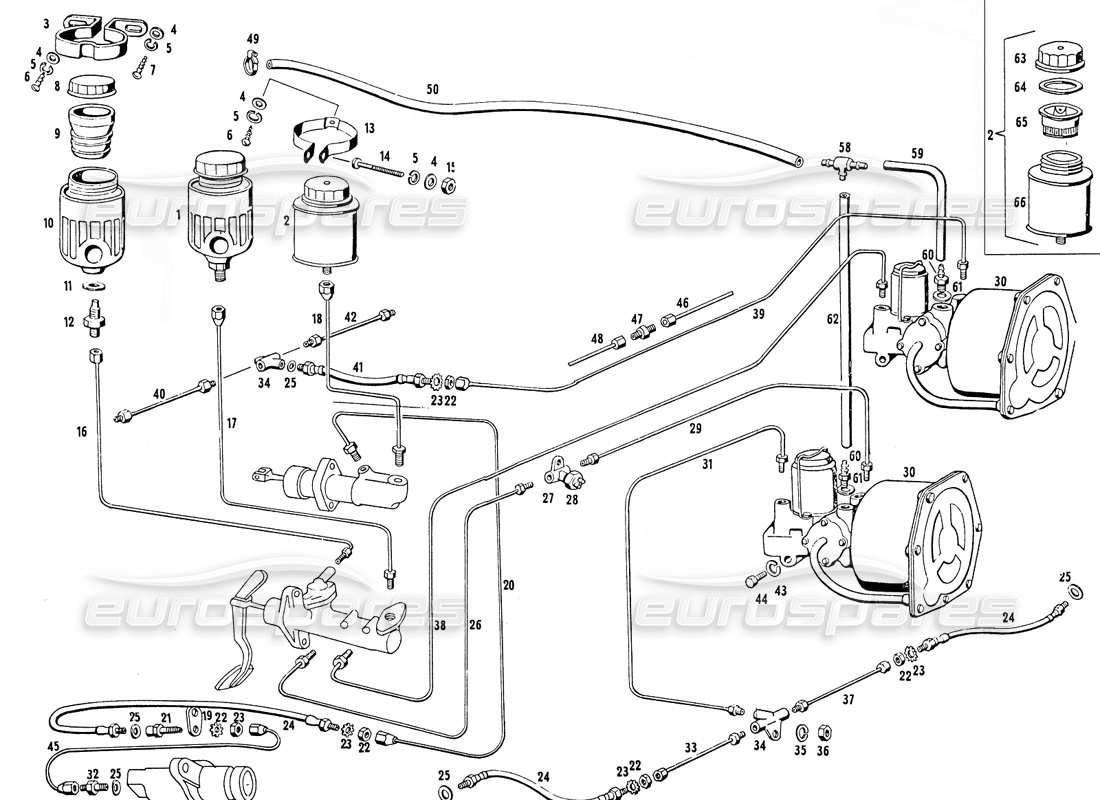

Maserati Mistral 3.7 Brake Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 107 - FC 56067
                                                                                                                      Oil tank for brake pump
                                                                                                                      # 002
                                                                                                                      MPN: 107 FC 56068
                                                                                                                      OIL TANK FOR CLUTCH PUMP
                                                                                                                      # 003
                                                                                                                      MPN: 107 FC 58709
                                                                                                                      BRAKE OIL RESERVOIR SEAL CLAMP
                                                                                                                      # 005
                                                                                                                      MPN: RSN 3 2 4 9 7
                                                                                                                      WASHER
                                                                                                                      # 007
                                                                                                                      MPN: BNT 61053
                                                                                                                      BOLT
                                                                                                                      # 008
                                                                                                                      MPN: 107 - FC 58710
                                                                                                                      COVER
                                                                                                                      # 009
                                                                                                                      MPN: 107 FC 58711
                                                                                                                      BRAKE OIL RESERVOIR BELLOW

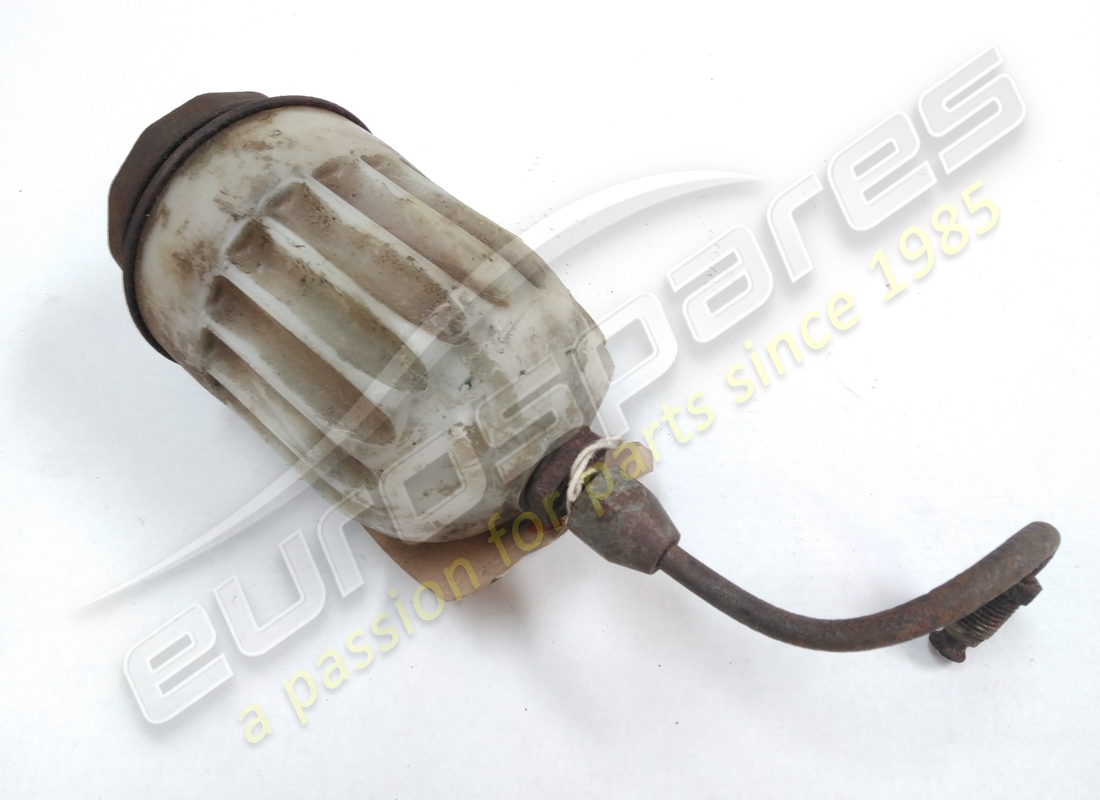

                                                                                                                      # 010
                                                                                                                      MPN: 107 - FC 58712
                                                                                                                      BRAKE OIL TANK BODY
                                                                                                                      from £183.75
                                                                                                                      from £183.75
                                                                                                                      # 011
                                                                                                                      MPN: RN 58713
                                                                                                                      WASHER
                                                                                                                      # 012
                                                                                                                      MPN: VRN 58714
                                                                                                                      UNION
                                                                                                                      # 013
                                                                                                                      MPN: 15016/48339
                                                                                                                      FASCETTA FLSSAGGIO SERBATOIO FRIZIONE
                                                                                                                      # 014
                                                                                                                      MPN: VNT 49515
                                                                                                                      SCREW
                                                                                                                      # 015
                                                                                                                      MPN: DNT 47046
                                                                                                                      NUT
                                                                                                                      This part replaces part number 47046
                                                                                                                      # 016
                                                                                                                      MPN: 109 FC 55798
                                                                                                                      HOSE FROM THE OIL TANK TO THE FRONT BRAKE PUMP
                                                                                                                      # 016
                                                                                                                      MPN: 109 FC 57873
                                                                                                                      HOSE FROM THE OIL TANK TO THE FRONT BRAKE PUMP, RIGHT-HAND DRIVE
                                                                                                                      # 017
                                                                                                                      MPN: 109 - FC 57874
                                                                                                                      Hose from the oil tank to the right-hand drive rear brake pump
                                                                                                                      # 017
                                                                                                                      MPN: 109 FC 55798
                                                                                                                      Hose from the oil tank to the rear brake master cylinder
                                                                                                                      # 018
                                                                                                                      MPN: 109 - FC 57877
                                                                                                                      HOSE FROM THE OIL TANK TO THE CLUTCH PUMP, RIGHT DRIVE
                                                                                                                      # 018
                                                                                                                      MPN: 109 - FC 58237
                                                                                                                      HOSE FROM THE OIL TANK TO THE CLUTCH PUMP
                                                                                                                      # 019
                                                                                                                      MPN: 109 - FC 57056
                                                                                                                      PLATE ON THE GEARBOX S-5-17 CLUTCH CONTROL FLEXIBLE SEAL
                                                                                                                      # 019
                                                                                                                      MPN: 109 - FC 60497
                                                                                                                      PLATE ON THE GEARBOX S-5-20 CLUTCH CONTROL FLEXIBLE SEAL
                                                                                                                      # 020
                                                                                                                      MPN: 109 - FC 55806
                                                                                                                      PIPE FROM CLUTCH MASTER CYLINDER TO FLEXIBLE SEAL PLATE
                                                                                                                      # 020
                                                                                                                      MPN: 109 - FC 57878
                                                                                                                      PIPE FROM CLUTCH MASTER CYLINDER TO FLEXIBLE SEAL PLATE FOR RIGHT HAND DRIVE
                                                                                                                      # 021
                                                                                                                      MPN: VRN 57055
                                                                                                                      SCREW
                                                                                                                      # 022
                                                                                                                      MPN: DN 46448
                                                                                                                      NUT
                                                                                                                      # 023
                                                                                                                      MPN: RDI 48337
                                                                                                                      WASHER
                                                                                                                      # 024
                                                                                                                      MPN: 15198 48346
                                                                                                                      FLEXIBLE PIPE
                                                                                                                      # 025
                                                                                                                      MPN: GN/46445
                                                                                                                      GASKET OR SEAL
                                                                                                                      # 026
                                                                                                                      MPN: 108 - FC 55439
                                                                                                                      Hose from the brake master cylinder to the 3 stop port
                                                                                                                      # 026
                                                                                                                      MPN: 109 - FC 57875
                                                                                                                      PIPE FROM THE FRONT BRAKE PUMP TO 3 RIGHT-HAND DRIVE STOP WAY
                                                                                                                      # 027
                                                                                                                      MPN: 15188 46964
                                                                                                                      UNION
                                                                                                                      # 028
                                                                                                                      MPN: 15194/48343
                                                                                                                      HYDRAULIC SWITCH FOR STOP LIGHTS
                                                                                                                      # 029
                                                                                                                      MPN: 109 - FC 55799
                                                                                                                      PIPE FROM 3 STOP WAY TO THE FRONT SERVO CIRCUIT
                                                                                                                      # 030
                                                                                                                      MPN: 15170/48344
                                                                                                                      BRAKE SERVO FOR FRONT AND REAR BRAKE SYSTEM
                                                                                                                      # 031
                                                                                                                      MPN: 109 - FC 55800
                                                                                                                      PIPE FROM THE FRONT SERVO CIRCUIT TO THE 3 WAY ON THE CROSS CROSS
                                                                                                                      # 032
                                                                                                                      MPN: VRN 52347
                                                                                                                      SCREW
                                                                                                                      # 033
                                                                                                                      MPN: 109 - FC 56061
                                                                                                                      Pipe from 3 way on crossmember to right front hose
                                                                                                                      # 034
                                                                                                                      MPN: 15190/48347
                                                                                                                      UNION
                                                                                                                      # 035
                                                                                                                      MPN: RSN 3 2 6 3 5
                                                                                                                      WASHER
                                                                                                                      # 036
                                                                                                                      MPN: DNT. 47031
                                                                                                                      NUT
                                                                                                                      # 037
                                                                                                                      MPN: 109 - FC 55801
                                                                                                                      PIPE FROM 3 WAY ON THE CROSS MAIL TO THE LEFT FRONT HOSE
                                                                                                                      # 038
                                                                                                                      MPN: 109 - FC 55802
                                                                                                                      HOSE FROM THE BRAKE PUMP TO THE REAR CIRCUIT BRAKE SERVO
                                                                                                                      # 038
                                                                                                                      MPN: 109 - FC 57876
                                                                                                                      HOSE FROM THE BRAKE PUMP TO THE REAR SERVO CIRCUIT, RIGHT DRIVE
                                                                                                                      # 039
                                                                                                                      MPN: 109 - FC 55803
                                                                                                                      HOSE FROM REAR SERVO CIRCUIT TO HOSE ON BRIDGE (ONLY 109)
                                                                                                                      # 040
                                                                                                                      MPN: 101/10 - FC 59658
                                                                                                                      Tubo dal 3 vie sul ponte al caliper posteriore destro dalla vett. N² 554 in poi
                                                                                                                      # 040
                                                                                                                      MPN: 109 - FC 55804
                                                                                                                      PIPE FROM 3 WAY ON BRIDGE TO RIGHT REAR CALIPER
                                                                                                                      # 042
                                                                                                                      MPN: 109 - FC 55805
                                                                                                                      fubo dal 3 vie sul ponte al caliper posteriore sinistro
                                                                                                                      # 042
                                                                                                                      MPN: 109/A - FC 61508
                                                                                                                      Tubo dal 3 vie sul ponte al caliper posteriore sinistro dalla vett. N° 554 in poi
                                                                                                                      # 043
                                                                                                                      MPN: RSN/33112
                                                                                                                      WASHER
                                                                                                                      from £1.72
                                                                                                                      from £1.72
                                                                                                                      # 044
                                                                                                                      MPN: BN 46444
                                                                                                                      BOLT
                                                                                                                      # 045
                                                                                                                      MPN: 109 - FC 57057
                                                                                                                      HOSE FROM THE HOSE TO THE SECONDARY CLUTCH PUMP WITH GEARBOX S-5-17
                                                                                                                      # 045
                                                                                                                      MPN: 109 - FC 60725
                                                                                                                      HOSE FROM THE HOSE TO THE SECONDARY GEARBOX CLUTCH PUMP S-5-20
                                                                                                                      # 046
                                                                                                                      MPN: 109/A - FC 61506
                                                                                                                      HOSE FROM THE REAR SERVO CIRCUIT TO THE INTERMEDIATE FITTING
                                                                                                                      # 048
                                                                                                                      MPN: 109/A - FC 61507
                                                                                                                      Tubo dal raccordo intermedio al flessibile sul ponte dalla vett. N° 554 sino vett. N° 630
                                                                                                                      # 048
                                                                                                                      MPN: 109/A - FC 61638
                                                                                                                      Tubo dal raccordo intermedio al flessibile sul ponte dalla vett. N° 554 sino vett. N° 630
                                                                                                                      # 050
                                                                                                                      MPN: MN 54780
                                                                                                                      SLEEVE Ø 10 X 1200 VACUUM CONNECTION FROM THE INTAKE MANIFOLD TO THE 3 SERVO WAY
                                                                                                                      This part replaces part number 54780
                                                                                                                      # 053
                                                                                                                      MPN: RMN 54867
                                                                                                                      UNION
                                                                                                                      # 059
                                                                                                                      MPN: MN 54780
                                                                                                                      SLEEVE Ø 10 X 180 VACUUM CONNECTION 3 WAY WITH REAR BRAKE SERVO
                                                                                                                      This part replaces part number 54780
                                                                                                                      # 060
                                                                                                                      MPN: 101/9 - FC 55306
                                                                                                                      NON-RETURN VALVE ON SERVO ARRIVE VACUUM
                                                                                                                      # 061
                                                                                                                      MPN: GN 46636
                                                                                                                      GASKET OR SEAL
                                                                                                                      # 062
                                                                                                                      MPN: MN 54780
                                                                                                                      SLEEVE Ø 10 X 180 VACUUM CONNECTION 3 WAY WITH SERVO
                                                                                                                      This part replaces part number 54780
                                                                                                                      # 063
                                                                                                                      MPN: 107 FC 58725
                                                                                                                      COVER
                                                                                                                      # 064
                                                                                                                      MPN: 108 - FC 58726
                                                                                                                      GASKET OR SEAL
                                                                                                                      # 065
                                                                                                                      MPN: 109 - FC 58727
                                                                                                                      FILTER PAN IN THE CLUTCH OIL TANK
                                                                                                                      # 066
                                                                                                                      MPN: 110 - FC 58728
                                                                                                                      CLUTCH OIL TANK BODY
