maserati mistral 3.7 electrical equipment & lights parts diagram

028 - Electrical Equipment & Lights

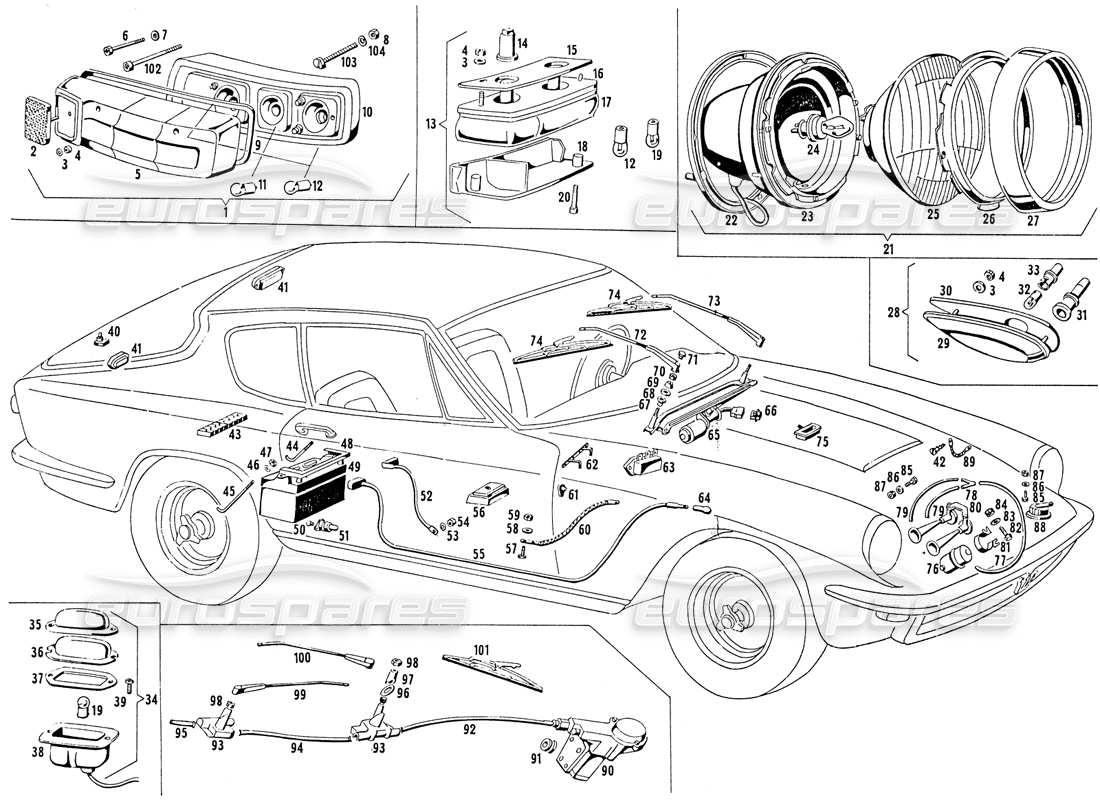

Maserati Mistral 3.7 Electrical Equipment & Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 109 - BL 55962
REAR LIGHT WITH 3 LIGHTS - RIGHT
# 001
MPN: 109 - BL 58391
TAILLIGHT FOR FRANCE - RIGHT
# 001
MPN: 109 - BL 61566
REAR LIGHT WITH 3 LIGHTS - LEFT
# 001
MPN: 109 - BL 61567
TAILLIGHT FOR FRANCE - LEFT
# 002
MPN: BL0057864
REAR REFLECTOR
# 003
MPN: RSN 3 2 4 9 7
WASHER
# 003
MPN: RSN 3 2 4 9 7
WASHER
# 003
MPN: RSN 3 2 4 9 7
WASHER
# 004
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 004
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 004
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 005
MPN: BL0057502
REAR LIGHT LENS DX-SX
valid european spec
# 006
MPN: VNT 61571
SCREW
# 007
MPN: GN52339
GASKET OR SEAL
# 008
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 009
MPN: 109 - BL 61573
GASKET OR SEAL
# 010
MPN: 109 - BL 56335
REAR LIGHT FRAME - RIGHT
# 010
MPN: 109 - BL 56384
REAR LIGHT FRAME - LEFT
# 011
MPN: LNP 48147
LAMP 12 v 5 + 20 w per luci posizione e stop
# 012
MPN: LNP 48146
LAMP 12 V 20 W FOR REAR AND REVERSE LIGHTS
# 012
MPN: LNP 48146
LAMP 12 V 20 W FOR FRONT DIRECTION LIGHTS
# 013
MPN: 109 - BL 55890
FRONT LIGHT, POSITION AND DIRECTION LIGHTS - RIGHT
# 013
MPN: 109 - BL 55997
FRONT POSITION AND DIRECTION LIGHT - LEFT
# 013
MPN: 109 - BL 61590
FANALINO ANTERIORE (SOLO PER GERMANIA) - DESTRO
# 013
MPN: 109 - BL 61591
FANALINO ANTERIORE (SOLO PER GERMANIA) - SINISTRO
# 014
MPN: 109 - BL 61574
FRONT LIGHT END PROTECTION CAP
# 015
MPN: 109 - BL 61575
GASKET OR SEAL
# 016
MPN: 109 - BL 61576
TOP PLATE FOR HEADLIGHT FIXING - RIGHT
# 016
MPN: 109 - BL 61577
TOP PLATE FOR HEADLIGHT FIXING - LEFT
# 017
MPN: 109 - BL 61578
WHITE METHACRYLATE FOR FRONT LIGHT - RIGHT
# 017
MPN: 109 - BL 61579
WHITE METHACRYLATE FOR FRONT LIGHT - LEFT
# 017
MPN: 109 - BL 61592
Metacrilato arancione (per Germania) - destro
# 017
MPN: 109 - BL 61593
METACRILATO ARANCIONE (PER GERMANIA) - SINISTRO
# 018
MPN: 109 - BL 61580
LOWER PLATE FOR HEADLIGHT - RIGHT
# 018
MPN: 109 - BL 61581
LOWER PLATE FOR HEADLIGHT - LEFT
# 019
MPN: LPN 50810
LAMP 12 V 5 W FOR FRONT POSITION LIGHTS
# 019
MPN: LPN 50810
LAMP 12 V 5 W FOR LICENSE PLATE LIGHT
# 020
MPN: VNT 61582
SCREW
# 021
MPN: 109 - BL 55889
PROIETTORE ANTERIORE A LUCE ANABBAGLIANTE E ABBAGLIANTE
# 022
MPN: 15318250
HEADLIGHT GASKET
Sold in pairs
# 023
MPN: 109 - BL 61584
CONTAINMENT BOX FOR MAIN LIGHT
# 024
MPN: LPN/48921
LAMP 12 V 40 + 45 W PER FARI ANTERIORI
# 025
MPN: 109 - BL 57854
GRUPPO OTTICO PER FARO ANTERIORE (GUIDA DESTRA)
# 025
MPN: 109 - BL 58016
GRUPPO OTTICO TIPO SEALED BEAM (GUIDA SINISTRA)
# 025
MPN: 109 - BL 58394
GRUPPO OTTICO TIPO SEALED BEAM (GUIDA DESTRA)
# 025
MPN: 109 - BL 61597
GRUPPO OTTICO PER FARO ANTERIORE (GUIDA SINISTRA)
# 026
MPN: 109 - BL 61585
RING
# 027
MPN: 109 - BL 56208
HEADLIGHT FRAME
# 028
MPN: BL0055961
WING INDICATOR
from £40.95
from £40.95
# 029
MPN: 109 - BL 61586
METHACRYLATE WITH BASE FOR SIDE LIGHT
# 030
MPN: 109 - BL 61587
GASKET OR SEAL
# 031
MPN: 109 - BL 61588
SIDE LIGHT END PROTECTION CAP
# 032
MPN: LPN 48151
LAMP 12 V 2,5 W FOR SIDE LIGHT
# 033
MPN: 109 - BL 61589
SIDE LIGHT LAMP HOLDER
# 034
MPN: 107 - BL 55887
Fanalino posteriore per illuminazione targa
# 035
MPN: 107 BL 58652
EXTERNAL FRAME FOR LICENSE LIGHTING LIGHT
# 036
MPN: 107 BL 58653
CLOSING GLASS FOR LICENSE LIGHT
# 037
MPN: 107 - BL 58654
Guarniture di tenute fanalino cornice e corpo
# 038
MPN: 108 - BL 58655
LOWER BODY FOR LIGHT
# 039
MPN: VNT 57662
SCREW
# 040
MPN: 101/9 - BL 55068
TRUNK CEILING LIGHT CONTROL SWITCH
# 041
MPN: 108 - BL 55068
LAMP HOLDER FOR TRUNK LIGHTING
# 041
MPN: 108 - BL 56065
LAMP HOLDER FOR INTERIOR LIGHTING
# 042
MPN: VAT 49217
SCREW
# 043
MPN: 101/9 - BL 55051
MORSETTIERA PER COLLEGAMANTO LINEE POSTERIORI
# 044
MPN: 107 - BL 56622
TIE ROD
# 045
MPN: 109 - BL 55583
TIE ROD
# 046
MPN: RNT 47074
WASHER
# 047
MPN: DST 47462
NUT
# 048
MPN: 109 - BL 55585
CORNER PLATE FOR FIXING THE BATTERY TO THE FRAME
# 049
MPN: 106 - ME 56492
Power battery
# 050
MPN: LPN 56560
LAMP 12 V 6 W PER LUCE SEANALAZIONE
# 051
MPN: 107 - BL 55888
FanalIno per segnalazione portiera
# 052
MPN: 109 BL 56619
COMPLETE CABLE FOR BATTERY GROUNDS ON THE FRAME
# 055
MPN: 109 - BL 56618
Complete cable from the battery positive pole to the system
# 055
MPN: 109/A - BL 61177
Complete cable from the battery positive pole to the system
# 056
MPN: 109 - BC 56528
ASHTRAY ON THE TUNNEL
# 057
MPN: BNT 47019
BOLT
# 058
MPN: RSN/32690
WASHER
# 059
MPN: DNT 47047
NUT
# 060
MPN: 101/9 - BL 55209
CAVO COMPLETE PER RNASSA MOTORE
# 061
MPN: 101/9 BL 55109
BUTTON SWITCH FOR DOOR AND CEILING LIGHTS
from £14.46
from £14.46
# 062
MPN: 109 - BL 5662V
SUPPORT
# 063
MPN: 101/9 - ME 55536
VOLTAGE REGULATOR FOR PRESTOLITE ALTERNATOR
# 063
MPN: 107 - ME 58568
VOLTAGE REGULATOR FOR BOSCH ALTERNATOR
# 064
MPN: CRN 34605
PROTECTIVE CAP FOR STARTER MOTOR CLAMP
# 065
MPN: 109 - BL 56495
TERGICRISTALLO COMPLETE DI BRACCI - MARELLI
# 066
MPN: 107 BL 57124
BLOCCHETTO PORTA TERMINALI PER CONNESSIONE AL TERGICRISTALLO - MARELLI
# 067
MPN: 109 - BL 58088
SUPPORT
# 068
MPN: 109 - BL 58089
GUARNLTURA PER BASETTA TENUTA TERGICRISTALLO MARELLI
# 069
MPN: 109 - BL 58087
SUPPORT
# 070
MPN: DN 58681
NUT
# 071
MPN: DN 58682
NUT
# 072
MPN: 109 - BL 56935
RIGHT MARELLI WIPER BLADE HOLDER ARM
# 073
MPN: 109 - BL 56936
BRACCIO SINISTRO PORTA SPAZZOLA TERGICRLSTALLO MARELLI
# 074
MPN: 101/8 - BL 54608
SPAZZOLA DA 14 PER TERGICRISTALLO MARELLI
# 075
MPN: 109 - BL 56628
Porta lampada per illuminazione cofano motore
# 076
MPN: 101/6 - 17349 52102
COMPRESSOR FOR PNEUMATIC HORNS WITH ONE SOUND
# 077
MPN: TPN 58683
PLASTIC HOSE FROM COMPRESSOR TO 3 WAY
# 078
MPN: 107 - BL 58684
UNION
# 079
MPN: TPN 58683
PLASTIC PIPE FROM 3 WAY TO THE HORNS
# 080
MPN: 101 /6 17347 52101
TROMBE PNEUMATICHE AD UN SUONO
# 081
MPN: 107 - BL 58685
Fascetta per fissaggio compressore trombe
# 082
MPN: BNT 54584
BOLT
# 083
MPN: RNT 47074
WASHER
# 084
MPN: DNT 47047
NUT
# 085
MPN: BNT. 47015
BOLT
# 085
MPN: BNT. 47015
BOLT
# 085
MPN: BNT. 47015
BOLT
# 086
MPN: RSN 3 2 6 3 5
WASHER
# 086
MPN: RSN 3 2 6 3 5
WASHER
# 086
MPN: RSN 3 2 6 3 5
WASHER
# 087
MPN: DNT 47030
NUT
# 087
MPN: DNT 47030
NUT
# 087
MPN: DNT 47030
NUT
# 088
MPN: 60 - 17338 50343
Avvisatore acustico di citta' (solo a richiesta)
# 089
MPN: 109 BL 56620
COMPLETE CABLE FOR RADIATOR GROUND TO THE FRAME
# 090
MPN: 109BL59647
MOTOR COMPLETE WITH SHEATH FOR LUCAS WIPER
# 091
MPN: GOM 58407
GOMMINO ANTIVIBRATORE PER FISSAGGIO MOTORINO TERGI LUCAS
# 092
MPN: 109 - BL 59460 :
TUBO SUL LATO SINISTRO PER GUAINE COMANDO TERGI LUCAS
# 093
MPN: 109 - BL 59490
BOX WITH LUCAS WIPER ARMS CONTROL SHAFT
Supersession
Supersession
# 094
MPN: 109 - BL 59461
TUBO CENTRALE PER GUAINA COMANDO TERGI LUCAS
# 095
MPN: 109 - BL 59640
TUBO SUL LATO DESTRO PER GUAINA COMANDO TERGI LUCAS
# 096
MPN: GN 59472
Gasket between bodywork and Lucas wiper hub cap
# 097
MPN: 109 - BL 59473
EXTERNAL HUBCOVER FOR LUCAS WIPER CONTROL SHAFT
# 098
MPN: DNT 59475
NUT
# 099
MPN: 109 - BL 59487
RIGHT WINDSHIELD WIPER BLADE HOLDER ARM LUCAS
# 100
MPN: 109 - BL 59488
LEFT WINDSHIELD WIPER BLADE HOLDER ARM LUCAS
# 101
MPN: 109 - BL 61351
WIPER BLADE WITH WIRED FRAME
# 102
MPN: VNT 61572
SCREW
# 103
MPN: VNT 51441
SCREW
