maserati mistral 3.7 air conditioning system parts diagram

029 - air conditioning system

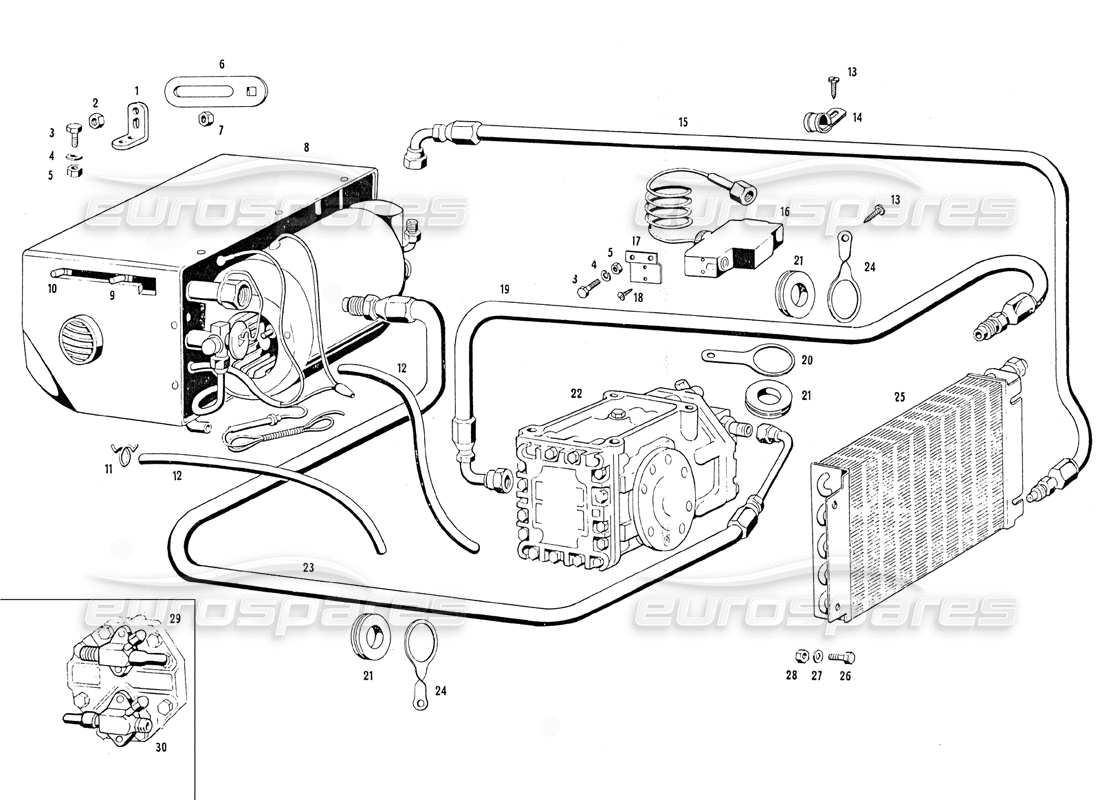

Maserati Mistral 3.7 Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 001
                                                              MPN: 107 BR 58253
                                                              BRACKET / SUPPORT
                                                              BRACKET / SUPPORT Genuine Maserati Part - New (to order)
                                                              # 002
                                                              MPN: DNT 58258
                                                              NUT
                                                              NUT Genuine Maserati Part - New (to order)
                                                              # 003
                                                              MPN: BNT/47370
                                                              BOLT
                                                              from £3.32
                                                              from £3.32
                                                              This part replaces part number 47370
                                                              BOLT Genuine Maserati Part - New (to order)
                                                              # 004
                                                              MPN: RSN 38497
                                                              WASHER
                                                              WASHER Genuine Maserati Part - New (to order)
                                                              # 006
                                                              MPN: 107 BR 58249
                                                              BRACKET / SUPPORT
                                                              BRACKET / SUPPORT Genuine Maserati Part - New (to order)
                                                              # 007
                                                              MPN: DNT 58259
                                                              NUT
                                                              NUT Genuine Maserati Part - New (to order)
                                                              # 008
                                                              MPN: 107 - BR 57042
                                                              Evaporator box
                                                              Evaporator box Genuine Maserati Part - New (to order)
                                                              # 009
                                                              MPN: VNT 58256
                                                              SCREW
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 010
                                                              MPN: BNT 58255
                                                              BOLT
                                                              BOLT Genuine Maserati Part - New (to order)
                                                              # 011
                                                              MPN: FRN 58246
                                                              Clamp Ø 17 for fixing evaporator exhaust pipe
                                                              Clamp Ø 17 for fixing evaporator exhaust pipe Genuine Maserati Part - New (to order)
                                                              # 012
                                                              MPN: MN47322
                                                              TUBO SCARICO EVAPORATORE Ø 12X18.
                                                              Hose 12x18x1600 from the radiator to the pump Genuine Maserati Part - New (to order)
                                                              # 013
                                                              MPN: VNT 58239
                                                              SCREW
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 014
                                                              MPN: FRN 58238
                                                              Hose fixing clamp from condenser to evaporator
                                                              Hose fixing clamp from condenser to evaporator Genuine Maserati Part - New (to order)
                                                              # 015
                                                              MPN: 107 - BR 57355
                                                              Tubo Ø 3/8 dal condensatore all'elevatore
                                                              Tubo Ø 3/8 dal condensatore all'elevatore Genuine Maserati Part - New (to order)
                                                              # 016
                                                              MPN: 101 /9 BR 58097
                                                              PRESSURE SWITCH
                                                              PRESSURE SWITCH Genuine Maserati Part - New (to order)
                                                              # 017
                                                              MPN: 107 - BR 57772
                                                              PRESSURE SWITCH SUPPORT PLATE
                                                              PRESSURE SWITCH SUPPORT PLATE Genuine Maserati Part - New (to order)
                                                              # 018
                                                              MPN: VNT 49217
                                                              SCREW
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 019
                                                              MPN: 107 - BR 57354
                                                              Pipe Ø 1/2 from the compressor to the condenser
                                                              Pipe Ø 1/2 from the compressor to the condenser Genuine Maserati Part - New (to order)
                                                              # 020
                                                              MPN: 107 - BR 58240
                                                              Sheet for tube guide grommet 5/8 fixed to the compressor
                                                              Sheet for tube guide grommet 5/8 fixed to the compressor Genuine Maserati Part - New (to order)
                                                              # 023
                                                              MPN: 107 BR 57352
                                                              TUBO Ø 5/8 DAL COMPRESSORE ALL'EVAPORATORE
                                                              Tubo QS 5/8 dal compressore all'evaporatore Genuine Maserati Part - New (to order)
                                                              # 024
                                                              MPN: 54/5326/53287
                                                              SHEET FOR PIPE GUIDE 1/2 FIXED TO THE FRAME
                                                              Lamierino per guida cavi candale Genuine Maserati Part - New (to order)
                                                              # 024
                                                              MPN: 54/5326/53287
                                                              SHEET FOR TUBE GUIDE WIRE PORT 5/8 FIXED TO THE HEAD COVER
                                                              Lamierino per guida cavi candale Genuine Maserati Part - New (to order)
                                                              # 025
                                                              MPN: 107 BR 57308
                                                              CONDENSOR
                                                              CONDENSOR Genuine Maserati Part - New (to order)
                                                              # 028
                                                              MPN: DNT 47446 107
                                                              NUT
                                                              NUT Genuine Maserati Part - New (to order)
                                                              # 029
                                                              MPN: BR 58267
                                                              HOSE CONNECTION VALVE 5/8
                                                              HOSE CONNECTION VALVE 5/8 Genuine Maserati Part - New (to order)
                                                              # 030
                                                              MPN: 107 - BR 58263
                                                              HOSE CONNECTION VALVE 1/2
                                                              HOSE CONNECTION VALVE 1/2 Genuine Maserati Part - New (to order)
