031 - Heating and Cooling system

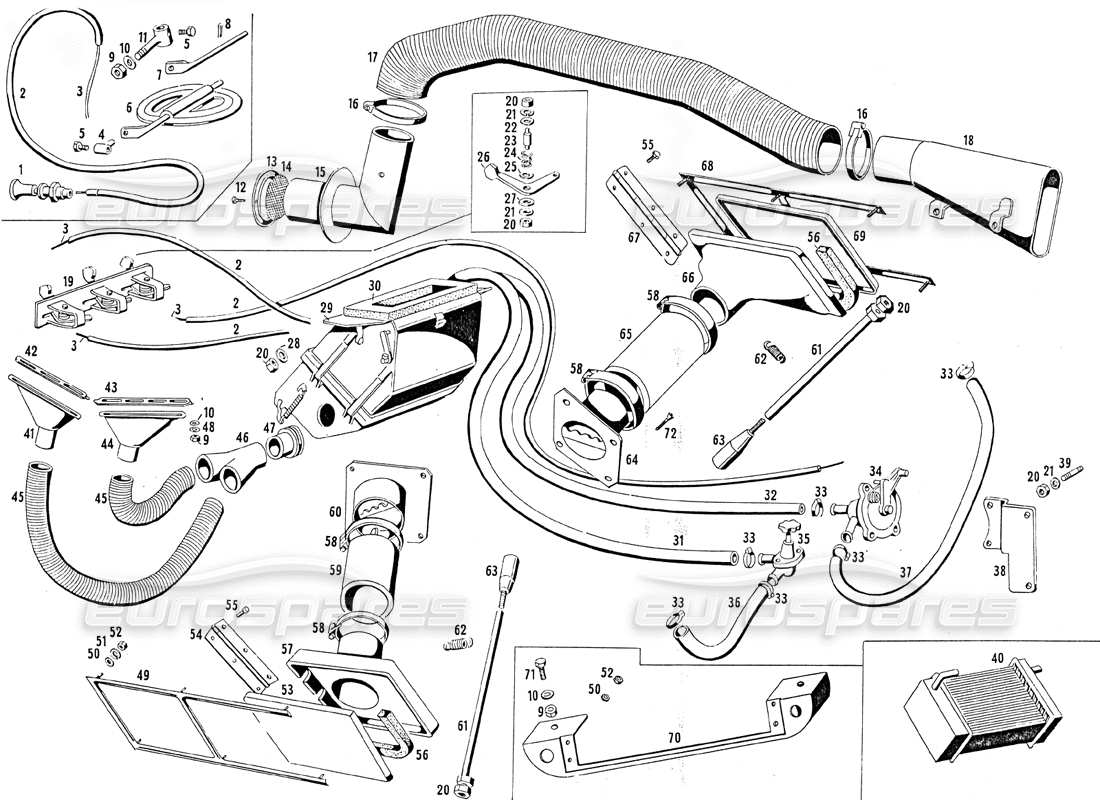

Maserati Mistral 3.7 Heating and Cooling System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                  #
                                                                                                                                                  Part number
                                                                                                                                                  Description
                                                                                                                                                  Price
                                                                                                                                                  # 001
                                                                                                                                                  MPN: 109 - BV 57648
                                                                                                                                                  PILOT FOOT AIR INTAKE CONTROL PULL
                                                                                                                                                  # 002
                                                                                                                                                  MPN: GFN 57259
                                                                                                                                                  FLEXIBLE SHEATH FOR SAID
                                                                                                                                                  # 002
                                                                                                                                                  MPN: GFN 57259
                                                                                                                                                  GUAINA FLESSIBILE COMANDO STARTER
                                                                                                                                                  # 002
                                                                                                                                                  MPN: GFN 57259
                                                                                                                                                  FLEXIBLE SHEATH FOR HEATER VALVE CONTROL
                                                                                                                                                  # 002
                                                                                                                                                  MPN: GFN 57259
                                                                                                                                                  HEATER AIR CONTROL FLEXIBLE SHEATH
                                                                                                                                                  # 003
                                                                                                                                                  MPN: FGN 57260
                                                                                                                                                  STEEL WIRE AIR INTAKE CONTROL PILOT FEET
                                                                                                                                                  # 003
                                                                                                                                                  MPN: FGN 57260
                                                                                                                                                  FILO ACCIAIO COMANDO STARTER
                                                                                                                                                  # 003
                                                                                                                                                  MPN: FGN 57260
                                                                                                                                                  STEEL WIRE HEATER AIR CONTROL
                                                                                                                                                  # 003
                                                                                                                                                  MPN: FGN 57260
                                                                                                                                                  STEEL WIRE HEATER WATER VALVE CONTROL
                                                                                                                                                  # 004
                                                                                                                                                  MPN: 101/7 20373 52315
                                                                                                                                                  RIDER FEET AIR INTAKE SHEATH FIXING NIPPLES
                                                                                                                                                  # 006
                                                                                                                                                  MPN: 109 BV 57245
                                                                                                                                                  PILOT FEET AIR INTAKE THROTTLE ASSEMBLY
                                                                                                                                                  # 007
                                                                                                                                                  MPN: 109 - BV 57198
                                                                                                                                                  THROTTLE SHAFT AIR INTAKE PILOT FEET
                                                                                                                                                  # 008
                                                                                                                                                  MPN: CN. 43776
                                                                                                                                                  COPIGLIA PER DETTO
                                                                                                                                                  from £0.86
                                                                                                                                                  from £0.86
                                                                                                                                                  # 009
                                                                                                                                                  MPN: DNT 47046
                                                                                                                                                  NUT
                                                                                                                                                  from £0.86
                                                                                                                                                  from £0.86
                                                                                                                                                  This part replaces part number 47046
                                                                                                                                                  # 009
                                                                                                                                                  MPN: DNT 47046
                                                                                                                                                  NUT
                                                                                                                                                  from £0.86
                                                                                                                                                  from £0.86
                                                                                                                                                  This part replaces part number 47046
                                                                                                                                                  # 009
                                                                                                                                                  MPN: DNT 47046
                                                                                                                                                  NUT
                                                                                                                                                  from £0.86
                                                                                                                                                  from £0.86
                                                                                                                                                  This part replaces part number 47046
                                                                                                                                                  # 012
                                                                                                                                                  MPN: VNT 57863
                                                                                                                                                  SCREW
                                                                                                                                                  # 013
                                                                                                                                                  MPN: 109 - BV 58095
                                                                                                                                                  FRAME FOR PILOT FOOT AIR INTAKE GRILLE
                                                                                                                                                  # 014
                                                                                                                                                  MPN: 109 - BV 58094
                                                                                                                                                  GRILLE ON THE PILOT FOOT AIR INTAKE
                                                                                                                                                  # 015
                                                                                                                                                  MPN: 109 - BV 57197
                                                                                                                                                  RIDER FEET AIR INTAKE ELBOW PIPE
                                                                                                                                                  # 016
                                                                                                                                                  MPN: FRN37835
                                                                                                                                                  PILOT AIR INTAKE DUCT FIXING CLAMP
                                                                                                                                                  # 017
                                                                                                                                                  MPN: TFC 48857
                                                                                                                                                  FLEXIBLE PIPE
                                                                                                                                                  from £99.14
                                                                                                                                                  from £99.14
                                                                                                                                                  # 018
                                                                                                                                                  MPN: 109 - BV 57200
                                                                                                                                                  PILOT FOOT AIR INTAKE
                                                                                                                                                  # 019
                                                                                                                                                  MPN: 109 - BV 61484
                                                                                                                                                  COMPLETE GROUP OF HEATING CONTROL LEVERS GD
                                                                                                                                                  # 019
                                                                                                                                                  MPN: 109 BV 55960
                                                                                                                                                  COMPLETE ASSEMBLY OF HEATING CONTROL LEVERS GS
                                                                                                                                                  Supersession
                                                                                                                                                  Supersession
                                                                                                                                                  # 020
                                                                                                                                                  MPN: DNT 47047
                                                                                                                                                  NUT
                                                                                                                                                  # 020
                                                                                                                                                  MPN: DNT 47047
                                                                                                                                                  NUT
                                                                                                                                                  # 020
                                                                                                                                                  MPN: DNT 47047
                                                                                                                                                  NUT
                                                                                                                                                  # 020
                                                                                                                                                  MPN: DNT 47047
                                                                                                                                                  NUT
                                                                                                                                                  # 021
                                                                                                                                                  MPN: RSN/32690
                                                                                                                                                  WASHER
                                                                                                                                                  # 023
                                                                                                                                                  MPN: 109 - BV 55957
                                                                                                                                                  HEATING CONTROL LEVER FIXING SHAFT
                                                                                                                                                  # 024
                                                                                                                                                  MPN: 101 20417 48818
                                                                                                                                                  SPRING
                                                                                                                                                  # 025
                                                                                                                                                  MPN: 101 - 20411 48810
                                                                                                                                                  RING
                                                                                                                                                  # 026
                                                                                                                                                  MPN: 107 BV 56401
                                                                                                                                                  LEVER
                                                                                                                                                  from £126.00
                                                                                                                                                  from £126.00
                                                                                                                                                  # 027
                                                                                                                                                  MPN: 107 - BV 55687
                                                                                                                                                  RING
                                                                                                                                                  # 028
                                                                                                                                                  MPN: RNT 47074
                                                                                                                                                  WASHER
                                                                                                                                                  # 029
                                                                                                                                                  MPN: 109 - BV 56114
                                                                                                                                                  RISCALDATORE COMPLETO TP. IPRA
                                                                                                                                                  # 030
                                                                                                                                                  MPN: PRN 56518
                                                                                                                                                  SPONGY PROFILE TO SEAL THE HEATER
                                                                                                                                                  # 031
                                                                                                                                                  MPN: 109 - BV 56383
                                                                                                                                                  WATER DELIVERY PIPE FROM THE HEATER TO THE PUMP
                                                                                                                                                  # 032
                                                                                                                                                  MPN: 109 - BV 56382
                                                                                                                                                  WATER DELIVERY PIPE FROM THE TAP TO THE HEATER
                                                                                                                                                  # 033
                                                                                                                                                  MPN: FRN/37825
                                                                                                                                                  FASCETTA Ø 14-20 PER DETTI
                                                                                                                                                  # 034
                                                                                                                                                  MPN: 101/1 - 20371 48884
                                                                                                                                                  HOT WATER REGULATOR VALVE
                                                                                                                                                  # 036
                                                                                                                                                  MPN: 109 - BV 56182
                                                                                                                                                  HEATING WATER DRAIN PIPE TO THE RADIATOR
                                                                                                                                                  # 037
                                                                                                                                                  MPN: 109 - BV 61990
                                                                                                                                                  WATER TANK PIPE FROM THE HEAD TO THE HEATING VALVE
                                                                                                                                                  # 038
                                                                                                                                                  MPN: 101 - 20374 48862
                                                                                                                                                  SUPPORT
                                                                                                                                                  # 039
                                                                                                                                                  MPN: PN 49773
                                                                                                                                                  THREADED STUD
                                                                                                                                                  # 040
                                                                                                                                                  MPN: 109 - BV 62128
                                                                                                                                                  RADIATORE RISCALDATORE IPRA
                                                                                                                                                  # 041
                                                                                                                                                  MPN: 109 - BV 55947
                                                                                                                                                  FFUSORE ARIA AL PARABREZZA (PICCOLO)
                                                                                                                                                  # 042
                                                                                                                                                  MPN: 109 - BV 56557
                                                                                                                                                  SLOT ON THE DASHBOARD FOR WINDSHIELD AIR DIFFUSER (SMALL)
                                                                                                                                                  # 043
                                                                                                                                                  MPN: 109 - BV 56433
                                                                                                                                                  WOUND ON THE DASHBOARD FOR WINDSHIELD AIR DIFFUSER (LARGE)
                                                                                                                                                  # 044
                                                                                                                                                  MPN: 109 - BV 55945
                                                                                                                                                  DIFFUSER
                                                                                                                                                  # 045
                                                                                                                                                  MPN: TFC 48873
                                                                                                                                                  Flexible cardboard tube Ø 40 X 400 for said
                                                                                                                                                  # 046
                                                                                                                                                  MPN: 109 - BV 56245
                                                                                                                                                  UNION
                                                                                                                                                  # 047
                                                                                                                                                  MPN: 109 - BV 56243
                                                                                                                                                  AIR DELIVERY FITTING TO THE DEFROSTERS
                                                                                                                                                  # 048
                                                                                                                                                  MPN: RSN 3 2 4 9 7
                                                                                                                                                  WASHER
                                                                                                                                                  # 049
                                                                                                                                                  MPN: 109 - BV 57239
                                                                                                                                                  RIGHT SIDE AIR INTAKE FRAME
                                                                                                                                                  # 052
                                                                                                                                                  MPN: DNT 47446
                                                                                                                                                  NUT
                                                                                                                                                  # 052
                                                                                                                                                  MPN: DNT 47446
                                                                                                                                                  NUT
                                                                                                                                                  # 053
                                                                                                                                                  MPN: 109 - BV 56706
                                                                                                                                                  COVER
                                                                                                                                                  # 054
                                                                                                                                                  MPN: 109 - BV 57041
                                                                                                                                                  RIGHT SIDE AIR INTAKE ZIPPER
                                                                                                                                                  # 057
                                                                                                                                                  MPN: 109 - BV 57076
                                                                                                                                                  CONDOTTO VANTILAZIONE LATERALE DESTRO
                                                                                                                                                  # 058
                                                                                                                                                  MPN: FRN37835
                                                                                                                                                  SIDE AIR INTAKE DUCTS FIXING CLAMP
                                                                                                                                                  # 059
                                                                                                                                                  MPN: 109 - BV 58104
                                                                                                                                                  RIGHT SIDE AIR INTAKE RUBBER DUCT
                                                                                                                                                  # 060
                                                                                                                                                  MPN: 109 - BV 57135
                                                                                                                                                  RIGHT SIDE AIR INTAKE SLEEVE AND FLANGE ASSEMBLY
                                                                                                                                                  # 061
                                                                                                                                                  MPN: 109 - BC 60346
                                                                                                                                                  LEFT SIDE AIR INTAKE CONTROL ROD
                                                                                                                                                  # 061
                                                                                                                                                  MPN: 109 - BC 62763
                                                                                                                                                  RIGHT SIDE AIR INTAKE CONTROL ROD
                                                                                                                                                  # 062
                                                                                                                                                  MPN: 109 - BV 57113
                                                                                                                                                  SPRING
                                                                                                                                                  # 063
                                                                                                                                                  MPN: 109 - BC 57049
                                                                                                                                                  KNOB FOR SIDE AIR INTAKE OPENING CONTROL ROD
                                                                                                                                                  # 064
                                                                                                                                                  MPN: 109 - BV 57091
                                                                                                                                                  LEFT SIDE AIR INTAKE SLEEVE AND FLANGE ASSEMBLY
                                                                                                                                                  # 065
                                                                                                                                                  MPN: 109 - BV 60019
                                                                                                                                                  LEFT SIDE AIR INTAKE RUBBER DUCT
                                                                                                                                                  # 066
                                                                                                                                                  MPN: 109 - BV 57077
                                                                                                                                                  LEFT SIDE VENTILATION DUCT
                                                                                                                                                  # 067
                                                                                                                                                  MPN: 109 - BV 60336
                                                                                                                                                  LEFT SIDE AIR INTAKE ZIPPER
                                                                                                                                                  # 068
                                                                                                                                                  MPN: 109 - BV 57312
                                                                                                                                                  MICE PRESA ARIA LATERALE SINISTRA ........
                                                                                                                                                  # 069
                                                                                                                                                  MPN: 109 - BV 56715
                                                                                                                                                  PERCHIO PRESA ARIA LATERALE SINISTRA .......
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 109 - BC 56579
                                                                                                                                                  SUPPORT
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 109 - BC 57735
                                                                                                                                                  SUPPORT
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 109 - BP 62126
                                                                                                                                                  SUPPORT
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 109 - BP 62127
                                                                                                                                                  SUPPORT
                                                                                                                                                  # 071
                                                                                                                                                  MPN: BNT/47370
                                                                                                                                                  BOLT
                                                                                                                                                  from £3.26
                                                                                                                                                  from £3.26
                                                                                                                                                  This part replaces part number 47370
                                                                                                                                                  # 072
                                                                                                                                                  MPN: VNT 49217
                                                                                                                                                  SCREW
