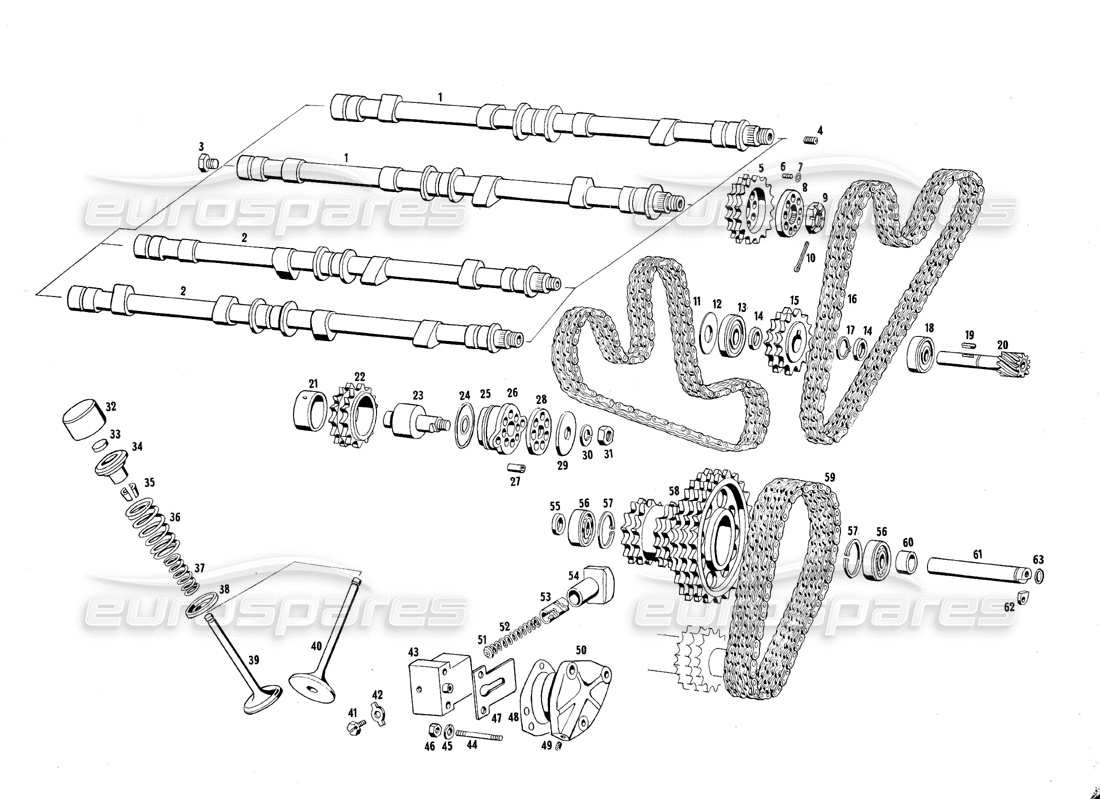

Maserati QTP.V8 4.7 (S1 & S2) 1967 Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                #
                                                                                                                                Part number
                                                                                                                                Description
                                                                                                                                Key
                                                                                                                                Price
                                                                                                                                # 001
                                                                                                                                MPN: 103 3003 50767
                                                                                                                                Left head distribution shaft
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                Genuine Maserati Part (no longer available to order)
                                                                                                                                # 002
                                                                                                                                MPN: 103 3002 50766
                                                                                                                                RIGHT HEAD TIMING SHAFT
                                                                                                                                from £1,764.34
                                                                                                                                from £1,764.34
                                                                                                                                RIGHT HEAD TIMING SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                # 003
                                                                                                                                MPN: TN51754
                                                                                                                                CAP 16XL,5 FOR TIMING SHAFT
                                                                                                                                CAP 16XL,5 FOR TIMING SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                # 004
                                                                                                                                MPN: TN 47332
                                                                                                                                CAP 16XL,5 LEFT FOR TIMING SHAFT
                                                                                                                                Left cap for camshaft 16 x 1,5 x 21 Genuine Maserati Part - New (to order)
                                                                                                                                # 005
                                                                                                                                MPN: 103360249794
                                                                                                                                GEAR FOR TIMING SHAFT
                                                                                                                                GEAR FOR TIMING SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                # 006
                                                                                                                                MPN: GRN 31105
                                                                                                                                GRINDER 0 6 FOR ENGAGEMENT WITH DISTRIBUTION CONTROL GEAR FLANGE
                                                                                                                                Grub screw with flange for distribution control gear Ø 6 x 10 Genuine Maserati Part - New (to order)
                                                                                                                                # 007
                                                                                                                                MPN: Seeger49642
                                                                                                                                Stop ring Ø 5 for flange stop screw
                                                                                                                                Stop ring Ø 5 for flange stop screw Genuine Maserati Part - New (to order)
                                                                                                                                # 008
                                                                                                                                MPN: 103 3022 49795
                                                                                                                                FLANGE FOR GEAR ON THE TIMING SHAFT
                                                                                                                                CLUTCH WITH FLANGE FOR TIMING CONTROL GEAR Genuine Maserati Part - New (to order)
                                                                                                                                # 009
                                                                                                                                MPN: DCN 55165
                                                                                                                                NUT
                                                                                                                                NUT Genuine Maserati Part - New (to order)
                                                                                                                                # 011
                                                                                                                                MPN: 103355350527
                                                                                                                                RIGHT DOUBLE CHAIN ​​TIMING CONTROL
                                                                                                                                from £332.87
                                                                                                                                from £332.87
                                                                                                                                RIGHT DOUBLE CHAIN ​​TIMING CONTROL Genuine Maserati Part - New In stock

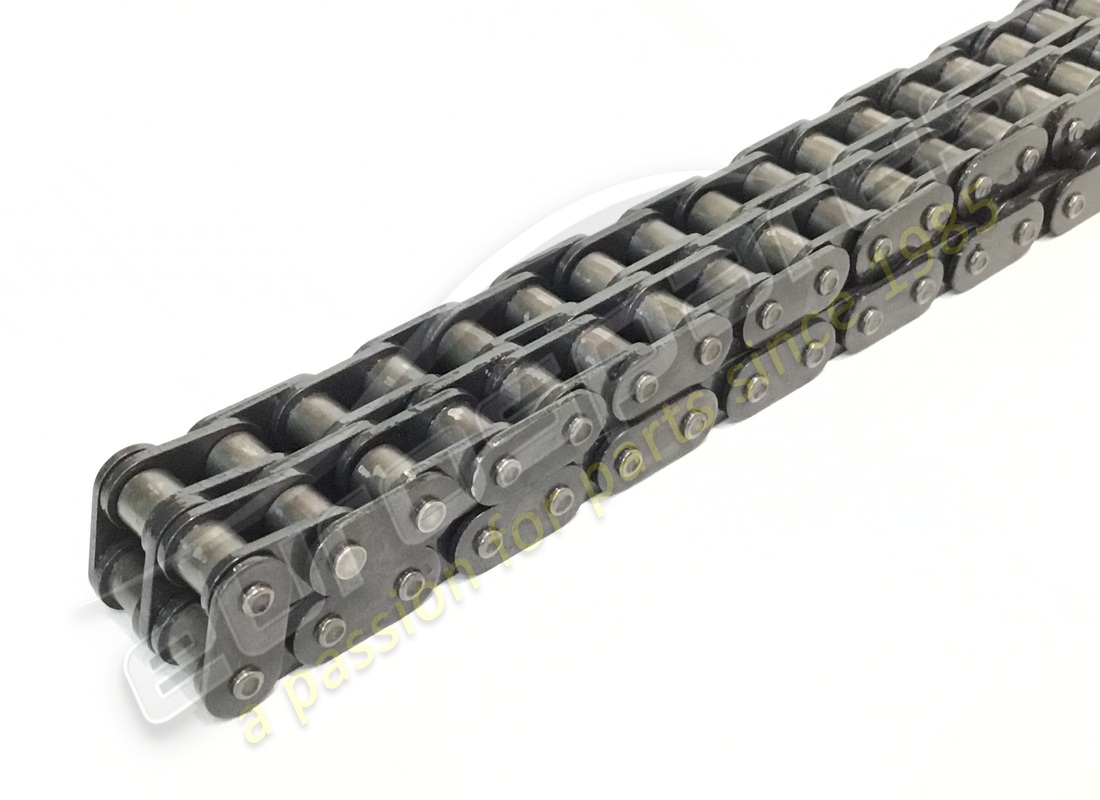

                                                                                                                                CATENA DOPPLA DESTRA COMANDO DISTRIBUZIONE Eurospares Approved Part - New In stock
                                                                                                                                # 013
                                                                                                                                MPN: CSC47947
                                                                                                                                Rear bearing on the distributor control shaft
                                                                                                                                Rear bearing on the distributor control shaft Genuine Maserati Part - New (to order)
                                                                                                                                # 014
                                                                                                                                MPN: 107 MD 54734
                                                                                                                                FRONT AND REAR SPACER FOR SPINTER CONTROL GEAR.
                                                                                                                                FRONT AND REAR SPACER FOR SPINTER CONTROL GEAR Genuine Maserati Part - New (to order)
                                                                                                                                # 015
                                                                                                                                MPN: 107MD54732
                                                                                                                                GENERATOR CONTROL GEAR
                                                                                                                                from £344.34
                                                                                                                                from £344.34
                                                                                                                                GENERATOR CONTROL GEAR Genuine Maserati Part - New (to order)
                                                                                                                                # 016
                                                                                                                                MPN: 103355450526
                                                                                                                                LEFT DOUBLE CHAIN ​​TIMING CONTROL
                                                                                                                                from £295.00
                                                                                                                                from £295.00
                                                                                                                                LEFT DOUBLE CHAIN ​​TIMING CONTROL Genuine Maserati Part - New (to order)
                                                                                                                                CATENA DOPPLA SINISTRA COMANDO DISTRIBUZIONE Eurospares Approved Part - New In stock
                                                                                                                                # 017
                                                                                                                                MPN: Seeger41406
                                                                                                                                Stop ring on the distributor control shaft
                                                                                                                                Stop ring on the distributor control shaft Genuine Maserati Part - New (to order)
                                                                                                                                # 018
                                                                                                                                MPN: CSC 43892
                                                                                                                                FRONT BEARING ON THE GENERATOR CONTROL SHAFT
                                                                                                                                Bearing on the chain drive gear Genuine Maserati Part - New (to order)
                                                                                                                                # 019
                                                                                                                                MPN: LN 51385
                                                                                                                                TAB 5X4,5X15 DRIVE GENERATOR CONTROL GEAR
                                                                                                                                TAB 5X4,5X15 DRIVE GENERATOR CONTROL GEAR Genuine Maserati Part - New (to order)
                                                                                                                                # 020
                                                                                                                                MPN: 107MD54731
                                                                                                                                GENERATOR CONTROL GEAR SHAFT
                                                                                                                                GENERATOR CONTROL GEAR Genuine Maserati Part - New (to order)
                                                                                                                                # 021
                                                                                                                                MPN: 107 MD 54742
                                                                                                                                BUSH FOR CHAIN ​​TENSIONER SPROCKET
                                                                                                                                BUSH FOR CHAIN ​​TENSIONER SPROCKET Genuine Maserati Part - New (to order)
                                                                                                                                # 022
                                                                                                                                MPN: 107MD54741
                                                                                                                                PINION FOR CHAIN ​​TENSIONER
                                                                                                                                from £340.00
                                                                                                                                from £340.00
                                                                                                                                PINION FOR CHAIN ​​TENSIONER Genuine Maserati Part - New (to order)
                                                                                                                                # 024
                                                                                                                                MPN: GOMM 49497
                                                                                                                                Gommino Ø 39X46X3 per supporto tendicatena
                                                                                                                                Gommino Ø 39X46X3 per supporto tendicatena Genuine Maserati Part - New (to order)
                                                                                                                                # 025
                                                                                                                                MPN: GOMM 45791
                                                                                                                                Gommino Ø 18X24X3 per supporto tendicatena
                                                                                                                                Gommino Ø 18X24X3 per supporto tendicatena Genuine Maserati Part - New (to order)
                                                                                                                                # 026
                                                                                                                                MPN: 101 /2 3742 49285
                                                                                                                                SUPPORT
                                                                                                                                SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                # 028
                                                                                                                                MPN: 101/2 3743 49286
                                                                                                                                WASHER
                                                                                                                                WASHER Genuine Maserati Part - New (to order)
                                                                                                                                # 029
                                                                                                                                MPN: 101/2 - 3741 49287
                                                                                                                                WASHER
                                                                                                                                WASHER Genuine Maserati Part - New (to order)
                                                                                                                                # 030
                                                                                                                                MPN: RSN/33114
                                                                                                                                WASHER
                                                                                                                                WASHER Genuine Maserati Part - New (to order)
                                                                                                                                # 031
                                                                                                                                MPN: DN 33533
                                                                                                                                NUT
                                                                                                                                NUT Genuine Maserati Part - New (to order)
                                                                                                                                # 032
                                                                                                                                MPN: 101341348009
                                                                                                                                Valve control cup
                                                                                                                                Valve control cup Genuine Maserati Part - New (to order)
                                                                                                                                # 033
                                                                                                                                MPN: 101 3322 48003
                                                                                                                                Valve clearance adjustment pad
                                                                                                                                Valve clearance adjustment pad Genuine Maserati Part - New (to order)
                                                                                                                                # 034
                                                                                                                                MPN: 101 - 3412 48008
                                                                                                                                UPPER CAP FOR VALVE SPRINGS
                                                                                                                                from £50.44
                                                                                                                                from £50.44
                                                                                                                                UPPER VALVE SPRING CAP Genuine Maserati Part - New (to order)
                                                                                                                                # 035
                                                                                                                                MPN: 101 - 3414 48005
                                                                                                                                UPPER VALVE SPRING CAP RETAINING HALF
                                                                                                                                SEMICONI RITEGNO SCOCLELLINO SUPERIORE MOLLE VALVOLE Genuine Maserati Part - New (to order)
                                                                                                                                # 036
                                                                                                                                MPN: 101 3402 47982
                                                                                                                                SPRING
                                                                                                                                from £66.08
                                                                                                                                from £66.08
                                                                                                                                SPRING Genuine Maserati Part - New (to order)
                                                                                                                                # 037
                                                                                                                                MPN: 101 3406 47983
                                                                                                                                SPRING
                                                                                                                                from £43.48
                                                                                                                                from £43.48
                                                                                                                                SPRING Genuine Maserati Part - New (to order)
                                                                                                                                # 038
                                                                                                                                MPN: 103 1034 50531
                                                                                                                                Scodellino inferiore per molle valvole
                                                                                                                                Scodellino inferiore per molle valvole Genuine Maserati Part - New (to order)
                                                                                                                                # 039
                                                                                                                                MPN: 107 3304 53972
                                                                                                                                VALVOLA SCARICO
                                                                                                                                from £51.98
                                                                                                                                from £51.98
                                                                                                                                Exhaust valve. Genuine Maserati Part - New (to order)

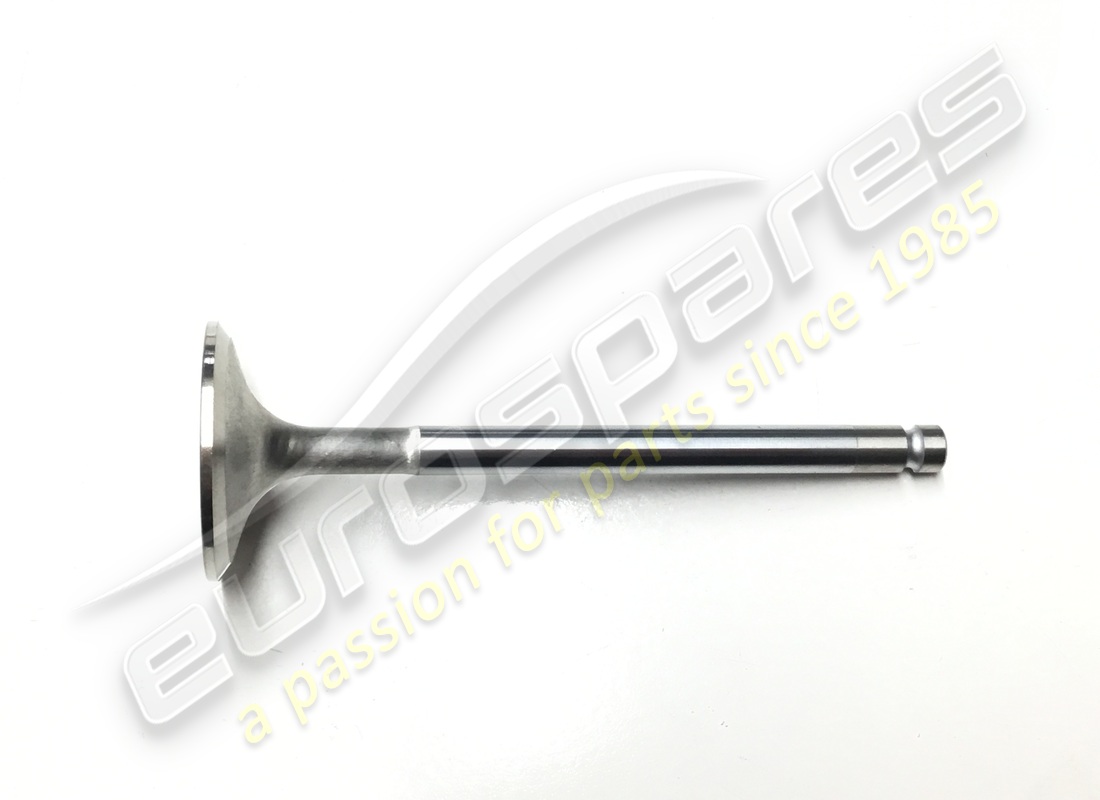

                                                                                                                                INLET VALVE Eurospares Approved Part - New In stock
                                                                                                                                # 040
                                                                                                                                MPN: 107330253904
                                                                                                                                VALVOLA ASPIRAZIONE
                                                                                                                                from £59.00
                                                                                                                                from £59.00
                                                                                                                                VALVOLA ASPIRAZIONE Genuine Maserati Part - New (to order)

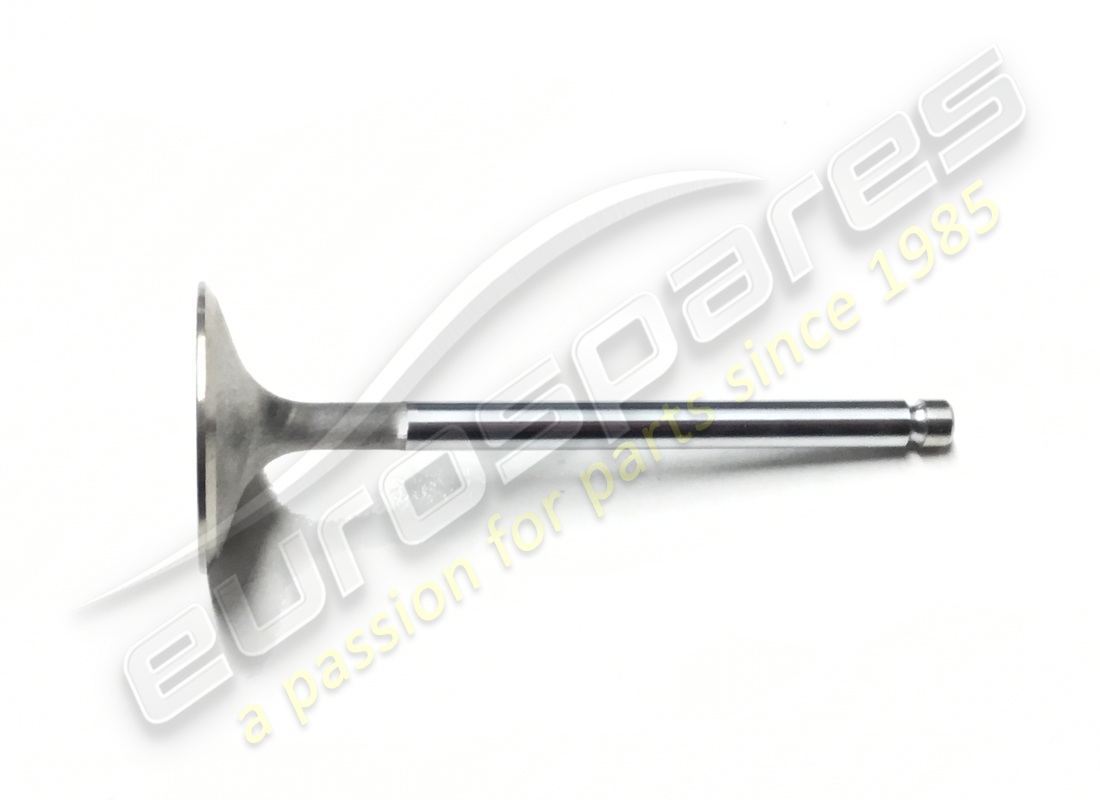

                                                                                                                                VALVE Eurospares Approved Part - New In stock
                                                                                                                                VALVE Eurospares Approved Part - New (to order)
                                                                                                                                # 041
                                                                                                                                MPN: 107 MD 58376
                                                                                                                                REAR AUTOMATIC TENSIONER CAP
                                                                                                                                REAR AUTOMATIC TENSIONER CAP Genuine Maserati Part - New (to order)
                                                                                                                                # 043
                                                                                                                                MPN: 107 MD 58378
                                                                                                                                AUTOMATIC TENSIONER SHOE HOLDER BODY
                                                                                                                                Pad holder Genuine Maserati Part - New (to order)
                                                                                                                                # 045
                                                                                                                                MPN: RNS/32690
                                                                                                                                WASHER
                                                                                                                                WASHER Genuine Maserati Part - New (to order)
                                                                                                                                # 046
                                                                                                                                MPN: DNT 47047
                                                                                                                                NUT
                                                                                                                                NUT Genuine Maserati Part - New (to order)
                                                                                                                                # 047
                                                                                                                                MPN: 107 MD 58379
                                                                                                                                REAR PLATE AUTOMATIC TENSIONER
                                                                                                                                Automatic tensioner rear plates Genuine Maserati Part - New (to order)
                                                                                                                                # 049
                                                                                                                                MPN: TN 44076
                                                                                                                                CAP 5X0,8 CLOSING OIL LINE IN THE SUPPORT
                                                                                                                                CAP 5X0,8 CLOSING OIL LINE IN THE SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                # 051
                                                                                                                                MPN: 107 MD 58380
                                                                                                                                TENSIONER SPRING RETAINING CAPS
                                                                                                                                SPRING RETAINER Genuine Maserati Part - New (to order)
                                                                                                                                # 052
                                                                                                                                MPN: 107 MD 58381
                                                                                                                                SPRING
                                                                                                                                from £6.08
                                                                                                                                from £6.08
                                                                                                                                Stretcher spring Genuine Maserati Part - New (to order)
                                                                                                                                # 053
                                                                                                                                MPN: 107 MD 58382
                                                                                                                                MOL RETAINING PISTON, THE AUTOMATIC TENSIONER
                                                                                                                                Automatic tensioner spring retainer plunger Genuine Maserati Part - New (to order)
                                                                                                                                # 054
                                                                                                                                MPN: 107 MD 58383
                                                                                                                                CAN RUBBER SLIDE FOR AUTOMATIC TENSIONER
                                                                                                                                Pad with rubber for automatic tensioner Genuine Maserati Part - New (to order)
                                                                                                                                # 055
                                                                                                                                MPN: 103350950521
                                                                                                                                REAR SPACER FOR TRIPLE GEAR
                                                                                                                                REAR SPACER FOR TRIPLE GEAR Genuine Maserati Part - New (to order)
                                                                                                                                # 056
                                                                                                                                MPN: CSC43806
                                                                                                                                Triple gear bearing
                                                                                                                                from £58.26
                                                                                                                                from £58.26
                                                                                                                                Triple gear bearing Genuine Maserati Part - New (to order)
                                                                                                                                # 057
                                                                                                                                MPN: Seeger47948
                                                                                                                                Snap ring for triple gear bearings
                                                                                                                                Snap ring for triple gear bearings Genuine Maserati Part - New (to order)
                                                                                                                                # 058
                                                                                                                                MPN: 103350849782
                                                                                                                                CENTRAL TRIPLE GEAR BASE
                                                                                                                                from £1,517.40
                                                                                                                                from £1,517.40
                                                                                                                                CENTRAL TRIPLE GEAR BASE Genuine Maserati Part - New (to order)
                                                                                                                                # 059
                                                                                                                                MPN: 103355250525
                                                                                                                                TRIPLE TIMING CONTROL CHAIN
                                                                                                                                from £305.21
                                                                                                                                from £305.21
                                                                                                                                TRIPLE TIMING CONTROL CHAIN Genuine Maserati Part - New (to order)

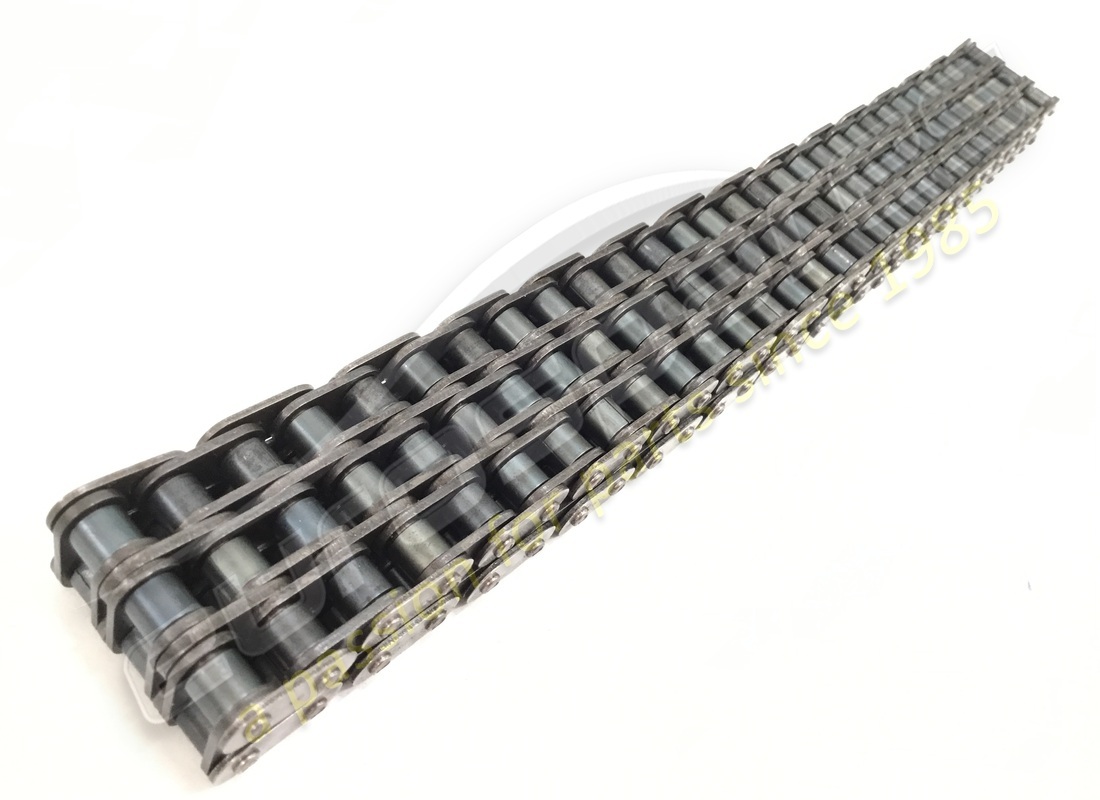

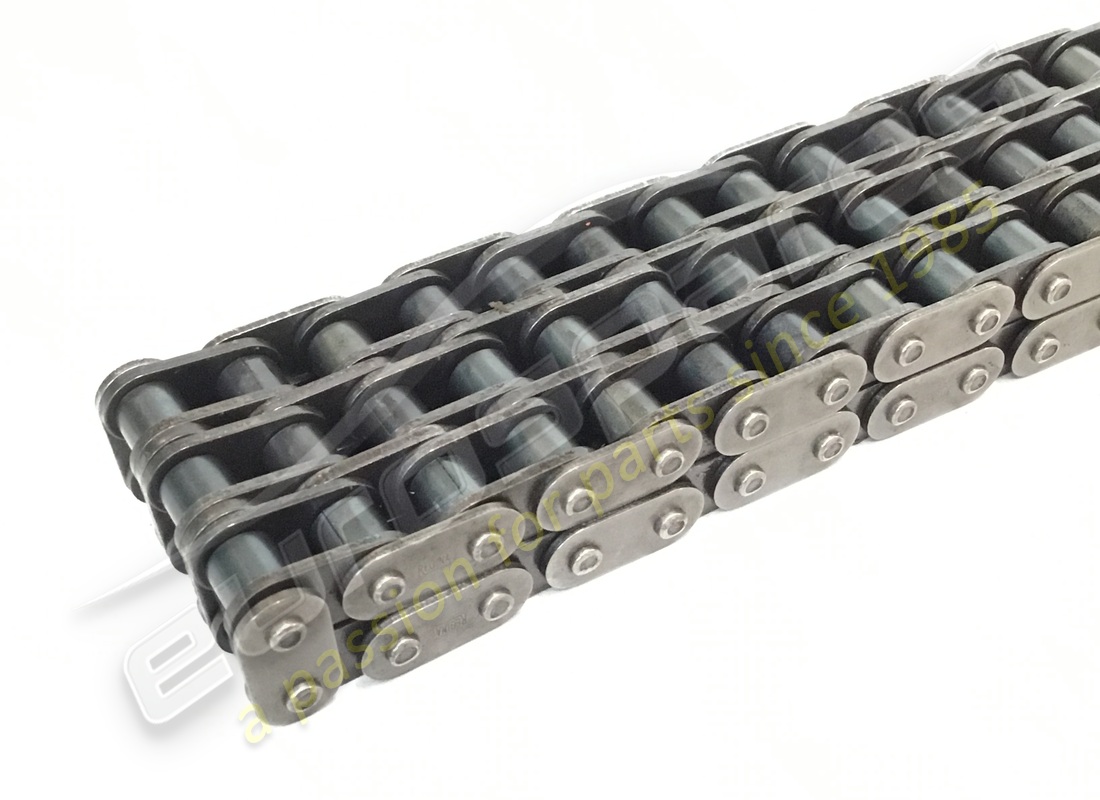

                                                                                                                                CATENA TRIPLE COMANDO DISTRIBUTORS Eurospares Approved Part - New In stock
                                                                                                                                # 060
                                                                                                                                MPN: 103350750522
                                                                                                                                FRONT SPACER FOR TRIPLE CENTRAL GEAR
                                                                                                                                FRONT SPACER FOR TRIPLE CENTRAL GEAR Genuine Maserati Part - New (to order)
                                                                                                                                # 061
                                                                                                                                MPN: 107 MD 55974
                                                                                                                                SHAFT FOR CENTRAL TRIPLE GEAR BASE
                                                                                                                                Shaft for central crankcase gear wheel Genuine Maserati Part - New (to order)
                                                                                                                                # 062
                                                                                                                                MPN: 107 MD 55975
                                                                                                                                LOCKING PLATE FOR TRIPLE GEAR SHAFT
                                                                                                                                Stopper for triple gear shaft Genuine Maserati Part - New (to order)
                                                                                                                                # 063
                                                                                                                                MPN: GOMM57307
                                                                                                                                Rubber Ø 14,2X2,2 for triple gear shaft
                                                                                                                                Rubber Ø 14,2X2,2 for triple gear shaft Genuine Maserati Part - New (to order)
