006 - Belts and Pulley

Maserati QTP.V8 4.9 (S3) 1979 Belts and Pulley Parts Diagram

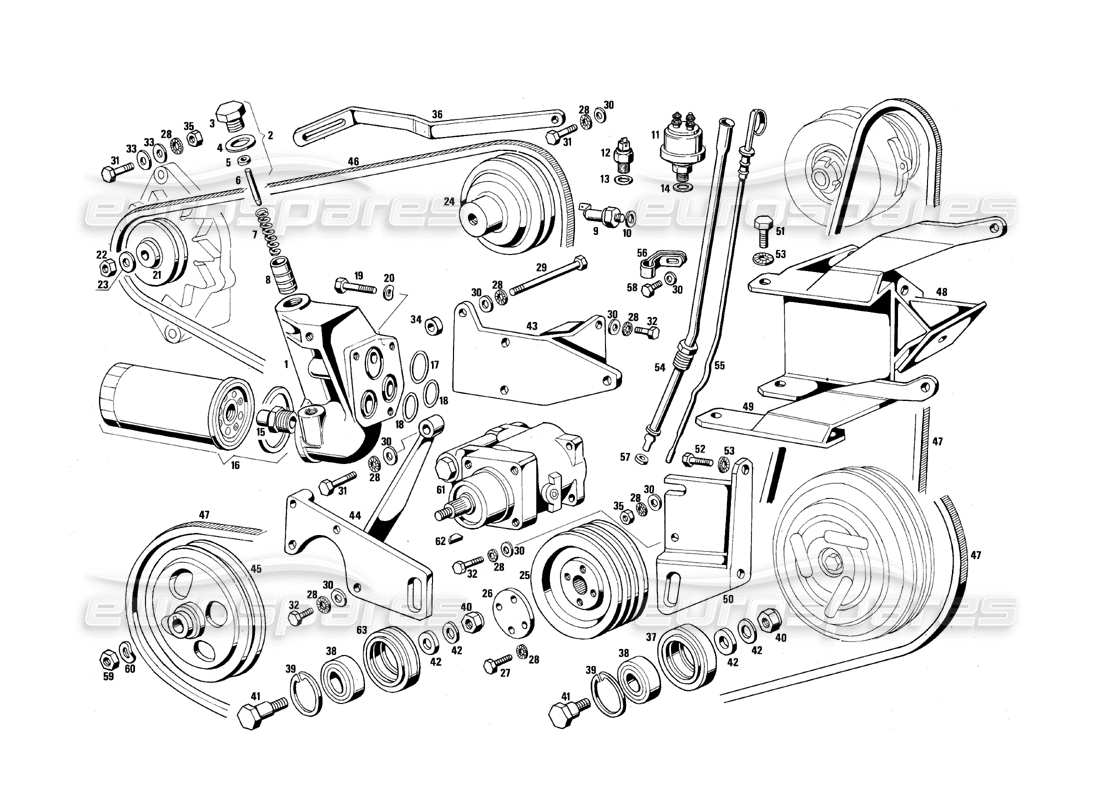

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                              #
                                                                                                                              Part number
                                                                                                                              Description
                                                                                                                              Price
                                                                                                                              # 001
                                                                                                                              MPN: 433-04-12-00
                                                                                                                              OIL FILTER SUPPORT
                                                                                                                              # 002
                                                                                                                              MPN: 424-01-52-00
                                                                                                                              Plug complete for oil pressure valve
                                                                                                                              # 003
                                                                                                                              MPN: 424-01-54-00
                                                                                                                              Plug for oil pressure valve
                                                                                                                              # 004
                                                                                                                              MPN: GN46637
                                                                                                                              Plug gasket Ø 22.5X30X1
                                                                                                                              from £2.18
                                                                                                                              from £2.18
                                                                                                                              # 005
                                                                                                                              MPN: RN 51581
                                                                                                                              Washer adjusting valve Ø 8X14X2
                                                                                                                              # 006
                                                                                                                              MPN: 424-01-53-00
                                                                                                                              Spring pin for oil pressure valve
                                                                                                                              # 007
                                                                                                                              MPN: 400-01-49-00
                                                                                                                              Spring for oil pressure valve
                                                                                                                              # 008
                                                                                                                              MPN: 421-04-85-00
                                                                                                                              OIL PRESSURE VALVE
                                                                                                                              # 009
                                                                                                                              MPN: 403-04-34-00
                                                                                                                              Oil pressure sender unit, Gear Transmission (from car )
                                                                                                                              # 010
                                                                                                                              MPN: 400-04-58-00
                                                                                                                              GASKET FOR OIL PRESS. SENDER UNIT, GEAR TRANSMISSION (FROM CAR )
                                                                                                                              # 011
                                                                                                                              MPN: 433043300
                                                                                                                              OIL PRESSURE SOLENOID, GEAR AND AUTOMATIC TRANSMISSION
                                                                                                                              from £87.81
                                                                                                                              from £87.81
                                                                                                                              # 012
                                                                                                                              MPN: 420042800
                                                                                                                              TEMPERATURE FEELER AND OIL INDICATOR ON CYL. BLOCK, GEAR TRANSMISSION
                                                                                                                              from £449.56
                                                                                                                              from £449.56
                                                                                                                              # 012
                                                                                                                              MPN: 433-04-7-00
                                                                                                                              Temperature feeler and oil indicator on filter body, Aut. Transmission
                                                                                                                              # 013
                                                                                                                              MPN: 433-04-31-00
                                                                                                                              GASKET
                                                                                                                              # 014
                                                                                                                              MPN: 403-04-31-00
                                                                                                                              Solenoid gasket
                                                                                                                              # 015
                                                                                                                              MPN: 400-01 -78-00
                                                                                                                              Oil filter connector
                                                                                                                              # 016
                                                                                                                              MPN: 429041100

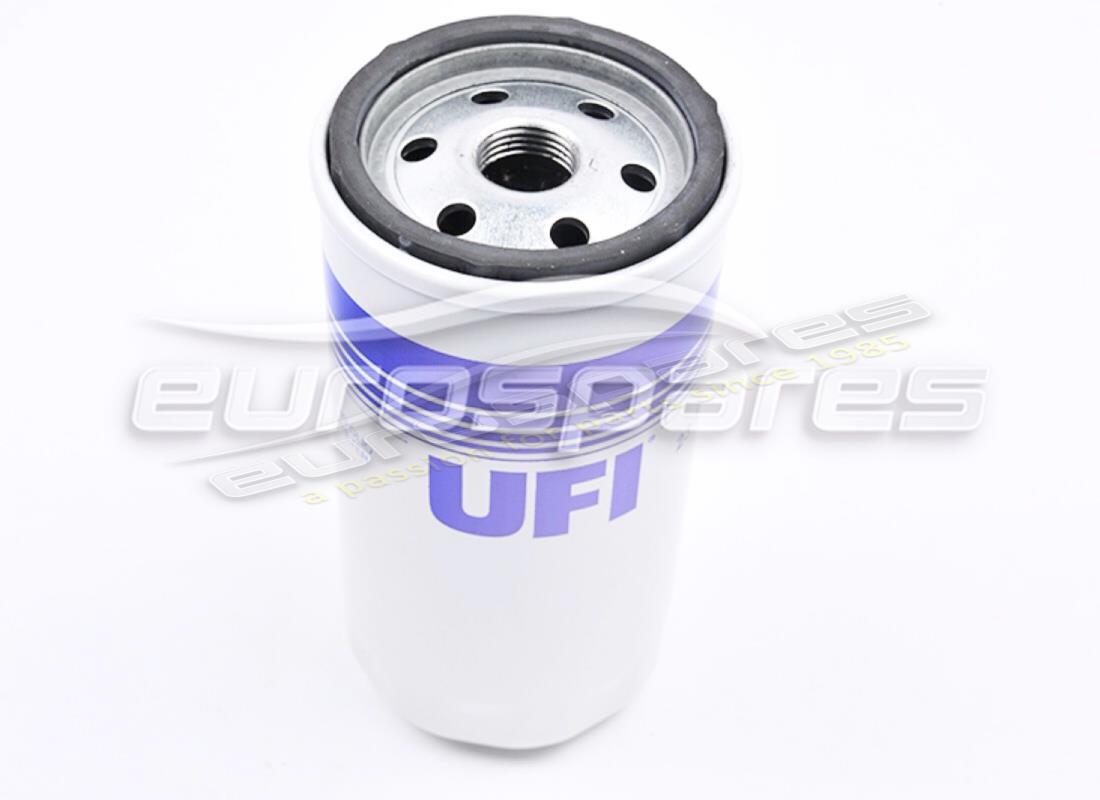

                                                                                                                              OIL FILTER
                                                                                                                              Also suitable for V8 Kyalami (1978)
                                                                                                                              from £29.95
                                                                                                                              from £29.95
                                                                                                                              # 017
                                                                                                                              MPN: GOM 54022
                                                                                                                              Rubber ring for oil filter body
                                                                                                                              # 018
                                                                                                                              MPN: GOM42693
                                                                                                                              Rubber ring for oil filter body
                                                                                                                              from £6.08
                                                                                                                              from £6.08
                                                                                                                              # 019
                                                                                                                              MPN: BNT 47475
                                                                                                                              BOLT LOCKING OIL FILTER BODY Ø 8X1.25X25
                                                                                                                              # 020
                                                                                                                              MPN: RAT/45680
                                                                                                                              BOLT WASHER Ø 8
                                                                                                                              # 021
                                                                                                                              MPN: 433-08-14-20
                                                                                                                              ALTERNATOR PULLEY
                                                                                                                              # 022
                                                                                                                              MPN: DN 32721
                                                                                                                              Pulley locking nut Ø 14X1.5X5
                                                                                                                              # 024
                                                                                                                              MPN: 420-04-77-20
                                                                                                                              WATER PUMP PULLEY
                                                                                                                              # 025
                                                                                                                              MPN: 420-02-37-01
                                                                                                                              CRANKSHAFT PULLEY
                                                                                                                              # 026
                                                                                                                              MPN: 420-02-40-00
                                                                                                                              Crankshaft pulley plug
                                                                                                                              # 027
                                                                                                                              MPN: BNT 87231
                                                                                                                              Pulley locking bolt Ø 8X1.25X22
                                                                                                                              # 029
                                                                                                                              MPN: BNT 57034
                                                                                                                              ALTERNATOR BOLT Ø 8X1.25X90
                                                                                                                              # 031
                                                                                                                              MPN: BNT 84642
                                                                                                                              Bolt fixing alternator to push rod Ø 8X1.25X35
                                                                                                                              This part replaces part number 84642
                                                                                                                              # 032
                                                                                                                              MPN: BNT. 47015
                                                                                                                              BOLT FIXING SERVO-STEERING AND SUPPORTS
                                                                                                                              # 033
                                                                                                                              MPN: RN 88722
                                                                                                                              WASHER FOR BOLT FIXING ALTERNATOR TO PUSH ROD
                                                                                                                              # 034
                                                                                                                              MPN: 433-08-15-00
                                                                                                                              ALTERNATOR SPACER
                                                                                                                              # 035
                                                                                                                              MPN: DNT 76120
                                                                                                                              NUT LOCKING PUSH ROD AND SUPPORT Ø 8X1.25
                                                                                                                              # 036
                                                                                                                              MPN: 433-08-19-20
                                                                                                                              ALTERNATOR PUSH ROD
                                                                                                                              # 037
                                                                                                                              MPN: 421-02-42-01
                                                                                                                              Pulley belt stretcher Ø 70
                                                                                                                              # 038
                                                                                                                              MPN: CSC49764
                                                                                                                              PULLEY BEARING Ø 20X47X14
                                                                                                                              # 039
                                                                                                                              MPN: ART/46284
                                                                                                                              RETAINING CLIP Ø 47
                                                                                                                              # 040
                                                                                                                              MPN: DST 54896
                                                                                                                              Nut fixing belt stretcher pulley Ø 14X1.5
                                                                                                                              # 041
                                                                                                                              MPN: 420-02-46-00
                                                                                                                              Bolt locking belt stretcher pulley
                                                                                                                              # 042
                                                                                                                              MPN: 420-02-47-00
                                                                                                                              Spacer for bearing and support
                                                                                                                              # 043
                                                                                                                              MPN: 433-48-32-00
                                                                                                                              SUPPORT FOR PUMP AND SERVO-STEERING
                                                                                                                              from £99.75
                                                                                                                              from £99.75
                                                                                                                              # 044
                                                                                                                              MPN: 433-48-37-00
                                                                                                                              SUPPORT
                                                                                                                              from £84.00
                                                                                                                              from £84.00
                                                                                                                              # 045
                                                                                                                              MPN: 420-48-03-00
                                                                                                                              Servo-steering pump pulley
                                                                                                                              from £63.00
                                                                                                                              from £63.00
                                                                                                                              # 046
                                                                                                                              MPN: CTR 93780

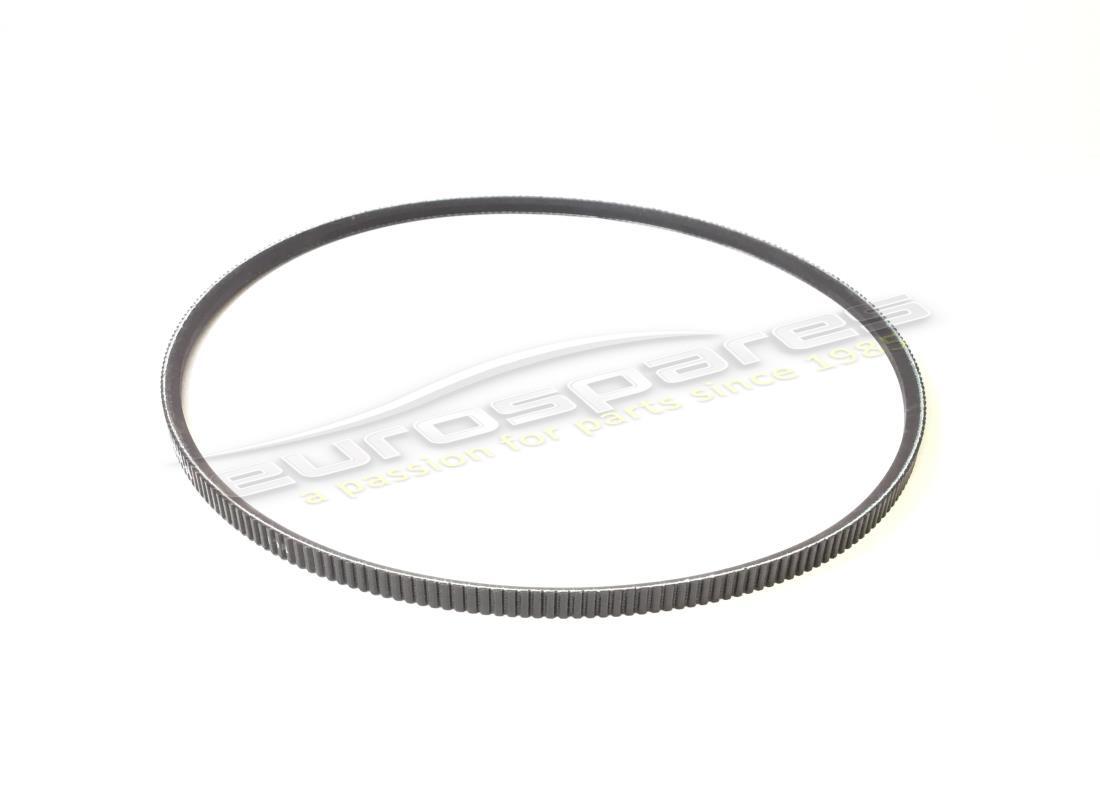

                                                                                                                              WATER PUMP AND ALTERNATOR BELT
                                                                                                                              from £57.75
                                                                                                                              from £57.75
                                                                                                                              # 047
                                                                                                                              MPN: CTR 71465
                                                                                                                              Belt for compressor, servo-steering air pump
                                                                                                                              # 048
                                                                                                                              MPN: 420-37-26-00
                                                                                                                              SUPPORT FOR COMPRESSOR AND ENGINE
                                                                                                                              from £115.50
                                                                                                                              from £115.50
                                                                                                                              # 049
                                                                                                                              MPN: 420-32-34-00
                                                                                                                              AIR PUMP SUPPORT
                                                                                                                              # 050
                                                                                                                              MPN: 420-37-27-00
                                                                                                                              Support for compressor and belt stretcher pulley
                                                                                                                              from £105.00
                                                                                                                              from £105.00
                                                                                                                              # 051
                                                                                                                              MPN: BNT 60984
                                                                                                                              Bolt Ø 3/8 for compressor support
                                                                                                                              # 052
                                                                                                                              MPN: BNT 49673
                                                                                                                              Bolt Ø 3/8 for compressor support
                                                                                                                              # 053
                                                                                                                              MPN: RDI 87239
                                                                                                                              Washer 0 10
                                                                                                                              # 054
                                                                                                                              MPN: 400-04-38-00
                                                                                                                              DIP STICK TUBE
                                                                                                                              # 055
                                                                                                                              MPN: 403-04-40-00
                                                                                                                              OIL DIP STICK
                                                                                                                              # 056
                                                                                                                              MPN: 420-04-45-00
                                                                                                                              Clamp for dip stick tube
                                                                                                                              # 057
                                                                                                                              MPN: 400-04-44-00
                                                                                                                              Rubber for oil dip stick
                                                                                                                              # 058
                                                                                                                              MPN: BNT 67443
                                                                                                                              Bolt fixing dip stick tube Ø 8X1.25
                                                                                                                              # 059
                                                                                                                              MPN: DNT 43772
                                                                                                                              Nut fixing servo-steering pump
                                                                                                                              # 062
                                                                                                                              MPN: LN 41745
                                                                                                                              Key pulley
                                                                                                                              # 063
                                                                                                                              MPN: 421-02-42-00
                                                                                                                              Belt stretcher pulley Ø 84
