013 - Transmission Gear

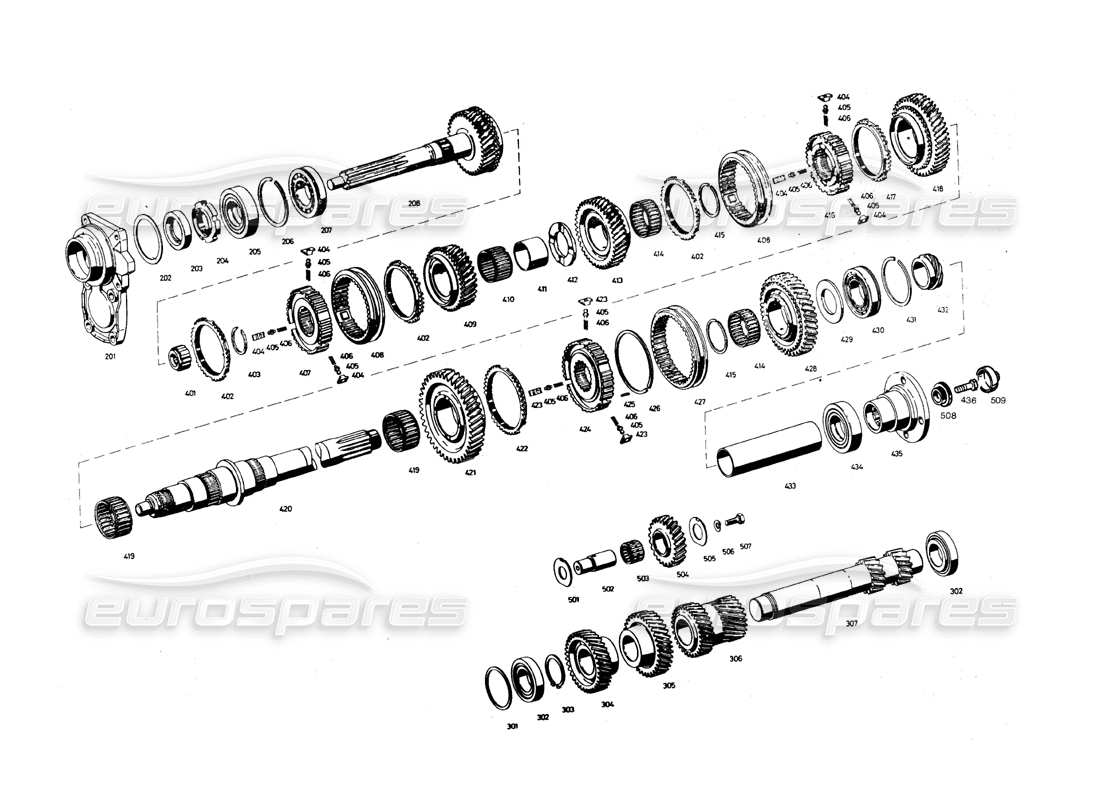

Maserati QTP.V8 4.9 (S3) 1979 Transmission Gear Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Key
                                                                                                                  Price
                                                                                                                  # 000
                                                                                                                  MPN: TC 85775
                                                                                                                  COVER GASKET
                                                                                                                  COVER GASKET Genuine Maserati Part - New (to order)
                                                                                                                  # 201
                                                                                                                  MPN: TC 78769
                                                                                                                  Seal ring support
                                                                                                                  Seal ring support Genuine Maserati Part - New (to order)
                                                                                                                  # 202
                                                                                                                  MPN: TC 78770
                                                                                                                  Thrust ring H = 0.6
                                                                                                                  Thrust ring H = 0.6 Genuine Maserati Part - New (to order)
                                                                                                                  # 202
                                                                                                                  MPN: TC. 78771
                                                                                                                  Thrust ring H = 0.7
                                                                                                                  ANELLO DI RASAMENTO H = 0,7 Genuine Maserati Part - New (to order)
                                                                                                                  # 202
                                                                                                                  MPN: TC. 78772
                                                                                                                  Thrust ring H = 0.8
                                                                                                                  ANELLO DI RASAMENTO H = 0,8 Genuine Maserati Part - New (to order)
                                                                                                                  # 203
                                                                                                                  MPN: ANT 81255
                                                                                                                  Seal ring Ø 35X62X12
                                                                                                                  Seal ring Ø 35X62X12 Genuine Maserati Part - New (to order)
                                                                                                                  # 204
                                                                                                                  MPN: TC 78773
                                                                                                                  Mesh gear
                                                                                                                  from £211.30
                                                                                                                  from £211.30
                                                                                                                  Mesh gear Genuine Maserati Part - New (to order)
                                                                                                                  # 205
                                                                                                                  MPN: CSC 81252
                                                                                                                  BALL BEARING Ø 40X80X18
                                                                                                                  Layshaft ball bearing Genuine Maserati Part - New (to order)
                                                                                                                  # 207
                                                                                                                  MPN: CSC. 81254
                                                                                                                  ROLLER BEARING Ø 40X80X18
                                                                                                                  Cuscinetto a rulli albero sec. Genuine Maserati Part - New (to order)
                                                                                                                  # 208
                                                                                                                  MPN: TC 78774
                                                                                                                  Mesh shaft Z = 36 + Z = 35
                                                                                                                  Mesh shaft Z = 36 + Z = 35 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78850
                                                                                                                  Thrust ring CSC H = 2.8
                                                                                                                  Thrust ring CSC H = 2.8 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78853
                                                                                                                  Thrust ring CSC H = 2.65
                                                                                                                  Thrust ring CSC H = 2.65 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78856
                                                                                                                  Thrust ring for CSC H = 2.5
                                                                                                                  Thrust ring for CSC H = 2.5 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78857
                                                                                                                  Thrust ring for CSC H = 2.45
                                                                                                                  Thrust ring for CSC H = 2.45 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78858
                                                                                                                  Thrust ring for CSC H = 2.4
                                                                                                                  Thrust ring for CSC H = 2.4 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78859
                                                                                                                  Thrust ring for CSC H = 2.35
                                                                                                                  Thrust ring for CSC H = 2.35 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78861
                                                                                                                  Thrust ring for CSC H = 2.25
                                                                                                                  Thrust ring for CSC H = 2.25 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78862
                                                                                                                  Thrust ring for CSC H = 2.2
                                                                                                                  Thrust ring for CSC H = 2.2 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78863
                                                                                                                  Thrust ring for CSC H = 2.15
                                                                                                                  Thrust ring for CSC H = 2.15 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC 78866
                                                                                                                  Thrust ring for CSC H = 2
                                                                                                                  Thrust ring for CSC H = 2 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC. 78849
                                                                                                                  Thrust ring CSC H = 2.9
                                                                                                                  ANELLO DI RASAMENTO CSC H = 2,9 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC. 78851
                                                                                                                  Thrust ring CSC H = 2.75
                                                                                                                  ANELLO DI RASAMENTO CSC H = 2,75 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC. 78852
                                                                                                                  Thrust ring CSC H = 2.7
                                                                                                                  ANELLO DI RASAMENTO CSC H = 2,7 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC. 78854
                                                                                                                  Thrust ring for CSC H = 2.6
                                                                                                                  ANELLO DI RASAMENTO PER CSC H = 2,6 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC. 78855
                                                                                                                  Thrust ring for CSC H = 2.55
                                                                                                                  Anello di rasamento per CSC = 2,55 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC. 78860
                                                                                                                  Thrust ring for CSC H = 2.3
                                                                                                                  ANELLO DI RASAMENTO PER CSC H = 2,3 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC. 78864
                                                                                                                  Thrust ring for CSC H = 2.1
                                                                                                                  ANELLO DI RASAMENTO PER CSC H = 2,1 Genuine Maserati Part - New (to order)
                                                                                                                  # 301
                                                                                                                  MPN: TC. 78865
                                                                                                                  Thrust ring for CSC H = 2.05
                                                                                                                  ANELLO DI RASAMENTO PER CSC H = 2,05 Genuine Maserati Part - New (to order)
                                                                                                                  # 302
                                                                                                                  MPN: CSC. 58937
                                                                                                                  ROLLER BEARING 0 35X72X18,25
                                                                                                                  Cuscinetto a rulli Ø 35 x 72 x 18,25 Genuine Maserati Part - New (to order)
                                                                                                                  # 303
                                                                                                                  MPN: TC 78811
                                                                                                                  Retaining clip H = 2.4
                                                                                                                  Retaining clip H = 2.4 Genuine Maserati Part - New (to order)
                                                                                                                  # 303
                                                                                                                  MPN: TC. 78810
                                                                                                                  Retaining clip H = 2.5
                                                                                                                  Anello d'arresto sull'albero H = 2,5 Genuine Maserati Part - New (to order)
                                                                                                                  # 303
                                                                                                                  MPN: TC. 78812
                                                                                                                  Retaining clip H = 2.3
                                                                                                                  Retaining ring on shaft H 2,3 Genuine Maserati Part - New (to order)
                                                                                                                  # 401
                                                                                                                  MPN: GRL 81260
                                                                                                                  Needle cage Ø 20X36X20
                                                                                                                  Needle cage Ø 20X36X20 Genuine Maserati Part - New (to order)
                                                                                                                  # 402
                                                                                                                  MPN: TC. 78775
                                                                                                                  SINCHRON. RING 3RD - 4TH - 5TH GEAR
                                                                                                                  from £513.04
                                                                                                                  from £513.04
                                                                                                                  Anello sincr. 3ª-4ª-5ª velocità Genuine Maserati Part - New (to order)
                                                                                                                  # 403
                                                                                                                  MPN: TC 78776
                                                                                                                  Retaining clip H = 2.5
                                                                                                                  Retaining clip H = 2.5 Genuine Maserati Part - New (to order)
                                                                                                                  # 403
                                                                                                                  MPN: TC. 78777
                                                                                                                  Retaining clip H = 2.4
                                                                                                                  Anello di fermo mozzo sincr. H = 2,4 Genuine Maserati Part - New (to order)
                                                                                                                  # 403
                                                                                                                  MPN: TC. 78778
                                                                                                                  Retaining clip H = 2.3
                                                                                                                  Anello di fermo mozzo sincr. H = 2,3 Genuine Maserati Part - New (to order)
                                                                                                                  # 404
                                                                                                                  MPN: TC 78779
                                                                                                                  Small block 2ND - 3RD - 4TH - 5TH gear
                                                                                                                  Small block 2ND - 3RD - 4TH - 5TH gear Genuine Maserati Part - New (to order)
                                                                                                                  # 405
                                                                                                                  MPN: TC 78780
                                                                                                                  BALL PIN
                                                                                                                  BALL PIN Genuine Maserati Part - New (to order)
                                                                                                                  # 406
                                                                                                                  MPN: TC 78781
                                                                                                                  SPRING
                                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                                  # 407
                                                                                                                  MPN: TC 78782
                                                                                                                  Sleeve hub 4TH and 5TH gear
                                                                                                                  Sleeve hub 4TH and 5TH gear Genuine Maserati Part - New (to order)
                                                                                                                  # 409
                                                                                                                  MPN: TC 78784
                                                                                                                  5TH gear set Z = 34 + Z = 37
                                                                                                                  5TH gear set Z = 34 + Z = 37 Genuine Maserati Part - New (to order)
                                                                                                                  # 410
                                                                                                                  MPN: TC 81261
                                                                                                                  5TH gear needle cage Ø 47X53X32
                                                                                                                  5TH gear needle cage Ø 47X53X32 Genuine Maserati Part - New (to order)
                                                                                                                  # 412
                                                                                                                  MPN: TC 78785
                                                                                                                  THRUST WASHER
                                                                                                                  THRUST WASHER Genuine Maserati Part - New (to order)
                                                                                                                  # 413
                                                                                                                  MPN: TC 78786
                                                                                                                  2ND and 3RD gears
                                                                                                                  2ND and 3RD gears Genuine Maserati Part - New (to order)
                                                                                                                  # 414
                                                                                                                  MPN: TC 81266
                                                                                                                  3RD gear needle cage and reverse
                                                                                                                  3RD gear needle cage and reverse Genuine Maserati Part - New (to order)
                                                                                                                  # 416
                                                                                                                  MPN: TC 78789
                                                                                                                  Sleeve hub 2ND and 3RD gears
                                                                                                                  Sleeve hub 2ND and 3RD gears Genuine Maserati Part - New (to order)
                                                                                                                  # 417
                                                                                                                  MPN: TC 78790
                                                                                                                  Sinchron. ring 2ND gear
                                                                                                                  from £554.78
                                                                                                                  from £554.78
                                                                                                                  Sinchron. ring 2ND gear Genuine Maserati Part - New (to order)
                                                                                                                  # 419
                                                                                                                  MPN: TC 81267
                                                                                                                  1ST and 2ND gear needle cage
                                                                                                                  from £254.78
                                                                                                                  from £254.78
                                                                                                                  1ST and 2ND gear needle cage Genuine Maserati Part - New (to order)
                                                                                                                  # 420
                                                                                                                  MPN: TC 78791/1
                                                                                                                  LAYSHAFT
                                                                                                                  from £1,484.34
                                                                                                                  from £1,484.34
                                                                                                                  LAYSHAFT Genuine Maserati Part - New (to order)
                                                                                                                  # 425
                                                                                                                  MPN: TC 78796
                                                                                                                  Dowel Ø 3X8
                                                                                                                  Dowel Ø 3X8 Genuine Maserati Part - New (to order)
                                                                                                                  # 427
                                                                                                                  MPN: TC 78798
                                                                                                                  Sleeve 1ST gear and reverse
                                                                                                                  Sleeve 1ST gear and reverse Genuine Maserati Part - New (to order)
                                                                                                                  # 428
                                                                                                                  MPN: TC. 78799
                                                                                                                  REVERSE GEARS ON LAYSHAFT Z = 39
                                                                                                                  Ingranaggio RM. sull'albero sec. Z = 39 Genuine Maserati Part - New (to order)
                                                                                                                  # 429
                                                                                                                  MPN: TC 78000
                                                                                                                  Thrust washer Ø 49.5X70X40
                                                                                                                  Thrust washer Ø 49.5X70X40 Genuine Maserati Part - New (to order)
                                                                                                                  # 430
                                                                                                                  MPN: CSC 81254/1
                                                                                                                  Layshaft roller bearing
                                                                                                                  Layshaft roller bearing Genuine Maserati Part - New (to order)
                                                                                                                  # 432
                                                                                                                  MPN: TC 78801/1
                                                                                                                  SPEEDO DRIVING GEAR
                                                                                                                  from £643.22
                                                                                                                  from £643.22
                                                                                                                  SPEEDO DRIVING GEAR Genuine Maserati Part - New (to order)
                                                                                                                  # 433
                                                                                                                  MPN: TC 90315
                                                                                                                  SPACER
                                                                                                                  SPACER Genuine Maserati Part - New (to order)
                                                                                                                  # 434
                                                                                                                  MPN: CSC 81252
                                                                                                                  Layshaft ball bearing
                                                                                                                  Layshaft ball bearing Genuine Maserati Part - New (to order)
                                                                                                                  # 435
                                                                                                                  MPN: TC 90328/1
                                                                                                                  SLEEVE COMPLETE WITH FLANGE
                                                                                                                  SLEEVE COMPLETE WITH FLANGE Genuine Maserati Part - New (to order)
                                                                                                                  # 502
                                                                                                                  MPN: TC. 78806
                                                                                                                  REVERSE GEAR SHAFT
                                                                                                                  ALBERINO PER INGRANAGGIO RM. Genuine Maserati Part - New (to order)
                                                                                                                  # 503
                                                                                                                  MPN: TC. 81268
                                                                                                                  REVERSE GEAR ROLLER CAGE
                                                                                                                  ROLLER CAGE FOR RM GEAR. Genuine Maserati Part - New (to order)
                                                                                                                  # 504
                                                                                                                  MPN: TC. 78807
                                                                                                                  REVERSE GEAR Z = 23
                                                                                                                  from £440.00
                                                                                                                  from £440.00
                                                                                                                  INGRANAGGIO RETROMARCIA Z = 23 Genuine Maserati Part - New (to order)
                                                                                                                  # 506
                                                                                                                  MPN: TC. 78809
                                                                                                                  REVERSE SHAFT WASHER
                                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                                  # 507
                                                                                                                  MPN: BNT. 47015
                                                                                                                  REVERSE GEAR SHAFT BOLT
                                                                                                                  BOLT Genuine Maserati Part - New (to order)
                                                                                                                  # 508
                                                                                                                  MPN: TC 90316
                                                                                                                  Sliding flange support ring
                                                                                                                  Sliding flange support ring Genuine Maserati Part - New (to order)
                                                                                                                  # 509
                                                                                                                  MPN: TC 90327
                                                                                                                  Flange retaining cap
                                                                                                                  Flange retaining cap Genuine Maserati Part - New (to order)
