maserati qtp. 3.2 v8 (1999) crankshaft, pistons, connecting rods and flywheel parts diagram

005 - crankshaft, pistons, connecting rods and flywheel

Maserati QTP. 3.2 V8 (1999) Crankshaft, Pistons, Connecting Rods and Flywheel Parts Diagram

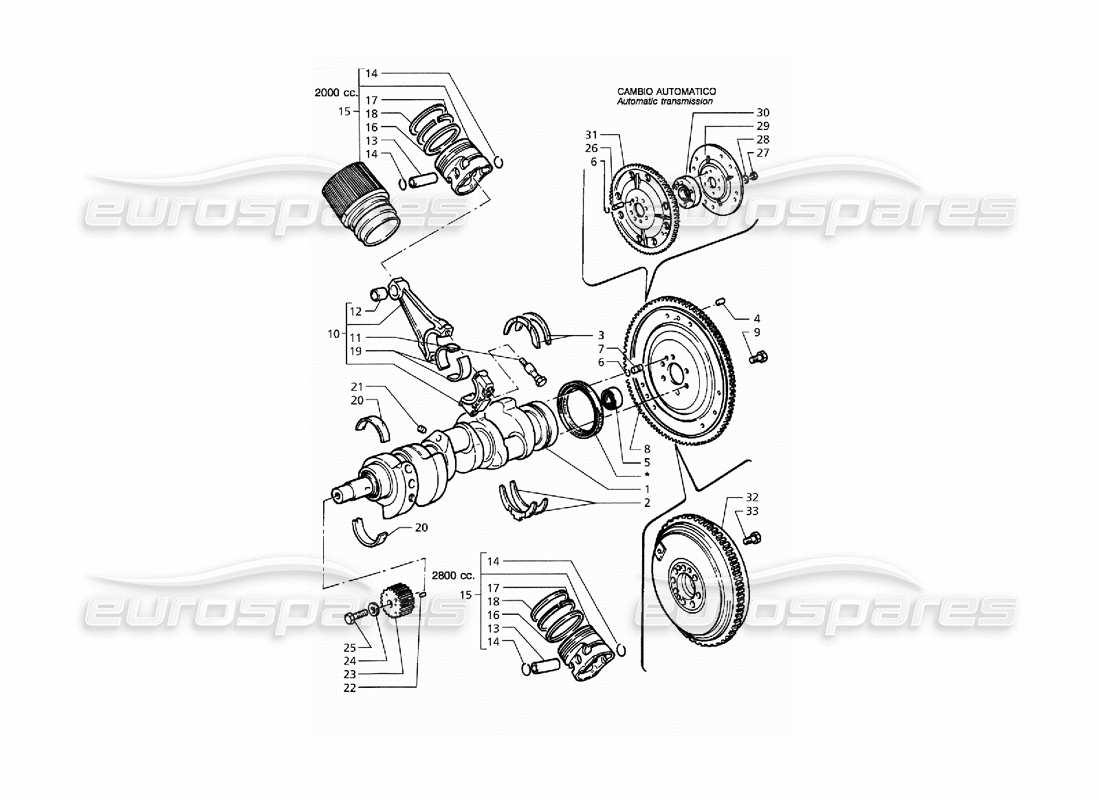

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 571028900

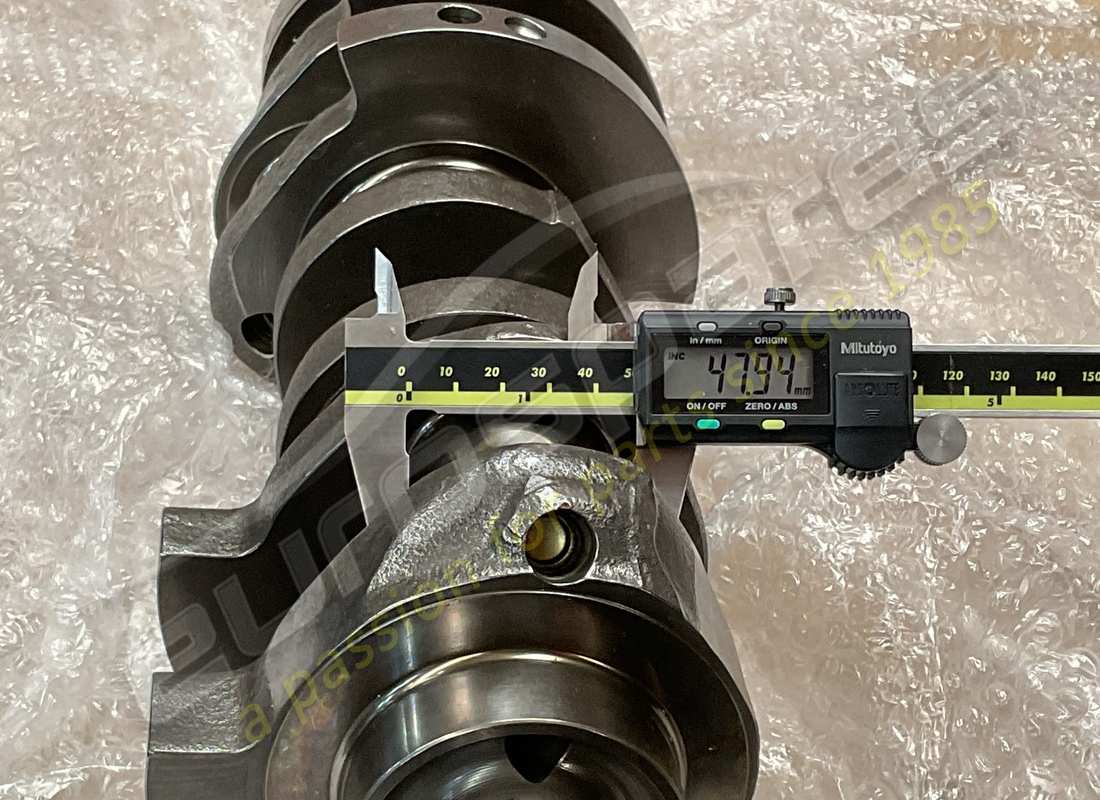

                      crankshaft
                      Supersession
                      Supersession
                      # 001
                      MPN: 580988000

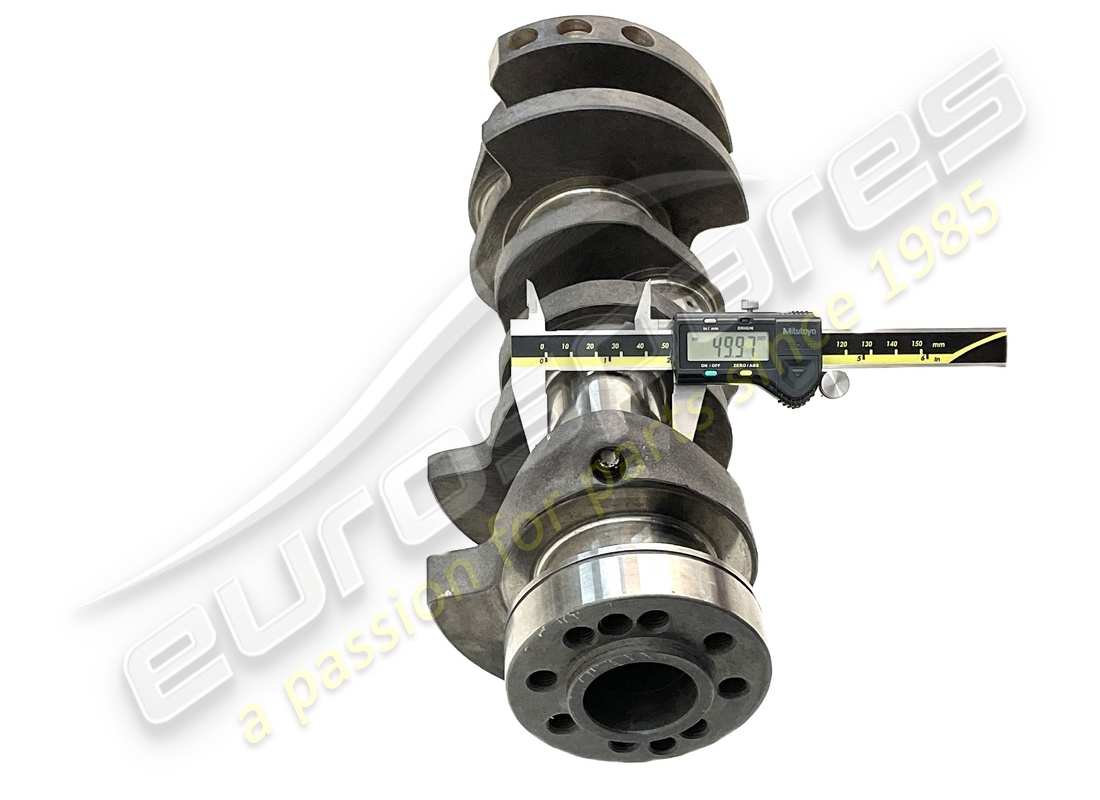

                      crankshaft
                      from £3,581.20
                      from £3,581.20
                      This part replaces part number 571028900
                      # 001
                      MPN: 581020000
                      crankshaft
                      from £2,844.90
                      from £2,844.90
                      This part replaces part number 581988000 - and 1 more. Click to view details
                      # 001
                      MPN: 581020000
                      crankshaft
                      from £2,844.90
                      from £2,844.90
                      This part replaces part number 581988000 - and 1 more. Click to view details
                      # 001
                      MPN: 581988000
                      crankshaft
                      Supersession
                      Supersession
                      This part replaces part number 340802002 - and 1 more. Click to view details
                      # 001
                      MPN: 581988010
                      crankshaft
                      Supersession
                      Supersession
                      This part replaces part number 477028901 - and 1 more. Click to view details
                      # 002
                      MPN: 479021702
                      LOWER SHIM RING, CL. A
                      -Thrust bearing- Class A-
                      from £10.83
                      from £10.83
                      This part replaces part number 310820305 - and 2 more. Click to view details
                      # 003
                      MPN: 479021302
                      UPPER SHIM RING, CL. A
                      -Thrust bearing- Class A-
                      from £10.83
                      from £10.83
                      This part replaces part number 310820310 - and 1 more. Click to view details
                      # 004
                      MPN: 311453303
                      DOWEL
                      - Valid for 19, 05 and 00 version
                      from £9.70
                      from £9.70
                      # 005
                      MPN: 178003015
                      BEARING
                      - Valid for 19, 05 and 00 version
                      from £15.57
                      from £15.57
                      # 006
                      MPN: 310820302
                      RETAINING RING
                      from £1.08
                      from £1.08
                      # 007
                      MPN: 310820301
                      DOWEL
                      from £2.87
                      from £2.87
                      # 008
                      MPN: 477022800

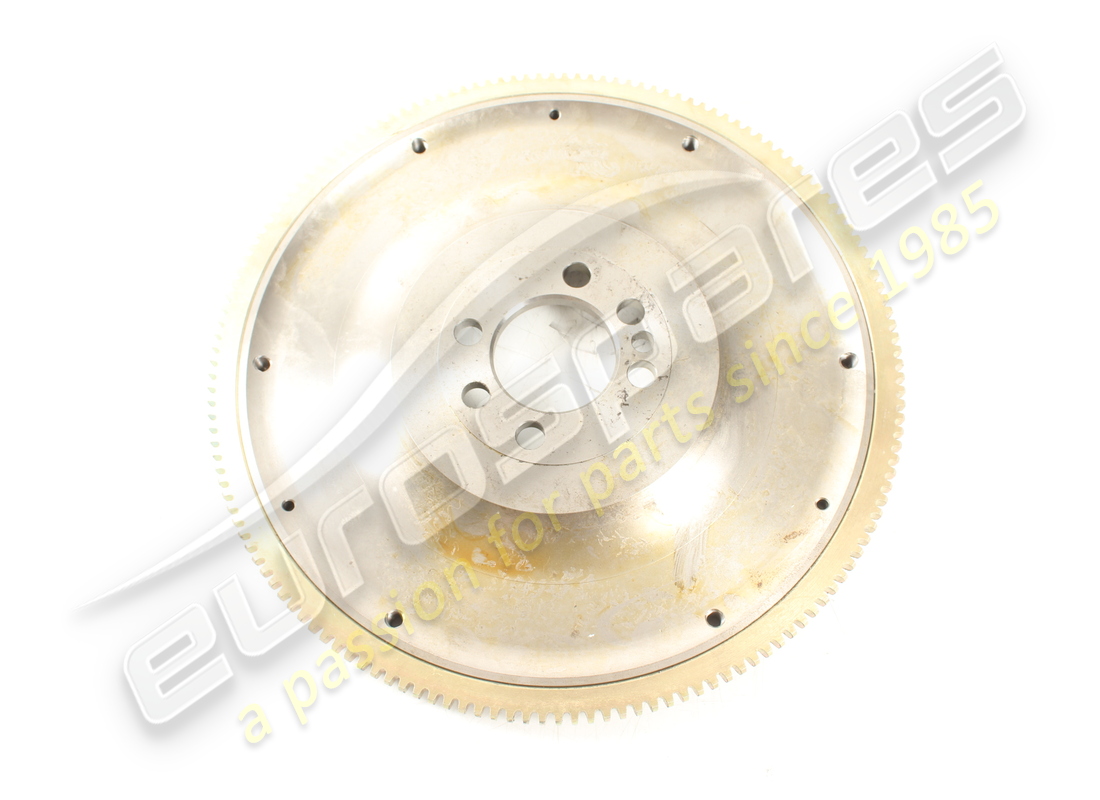

                      FLYWHEEL ASSY
                      - Valid for M.T. version (8 holes)
                      from £201.07
                      from £201.07
                      # 008
                      MPN: 571022800
                      FLYWHEEL ASSY
                      - Valid for 28, 13 and 04 version - 6 SECURING HOLES
                      from £993.87
                      from £993.87
                      This part replaces part number 321420100 - and 3 more. Click to view details
                      # 009
                      MPN: 311420300
                      BOLT
                      - Valid for 19, 05 and 00 version - order the quantity according to the flywheel (6 or 8)
                      Supersession
                      Supersession
                      # 010
                      MPN: 340800004
                      CONNECTING ROD, ASSY
                      - Valid for 20, 19, 06, 05 version - In the order, specify the weight (coloured sticker) - and the class stamped on conn. rod cap
                      # 010
                      MPN: 390850004
                      CONNECTING ROD, ASSY
                      - Valid for 00 version - In the order, specify the weight (coloured sticker) - and the class stamped on conn. rod cap
                      # 011
                      -
                      SCREW
                      # 012
                      -
                      BUSHING
                      # 013
                      -
                      GUDGEON PIN
                      # 014
                      MPN: 311220312
                      RETAINING RING
                      - Valid for 00 version
                      from £0.70
                      from £0.70
                      This part replaces part number 311225312
                      # 014
                      MPN: 341200312
                      RETAINING RING
                      - Valid for 20, 19, 06, 05 version
                      # 015
                      MPN: 571014900
                      LENER AND PISTON ASSY
                      - Valid for 00 version
                      from £924.31
                      from £924.31
                      This part replaces part number 496014900
                      # 015
                      MPN: 588025300
                      PISTON WITH RINGS
                      from £234.18
                      from £234.18
                      This part replaces part number 477025302
                      # 016
                      MPN: 477022600
                      OIL SCRAPER
                      from £30.64
                      from £30.64
                      This part replaces part number 341200327
                      # 016
                      MPN: 571022600
                      OIL SCRAPER
                      - Valid for 00 version
                      from £10.55
                      from £10.55
                      This part replaces part number 311220102 - and 1 more. Click to view details
                      # 017
                      MPN: 341200328
                      LOWER PISTON RING
                      - Valid for 20, 19, 06, 05 version
                      Supersession
                      Supersession
                      # 017
                      MPN: 490022501
                      LOWER PISTON RING
                      - Valid for 00 version
                      from £10.09
                      from £10.09
                      # 018
                      MPN: 477022401
                      UPPER PISTON RING
                      from £5.12
                      from £5.12
                      This part replaces part number 477022400
                      # 018
                      MPN: 571022400
                      UPPER PISTON RING
                      - Valid for 00 version
                      from £11.87
                      from £11.87
                      This part replaces part number 490022401
                      # 019
                      MPN: 452020901

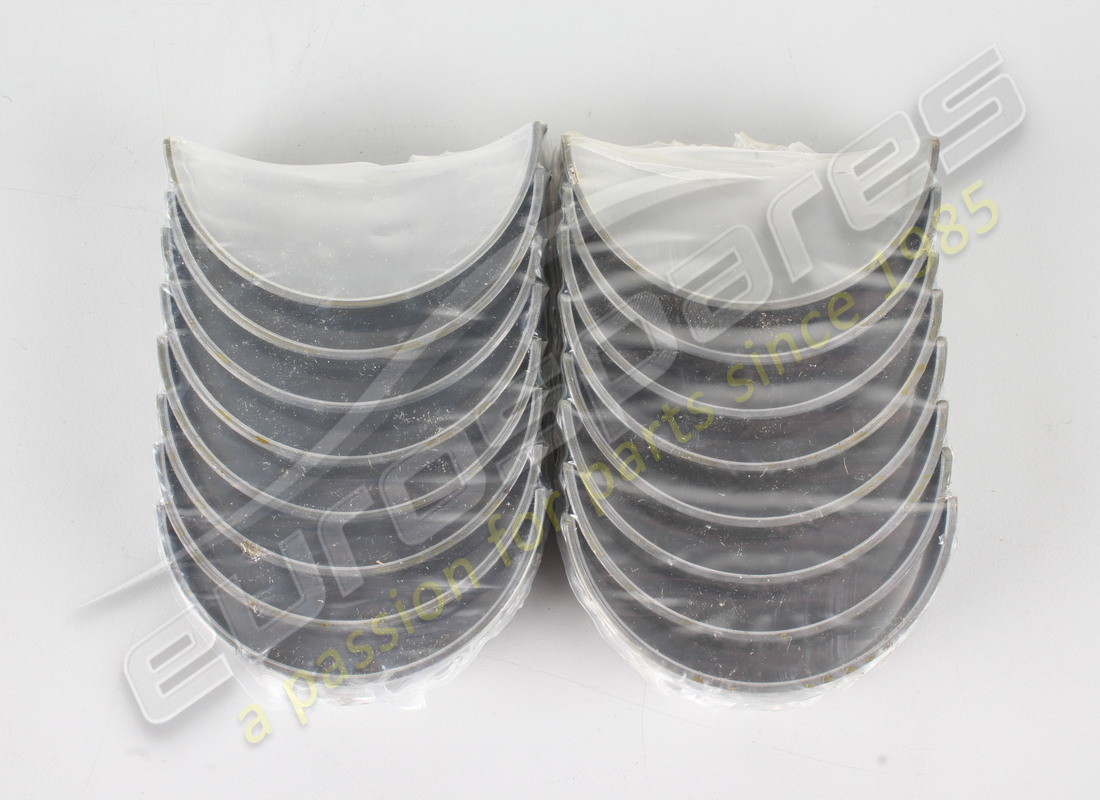

                      STANDARD BIG END BEARING
                      - Valid for 20, 19, 06, 05 version
                      Supersession
                      Supersession
                      # 019
                      MPN: 452020901/A
                      STANDARD CON ROD BEARING (COMPLETE SET)
                      from £965.70
                      from £965.70
                      This part replaces part number 452020901
                      # 019
                      MPN: 479020900
                      STANDARD BIG END BEARING
                      - Valid for 00 version
                      from £83.10
                      from £83.10
                      # 020
                      MPN: 390450327

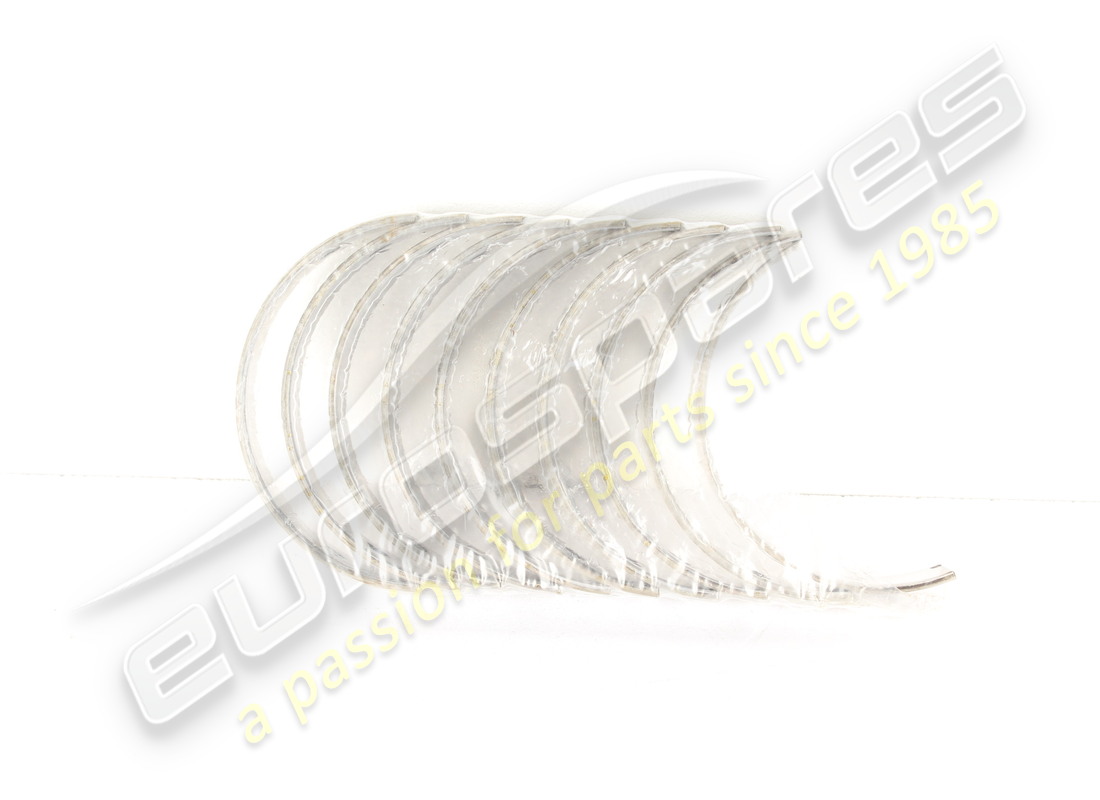

                      STANDARD MAIN BEARING (PRE MOD.)
                      - Valid for 00 version - Up to engine no. 200359 (2000 cc.) - Up to engine no. 400827 (2800 cc.)
                      from £36.79
                      from £36.79
                      This part replaces part number 310420327
                      # 020
                      MPN: 479020201
                      STANDARD MAIN BEARING (POST MOD)
                      - Valid for 20, 19, 06, 05 and 00 version - From engine no. 200360 (2000 cc.) - From engine no. 400828 (2800 cc.)
                      from £231.78
                      from £231.78
                      This part replaces part number 479020301
                      # 021
                      MPN: 310820300
                      CRANKSHAFT OIL PLUG
                      # 022
                      MPN: 311020324
                      DOWEL
                      use : 470023100
                      from £1.79
                      from £1.79
                      # 023
                      MPN: 475024900
                      TOOTHED PULLEY
                      from £32.48
                      from £32.48
                      This part replaces part number 465024901
                      # 024
                      MPN: 311220308
                      WASHER
                      # 026
                      MPN: 314632302
                      DOWEL
                      - Valid for 20, 06 version
                      from £0.70
                      from £0.70
                      # 027
                      MPN: 314655301
                      SCREW
                      - Valid for 20, 06 version - Order the quantity according to the flywheel
                      Supersession
                      Supersession
                      # 028
                      MPN: 135200120
                      WASHER
                      - Valid for 19, 05 version - order the quantity according to the flywheel - (pre mod.) - Valid for 20, 06 version - (post mod.) - Valid for 20, 06 version - (pre mod.) - Valid for 20, 06 version - (post mod.) - Valid for 20, 06 version - (pre mod
                      Supersession
                      Supersession
                      # 029
                      MPN: 314655307
                      DRIVING DISC 6 SECURING HOLES
                      from £103.74
                      from £103.74
                      # 029
                      MPN: 574100201
                      DRIVING DISC 8 SECURING HOLES
                      from £66.74
                      from £66.74
                      # 030
                      MPN: 314655300
                      FLANGE 6 SECURING HOLES
                      # 030
                      MPN: 574100600
                      FLANGE 8 SECURING HOLES
                      from £53.47
                      from £53.47
                      # 031
                      MPN: 314655104
                      CROWN GEAR 6 SECURING HOLES
                      # 031
                      MPN: 574100500
                      CROWN GEAR 8 SECURING HOLES
                      from £173.07
                      from £173.07
                      # 032
                      MPN: 324662340
                      FLYWHEEL ASSY
                      - Valid for 19, 05 version
                      from £1,142.31
                      from £1,142.31
                      # 033
                      MPN: 324662342
                      SCREW
                      - Valid for 19, 05 version
                      from £3.65
                      from £3.65
