006 - cylinders heads

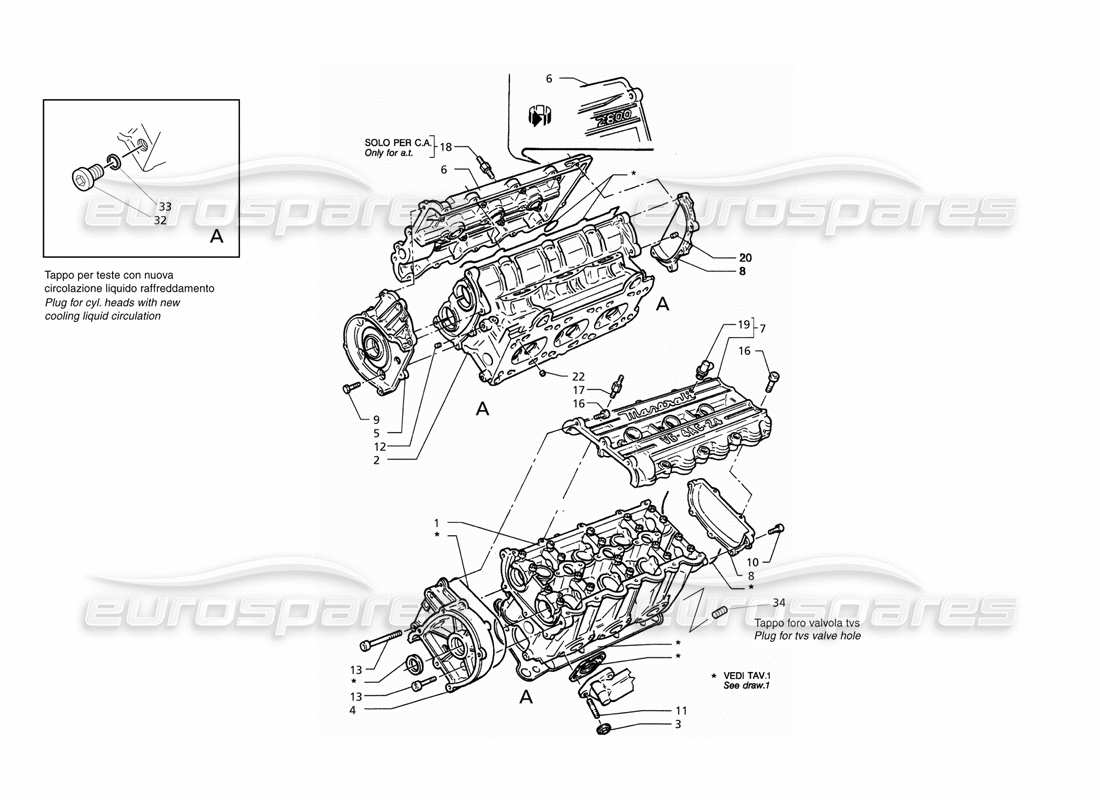

Maserati QTP. 3.2 V8 (1999) Cylinders Heads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 490003300
LH cylinder head
- Valid for 00 version
from £3,027.94
from £3,027.94
This part replaces part number 310653007
# 001
MPN: 588003300
LH cylinder head
- Valid for 20, 19, 06, 05 version
from £4,403.54
from £4,403.54
This part replaces part number 477003300
# 002
MPN: 490003200
RH cylinder head
- Valid for 00 version
from £2,828.07
from £2,828.07
This part replaces part number 310653006
# 002
MPN: 588003200
RH cylinder head
- Valid for 20, 19, 06, 05 version
from £5,724.60
from £5,724.60
This part replaces part number 477003200
# 003
MPN: 210971
COPPER PLATED NUT
from £0.92
from £0.92
This part replaces part number 279628 - and 1 more. Click to view details
# 004
MPN: 571000600
LH FRONT COVER, ASSY
from £134.58
from £134.58
# 005
MPN: 571000700
RH FRONT COVER, ASSY
from £139.90
from £139.90
# 006
MPN: 571008802
RH UPPER COVER
- Valid for 00 version
from £89.24
from £89.24
# 006
MPN: 574008801
RH UPPER COVER
- Valid for 20, 19, 06, 05 version
from £133.02
from £133.02
# 007
MPN: 571008701
LH UPPER COVER
from £78.44
from £78.44
# 008
MPN: 310653305
BACK COVER
# 009
MPN: 311053391
SCREW
from £3.19
from £3.19
# 010
MPN: 311453300
SCREW
from £3.27
from £3.27
# 011
MPN: 310620370
STUD BOLT
from £14.89
from £14.89
# 012
MPN: 600009700
PLUG
from £1.09
from £1.09
# 013
MPN: 311053390
SCREW
from £6.09
from £6.09
# 014
MPN: 311053320
SCREW
# 016
MPN: 108006020
SCREW
# 017
MPN: 310653435
CABLES REPLACEMENT STUD BOLT
# 018
MPN: 479009120
SCREW
- Valid for 20, 06 version
from £23.14
from £23.14
# 019
MPN: 311053384
OIL BLOWER
# 020
MPN: 311053312
DOWEL
from £1.95
from £1.95
# 022
MPN: 310653366
OIL CALIBRATION DOWEL
# 028
MPN: 571945000
R. H. CYLINDER HEAD WITH VALVE DRIVE
- Valid for 00 version - Not illustrated
from £4,764.70
from £4,764.70
# 029
MPN: 571945100
L. H. CYLINDER HEAD WITH VALVE DRIVE
- Valid for 00 version - Not illustrated
from £4,764.70
from £4,764.70
# 030
MPN: 574945000
R. H. CYLINDER HEAD WITH VALVE DRIVE
- Valid for 20, 19, 06, 05 version - Not illustrated
from £4,219.08
from £4,219.08
# 031
MPN: 574945100
L. H. CYLINDER HEAD WITH VALVE DRIVE
- Valid for 20, 19, 06, 05 version - Not illustrated
from £4,219.08
from £4,219.08
# 032
MPN: 571044400
PLUG
from £8.73
from £8.73
# 033
MPN: 571044500
GASKET
from £1.95
from £1.95
# 034
MPN: 585411800
PLUG
from £2.55
from £2.55
