maserati qtp. 3.2 v8 (1999) timing with hydraulic tightener (post modification) parts diagram

008.2 - timing with hydraulic tightener (post modification)

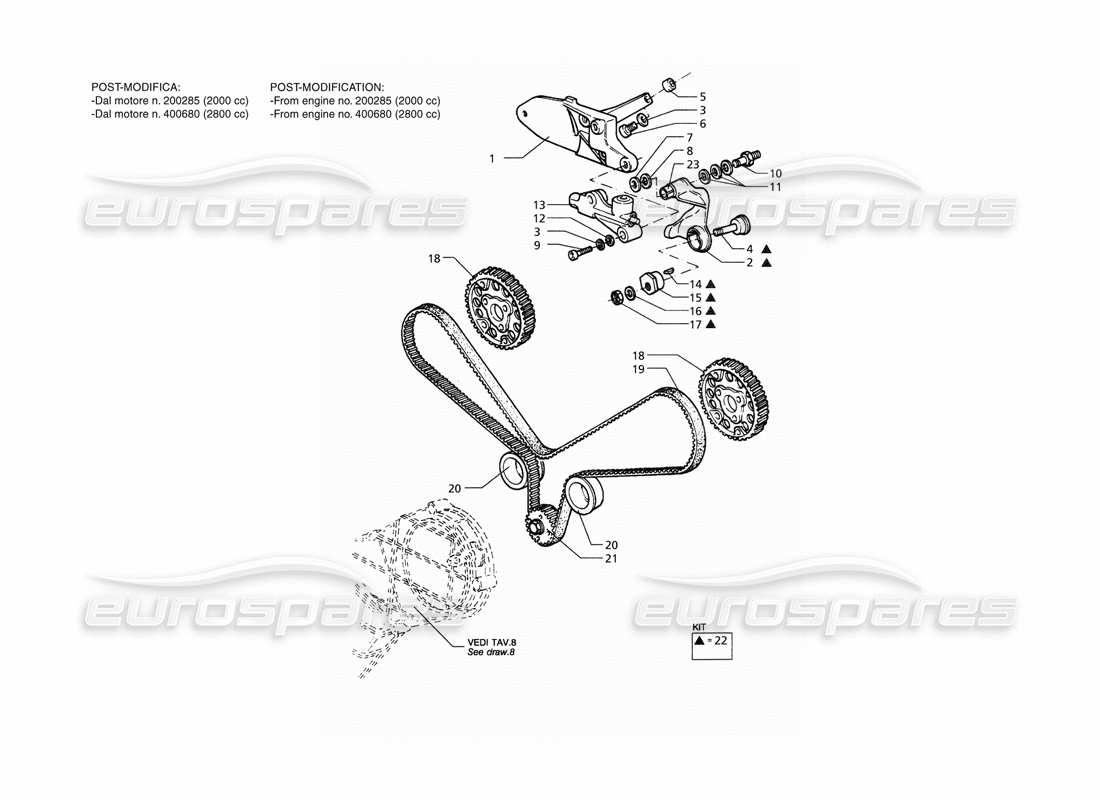

Maserati QTP. 3.2 V8 (1999) Timing With Hydraulic Tightener (Post Modification) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 495483200
                                                TENSIONER SUPPORT
                                                from £263.32
                                                from £263.32
                                                # 002
                                                MPN: 495038100
                                                TIGHTENING PULLEY
                                                Supersession
                                                Supersession
                                                This part replaces part number 495949600
                                                # 003
                                                MPN: 138410080
                                                RETAINING WASHER
                                                # 004
                                                MPN: 311053353
                                                TIGHTENING PULLEY PIN
                                                # 008
                                                MPN: 96789
                                                WASHER (2 MM THICK)
                                                from £1.67
                                                from £1.67
                                                This part replaces part number 135200120
                                                # 009
                                                MPN: 14306424
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14306421
                                                # 010
                                                MPN: 470037600
                                                TIGHTENING PULLEY PIN
                                                from £42.74
                                                from £42.74
                                                This part replaces part number 311020343
                                                # 011
                                                MPN: 311020352
                                                WASHER (0.30 MM THICK)
                                                from £1.11
                                                from £1.11
                                                # 012
                                                MPN: 87234
                                                WASHER
                                                Supersession
                                                Supersession
                                                # 013
                                                MPN: 495034800
                                                TENSIONER
                                                from £192.06
                                                from £192.06
                                                # 014
                                                MPN: 311053460
                                                TAB
                                                from £0.71
                                                from £0.71
                                                # 015
                                                MPN: 475033200
                                                ECCENTRIC
                                                from £6.98
                                                from £6.98
                                                # 016
                                                MPN: 452008901
                                                WASHER
                                                from £2.22
                                                from £2.22
                                                # 017
                                                MPN: 326656321
                                                SELF LOCKING NUT
                                                from £3.65
                                                from £3.65
                                                # 018
                                                MPN: 580035400
                                                PULLEY
                                                from £57.41
                                                from £57.41
                                                # 019
                                                MPN: 98025
                                                TIMING BELT
                                                from £33.60
                                                from £33.60
                                                This part replaces part number 391050341
                                                # 020
                                                MPN: 311020350
                                                BEARING COVER
                                                from £56.75
                                                from £56.75
                                                # 021
                                                MPN: 475024900
                                                CRANKSHAFT PULLEY
                                                from £33.18
                                                from £33.18
                                                This part replaces part number 465024901
                                                # 022
                                                MPN: 495949600
                                                TIGHTENING PULLEY ASSY
                                                Supersession
                                                Supersession
                                                # 023
                                                MPN: 470037700
                                                BUSH
                                                from £4.74
                                                from £4.74
                                                This part replaces part number 311020336
