009.1 - Oil Pump and Water Pump (Post Modification)

Maserati QTP. 3.2 V8 (1999) Oil Pump and Water Pump (Post Modification) Parts Diagram

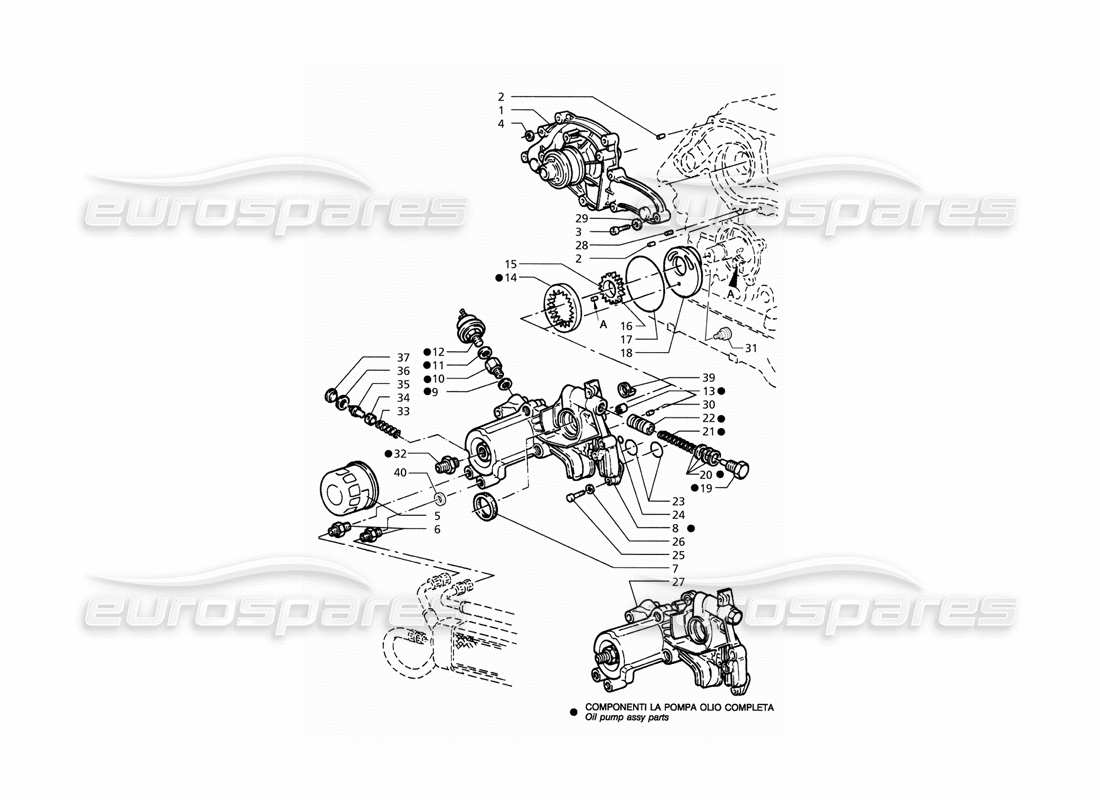

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 578045900
                                                                              WATER PUMP ASSY + GASKET
                                                                              from £624.75
                                                                              from £624.75
                                                                              This part replaces part number 479045900
                                                                              # 002
                                                                              MPN: 314020329
                                                                              CENTERING ROLLER
                                                                              from £1.93
                                                                              from £1.93
                                                                              # 004
                                                                              MPN: 138410060
                                                                              RETAINING WASHER
                                                                              # 005
                                                                              MPN: 470040900
                                                                              OIL FILTER
                                                                              from £42.50
                                                                              from £42.50
                                                                              # 006
                                                                              MPN: 362802306
                                                                              NIPPLE
                                                                              from £10.97
                                                                              from £10.97
                                                                              # 007
                                                                              MPN: 311020368
                                                                              SEAL RING
                                                                              from £8.25
                                                                              from £8.25
                                                                              This part replaces part number 190400351
                                                                              # 008
                                                                              MPN: 571040101
                                                                              OIL CONTROL UNIT
                                                                              Supersession
                                                                              Supersession
                                                                              # 009
                                                                              MPN: 311820302
                                                                              GASKET
                                                                              from £2.35
                                                                              from £2.35
                                                                              # 010
                                                                              MPN: 311820303
                                                                              ADAPTER
                                                                              from £22.49
                                                                              from £22.49
                                                                              # 011
                                                                              MPN: 311820304
                                                                              GASKET
                                                                              from £1.55
                                                                              from £1.55
                                                                              # 012
                                                                              MPN: 313650105
                                                                              OIL PRESSURE SWITCH
                                                                              USE 313620105
                                                                              # 013
                                                                              MPN: 311820309
                                                                              DOWEL (12MM DIA)
                                                                              from £16.69
                                                                              from £16.69
                                                                              # 014
                                                                              MPN: 391850324
                                                                              DRIVEN GEAR (12 MM THICK)
                                                                              # 015
                                                                              MPN: 97054
                                                                              ROLLER
                                                                              from £0.70
                                                                              from £0.70
                                                                              # 016
                                                                              MPN: 391850323
                                                                              DRIVING GEAR (12 MM THICK)
                                                                              # 017
                                                                              MPN: 14465881
                                                                              SEAL RING
                                                                              from £4.64
                                                                              from £4.64
                                                                              # 018
                                                                              MPN: 571982100
                                                                              OIL PUMP COVER
                                                                              from £72.63
                                                                              from £72.63
                                                                              This part replaces part number 311820321
                                                                              # 020
                                                                              MPN: 311820317
                                                                              GASKET
                                                                              from £0.70
                                                                              from £0.70
                                                                              # 022
                                                                              MPN: 311820319
                                                                              OIL PRESSURE ADJUSTING VALVE
                                                                              from £12.19
                                                                              from £12.19
                                                                              # 023
                                                                              MPN: 14454181
                                                                              SEAL RING
                                                                              from £1.16
                                                                              from £1.16
                                                                              # 024
                                                                              MPN: 14452981
                                                                              SEAL RING
                                                                              from £0.79
                                                                              from £0.79
                                                                              # 026
                                                                              MPN: 138410080
                                                                              RETAINING WASHER
                                                                              # 027
                                                                              MPN: 580040000
                                                                              OIL PUMP, ASSY
                                                                              from £460.51
                                                                              from £460.51
                                                                              # 030
                                                                              MPN: 311820315
                                                                              CENTERING ROLLER, OIL PUMP (L = 10 MM)
                                                                              from £1.16
                                                                              from £1.16
                                                                              # 031
                                                                              MPN: 501047800
                                                                              PIN
                                                                              from £33.62
                                                                              from £33.62
                                                                              # 033
                                                                              MPN: 571044600
                                                                              SPRING
                                                                              from £1.41
                                                                              from £1.41
                                                                              # 034
                                                                              MPN: 571044200
                                                                              BULB VALVE
                                                                              from £6.13
                                                                              from £6.13
                                                                              # 035
                                                                              MPN: 571044100
                                                                              BULB
                                                                              from £13.60
                                                                              from £13.60
                                                                              # 036
                                                                              MPN: 571044500
                                                                              WASHER (0.30 MM THICK)
                                                                              from £1.93
                                                                              from £1.93
                                                                              # 037
                                                                              MPN: 571044400
                                                                              PLUG
                                                                              from £8.65
                                                                              from £8.65
                                                                              # 039
                                                                              MPN: 97730
                                                                              RETAINING WASHER
                                                                              from £4.09
                                                                              from £4.09
                                                                              # 040
                                                                              MPN: 97762
                                                                              GASKET
                                                                              from £4.17
                                                                              from £4.17
