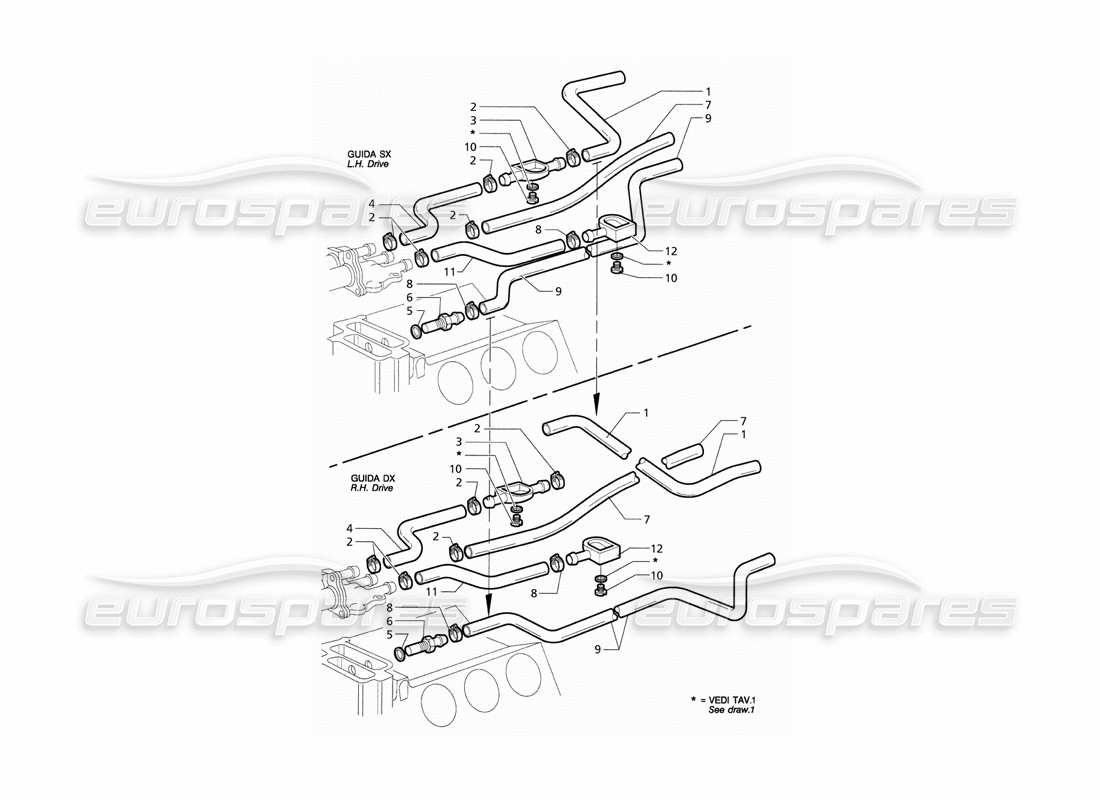

012.1 - turbo cooling pipes
Maserati QTP. 3.2 V8 (1999) Turbo Cooling Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 580042200
HEATING SYSTEM DELIVERY SLEEVE
- Valid for 06, 05 and 00 version
from £61.95
from £61.95
This part replaces part number 312020464
# 001
MPN: 580042260
WATER DELIVERY SLEEVE
- Valid for 20, 19 version
from £11.06
from £11.06
# 002
MPN: 312420317
CLAMP
from £1.55
from £1.55
# 003
MPN: 310620360
TWO WAY UNION
# 004
MPN: 312020517
HEATING SYSTEM WATER RETURN SLEEVE
- Valid for 06, 05 and 00 version
Supersession
Supersession
# 004
MPN: 577042600
WATER RETURN SLEEVE
- Valid for 20, 19 version
from £3.38
from £3.38
# 005
MPN: 55138
GASKET
- From engine no. 400828 (2800 cc.) - From engine no. 200360 (2000 cc.)
Supersession
Supersession
# 006
MPN: 571018400
UNION
- From engine no. 400828 (2800 cc.) - From engine no. 200360 (2000 cc.)
from £6.76
from £6.76
# 007
MPN: 477369660
WATER RETURN SLEEVE
from £26.48
from £26.48
# 008
MPN: 312020410
CLAMP
from £2.10
from £2.10
# 009
MPN: 577042500
SLEEVE
- Valid for 06, 05 and 00 version - From engine no. 400828 (2800 cc.) - From engine no. 200360 (2000 cc.)
from £9.66
from £9.66
# 009
MPN: 580042260
SLEEVE
- Valid for 20, 19 version - From engine no. 400858 (2800 cc.)
from £11.06
from £11.06
# 010
MPN: 108006030
SCREW
# 011
MPN: 315520352
HEATING SYSTEM RETURN SLEEVE
from £33.48
from £33.48
# 012
MPN: 470009900
UNION
from £9.66
from £9.66
