maserati qtp. 3.2 v8 (1999) turboblowers lubrication parts diagram

012.4 - turboblowers lubrication

Maserati QTP. 3.2 V8 (1999) Turboblowers Lubrication Parts Diagram

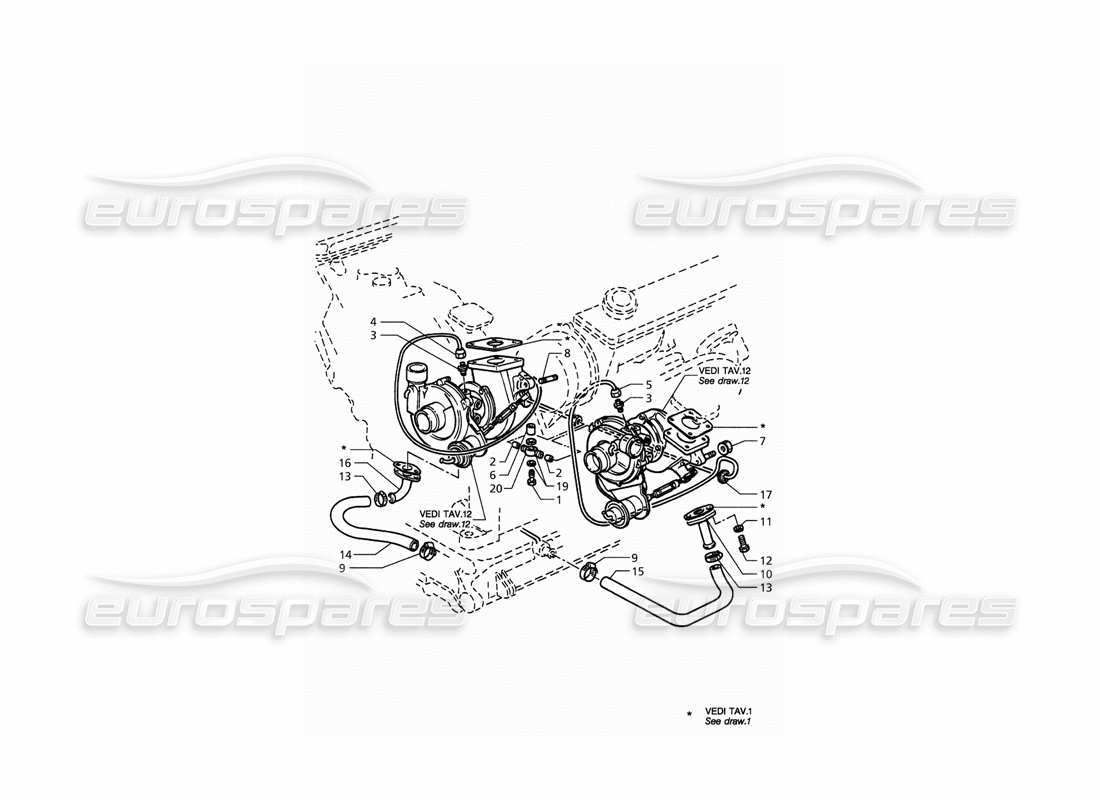

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 312020344
                                        CONNECTOR SCREW
                                        from £4.89
                                        from £4.89
                                        # 002
                                        MPN: 312020328
                                        PIPE CONN. TO FIX BUNDY PIPE
                                        # 003
                                        MPN: 312020308
                                        CONNECTOR SCREW
                                        from £12.38
                                        from £12.38
                                        # 004
                                        MPN: 342000022
                                        BUNDY PIPE FOR RH TURBOB.
                                        # 005
                                        MPN: 342000021
                                        BUNDY PIPE FOR LH TURBOB.
                                        # 006
                                        MPN: 311850329
                                        OIL FILTER FOR TURBOBLOWERS
                                        # 007
                                        MPN: 97376
                                        NUT
                                        from £1.32
                                        from £1.32
                                        # 008
                                        MPN: 312020327
                                        STUD BOLT
                                        from £5.59
                                        from £5.59
                                        # 009
                                        MPN: 312420504
                                        CLAMP
                                        from £1.08
                                        from £1.08
                                        # 010
                                        MPN: 342000115
                                        LH TURBO OIL OUTLET UNION
                                        # 013
                                        MPN: 312020410
                                        CLAMP
                                        from £2.11
                                        from £2.11
                                        # 014
                                        MPN: 467364300
                                        RH TURBO OIL DRAINAGE SLEEVE
                                        from £58.50
                                        from £58.50
                                        This part replaces part number 312020408
                                        # 015
                                        MPN: 452364402
                                        LH TURBO OIL DRAINAGE SLEEVE
                                        from £68.27
                                        from £68.27
                                        This part replaces part number 312020105
                                        # 016
                                        MPN: 342000108
                                        RH TURBO OIL OUTLET UNION
                                        # 017
                                        MPN: 312020368
                                        WIRE INLET
                                        from £0.57
                                        from £0.57
                                        # 019
                                        MPN: 312020353
                                        GASKET
                                        from £0.70
                                        from £0.70
