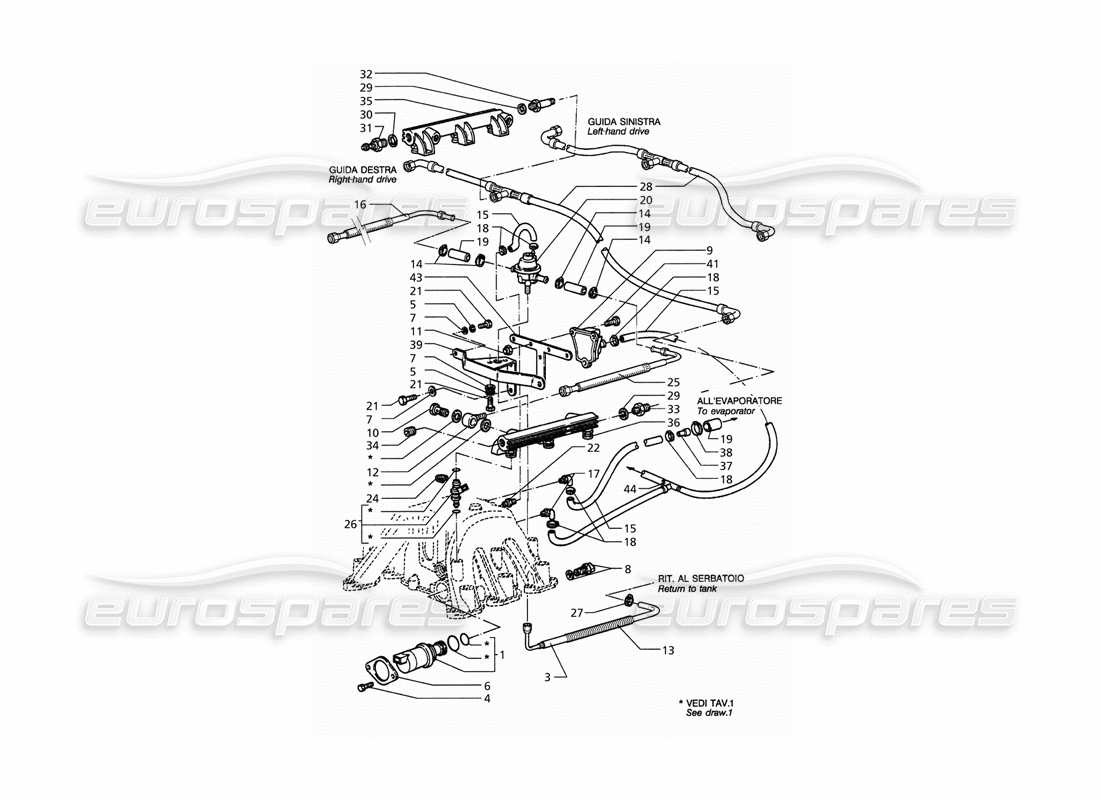

Maserati QTP. 3.2 V8 (1999) Injection System Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 313737125
                                                                      V.A.E. SOLENOID VALVE (GREEN)
                                                                      - Post modification - Valid for 20, 19, 06, 05 version
                                                                      # 001
                                                                      MPN: 571063900
                                                                      V.A.E. SOLENOID VALVE (GREY)
                                                                      - Pre modification - Valid for 20, 19, 06, 05 and 00 version
                                                                      from £225.35
                                                                      from £225.35
                                                                      # 004
                                                                      MPN: 311053394
                                                                      SCREW
                                                                      Supersession
                                                                      Supersession
                                                                      # 007
                                                                      MPN: 312220411
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 008
                                                                      MPN: 470079700
                                                                      AIR TEMPERATURE SENSOR
                                                                      from £37.89
                                                                      from £37.89
                                                                      # 009
                                                                      MPN: 571079600
                                                                      PRESSURE SENSOR
                                                                      from £158.30
                                                                      from £158.30
                                                                      # 010
                                                                      MPN: 312020510
                                                                      UNION SCREW
                                                                      from £2.75
                                                                      from £2.75
                                                                      This part replaces part number 193520 - and 1 more. Click to view details
                                                                      # 012
                                                                      MPN: 97976
                                                                      SCREW UNION
                                                                      from £2.93
                                                                      from £2.93
                                                                      # 013
                                                                      MPN: 318720333
                                                                      CORRUGATED PIPE
                                                                      - Section in metres - order minimum amount of 1 m or multiples
                                                                      from £5.28
                                                                      from £5.28
                                                                      # 015
                                                                      MPN: 300100803
                                                                      PIPING
                                                                      - Section in metres - order minimum amount of 1 m or multiples
                                                                      from £56.39
                                                                      from £56.39
                                                                      This part replaces part number 318720329
                                                                      # 016
                                                                      MPN: 571061000
                                                                      RH FUEL RETURN HOSE
                                                                      from £20.97
                                                                      from £20.97
                                                                      This part replaces part number 495061000
                                                                      # 017
                                                                      MPN: 585064500
                                                                      UNION
                                                                      from £64.99
                                                                      from £64.99
                                                                      This part replaces part number 578064500
                                                                      # 018
                                                                      MPN: 312050310
                                                                      CLAMP
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 019
                                                                      MPN: 97892
                                                                      SLEEVE
                                                                      - Section in metres - order minimum amount of 1 m or multiples of 1 m
                                                                      from £67.31
                                                                      from £67.31
                                                                      This part replaces part number 19058189 - and 1 more. Click to view details
                                                                      # 020
                                                                      MPN: 477073601
                                                                      PRESSURE ADJUSTER
                                                                      from £262.02
                                                                      from £262.02
                                                                      This part replaces part number 349202140
                                                                      # 021
                                                                      MPN: 108006012
                                                                      SCREW
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 022
                                                                      MPN: 95517
                                                                      UNION SCREW
                                                                      Supersession
                                                                      Supersession
                                                                      # 024
                                                                      MPN: 313720313
                                                                      INJECTOR RETAINING SPRING
                                                                      # 025
                                                                      MPN: 571060700
                                                                      LH FUEL RETURN HOSE
                                                                      from £18.94
                                                                      from £18.94
                                                                      This part replaces part number 495060700
                                                                      # 026
                                                                      MPN: 470063003
                                                                      INJECTOR
                                                                      from £98.41
                                                                      from £98.41
                                                                      # 027
                                                                      MPN: 559221343
                                                                      CLAMP
                                                                      Supersession
                                                                      Supersession
                                                                      # 028
                                                                      MPN: 573064204
                                                                      FUEL DELIVERY PIPE
                                                                      - Valid for 06, 05 and 00 version
                                                                      from £161.95
                                                                      from £161.95
                                                                      This part replaces part number 573064203
                                                                      # 028
                                                                      MPN: 573064260
                                                                      FUEL DELIVERY PIPE
                                                                      - Valid for 20, 19 version
                                                                      Supersession
                                                                      Supersession
                                                                      # 029
                                                                      MPN: 97348
                                                                      GASKET
                                                                      from £2.93
                                                                      from £2.93
                                                                      # 030
                                                                      MPN: 97347
                                                                      GASKET
                                                                      from £6.11
                                                                      from £6.11
                                                                      # 031
                                                                      MPN: 495984900
                                                                      BREATHER VALVE
                                                                      from £19.95
                                                                      from £19.95
                                                                      # 032
                                                                      MPN: 580062300
                                                                      RH UNION
                                                                      Supersession
                                                                      Supersession
                                                                      # 033
                                                                      MPN: 573062400
                                                                      LH UNION
                                                                      Supersession
                                                                      Supersession
                                                                      # 034
                                                                      MPN: 312020495
                                                                      PLUG
                                                                      from £1.59
                                                                      from £1.59
                                                                      # 035
                                                                      MPN: 495060000
                                                                      RH MANIFOLD FOR PETROL
                                                                      from £36.15
                                                                      from £36.15
                                                                      # 036
                                                                      MPN: 495060100
                                                                      LH MANIFOLD FOR PETROL
                                                                      from £36.15
                                                                      from £36.15
                                                                      # 037
                                                                      MPN: 312230461
                                                                      UNION
                                                                      from £1.01
                                                                      from £1.01
                                                                      # 038
                                                                      MPN: 96115
                                                                      CLAMP
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 039
                                                                      MPN: 495083100
                                                                      SOLENOID
                                                                      from £8.41
                                                                      from £8.41
                                                                      # 043
                                                                      MPN: 571084700
                                                                      PRESSURE VALVE SUPPORT
                                                                      from £5.71
                                                                      from £5.71
                                                                      # 044
                                                                      MPN: 312030448
                                                                      THREE WAY UNION
                                                                      from £0.58
                                                                      from £0.58
