016.1 - Ignition System Timing: Sensors

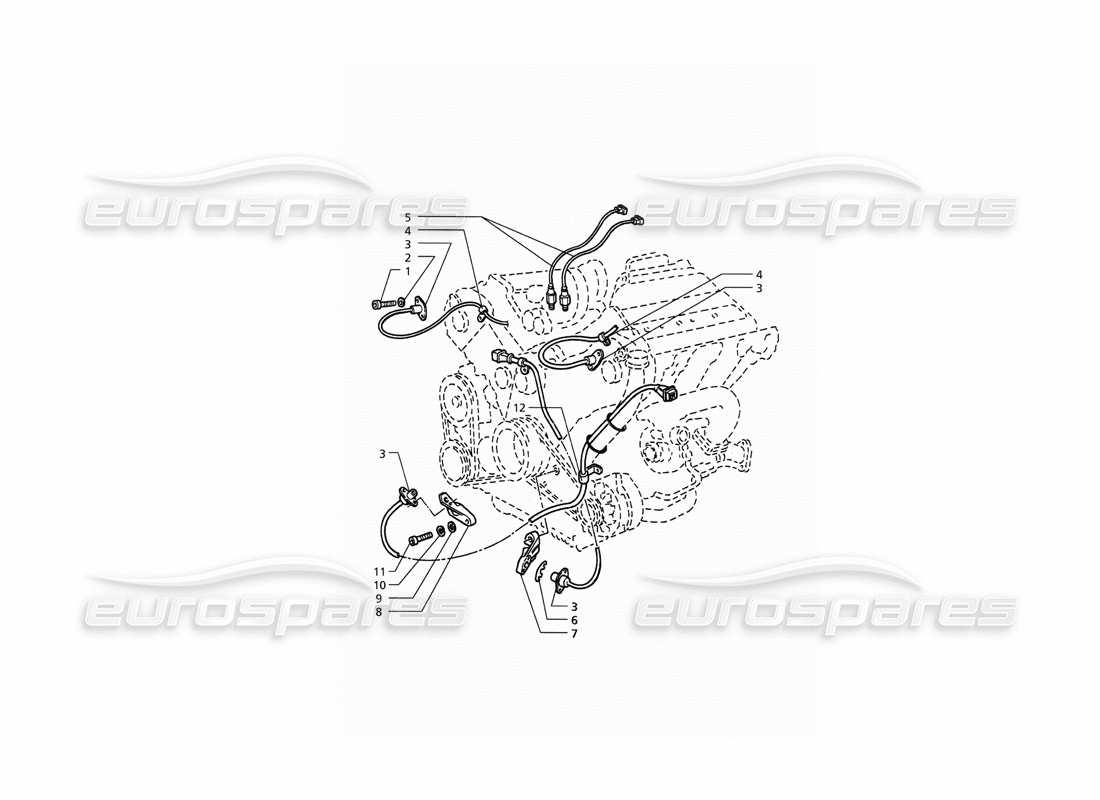

Maserati QTP. 3.2 V8 (1999) Ignition System Timing: Sensors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 002
                        MPN: 45678
                        WASHER
                        Supersession
                        Supersession
                        # 004
                        MPN: 363200327
                        CLAMP
                        from £2.87
                        from £2.87
                        # 005
                        MPN: 470089701
                        KNOCK SENSOR
                        from £111.18
                        from £111.18
                        # 006
                        MPN: 470061801
                        SHIM
                        - As necessary
                        from £0.69
                        from £0.69
                        This part replaces part number 313720327
                        # 007
                        MPN: 571061500
                        SIDE SENSOR SUPPORT
                        from £55.18
                        from £55.18
                        # 008
                        MPN: 571061200
                        LOWER SENSOR SUPPORT
                        from £19.45
                        from £19.45
                        # 009
                        MPN: 95564
                        WASHER
                        from £1.32
                        from £1.32
                        # 010
                        MPN: 84157
                        WASHER
                        Supersession
                        Supersession
