maserati qtp. 3.2 v8 (1999) delco alternator parts diagram

017 - Delco Alternator

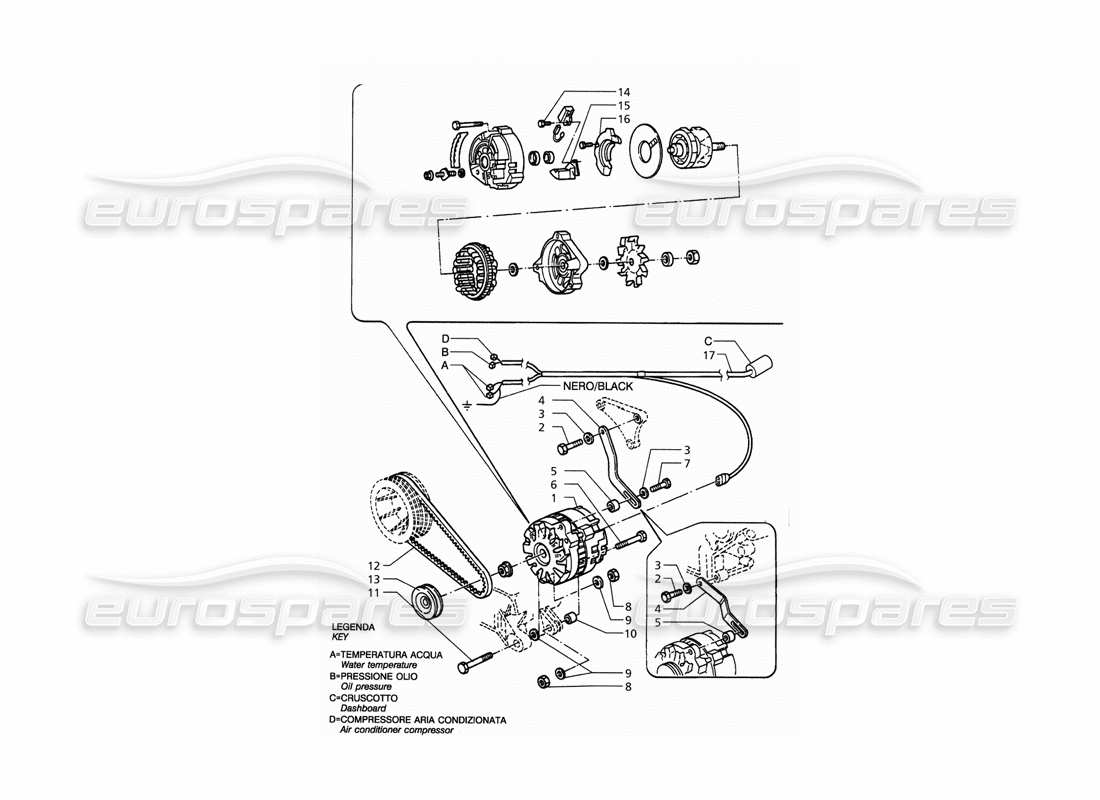

Maserati QTP. 3.2 V8 (1999) Delco Alternator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 393050214
                                ALTERNATOR (DELCO)
                                Also Biturbo 2,8 cc.
                                from £894.67
                                from £894.67
                                This part replaces part number 313053214
                                # 009
                                MPN: 313020414
                                WASHER
                                from £11.58
                                from £11.58
                                # 010
                                MPN: 323758506
                                SPACER
                                from £3.17
                                from £3.17
                                # 012
                                MPN: 313054421
                                ALTERNATOR BELT
                                from £12.00
                                from £12.00
                                # 013
                                MPN: 313053215
                                PULLEY
                                from £71.93
                                from £71.93
                                # 014
                                MPN: 393050207
                                BRUSH HOLDER COMPLETE ASSY
                                from £11.74
                                from £11.74
                                # 015
                                MPN: 393050208
                                VOLTAGE REGULATOR
                                from £66.02
                                from £66.02
                                # 016
                                MPN: 393050209
                                RECTIFIER BRIDGE
                                from £100.82
                                from £100.82
                                # 017
                                MPN: 373000123
                                ENGINE INSTRUMENTS CABLE ASSY
                                - Post modification With 10 pin connector C
                                from £93.45
                                from £93.45
                                # 017
                                MPN: 373000125
                                ENGINE INSTRUMENTS CABLE ASSY
                                - Pre modification With 7 pin connector C
                                from £62.57
                                from £62.57
