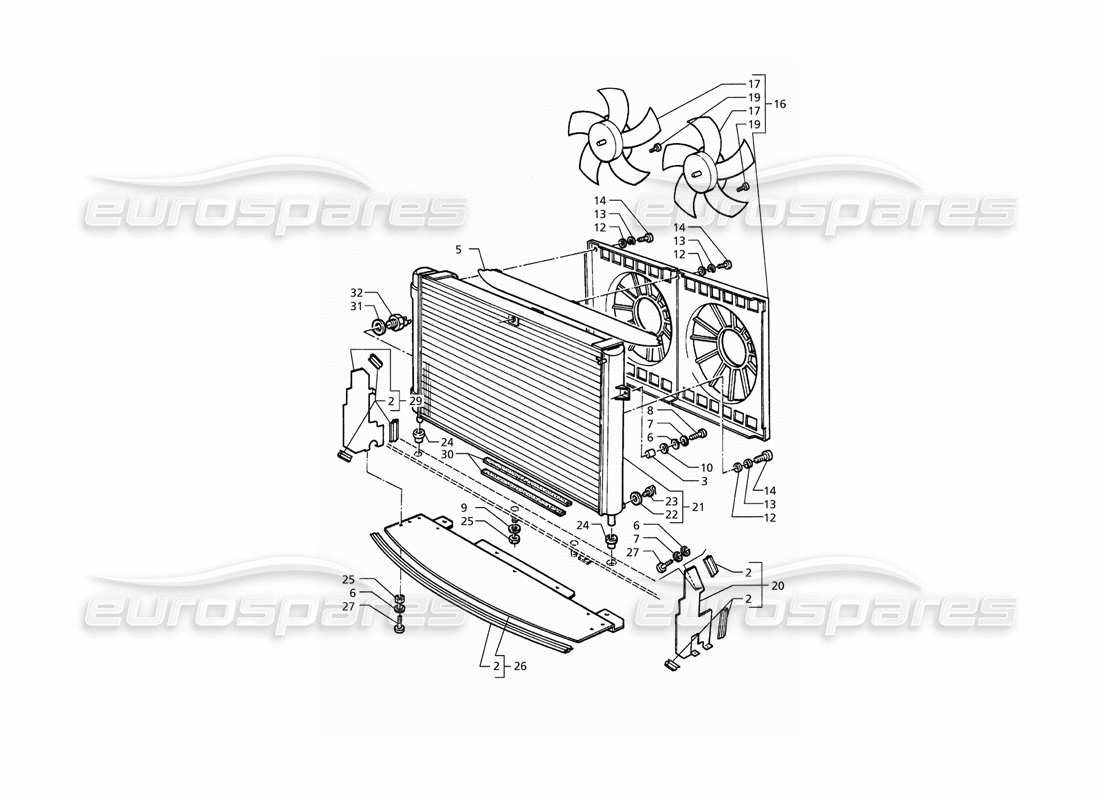

Maserati QTP. 3.2 V8 (1999) Radiator and Cooling Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 002
                                                    -
                                                    GASKET
                                                    # 005
                                                    MPN: 374000540
                                                    UPPER PLATE
                                                    from £45.43
                                                    from £45.43
                                                    # 010
                                                    MPN: 315520375
                                                    FAIRLEAD
                                                    Supersession
                                                    Supersession
                                                    # 012
                                                    MPN: 169020406
                                                    WASHER
                                                    from £0.78
                                                    from £0.78
                                                    # 016
                                                    MPN: 373300105
                                                    AIR CONVEYOR, ASSY
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 393350105 which we have in stock
                                                    # 017
                                                    MPN: 373300102
                                                    FAN MOTOR (AP6)
                                                    from £91.79
                                                    from £91.79
                                                    This part replaces part number 313354102
                                                    # 020
                                                    MPN: 374000128
                                                    LH SIDE AIR DEFLECTOR, ASSY
                                                    from £17.62
                                                    from £17.62
                                                    # 021
                                                    MPN: 374000100
                                                    RADIATOR
                                                    from £295.17
                                                    from £295.17
                                                    # 022
                                                    MPN: 314020327
                                                    GASKET
                                                    Supersession
                                                    Supersession
                                                    # 023
                                                    MPN: 314037326
                                                    WATER DRAIN COCK
                                                    from £10.09
                                                    from £10.09
                                                    # 024
                                                    MPN: 189453
                                                    BUSH
                                                    from £1.08
                                                    from £1.08
                                                    This part replaces part number 374030312
                                                    # 025
                                                    MPN: 128350060
                                                    SELF LOCKING NUT
                                                    # 026
                                                    MPN: 374000133
                                                    LOWER AIR DEFLECTOR
                                                    from £55.93
                                                    from £55.93
                                                    # 027
                                                    MPN: 108006012
                                                    SCREW
                                                    from £0.54
                                                    from £0.54
                                                    # 029
                                                    MPN: 374000129
                                                    DEFLECTOR
                                                    from £16.40
                                                    from £16.40
                                                    # 030
                                                    MPN: 347700436
                                                    GASKET
                                                    - Not supplied
                                                    from £1.08
                                                    from £1.08
                                                    # 031
                                                    MPN: 53331300
                                                    WASHER
                                                    from £1.08
                                                    from £1.08
                                                    # 032
                                                    MPN: 363310172
                                                    FAN ACTUATING THERMAL SWITCH
                                                    from £5.70
                                                    from £5.70
