maserati qtp. 3.2 v8 (1999) air conditioning system (lh drive) with freon r12 parts diagram

021 - Air Conditioning System (LH Drive) With Freon R12

Maserati QTP. 3.2 V8 (1999) Air Conditioning System (L.H. Drive) With Freon R12 Parts Diagram

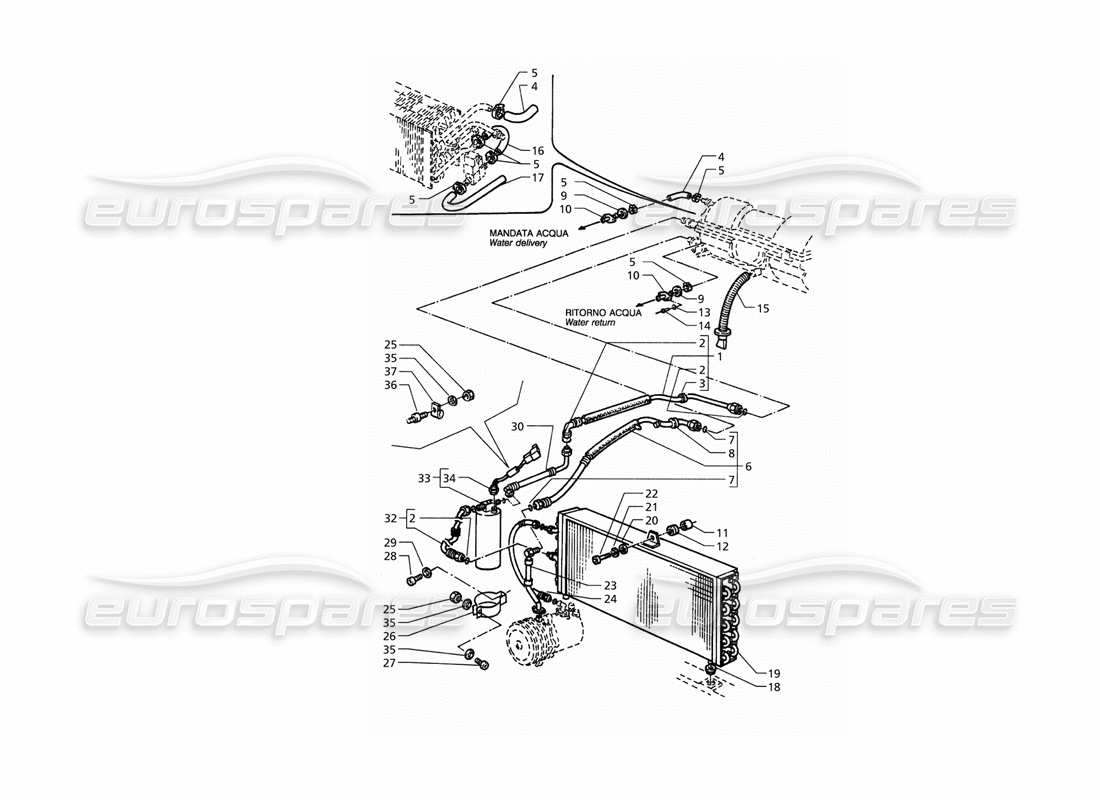

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 375500180
    FREON DELIVERY LINE
    - Valid for 06, 05 and 00 version
    from £21.07
    from £21.07
    # 002
    -
    GASKET
    # 003
    MPN: 31331303
    FAIRLEAD
    - Valid for 06, 05 and 00 version
    from £1.09
    from £1.09
    # 004
    MPN: 315520479
    TUBE
    - Valid for 06, 05 and 00 version
    from £8.42
    from £8.42
    # 005
    MPN: 186402028
    CLAMP
    - Valid for 06, 05 and 00 version
    from £1.60
    from £1.60
    # 006
    MPN: 315551173
    FREON RETURN LINE
    - Valid for 06, 05 and 00 version
    from £73.13
    from £73.13
    # 007
    -
    GASKET
    # 008
    MPN: 315520371
    FAIRLEAD
    - Valid for 06, 05 and 00 version
    from £0.65
    from £0.65
    # 009
    MPN: 315520372
    GASKET
    - Valid for 06, 05 and 00 version
    from £0.71
    from £0.71
    # 010
    MPN: 315520370
    UNION
    - Valid for 06, 05 and 00 version
    from £0.72
    from £0.72
    # 011
    MPN: 315520376
    SPACER
    - Valid for 06, 05 and 00 version
    from £3.75
    from £3.75
    # 012
    MPN: 315520375
    RING
    - Valid for 06, 05 and 00 version
    Supersession
    Supersession
    # 013
    MPN: 169020005
    WASHER
    - Valid for 06, 05 and 00 version
    from £1.11
    from £1.11
    # 014
    MPN: 164323413
    RIVET
    - Valid for 06, 05 and 00 version
    # 015
    MPN: 315520017
    CONDENSATE DRAINAGE TUBE
    - Valid for 06, 05 and 00 version
    from £1.82
    from £1.82
    # 016
    MPN: 315520480
    TUBE
    - Valid for 06, 05 and 00 version
    from £2.11
    from £2.11
    # 017
    MPN: 315520481
    TUBE
    - Valid for 06, 05 and 00 version
    from £8.06
    from £8.06
    # 018
    MPN: 189453
    BUSH
    from £1.11
    from £1.11
    This part replaces part number 374030312
    # 019
    MPN: 375500220
    BIRANGO CONDENSER
    - Valid for 06, 05 and 00 version
    from £192.79
    from £192.79
    # 020
    MPN: 135900064
    FLAT WASHER
    - Valid for 06, 05 and 00 version
    from £0.47
    from £0.47
    # 021
    MPN: 135300064
    SPRING WASHER
    - Valid for 06, 05 and 00 version
    # 022
    MPN: 101206020
    SCREW
    - Valid for 06, 05 and 00 version
    # 023
    MPN: 375500185
    FREON RETURN LINE
    - Valid for 06, 05 and 00 version
    from £38.42
    from £38.42
    # 024
    MPN: 375500262
    FREON DELIVERY LINE
    - Valid for 06, 05 and 00 version
    from £19.24
    from £19.24
    # 025
    MPN: 128300060
    NUT
    - Valid for 06, 05 and 00 version
    Supersession
    Supersession
    # 026
    MPN: 315520301
    CLAMP
    - Valid for 06, 05 and 00 version
    from £17.68
    from £17.68
    # 027
    MPN: 108006022
    SCREW
    - Valid for 06, 05 and 00 version
    # 028
    MPN: 108006012
    SCREW
    - Valid for 06, 05 and 00 version
    from £0.54
    from £0.54
    # 029
    MPN: 135000064
    FLAT WASHER
    - Valid for 06, 05 and 00 version
    # 030
    MPN: 375500266
    TUBE
    - Valid for 06, 05 and 00 version
    from £20.47
    from £20.47
    # 032
    MPN: 375500181
    FREON DELIVERY LINE
    - Valid for 06, 05 and 00 version
    from £12.63
    from £12.63
    # 033
    MPN: 365502174
    FILTER ASSY
    - Valid for 06, 05 and 00 version
    from £107.17
    from £107.17
    This part replaces part number 315520174
    # 034
    MPN: 365502175
    MAX AND MIN. CAPACITY PRESSURE SWITCH
    - Valid for 06, 05 and 00 version
    from £96.85
    from £96.85
    # 035
    MPN: 312220411
    FLAT WASHER
    - Valid for 06, 05 and 00 version
    from £0.47
    from £0.47
    # 036
    MPN: 479009120
    STUD BOLT
    - Valid for 06, 05 and 00 version
    from £23.65
    from £23.65
    # 037
    MPN: 97598
    Tube clamp
    - Valid for 06, 05 and 00 version
    from £7.97
    from £7.97
