023.1 - Fuel Tank (Post Modification)

Maserati QTP. 3.2 V8 (1999) Fuel Tank (Post Modification) Parts Diagram

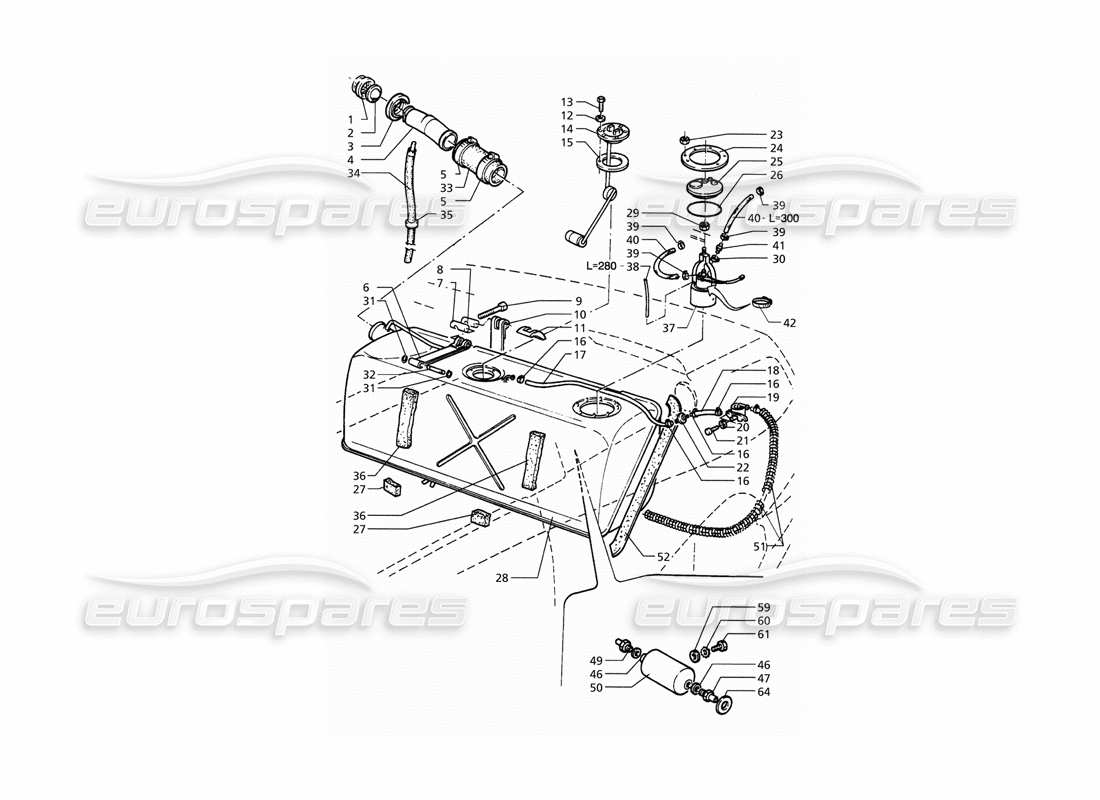

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 319220354
                                                                                                FUEL TANK CAP
                                                                                                from £6.40
                                                                                                from £6.40
                                                                                                This part replaces part number 319220007
                                                                                                # 002
                                                                                                MPN: 329232355
                                                                                                GASKET
                                                                                                from £6.77
                                                                                                from £6.77
                                                                                                # 003
                                                                                                MPN: 319250411
                                                                                                SEAL RING
                                                                                                from £3.94
                                                                                                from £3.94
                                                                                                This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                                # 004
                                                                                                MPN: 379200117
                                                                                                FILLER NECK
                                                                                                from £59.09
                                                                                                from £59.09
                                                                                                # 005
                                                                                                MPN: 186404087
                                                                                                CLAMP
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 006
                                                                                                MPN: 319220385
                                                                                                TANK UPPER FASTENING STRIP
                                                                                                from £6.77
                                                                                                from £6.77
                                                                                                # 007
                                                                                                MPN: 53921332
                                                                                                STRIP PIN
                                                                                                from £2.31
                                                                                                from £2.31
                                                                                                # 008
                                                                                                MPN: 53921331
                                                                                                STRIP PIN
                                                                                                from £1.55
                                                                                                from £1.55
                                                                                                # 009
                                                                                                MPN: 53921333
                                                                                                SCREW
                                                                                                from £1.99
                                                                                                from £1.99
                                                                                                # 010
                                                                                                MPN: 319220106
                                                                                                TANK LOWER FASTENING STRIP
                                                                                                from £7.70
                                                                                                from £7.70
                                                                                                # 011
                                                                                                MPN: 319220337
                                                                                                STRIP RETAINING BLOCK
                                                                                                from £1.92
                                                                                                from £1.92
                                                                                                # 012
                                                                                                MPN: 136200043
                                                                                                WASHER
                                                                                                # 013
                                                                                                MPN: 53361308
                                                                                                SCREW
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 014
                                                                                                MPN: 313620111
                                                                                                FUEL GAUGE
                                                                                                from £35.35
                                                                                                from £35.35
                                                                                                # 015
                                                                                                MPN: 33331300
                                                                                                GASKET
                                                                                                from £1.92
                                                                                                from £1.92
                                                                                                # 016
                                                                                                MPN: 30921110
                                                                                                CLAMP
                                                                                                # 017
                                                                                                MPN: 319220389
                                                                                                SLEEVE
                                                                                                from £5.38
                                                                                                from £5.38
                                                                                                # 019
                                                                                                MPN: 319220102
                                                                                                CHECK VALVE FOR VEHICLE TURNOVER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 021
                                                                                                MPN: 119142160
                                                                                                SCREW
                                                                                                from £0.95
                                                                                                from £0.95
                                                                                                # 022
                                                                                                MPN: 319220134
                                                                                                LIMITING VALVE
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 024
                                                                                                MPN: 399250446
                                                                                                FLANGE
                                                                                                from £13.81
                                                                                                from £13.81
                                                                                                # 025
                                                                                                MPN: 393750130
                                                                                                PETROL PUMP COVER
                                                                                                from £5.47
                                                                                                from £5.47
                                                                                                # 026
                                                                                                MPN: 393750309
                                                                                                GASKET
                                                                                                from £1.55
                                                                                                from £1.55
                                                                                                # 027
                                                                                                MPN: 379200399
                                                                                                FELT PAD
                                                                                                from £1.55
                                                                                                from £1.55
                                                                                                This part replaces part number 319220399
                                                                                                # 028
                                                                                                MPN: 379200006
                                                                                                FUEL TANK (LOW. OUTLETS ON FILLER SIDE)
                                                                                                from £2,112.03
                                                                                                from £2,112.03
                                                                                                # 030
                                                                                                MPN: 559221337
                                                                                                CLAMP
                                                                                                from £0.78
                                                                                                from £0.78
                                                                                                # 031
                                                                                                MPN: 150800050
                                                                                                SEEGER RING
                                                                                                # 032
                                                                                                MPN: 30921336
                                                                                                PIN
                                                                                                from £3.63
                                                                                                from £3.63
                                                                                                # 033
                                                                                                MPN: 339232382
                                                                                                SLEEVE
                                                                                                from £65.47
                                                                                                from £65.47
                                                                                                # 034
                                                                                                MPN: 30871325
                                                                                                DRAINAGE TUBE
                                                                                                from £1.27
                                                                                                from £1.27
                                                                                                # 035
                                                                                                MPN: 319220361
                                                                                                FAIRLEAD
                                                                                                from £2.31
                                                                                                from £2.31
                                                                                                # 036
                                                                                                MPN: 379200398
                                                                                                FELT PAD
                                                                                                from £2.31
                                                                                                from £2.31
                                                                                                This part replaces part number 319220398
                                                                                                # 037
                                                                                                MPN: 393750135
                                                                                                IN TANK FUEL PUMP
                                                                                                from £295.00
                                                                                                from £295.00
                                                                                                This part replaces part number 393750134
                                                                                                # 038
                                                                                                MPN: 97470
                                                                                                RUBBER GASKET
                                                                                                from £43.68
                                                                                                from £43.68
                                                                                                This part replaces part number 311053321 - and 1 more. Click to view details
                                                                                                # 039
                                                                                                MPN: 559221338
                                                                                                CLAMP
                                                                                                from £0.69
                                                                                                from £0.69
                                                                                                # 040
                                                                                                MPN: 97892
                                                                                                SLEEVE
                                                                                                - Section in metres - order minimum amount of 1 m or multiples of 1 m
                                                                                                from £65.10
                                                                                                from £65.10
                                                                                                This part replaces part number 19058189 - and 1 more. Click to view details
                                                                                                # 041
                                                                                                MPN: 399250432
                                                                                                UNION
                                                                                                from £1.26
                                                                                                from £1.26
                                                                                                # 042
                                                                                                MPN: 186403060
                                                                                                CLAMP
                                                                                                from £1.08
                                                                                                from £1.08
                                                                                                # 046
                                                                                                MPN: 319220424
                                                                                                GASKET
                                                                                                from £0.69
                                                                                                from £0.69
                                                                                                # 047
                                                                                                MPN: 470072900
                                                                                                UNION
                                                                                                from £2.86
                                                                                                from £2.86
                                                                                                # 049
                                                                                                MPN: 470072800
                                                                                                UNION
                                                                                                from £0.62
                                                                                                from £0.62
                                                                                                # 050
                                                                                                MPN: 379200141
                                                                                                IN TANK FUEL FILTER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 319220141
                                                                                                # 051
                                                                                                MPN: 379200450
                                                                                                FUEL LINE SHIELD SPRING
                                                                                                from £2.59
                                                                                                from £2.59
                                                                                                # 052
                                                                                                MPN: 379200451
                                                                                                SHAKEPROOF SEAL
                                                                                                from £4.16
                                                                                                from £4.16
