![maserati qtp. 3.2 v8 (1999) clutch parts diagram](/img/CxEAAETdFtt3Di_NUoacgQiKahmiUWiQ6XycS78uMtB4VPBIG1sD/maserati-qtp.-3.2-v8-(1999)-part-diagram-025.webp)
025 - clutch

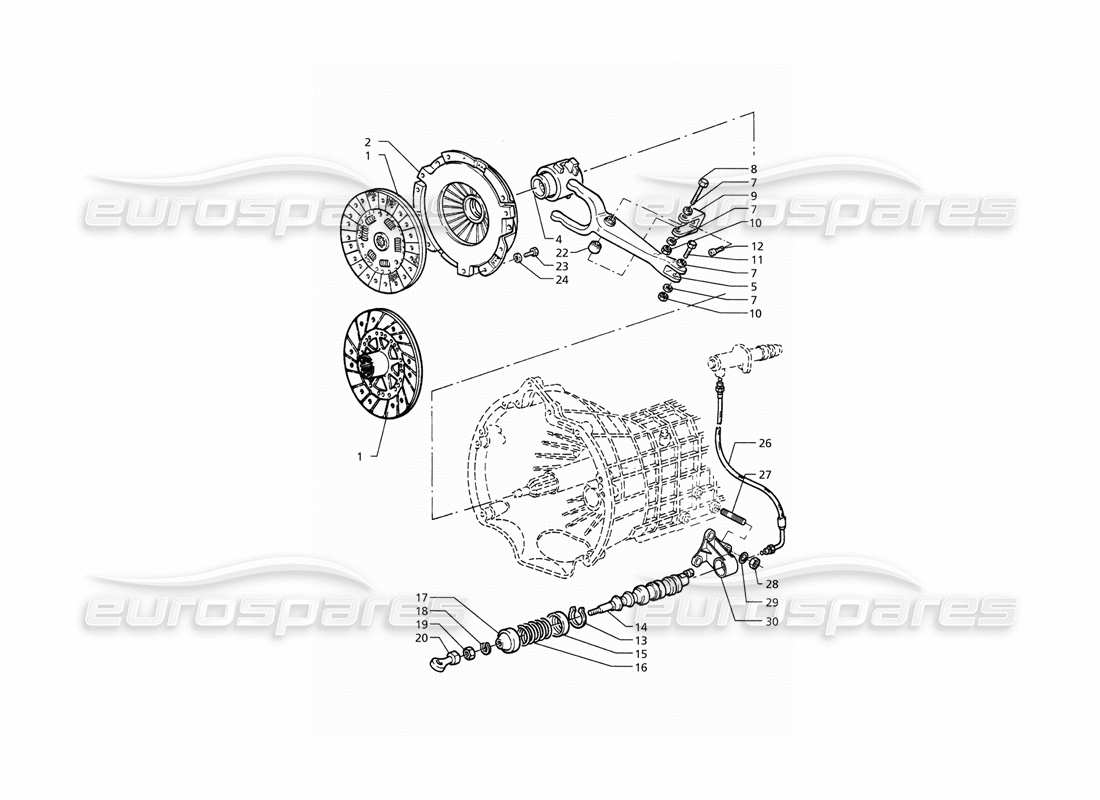

Maserati QTP. 3.2 V8 (1999) Clutch Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 324662105
VOITH CLUTCH DISC
- Valid for 19, 05 version
Supersession
Supersession
# 001
MPN: 364602105
CLUTCH DISC WITH DOUBLE ANTIVIBRATION ELEMENTS
- Valid for 19, 05 and 00 version
Supersession
Supersession
# 002
MPN: 394650102
CLUTCH DEVICE
- Valid for 19, 05 and 00 version
from £663.29
from £663.29
This part replaces part number 394650101
# 004
MPN: 384601108
Clutch Bearing
from £374.39
from £374.39
This part replaces part number 384600108
# 005
MPN: 364600318
CLUTCH LEVER
- Valid for 19, 05 and 00 version
from £85.03
from £85.03
# 007
MPN: 135100084
WASHER
- Valid for 19, 05 and 00 version
# 008
MPN: 364602330
SCREW
- Valid for 19, 05 and 00 version
from £2.88
from £2.88
# 009
MPN: 364602328
FORK
- Valid for 19, 05 and 00 version
from £12.79
from £12.79
# 010
MPN: 128350080
SELF LOCKING NUT
- Valid for 19, 05 and 00 version
Supersession
Supersession
# 011
MPN: 328253327
SCREW
- Valid for 19, 05 and 00 version
from £2.88
from £2.88
# 012
MPN: 108010025
SCREW
- Valid for 19, 05 and 00 version
# 013
MPN: 152100350
SNAP RING
- Valid for 19, 05 and 00 version
# 014
MPN: 378230104
CLUTCH OPERATING CYLINDER
- Valid for 19, 05 and 00 version
from £362.51
from £362.51
This part replaces part number 328253104
# 015
MPN: 328253332
CUP
- Valid for 19, 05 and 00 version
from £5.14
from £5.14
# 016
MPN: 328253331
SPRING
- Valid for 19, 05 and 00 version
from £3.91
from £3.91
# 017
MPN: 328253333
FRONT GUP
- Valid for 19, 05 and 00 version
from £37.42
from £37.42
# 018
MPN: 150800080
SNAP RING
- Valid for 19, 05 and 00 version
# 019
MPN: 125300080
NUT
- Valid for 19, 05 and 00 version
# 020
MPN: 364602326
BALL JOINT
- Valid for 19, 05 and 00 version
from £17.56
from £17.56
# 022
MPN: 364602320
BALL JOINT
- Valid for 19, 05 and 00 version
from £131.75
from £131.75
# 023
MPN: 96890
SCREW
- Valid for 19, 05 and 00 version
from £2.15
from £2.15
# 024
MPN: 138200080
WASHER
- Valid for 19, 05 and 00 version
# 026
MPN: 378200112
CLUTCH PUMP CONNECTING HOSE
- Valid for 05 and 00 version
from £49.18
from £49.18
# 026
MPN: 378219112
HOSE
- Valid for 19 version
from £46.07
from £46.07
# 027
MPN: 97696
STUD
- Valid for 19, 05 and 00 version
from £1.09
from £1.09
# 028
MPN: 128350080
SELF LOCKING NUT
- Valid for 19, 05 and 00 version
Supersession
Supersession
# 029
MPN: 135100084
WASHER
- Valid for 19, 05 and 00 version
# 030
MPN: 364802408
MOUNT
- Valid for 19, 05 and 00 version
from £95.21
from £95.21
