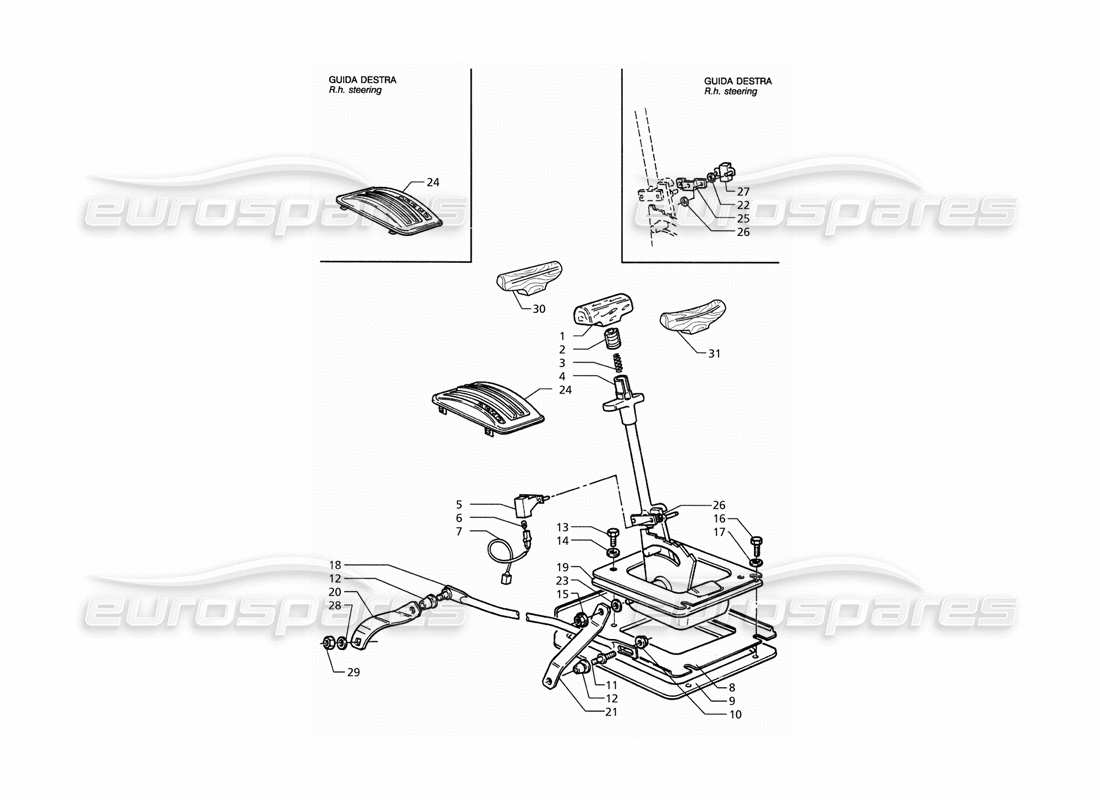

028.1 - Automatic Transmission (4Hp) Outside Controls

Maserati QTP. 3.2 V8 (1999) Automatic Transmission (4Hp) Outside Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 315255519
TRANSMISSION KNOB TYPE 1
- Valid for 20, 06 version
from £24.25
from £24.25
This part replaces part number 315255101
# 002
MPN: 315232417
BUSH
- Valid for 20, 06 version
from £0.91
from £0.91
This part replaces part number 375206313
# 003
MPN: 315232418
SPRING
- Valid for 20, 06 version
from £5.03
from £5.03
# 004
MPN: 315255016
GEAR SELECTOR
- Valid for 20, 06 version
from £114.54
from £114.54
# 005
MPN: 313155143
BULB HOLDER BODY
- Valid for 06 version
from £1.08
from £1.08
# 006
MPN: 87760012
BULB
- Valid for 20, 06 version
from £0.47
from £0.47
# 007
MPN: 313155147
BULB HOLDER
- Valid for 20, 06 version
from £6.32
from £6.32
# 008
MPN: 315232151
PLATE
- Valid for 20, 06 version
from £2.17
from £2.17
# 009
MPN: 315232407
GASKET
- Valid for 20, 06 version
from £1.92
from £1.92
# 010
MPN: 128350080
NUT
- Valid for 20, 06 version
Supersession
Supersession
# 011
MPN: 315255401
THREADED PIN
- Valid for 20, 06 version
from £64.17
from £64.17
# 012
MPN: 315232402
BUSH
- Valid for 20, 06 version
from £14.70
from £14.70
This part replaces part number 325255402
# 013
MPN: 101205012
SCREW
- Valid for 20, 06 version
# 014
MPN: 136110360
WASHER
- Valid for 20, 06 version
# 015
MPN: 128350080
NUT
- Valid for 20, 06 version
Supersession
Supersession
# 016
MPN: 167200625
BOLT
- Valid for 20, 06 version
from £2.47
from £2.47
# 017
MPN: 169020406
WASHER
- Valid for 20, 06 version
from £0.77
from £0.77
# 018
MPN: 315255150
AUTOM. TRANSMISSION CONTROL ROD
- Valid for 20, 06 version
from £24.26
from £24.26
# 019
MPN: 315232408
GASKET
- Valid for 20, 06 version
from £1.55
from £1.55
# 020
MPN: 315255405
LEVER
- Valid for 20, 06 version
from £6.40
from £6.40
# 021
MPN: 315255400
LEVER
- Valid for 20, 06 version
from £5.93
from £5.93
# 022
MPN: 30551347
SPRING
minimum order quantity = 10
from £0.69
from £0.69
# 023
MPN: 315255409
CRINKLE WASHER
- Valid for 20, 06 version
# 024
MPN: 328355282
MOULDING
- Valid for LHD
from £24.78
from £24.78
This part replaces part number 318355282
# 024
MPN: 328371282
MOULDING
- Valid for 20 version
from £2.20
from £2.20
# 025
MPN: 315271415
BULB HOLDER BRACKET
- Valid for 20 version
# 026
MPN: 163560030
SPRING
- Valid for 20, 06 version
# 027
MPN: 313171146
BULB HOLDER BODY
- Valid for 20 version
from £2.55
from £2.55
# 028
MPN: 315255411
WASHER
- Valid for 20, 06 version
# 029
MPN: 315255410
NUT
- Valid for 20, 06 version
from £1.08
from £1.08
# 030
MPN: 365209519
TRANSMISSION KNOB TYPE 2
- Valid for 20 version
from £95.47
from £95.47
# 031
MPN: 375206519
TRANSMISSION KNOB TYPE 3
- Valid for 20, 06 version
from £56.10
from £56.10
