maserati qtp. 3.2 v8 (1999) automatic transmission (4hp) oil radiator parts diagram

028.2 - Automatic Transmission (4Hp) Oil Radiator

Maserati QTP. 3.2 V8 (1999) Automatic Transmission (4Hp) Oil Radiator Parts Diagram

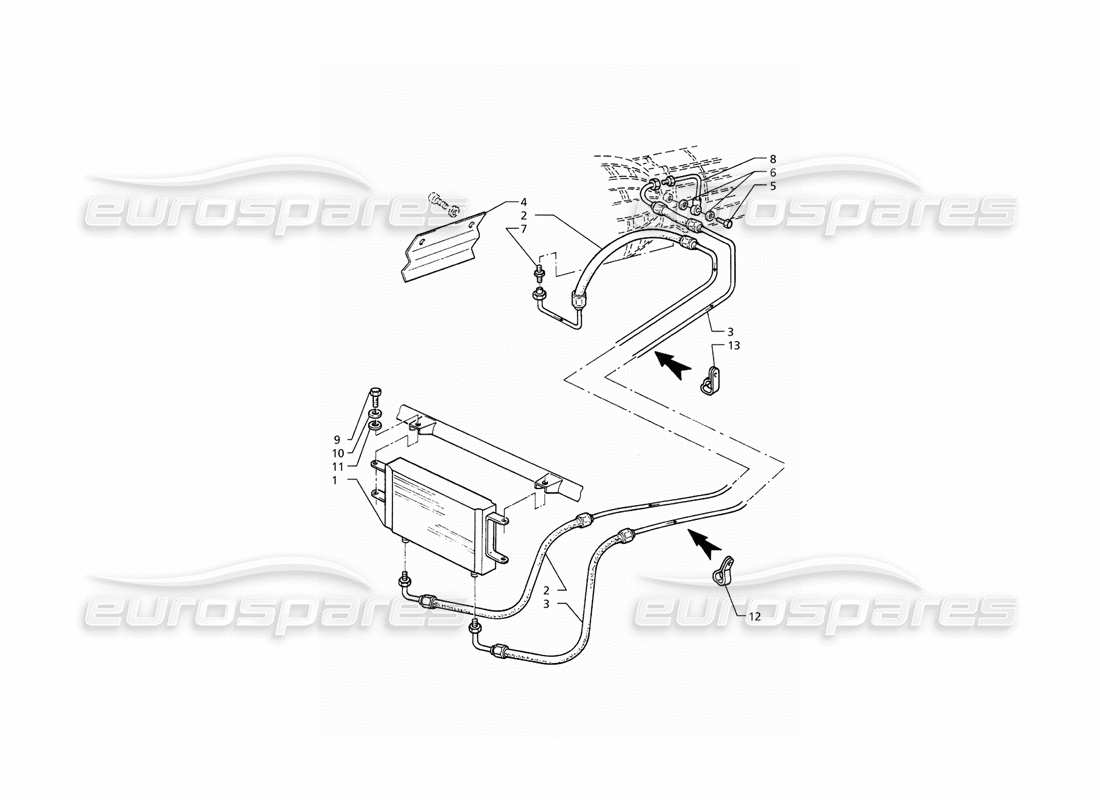

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 361806103
RADIATOR
- Valid for 20, 06 version
from £74.83
from £74.83
# 001
MPN: 376000104
PROPELLER SHAFT ASSEMBLY
from £1,260.55
from £1,260.55
# 002
MPN: 316020103
CENTRAL SUPPORT
from £687.47
from £687.47
# 002
MPN: 371806109
OIL DELIVERY PIPE
- Valid for 20, 06 version
from £130.25
from £130.25
# 003
MPN: 316020306
Dust bellows
from £4.66
from £4.66
# 003
MPN: 371806108
OIL RETURN PIPE
- Valid for 20, 06 version
from £117.37
from £117.37
# 004
MPN: 128360100
SELF LOCKING NUT
# 004
MPN: 371806358
PIPE BULKHEAD
- Valid for 20, 06 version
# 005
MPN: 311832343
CONNECTOR SCREW
- Valid for 20, 06 version
from £1.55
from £1.55
# 006
MPN: 311855316
COPPER GASKET
- Valid for 20, 06 version
from £1.94
from £1.94
# 006
MPN: 316020300
SCREW
from £13.89
from £13.89
# 007
MPN: 311855344
THREADED NIPPLE
- Valid for 20, 06 version
from £6.44
from £6.44
# 007
MPN: 336000111
SCREW
from £3.18
from £3.18
# 008
MPN: 316020334
PLATE
from £1.32
from £1.32
# 008
MPN: 361806115
UNION
- Valid for 20, 06 version
from £12.45
from £12.45
# 009
MPN: 108008016
SCREW
- Valid for 20, 06 version
# 010
MPN: 128350080
SELF LOCKING NUT
Supersession
Supersession
# 010
MPN: 138410080
SPRING WASHER
- Valid for 20, 06 version
# 011
MPN: 312225445
FLAT WASHER
- Valid for 20, 06 version
from £0.78
from £0.78
# 012
MPN: 316020330
CROSS MEMBER
from £4.66
from £4.66
# 012
MPN: 371806356
Tube clamp
- Valid for 20, 06 version
# 013
MPN: 371806355
Tube clamp
- Valid for 20, 06 version
