maserati qtp. 3.2 v8 (1999) steering box front subframe parts diagram

032 - Steering Box Front Subframe

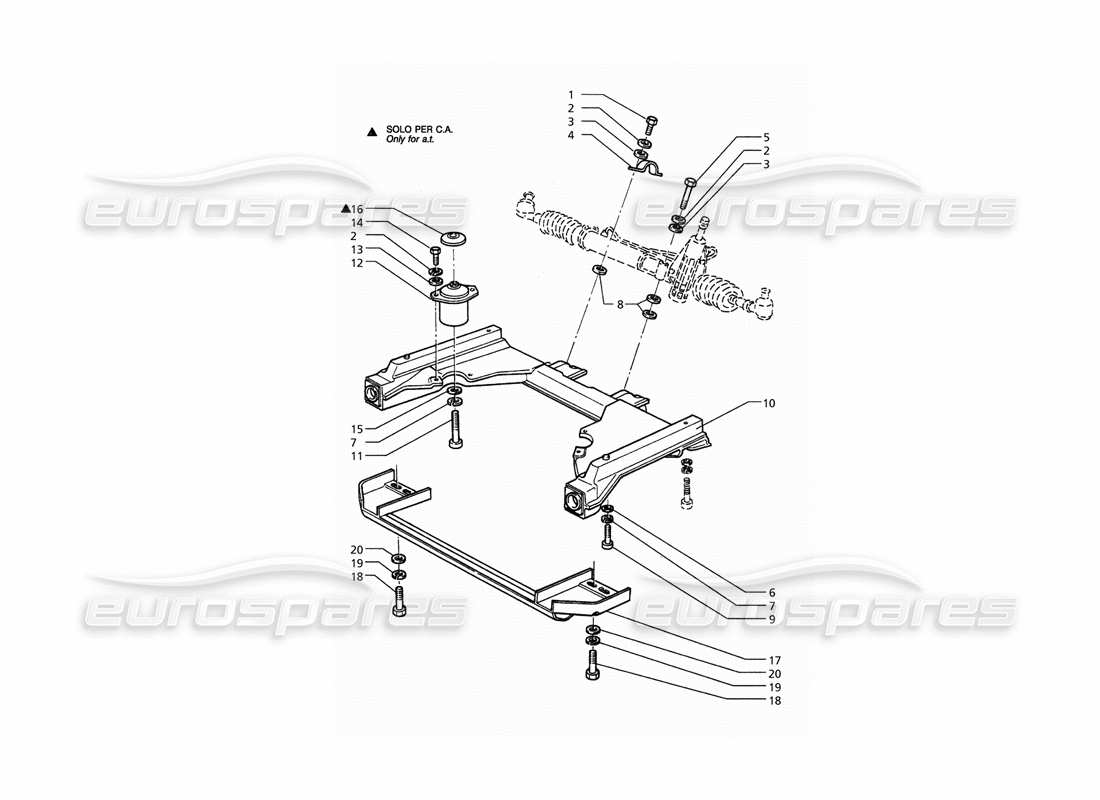

Maserati QTP. 3.2 V8 (1999) Steering Box Front Subframe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 003
                                  MPN: 163020100
                                  FLAT WASHER
                                  from £1.11
                                  from £1.11
                                  # 004
                                  MPN: 327856344
                                  BRACKET
                                  - RH bracket for LH drive vehicle - LH bracket for RH drive vehicle
                                  from £1.98
                                  from £1.98
                                  # 005
                                  MPN: 100710035
                                  SCREW
                                  # 007
                                  MPN: 138200120
                                  SPRING WASHER
                                  from £0.79
                                  from £0.79
                                  # 008
                                  MPN: 317851395
                                  SHIM
                                  - As necessary
                                  from £1.11
                                  from £1.11
                                  # 010
                                  MPN: 372700102
                                  Front Chassis
                                  from £231.87
                                  from £231.87
                                  # 011
                                  MPN: 108012050
                                  ALLEN SCREW
                                  - Valid for 19, 05 and 00 version
                                  # 011
                                  MPN: 97760
                                  ALLEN SCREW
                                  - Valid for 20, 06 version
                                  # 012
                                  MPN: 394250100
                                  SILENTBLOCK
                                  from £183.75
                                  from £183.75
                                  # 013
                                  MPN: 314220314
                                  WASHER
                                  from £1.11
                                  from £1.11
                                  # 014
                                  MPN: 101210030
                                  SCREW
                                  from £1.59
                                  from £1.59
                                  # 015
                                  MPN: 313020411
                                  FLAT WASHER
                                  from £0.47
                                  from £0.47
                                  # 016
                                  MPN: 314232316
                                  SPACER
                                  - Valid for 20, 06 version
                                  from £7.61
                                  from £7.61
                                  # 017
                                  MPN: 366602145
                                  SHIELD BENEATH OIL SUMP
                                  from £239.01
                                  from £239.01
                                  This part replaces part number 366600380
                                  # 018
                                  MPN: 100708020
                                  SCREW
                                  from £0.71
                                  from £0.71
                                  # 020
                                  MPN: 312225445
                                  FLAT WASHER
                                  from £0.79
                                  from £0.79
