033.1 - Power Steering System (RH Drive)

Maserati QTP. 3.2 V8 (1999) Power Steering System (R.H. Drive) Parts Diagram

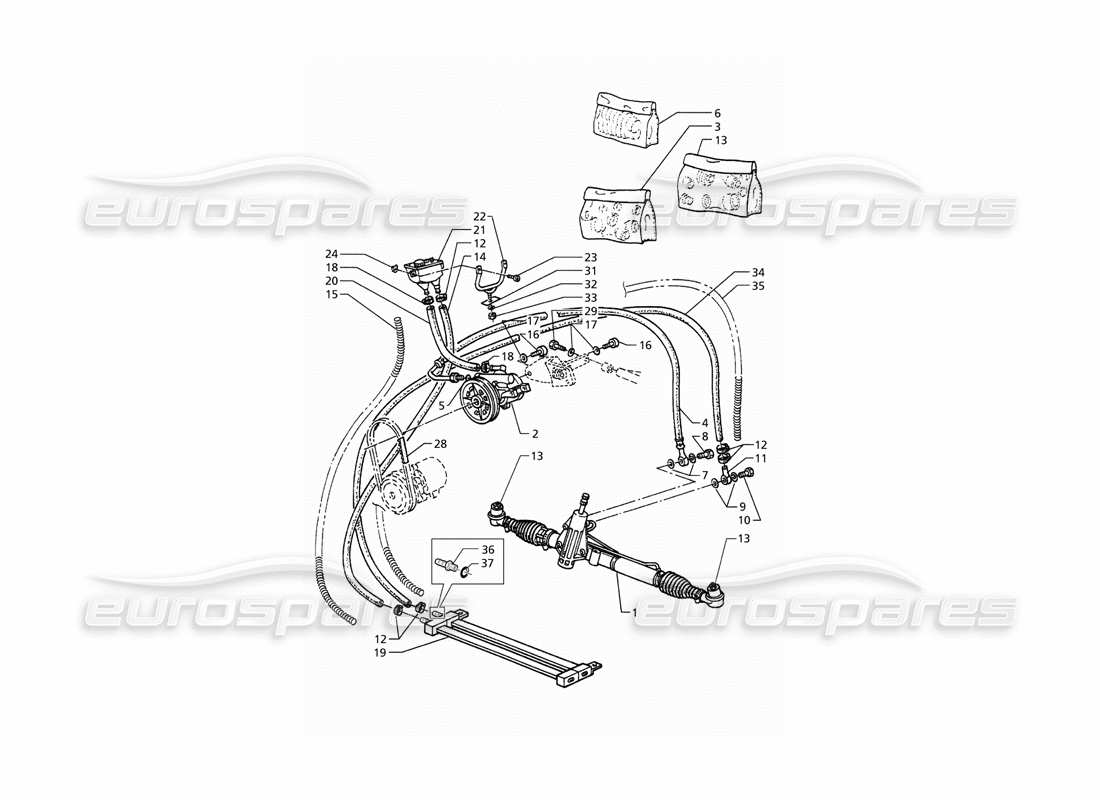

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 377819125
POWER STEERING ASSY
(RHD model)
from £525.00
from £525.00
# 002
MPN: 317832104
PUMP WITH PULLEY
- Valid for 20, 19 version
from £178.15
from £178.15
# 003
MPN: 310232040
KIT FOR PIPE AND UNION REPLACEMENT
- Valid for 20, 19 version
from £31.98
from £31.98
# 004
MPN: 397870215
TUBE FROM PUMP TO STEERING BOX
- Valid for 20, 19 version
from £104.91
from £104.91
# 005
MPN: 192415108
O RING
- Valid for 20, 19 version
from £1.28
from £1.28
# 006
MPN: 390250080
KIT FOR BELLOWS AND CLAMP REPLACEMENT
- Valid for 20, 19 version
from £127.42
from £127.42
This part replaces part number 320250033
# 007
MPN: 317851602
GASKET
- Valid for 20, 19 version
from £1.08
from £1.08
# 008
MPN: 317832380
UNION SCREW
- Valid for 20, 19 version
from £9.09
from £9.09
# 009
MPN: 317851601
GASKET
- Valid for 20, 19 version
from £1.08
from £1.08
# 010
MPN: 317851387
UNION SCREW
- Valid for 20, 19 version
Supersession
Supersession
# 011
MPN: 317851386
EYELET UNION
- Valid for 20, 19 version
from £5.80
from £5.80
# 012
MPN: 317832389
CLAMP
- Valid for 20, 19 version
from £1.94
from £1.94
# 013
MPN: 377801133
STEERING HEAD
- Valid for 20, 19 version
from £85.84
from £85.84
# 014
MPN: 397850636
OIL RETURN SLEEVE
- Valid for 20, 19 version
from £1.70
from £1.70
# 015
MPN: 397850642
CORRUGATED PIPE
- Valid for 20, 19 version
# 016
MPN: 138411080
SCREW
- Valid for 20, 19 version
# 017
MPN: 138403022
WASHER
- Valid for 20, 19 version
# 018
MPN: 168403022
CLAMP
- Valid for 20, 19 version
# 019
MPN: 367817618
OIL COOLER
- Valid for 20, 19 version
from £80.78
from £80.78
# 020
MPN: 367800370
SLEEVE
- Valid for 20, 19 version
from £15.29
from £15.29
# 021
MPN: 397850130
OIL TANK
- Valid for 20, 19 version
from £21.01
from £21.01
This part replaces part number 317853130
# 022
MPN: 397870131
TANK FIXING BRACKET
- Valid for 20, 19 version
from £14.04
from £14.04
# 023
MPN: 119148130
SCREW
- Valid for 20, 19 version
from £0.86
from £0.86
# 024
MPN: 163610050
SPRING CLIP
- Valid for 20, 19 version
from £0.47
from £0.47
# 028
MPN: 317837372
POWER STEERING BELT
- Valid for 20, 19 version
from £12.50
from £12.50
# 029
MPN: 108008040
SCREW
- Valid for 20, 19 version
# 031
MPN: 397850366
PLATE
- Valid for 20, 19 version
from £1.08
from £1.08
# 032
MPN: 138410080
WASHER
- Valid for 20, 19 version
# 033
MPN: 122600080
NUT
- Valid for 20, 19 version
# 034
MPN: 367817629
OIL RETURN BUNDY PIPE
- Valid for 20, 19 version
# 035
MPN: 318720333
CORRUGATED TUBE
- Valid for 20, 19 version
from £5.16
from £5.16
# 036
MPN: 397850609
UNION
- Valid for 20, 19 version
from £1.77
from £1.77
# 037
MPN: 397850608
GASKET
- Valid for 20, 19 version
from £1.08
from £1.08
