![maserati qtp. 3.2 v8 (1999) rear suspension parts diagram](/img/CxEAAMTaOW5_H7FMluXSdyVFUIZoFBpkOh_n0o-LktB4FPBcbWwZAw%3D%3D/maserati-qtp.-3.2-v8-(1999)-part-diagram-036.webp)
036 - Rear Suspension

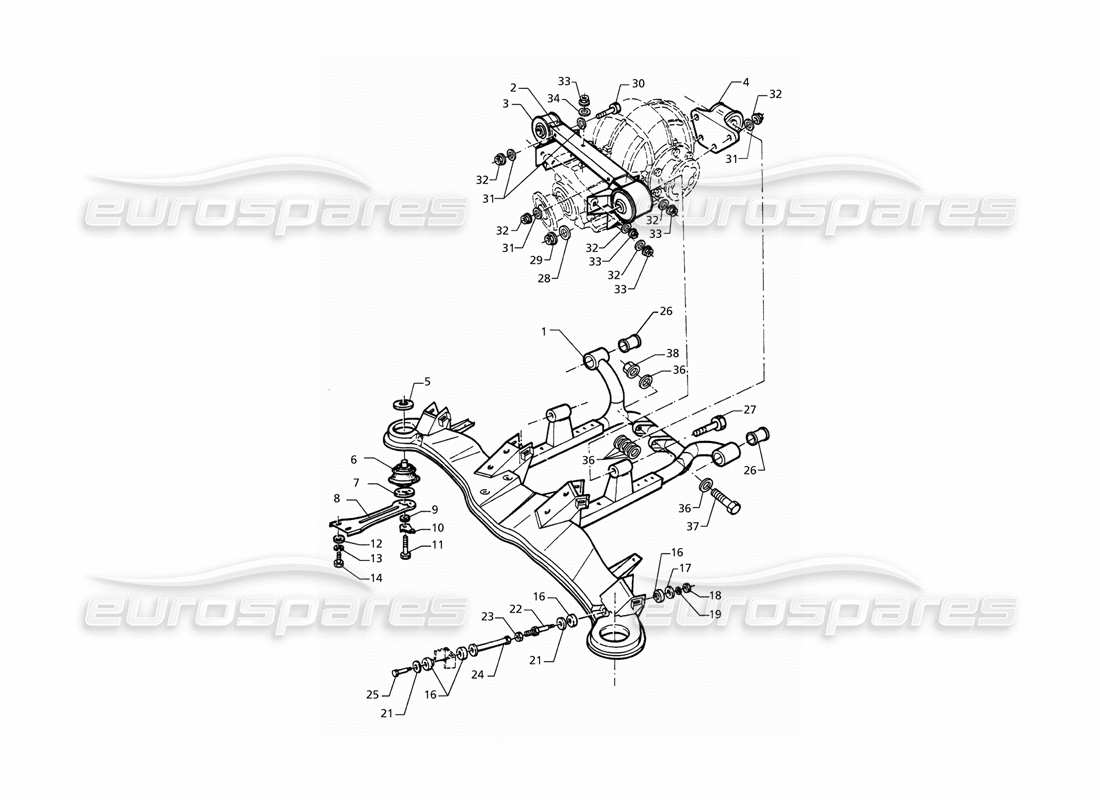

Maserati QTP. 3.2 V8 (1999) Rear Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 372700131
SUBFRAME
from £357.62
from £357.62
# 002
MPN: 376200167
CROSS MEMBER CONN. SIDE SUPPORTS
from £21.39
from £21.39
# 003
MPN: 376200165
DIFFERENTIAL SIDE SUPPORT
from £257.96
from £257.96
# 004
MPN: 376200169
DIFFERENTIAL REAR SUPPORT
from £62.67
from £62.67
This part replaces part number 376230169
# 005
MPN: 372700368
RUBBER CUP
from £5.61
from £5.61
# 006
MPN: 342700122
RUBBER BUSHING
from £8.73
from £8.73
# 007
MPN: 347001341
PLATE
# 008
MPN: 312720336
SIDE TIE ROD
from £13.43
from £13.43
# 009
MPN: 312720356
WASHER
from £2.18
from £2.18
# 010
MPN: 312720357
PLATE
from £0.47
from £0.47
# 011
MPN: 312720355
SCREW
from £3.19
from £3.19
# 012
MPN: 163020080
FLAT WASHER
from £1.09
from £1.09
# 013
MPN: 138410080
SPRING WASHER
# 014
MPN: 101208016
SCREW
# 016
MPN: 366200573
RUBBER BLOCK
from £28.52
from £28.52
# 017
MPN: 366200570
WASHER
from £1.64
from £1.64
# 019
MPN: 135100084
WASHER
# 021
MPN: 366200569
WASHER
from £2.18
from £2.18
# 022
MPN: 366200567
TIE ROD
from £8.27
from £8.27
# 023
MPN: 125100100
NUT
# 024
MPN: 366200163
ARM
from £14.64
from £14.64
# 025
MPN: 366600566
SCREW
# 026
MPN: 396250101
RUBBER BUSHING
from £9.37
from £9.37
# 027
MPN: 97753
BOLT
# 028
MPN: 47101
WASHER
Supersession
Supersession
# 029
MPN: 55788
NUT
from £1.32
from £1.32
# 030
MPN: 94739
BOLT
# 031
MPN: 741630
WASHER
# 032
MPN: 128300080
SELF LOCKING NUT
# 033
MPN: 128300100
SELF LOCKING NUT
# 034
MPN: 14496601
WASHER
Supersession
Supersession
# 036
MPN: 376200599
WASHER
from £11.38
from £11.38
# 037
MPN: 91062
BOLT
from £124.70
from £124.70
# 038
MPN: 128300120
SELF LOCKING NUT
