maserati qtp. 3.2 v8 (1999) body shell: outer panels parts diagram

044 - Body Shell: Outer Panels

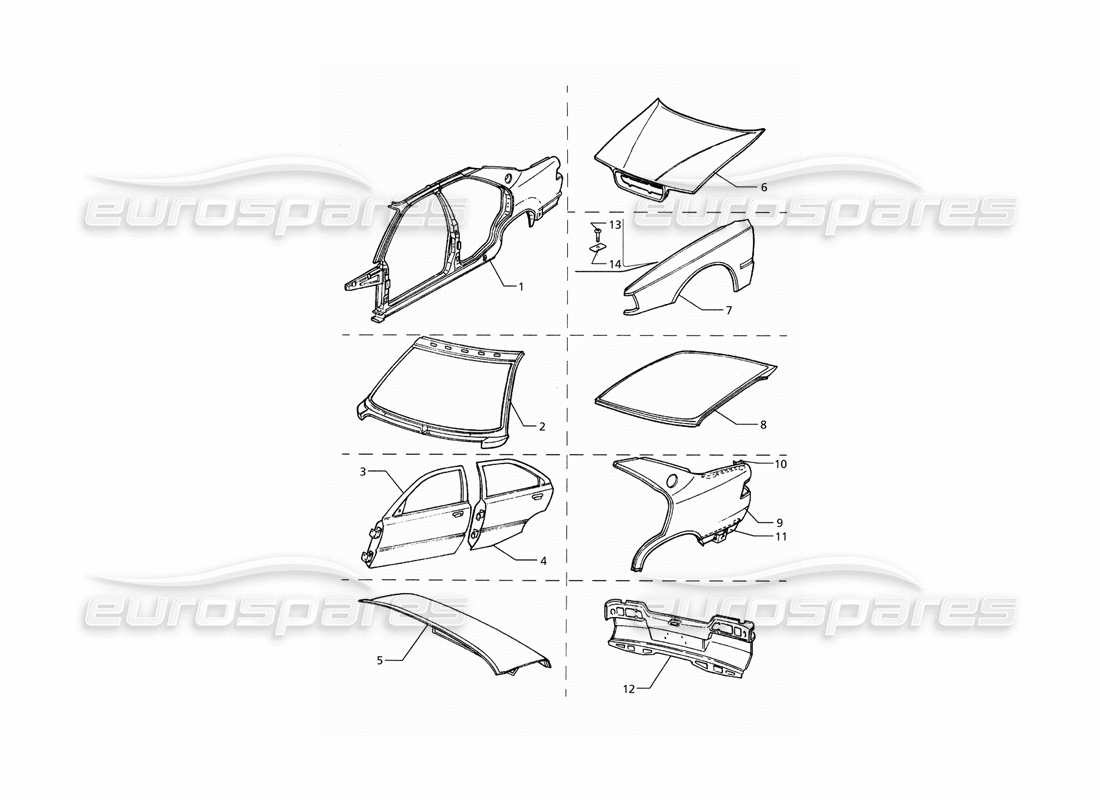

Maserati QTP. 3.2 V8 (1999) Body Shell: Outer Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 372500101
                      COMPLETE LH SIDE PANEL
                      from £686.90
                      from £686.90
                      # 001
                      MPN: 372500102
                      COMPLETE RH SIDE PANEL
                      from £643.45
                      from £643.45
                      # 002
                      MPN: 372500148
                      WINDSCREEN RING
                      - Valid for 06, 05 and 00 version
                      from £314.18
                      from £314.18
                      # 002
                      MPN: 372515148
                      WINDSCREEN RING
                      - Valid for 20, 19 version
                      from £0.68
                      from £0.68
                      # 003

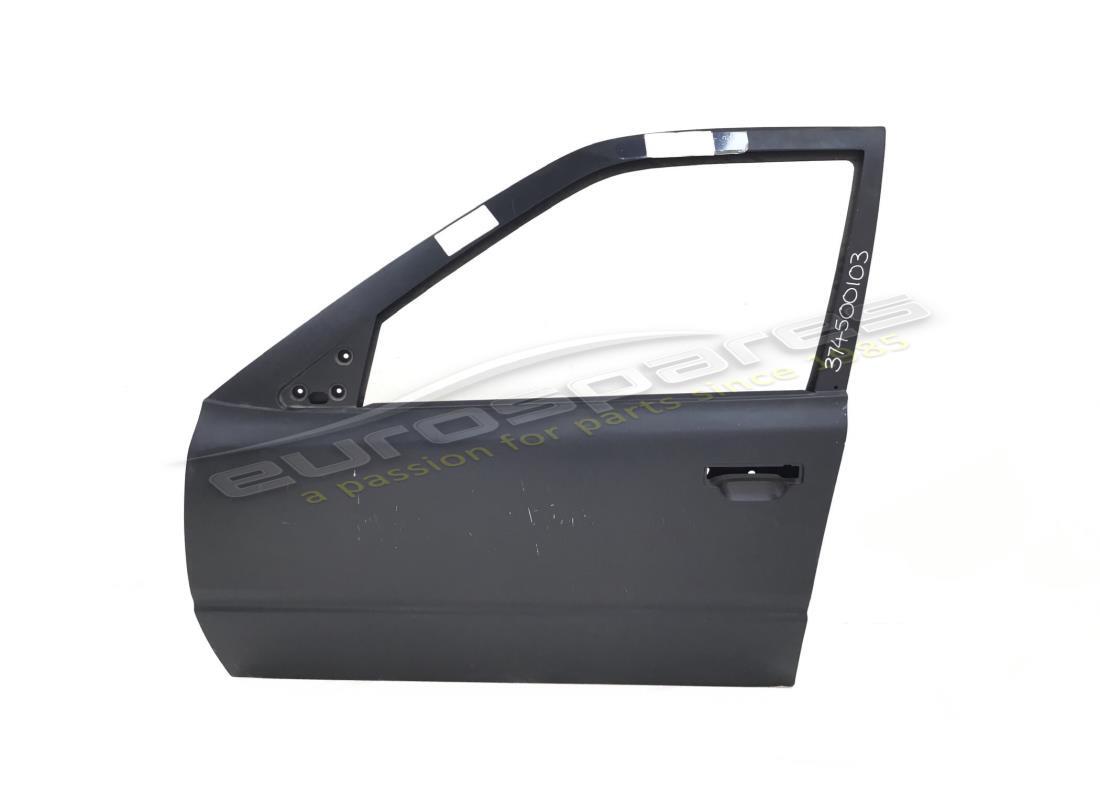

                      MPN: 374500103

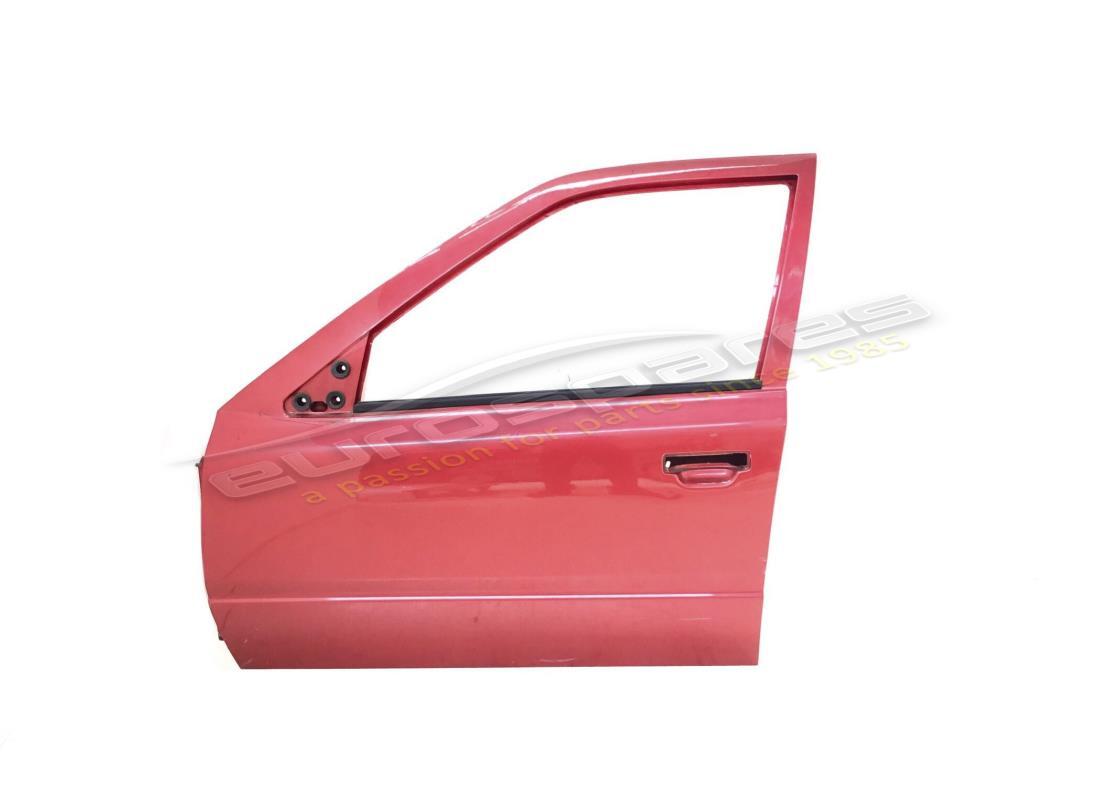

                      COMPLETE LH FRONT DOOR
                      - Pre modification
                      from £519.75
                      from £519.75
                      # 003
                      MPN: 374500103A
                      COMPLETE LH FRONT DOOR
                      - Post modification - From chassis no. 330871 (LH Drive) - From chassis no. 350055 (RH Drive)
                      # 003
                      MPN: 374500104

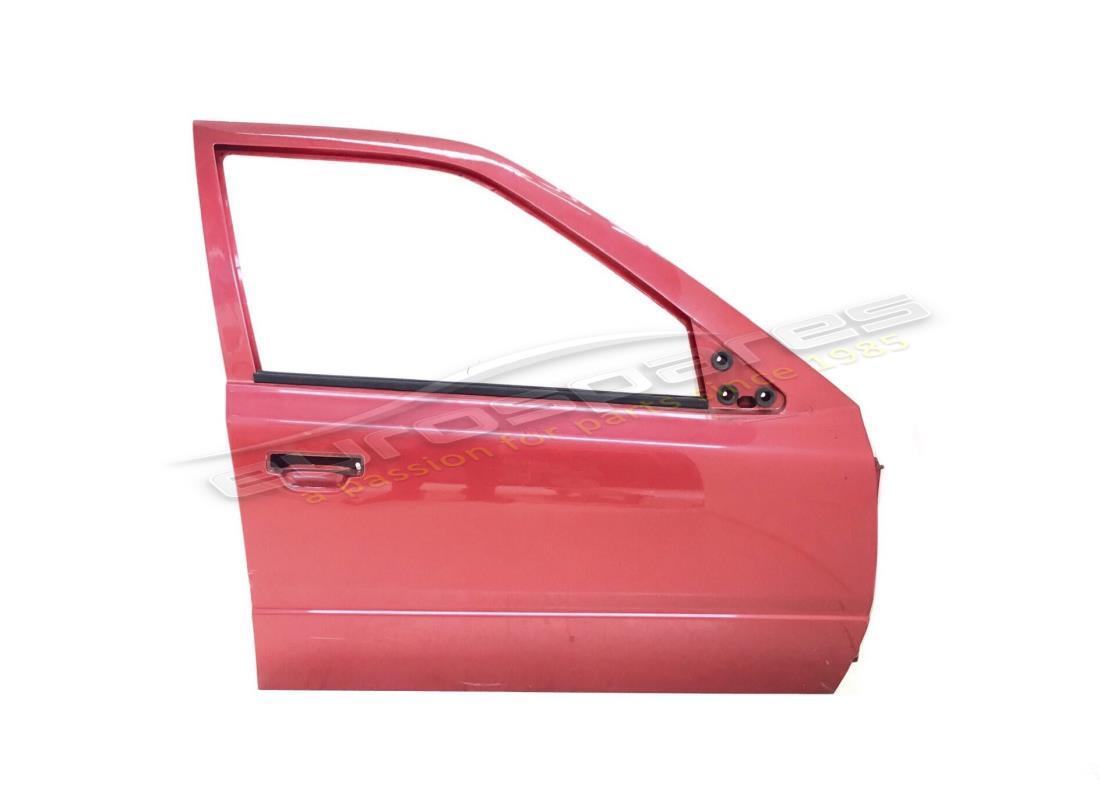

                      COMPLETE RH FRONT DOOR
                      - Pre modification
                      from £519.75
                      from £519.75
                      # 003
                      MPN: 374500104A
                      COMPLETE RH FRONT DOOR
                      - Post modification - From chassis no. 330871 (LH Drive) - From chassis no. 350055 (RH Drive)
                      # 004
                      MPN: 374500203

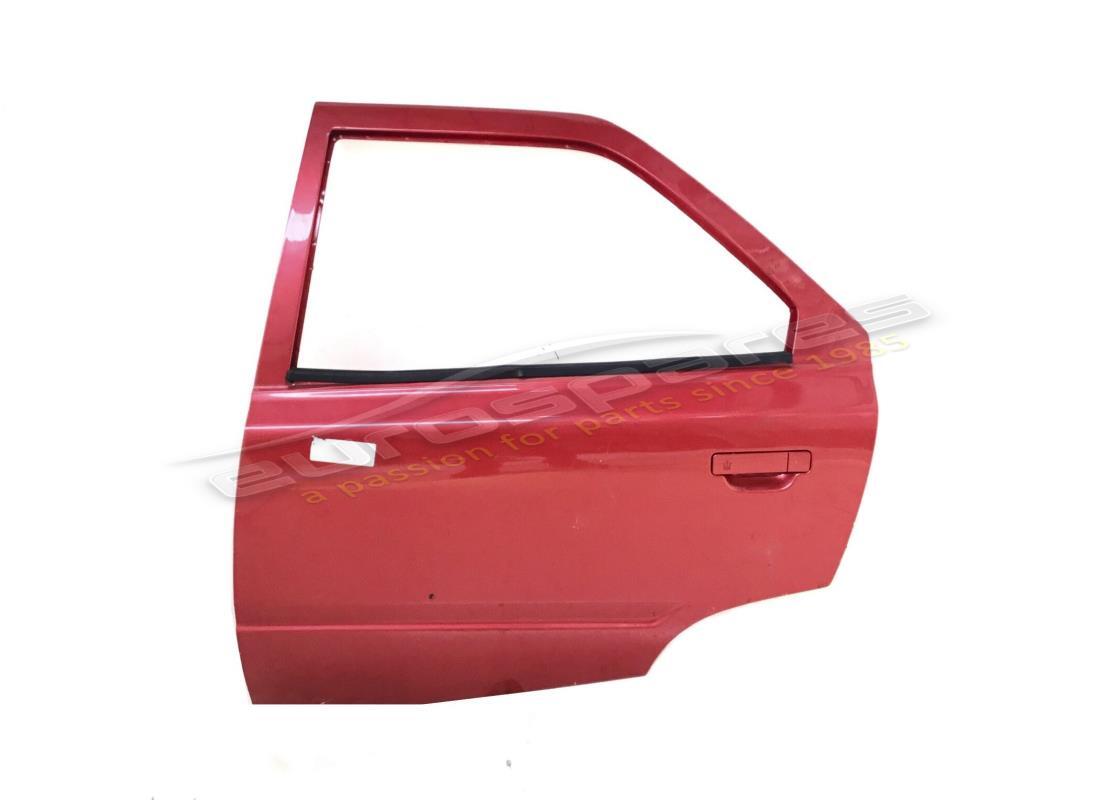

                      COMPLETE LH REAR DOOR
                      - Pre modification
                      from £666.64
                      from £666.64
                      # 004
                      MPN: 374500203A
                      COMPLETE LH REAR DOOR
                      - Post modification - From chassis no. 330871 (LH Drive) - From chassis no. 350055 (RH Drive)
                      # 004
                      MPN: 374500204

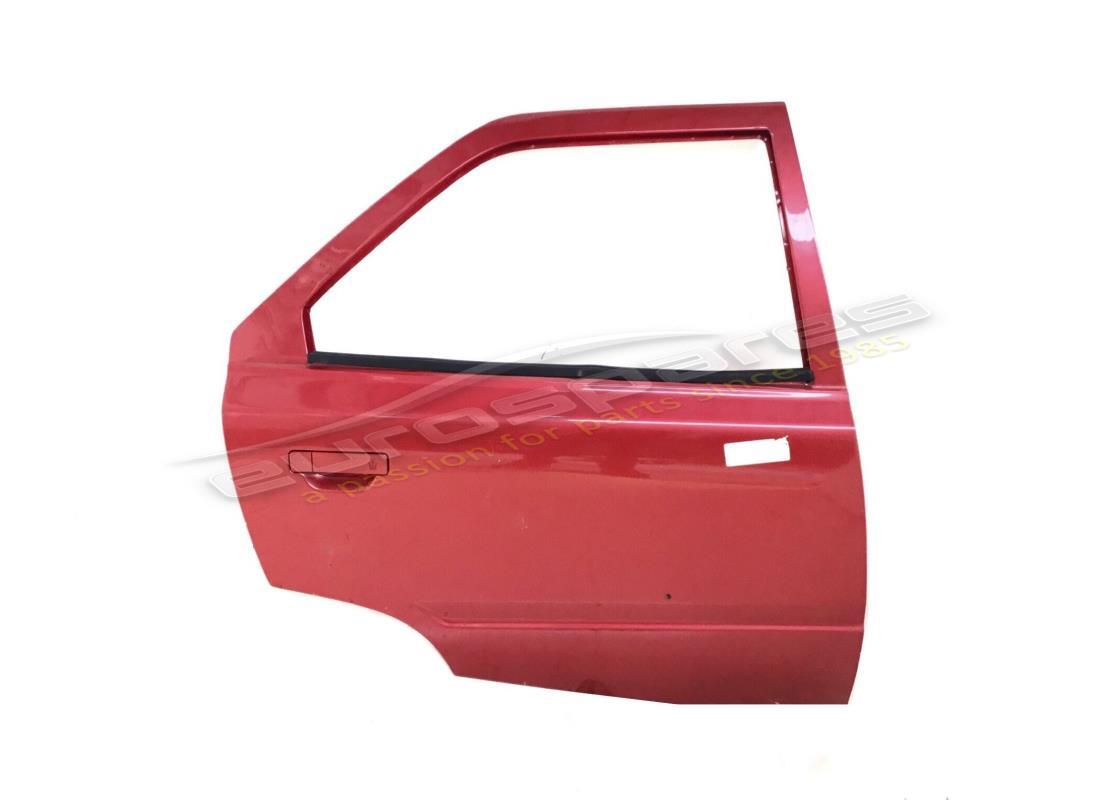

                      COMPLETE RH REAR DOOR
                      - Pre modification
                      from £456.75
                      from £456.75
                      # 004
                      MPN: 374500204A
                      COMPLETE RH REAR DOOR
                      - Post modification - From chassis no. 330871 (LH Drive) - From chassis no. 350055 (RH Drive)
                      # 005
                      MPN: 374700100
                      BOOT LID
                      from £264.20
                      from £264.20
                      # 006
                      MPN: 374300100
                      COMPLETE BONNET
                      from £800.00
                      from £800.00
                      # 007
                      MPN: 372500301
                      COMPLETE LH FRONT FENDER
                      from £278.20
                      from £278.20
                      # 007
                      MPN: 372500302
                      COMPLETE RH FRONT FENDER
                      from £152.25
                      from £152.25
                      # 008
                      MPN: 372500465
                      ROOF (WITHOUT HOLE FOR RADIO AERIAL)
                      from £175.10
                      from £175.10
                      This part replaces part number 372500466
                      # 008
                      MPN: 372500466
                      ROOF (WITH HOLE FOR RADIO AERIAL)
                      Supersession
                      Supersession
                      # 009
                      MPN: 372500377
                      REAR LH FENDER (WITH FALSE FLAP SEAT)
                      - Pre modification
                      from £555.19
                      from £555.19
                      # 009
                      MPN: 372500378
                      REAR RH FENDER
                      from £555.19
                      from £555.19
                      # 009
                      MPN: 372500379
                      REAR LH FENDER (WITHOUT FALSE FLAP SEAT)
                      - Post modification
                      from £275.41
                      from £275.41
                      # 010
                      MPN: 372500137
                      REAR LH DRIP CHANNEL
                      from £14.69
                      from £14.69
                      # 010
                      MPN: 372500138
                      REAR RH DRIP CHANNEL
                      from £16.23
                      from £16.23
                      # 011
                      MPN: 372500127
                      REAR LH CONNECTION BETW. FLOOR AND FENDER
                      from £12.41
                      from £12.41
                      # 011
                      MPN: 372500128
                      REAR RH CONNECTION BETW. FLOOR AND FENDER
                      from £14.11
                      from £14.11
                      # 012
                      MPN: 371300228
                      REAR CROSS MEMBER
                      from £636.22
                      from £636.22
                      # 013
                      MPN: 372500594
                      SCREW
                      from £4.23
                      from £4.23
                      # 014
                      MPN: 372500591
                      PLATE
                      from £0.92
                      from £0.92
