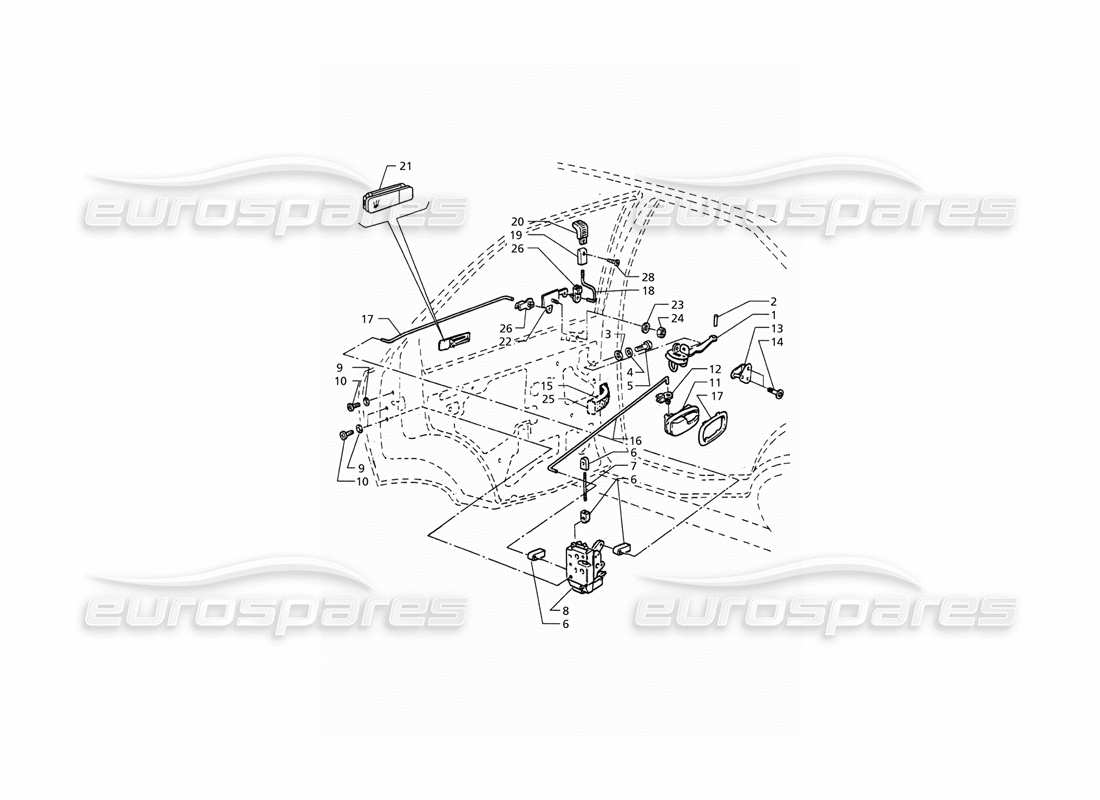

049.1 - Rear Doors: Hinges and Inner Controls
Maserati QTP. 3.2 V8 (1999) Rear Doors: Hinges and Inner Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 374500144
DOOR TIE ROD
from £2.89
from £2.89
# 002
MPN: 374500408
PIN
from £2.38
from £2.38
# 003
MPN: 136110066
WASHER
# 004
MPN: 135600060
INDENTED WASHER
from £0.79
from £0.79
# 005
MPN: 101206014
SCREW
# 006
MPN: 53451352
ELASTIC CONNECTION
from £0.71
from £0.71
# 007
MPN: 374500382
PIN
from £1.01
from £1.01
# 008
MPN: 374500245
REAR LH LOCK
from £31.50
from £31.50
# 008
MPN: 374500246
REAR RH LOCK
from £31.50
from £31.50
# 009
MPN: 30471338
WASHER
from £1.11
from £1.11
# 010
MPN: 112806014
SCREW
# 011
MPN: 374500147
LH HANDLE
from £9.71
from £9.71
This part replaces part number 374500477
# 011
MPN: 374500148
RH HANDLE
from £8.06
from £8.06
This part replaces part number 374500478
# 012
MPN: 374500431
PAWL
from £2.02
from £2.02
# 013
MPN: 374500151
DOOR LOCK HOOK
from £3.33
from £3.33
# 014
MPN: 374500415
SCREW
from £1.35
from £1.35
# 015
MPN: 374500437
SMOOTH REAR SHEATH
from £3.33
from £3.33
This part replaces part number 324520438
# 016
MPN: 374500717
LH LEVER
from £3.04
from £3.04
# 016
MPN: 374500718
RH LEVER
from £3.04
from £3.04
# 017
MPN: 374500715
LH LEVER
from £3.11
from £3.11
# 017
MPN: 374500716
RH LEVER
from £3.11
from £3.11
# 018
MPN: 374500721
LH PIN
from £1.66
from £1.66
# 018
MPN: 374500722
RH PIN
from £1.66
from £1.66
This part replaces part number 374500723
# 019
MPN: 314520428
UNION
from £1.11
from £1.11
# 020
MPN: 314520427
KNOB
Supersession
Supersession
# 021
MPN: 374500071
PRIMERED LH EXTERNAL HANDLE
from £15.67
from £15.67
# 021
MPN: 374500072
PRIMERED RH EXTERNAL HANDLE
from £15.67
from £15.67
# 022
MPN: 314520153
LH SAFETY CONTROL
from £2.38
from £2.38
# 022
MPN: 314520154
RH SAFETY CONTROL
from £2.38
from £2.38
# 023
MPN: 314520417
SPRING WASHER
from £1.67
from £1.67
This part replaces part number 314520415
# 024
MPN: 125100060
NUT
# 025
MPN: 324520432
SHEATH FRAME
from £0.63
from £0.63
This part replaces part number 314520433
# 026
MPN: 53451371
PAWL
from £0.77
from £0.77
This part replaces part number 14578080
# 027
MPN: 374500375
Frame
from £4.23
from £4.23
# 028
MPN: 167590414
SCREW
from £1.59
from £1.59
