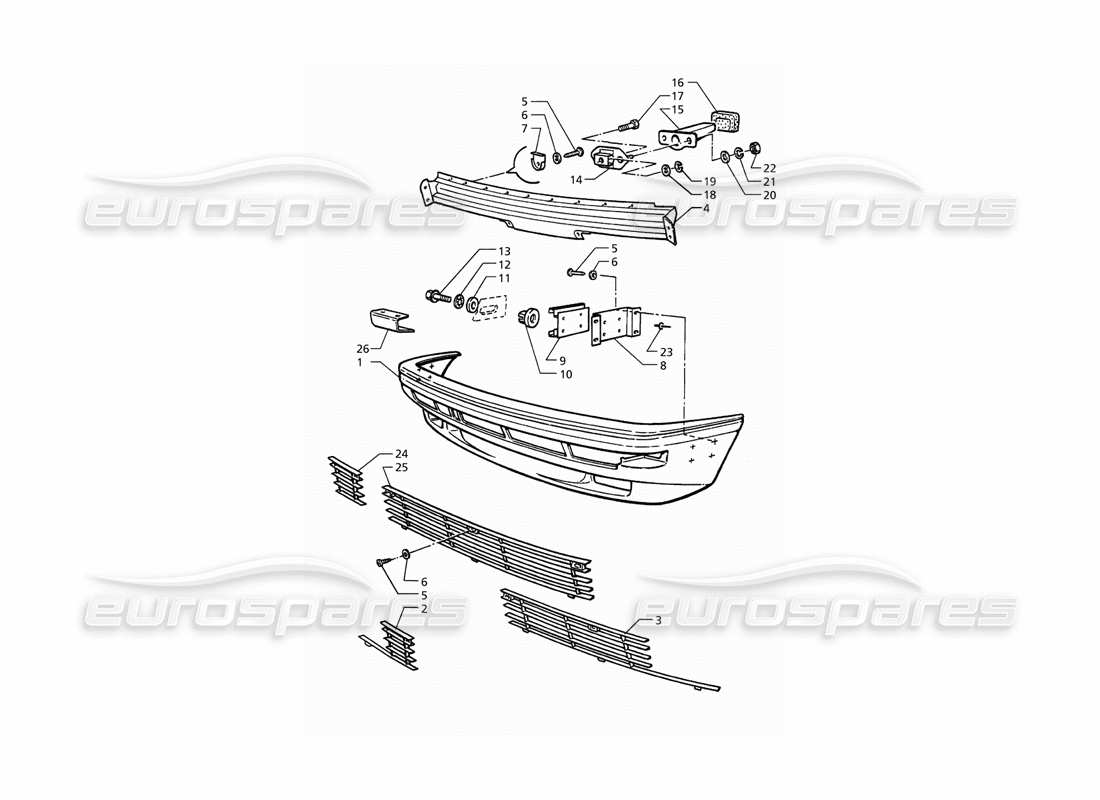

053 - FRONT BUMPER
Maserati QTP. 3.2 V8 (1999) Front Bumper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 376300102
FRONT BUMPER
Supersession
Supersession
# 002
MPN: 376300344
ALUMINIUM TOW HITCH FLAP
Pre modification
Supersession
Supersession
# 003
MPN: 376300342
CENTRE ALUMINIUM GRILL
Pre modification
Supersession
Supersession
# 004
MPN: 376300120
REINFORCEMENT CROSS MEMBER
Supersession
Supersession
# 005
MPN: 119139160
SCREW
# 006
MPN: 135000043
WASHER
from £1.09
from £1.09
# 007
MPN: 366300381
SPECIAL WASHER
from £1.40
from £1.40
# 008
MPN: 376300356
RAIL SUPPORT
from £7.03
from £7.03
# 009
MPN: 316353353
RAIL
from £8.73
from £8.73
# 010
MPN: 316353127
BUMPER SECURING ROLLER
from £1.09
from £1.09
# 011
MPN: 136110090
FLAT WASHER
from £1.09
from £1.09
# 012
MPN: 135300084
SPRING WASHER
# 013
MPN: 100708030
SCREW
# 014
MPN: 396350117
BRACKET
Supersession
Supersession
# 015
MPN: 376300124
BRACKET
from £6.77
from £6.77
# 016
MPN: 316351322
GASKET
from £1.95
from £1.95
# 017
MPN: 101210025
SCREW
# 018
MPN: 136110110
WASHER
from £2.18
from £2.18
# 019
MPN: 135300105
SPRING WASHER
# 020
MPN: 135300084
WASHER
# 021
MPN: 169020508
WASHER
# 022
MPN: 125100080
NUT
from £0.86
from £0.86
# 023
MPN: 164323308
RIVET
# 024
MPN: 376300348
ABS TOW HITCH FLAP
Post modification (interchangeable with pre modification if fitted in pairs)
from £99.75
from £99.75
This part replaces part number 376300344
# 025
MPN: 376300346
CENTRE ABS GRILL
Post modification (interchangeable with pre modification if fitted in pairs)
from £676.69
from £676.69
This part replaces part number 376300342
# 026
MPN: 376300357
LH FOGLAMP BRACKET
Supersession
Supersession
# 026
MPN: 376300358
RH FOGLAMP BRACKET
Supersession
Supersession
