065.1 - Inner Trims: Rear Door Panels

Maserati QTP. 3.2 V8 (1999) Inner Trims: Rear Door Panels Parts Diagram

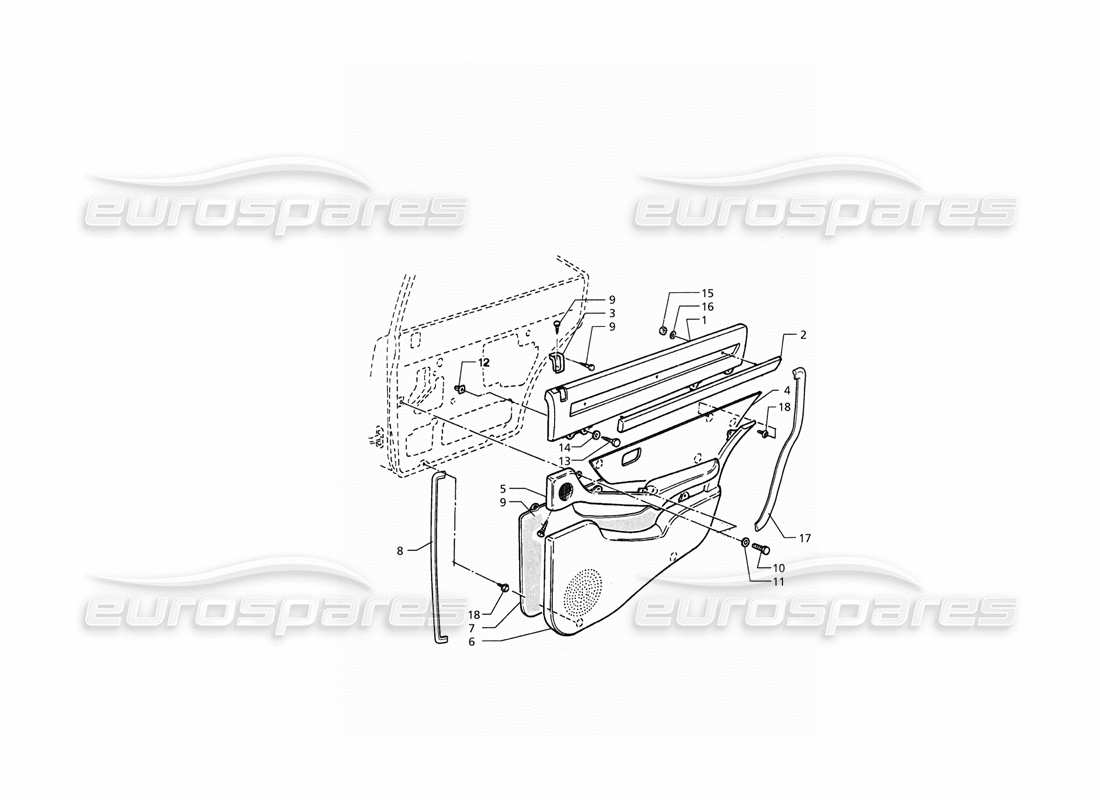

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 378951153
                              UPP. LH PANEL (MAGNOLIA LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 378951154
                              UPP. RH PANEL (MAGNOLIA LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 379151153
                              UPP. LH PANEL (BEIGE LEATHER)
                              from £377.82
                              from £377.82
                              # 001
                              MPN: 379151154
                              UPP. RH PANEL (BEIGE LEATHER)
                              from £127.87
                              from £127.87
                              # 001
                              MPN: 379351153
                              UPP. LH PANEL (BLUE LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 379351154
                              UPP. RH PANEL (BLUE LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 379451153
                              UPP. LH PANEL (GREEN LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 379451154
                              UPP. RH PANEL (GREEN LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 379551153
                              UPP. LH PANEL (GREY LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 379551154
                              UPP. RH PANEL (GREY LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 379951153
                              UPP. LH PANEL (BLACK LEATHER)
                              from £367.86
                              from £367.86
                              # 001
                              MPN: 379951154
                              UPP. RH PANEL (BLACK LEATHER)
                              from £367.86
                              from £367.86
                              # 002
                              MPN: 378300215
                              LH BRIERWOOD FINISHER
                              from £73.10
                              from £73.10
                              # 002
                              MPN: 378300216
                              RH BRIERWOOD FINISHER
                              from £75.62
                              from £75.62
                              # 003
                              MPN: 328350389
                              Finisher
                              from £1.08
                              from £1.08
                              # 004
                              MPN: 378951163
                              LH FINISHER (MAGNOLIA ALCANT.)
                              from £20.53
                              from £20.53
                              # 004
                              MPN: 378951164
                              R..H. FINISHER (MAGNOLIA ALCANT.)
                              from £20.53
                              from £20.53
                              # 004
                              MPN: 379151163
                              LH FINISHER (BEIGE ALCANT.)
                              from £14.64
                              from £14.64
                              # 004
                              MPN: 379151164
                              RH FINISHER (BEIGE ALCANT.)
                              from £14.64
                              from £14.64
                              # 004
                              MPN: 379351163
                              LH FINISHER (BLUE ALCANT.)
                              from £14.64
                              from £14.64
                              # 004
                              MPN: 379351164
                              RH FINISHER (BLUE ALCANT.)
                              from £12.11
                              from £12.11
                              # 004
                              MPN: 379451163
                              LH FINISHER (GREEN ALCANT.)
                              from £14.64
                              from £14.64
                              # 004
                              MPN: 379451164
                              RH FINISHER (GREEN ALCANT.)
                              from £14.64
                              from £14.64
                              # 004
                              MPN: 379551163
                              LH FINISHER (LIGHT GREY ALCANT.)
                              from £11.34
                              from £11.34
                              # 004
                              MPN: 379551164
                              RH FINISHER (LIGHT GREY ALCANT.)
                              from £11.34
                              from £11.34
                              # 004
                              MPN: 379551663
                              LH FINISHER (DARK GREY ALCANT.)
                              from £43.83
                              from £43.83
                              # 004
                              MPN: 379551664
                              RH FINISHER (DARK GREY ALCANT.)
                              from £14.64
                              from £14.64
                              # 005
                              MPN: 378951171
                              LH HANDLE (MAGNOLIA LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 378951172
                              RH HANDLE (MAGNOLIA LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379151171
                              LH HANDLE (BEIGE LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379151172
                              RH HANDLE (BEIGE LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379351171
                              LH HANDLE (BLUE LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379351172
                              RH HANDLE (BLUE LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379451171
                              LH HANDLE (GREEN LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379451172
                              RH HANDLE (GREEN LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379551171
                              LH HANDLE (GREY LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379551172
                              RH HANDLE (GREY LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379951171
                              LH HANDLE (BLACK LEATHER)
                              from £207.04
                              from £207.04
                              # 005
                              MPN: 379951172
                              RH HANDLE (BLACK LEATHER)
                              from £207.04
                              from £207.04
                              # 006
                              MPN: 378951157
                              LH POCKET (MAGNOLIA LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 378951158
                              RH POCKET (MAGNOLIA LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379151157
                              LH POCKET (BEIGE LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379151158
                              RH POCKET (BEIGE LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379351157
                              LH POCKET (BLUE LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379351158
                              RH POCKET (BLUE LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379451157
                              LH POCKET (GREEN LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379451158
                              RH POCKET (GREEN LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379551157
                              LH POCKET (GREY LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379551158
                              RH POCKET (GREY LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379951157
                              LH POCKET (BLACK LEATHER)
                              from £288.69
                              from £288.69
                              # 006
                              MPN: 379951158
                              RH POCKET (BLACK LEATHER)
                              from £288.69
                              from £288.69
                              # 007
                              MPN: 378951167
                              BOTTOM LH PANEL (MAGNOLIA LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 378951168
                              BOTTOM RH PANEL (MAGNOLIA LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379151167
                              BOTTOM LH PANEL (BEIGE LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379151168
                              BOTTOM RH PANEL (BEIGE LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379351167
                              BOTTOM LH PANEL (BLUE LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379351168
                              BOTTOM RH PANEL (BLUE LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379451167
                              BOTTOM LH PANEL (GREEN LEATHER)
                              from £52.79
                              from £52.79
                              # 007
                              MPN: 379451168
                              BOTTOM RH PANEL (GREEN LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379551167
                              BOTTOM LH PANEL (GREY LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379551168
                              BOTTOM RH PANEL (GREY LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379951167
                              BOTTOM LH PANEL (BLACK LEATHER)
                              from £51.25
                              from £51.25
                              # 007
                              MPN: 379951168
                              BOTTOM RH PANEL (BLACK LEATHER)
                              from £51.25
                              from £51.25
                              # 008
                              MPN: 378951181
                              FRONT LINING STRIP (MAGNOLIA LEATHER)
                              from £10.55
                              from £10.55
                              # 008
                              MPN: 379151181
                              FRONT LINING STRIP (BEIGE LEATHER)
                              from £3.65
                              from £3.65
                              # 008
                              MPN: 379351181
                              FRONT LINING STRIP (BLUE LEATHER)
                              from £10.55
                              from £10.55
                              # 008
                              MPN: 379451181
                              FRONT LINING STRIP (GREEN LEATHER)
                              from £12.27
                              from £12.27
                              # 008
                              MPN: 379551181
                              FRONT LINING STRIP (GREY LEATHER)
                              from £10.55
                              from £10.55
                              # 008
                              MPN: 379951181
                              FRONT LINING STRIP (BLACK LEATHER)
                              from £10.55
                              from £10.55
                              # 009
                              MPN: 119942190
                              SELF THREADING SCREW
                              # 012
                              MPN: 318320341
                              NUT SCREW
                              - As necessary
                              from £0.70
                              from £0.70
                              This part replaces part number 14229280
                              # 013
                              MPN: 119942220
                              SCREW
                              - As necessary
                              # 014
                              MPN: 135900064
                              WASHER
                              - As necessary
                              from £0.47
                              from £0.47
                              # 015
                              MPN: 125100050
                              NUT
                              from £0.69
                              from £0.69
                              # 016
                              MPN: 135300054
                              WASHER
                              # 017
                              MPN: 378951182
                              REAR LINING STRIP (MAGNOLIA LEATHER)
                              from £9.23
                              from £9.23
                              # 017
                              MPN: 379151182
                              REAR LINING STRIP (BEIGE LEATHER)
                              from £3.26
                              from £3.26
                              # 017
                              MPN: 379351182
                              REAR LINING STRIP (BLUE LEATHER)
                              from £9.23
                              from £9.23
                              # 017
                              MPN: 379451182
                              REAR LINING STRIP (GREEN LEATHER)
                              from £11.02
                              from £11.02
                              # 017
                              MPN: 379551181
                              REAR LINING STRIP (GREY LEATHER)
                              from £10.55
                              from £10.55
                              # 017
                              MPN: 379951181
                              REAR LINING STRIP (BLACK LEATHER)
                              from £10.55
                              from £10.55
                              # 018
                              MPN: 57552910
                              CLIP
                              - As necessary
                              from £1.08
                              from £1.08
