070 - Passenger Compartment Ventilation

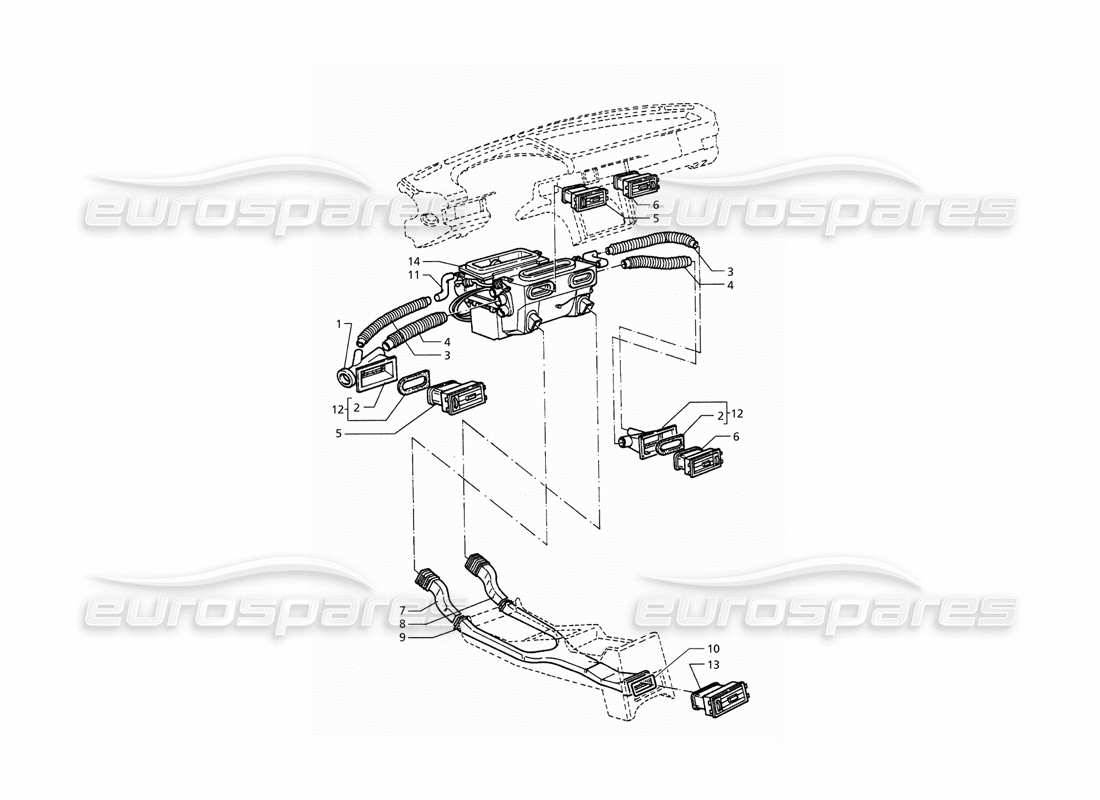

Maserati QTP. 3.2 V8 (1999) Passenger Compartment Ventilation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 315520318
                            OUTER WEATHERSTRIP
                            from £0.71
                            from £0.71
                            # 002
                            MPN: 365500317
                            INNER WEATHERSTRIP
                            from £0.71
                            from £0.71
                            # 003
                            MPN: 315520314
                            DOOR VENTILATION DUCT
                            from £35.64
                            from £35.64
                            # 004
                            MPN: 315520316
                            DASHBOARD VENTILATION DUCT
                            from £42.08
                            from £42.08
                            # 005
                            MPN: 365500013
                            LH DASHBOARD DIFFUSER
                            from £25.86
                            from £25.86
                            # 006
                            MPN: 365500014
                            RH DASHBOARD DIFFUSER
                            from £25.86
                            from £25.86
                            # 007
                            MPN: 315520325
                            FRONT LH CONSOLE DUCT
                            from £2.88
                            from £2.88
                            # 008
                            MPN: 315520326
                            FRONT RH CONSOLE DUCT
                            from £2.88
                            from £2.88
                            # 009
                            MPN: 315520113
                            REAR CONSOLE DUCT
                            from £12.79
                            from £12.79
                            # 010
                            MPN: 315520329
                            GASKET
                            from £0.71
                            from £0.71
                            # 011
                            MPN: 315520313
                            LH DOOR VENTILATION SLEEVE
                            from £3.04
                            from £3.04
                            # 012
                            MPN: 365500110
                            AIR DUCT
                            Supersession
                            Supersession
                            This part replaces part number 315520110
                            # 013
                            MPN: 315553020
                            CONSOLE DIFFUSER (ANTHRACITE GREY)
                            from £11.52
                            from £11.52
                            This part replaces part number 315550020
                            # 014
                            MPN: 315551005
                            COMPLETE AIR CONDITIONER ASSY
                            - Valid for 06, 05 and 00 version - for system with Freon
                            from £931.67
                            from £931.67
                            # 014
                            MPN: 375501005
                            COMPLETE AIR CONDITIONER ASSY
                            - Valid for 06, 05 and 00 version - For system with R134A gas
                            from £1,215.94
                            from £1,215.94
                            This part replaces part number 375500005
                            # 014
                            MPN: 375515005
                            COMPLETE AIR CONDITIONER ASSY
                            - Valid for 20, 19 version - For system with R134A gas
                            from £1,054.93
                            from £1,054.93
