maserati qtp v6 (1996) crankshaft, pistons, conrods & flywheel parts diagram

005 - Crankshaft, Pistons, Conrods & Flywheel

Maserati QTP V6 (1996) Crankshaft, Pistons, Conrods & Flywheel Parts Diagram

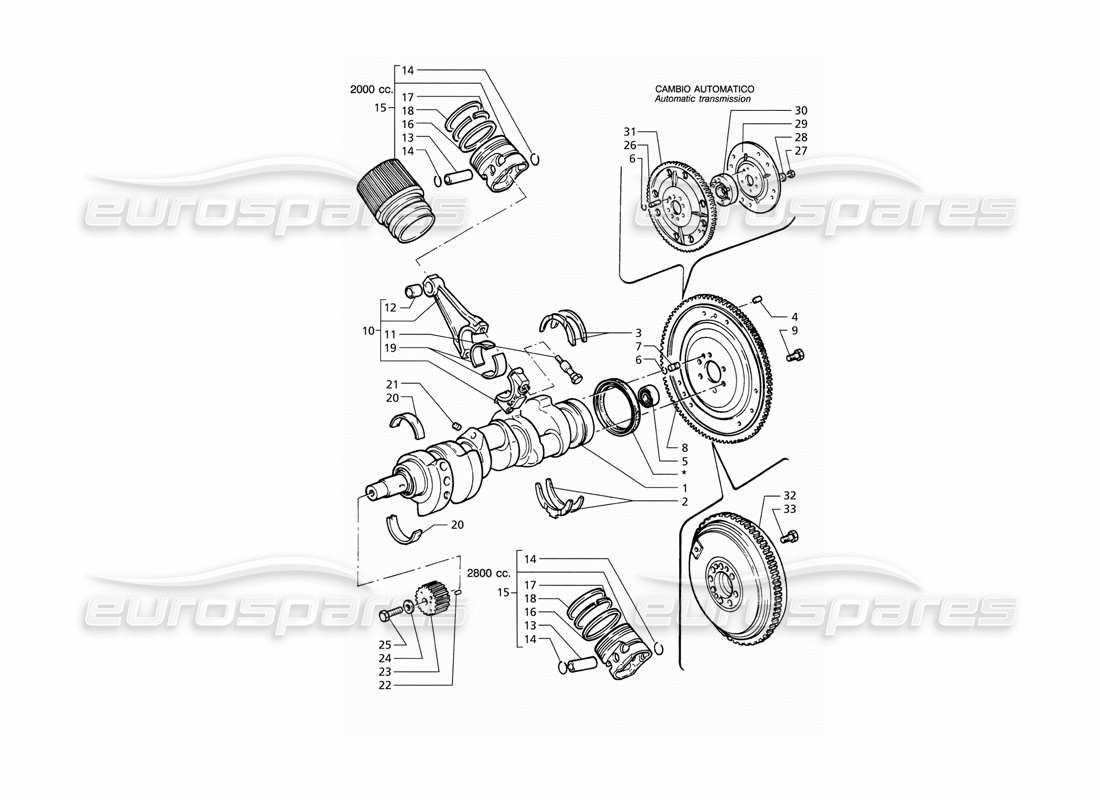

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 580988000
                crankshaft
                - Valid for 2.0 M.T. version
                from £3,553.04
                from £3,553.04
                This part replaces part number 571028900
                COMPLETE CRANKSHAFT 2000 6C. AND Genuine Maserati Part - New (to order)
                # 001
                MPN: 581988000
                crankshaft
                - Valid for 2.8 M.T. version
                Supersession
                Supersession
                This part replaces part number 340802002 - and 1 more. Click to view details
                Genuine Maserati Part (no longer available to order)
                # 001
                MPN: 581988010
                crankshaft
                - Valid for 2.8 A.T. version
                Supersession
                Supersession
                This part replaces part number 477028901 - and 1 more. Click to view details
                Genuine Maserati Part (no longer available to order)
                # 002
                MPN: 479021702
                LOWER SHIM RING, CL. A
                -Thrust bearing- Class A-
                from £7.16
                from £7.16
                This part replaces part number 310820305 - and 2 more. Click to view details
                LOWER SHIMMING HALF RING,CL.A=2.3 Genuine Maserati Part - New (to order)
                # 003
                MPN: 479021302
                UPPER SHIM RING, CL. A
                -Thrust bearing- Class A-
                from £7.16
                from £7.16
                This part replaces part number 310820310 - and 1 more. Click to view details
                UPPER SHIMMING HALF RING,CL. C=2. Genuine Maserati Part - New (to order)
                # 004
                MPN: 311453303
                DOWEL
                - Valid for 2.0 M.T. and 2.8 M.T. version
                from £9.99
                from £9.99
                CENTRING DOWEL D.8X6X18 Genuine Maserati Part - New In stock
                # 005
                MPN: 178003015
                BEARING
                - Valid for 2.0 M.T. and 2.8 M.T. version
                from £15.39
                from £15.39
                BEARING D.15X42X13 Genuine Maserati Part - New In stock
                # 006
                MPN: 310820302
                RETAINING RING
                from £1.08
                from £1.08
                STOP RING D.8.5 Genuine Maserati Part - New (to order)
                # 007
                MPN: 310820301
                DOWEL
                from £2.85
                from £2.85
                CENTRING DOWEL D.10X17.5 Genuine Maserati Part - New In stock
                # 008
                MPN: 477022800
                FLYWHEEL ASSY
                - Valid for M.T. version (8 holes)
                from £198.76
                from £198.76
                8-HOLE ENGINE FLYWHEEL Genuine Maserati Part - New (to order)
                # 009
                MPN: 311420300
                BOLT
                - Valid for 2.0 M.T. version
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 010
                MPN: 340800004
                CONNECTING ROD, ASSY
                - Valid for 2.8 M.T. and 2.8 A.T. version - In the order, specify the weight (coloured sticker) - and the class stamped on conn. rod cap
                Maserati PART 340800004 Genuine Maserati Part - New (to order)
                # 010
                MPN: 479023300
                CONNECTING ROD, ASSY
                See also 479023302
                from £57.34
                from £57.34
                Genuine Maserati Part (no longer available to order)

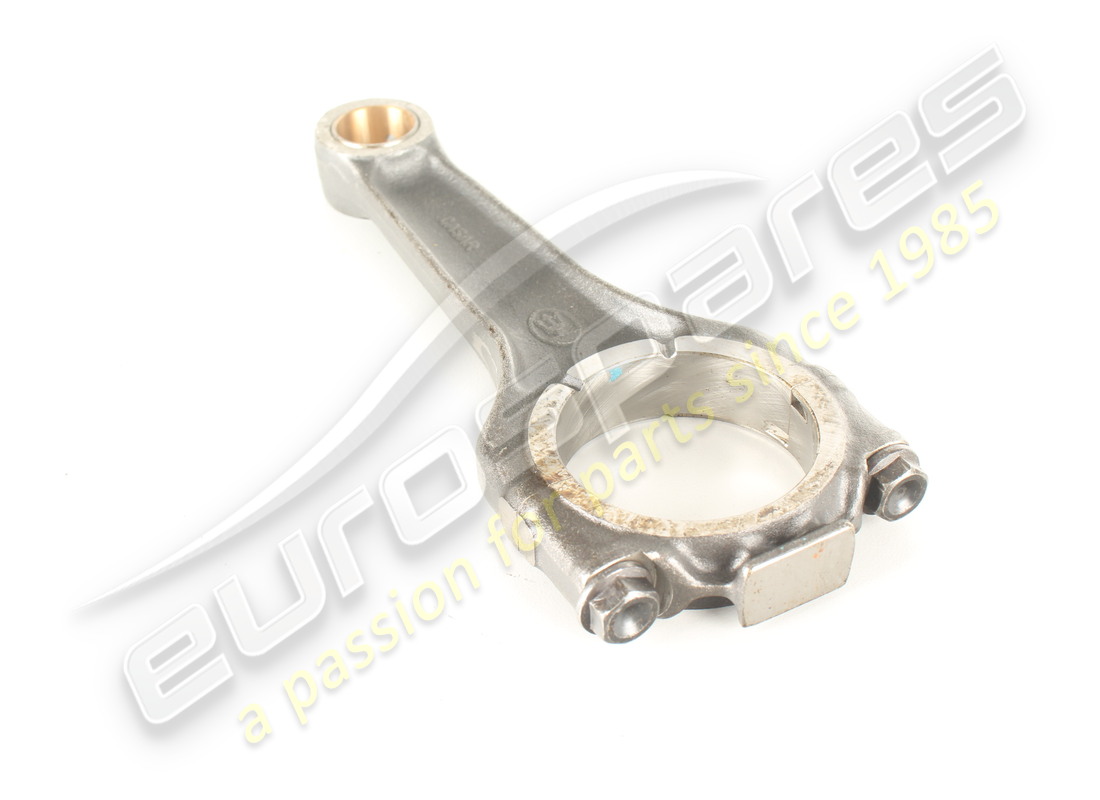

                CONNECTING ROD Genuine Maserati Part - New (other) In stock
                White Colour
                # 010
                MPN: 479023302
                CONNECTING ROD, ASSY
                - Valid for 2.0 M.T. version - In the order, specify the weight (coloured sticker) - and the class stamped on conn. rod cap
                from £229.36
                from £229.36
                This part replaces part number 479023300 which we have in stock
                CONNECTING ROD Genuine Maserati Part - New (to order)
                # 011
                -
                SCREW
                - Not supplied separately
                # 012
                -
                BUSHING
                - Not supplied separately
                # 013
                -
                GUDGEON PIN
                - Not supplied separately
                # 014
                MPN: 311220312
                RETAINING RING
                - Valid for 2.0 M.T. version
                from £0.69
                from £0.69
                This part replaces part number 311225312
                RING Genuine Maserati Part - New In stock
                # 014
                MPN: 341200312
                RETAINING RING
                - Valid for 2.8 M.T. and 2.8 A.T. version
                Maserati PART 341200312 Genuine Maserati Part - New (to order)
                # 015
                MPN: 571014900
                LINER AND PISTON ASSY
                - Valid for 2.0 M.T. version
                from £913.68
                from £913.68
                This part replaces part number 496014900
                ASS.PISTONE+CANNA TECNOL(24V Genuine Maserati Part - New (to order)
                # 015
                MPN: 588025300
                PISTON WITH RINGS
                from £231.49
                from £231.49
                This part replaces part number 477025302
                COMPLETE PISTON Genuine Maserati Part - New (to order)
                # 016
                MPN: 477022600
                OIL SCRAPER
                from £30.43
                from £30.43
                This part replaces part number 341200327
                OIL SCRAPER,BORGO S7709400004 Genuine Maserati Part - New (to order)
                # 016
                MPN: 571022600
                OIL SCRAPER
                - Valid for 2.0 M.T. version
                from £10.48
                from £10.48
                This part replaces part number 311220102 - and 1 more. Click to view details
                RASCHIAOLIO X PIST.D.82 Genuine Maserati Part - New (to order)
                # 017
                MPN: 341200328
                LOWER PISTON RING
                - Valid for 2.8 M.T. and 2.8 A.T. version
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 017
                MPN: 490022501
                LOWER PISTON RING
                - Valid for 2.0 M.T. version
                from £10.01
                from £10.01
                LOWER SEALING SEGMENT Genuine Maserati Part - New (to order)
                # 018
                MPN: 477022401
                UPPER PISTON RING
                - Valid for 2.8 M.T. and 2.8 A.T. version
                from £5.08
                from £5.08
                This part replaces part number 477022400
                UPPER SEGMENT Genuine Maserati Part - New In stock
                # 018
                MPN: 571022400
                UPPER PISTON RING
                - Valid for 2.0 M.T. version
                from £11.79
                from £11.79
                This part replaces part number 490022401
                UPPER SEALING SEGMENT Genuine Maserati Part - New (to order)
                # 019
                MPN: 452020901
                STANDARD BIG END BEARING
                - Valid for 2.8 M.T. and 2.8 A.T. version
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 019
                MPN: 452020901/A
                STANDARD CON ROD BEARING (COMPLETE SET)
                from £953.40
                from £953.40
                This part replaces part number 452020901
                STANDARD CON ROD BEARING (COMPLETE SET) Genuine Maserati Part - New (to order)
                STANDARD CON ROD BEARING (COMPLETE SET) Eurospares Approved Part - New In stock
                # 019
                MPN: 479020900
                STANDARD BIG END BEARING
                - Valid for 2.0 M.T. version
                from £82.15
                from £82.15
                CONNECTING ROD BEARING CLASS A Genuine Maserati Part - New (to order)
                CON ROD BEARINGS SET STD Eurospares Approved Part - New In stock
                # 020
                MPN: 479020201
                STANDARD MAIN BEARING
                from £76.47
                from £76.47
                This part replaces part number 479020301
                BRONZINA DI BANCO CLASSE NEU Genuine Maserati Part - New (to order)
                MAIN BEARINGS SET STD Eurospares Approved Part - New In stock
                # 021
                MPN: 310820300
                CRANKSHAFT OIL PLUG
                Maserati PART 310820300 Genuine Maserati Part - New (to order)
                # 022
                MPN: 311020324
                DOWEL
                use : 470023100
                from £1.79
                from £1.79
                STUD Genuine Maserati Part - New In stock
                # 023
                MPN: 475024900
                TOOTHED PULLEY
                from £21.49
                from £21.49
                This part replaces part number 465024901
                CRANKSHAFT FRONT PULLEY Genuine Maserati Part - New (to order)
                # 024
                MPN: 311020308
                WASHER
                from £13.10
                from £13.10
                WASHER D9 12.25X28 Genuine Maserati Part - New (to order)
                # 026
                MPN: 314632302
                DOWEL
                - Valid for 2.8 A.T. version
                from £0.69
                from £0.69
                DOWEL Genuine Maserati Part - New (to order)
                # 027
                MPN: 314655301
                SCREW
                - Valid for 2.8 A.T. version
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 028
                MPN: 135200120
                WASHER
                - Valid for 2.8 M.T. version
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 029
                MPN: 574100201
                DRIVING DISC 8 SECURING HOLES
                - Valid for 2.8 A.T. version
                from £66.25
                from £66.25
                DRIVING DISC Genuine Maserati Part - New (to order)
                # 030
                MPN: 574100600
                FLANGE 8 SECURING HOLES
                - Valid for 2.8 A.T. version
                from £53.07
                from £53.07
                FLANGE Genuine Maserati Part - New (to order)
                # 031
                MPN: 574100500
                CROWN GEAR 8 SECURING HOLES
                - Valid for 2.8 A.T. version
                from £171.30
                from £171.30
                COMPLETE SPROCKET TO START Genuine Maserati Part - New (to order)
                COMPLETE SPROCKET TO START Genuine Maserati Part - Used In stock
                # 032
                MPN: 324662340
                FLYWHEEL ASSY
                - Valid for 2.8 M.T. version
                from £1,129.18
                from £1,129.18
                Maserati PART 324662340 Genuine Maserati Part - New (to order)
                # 033
                MPN: 324662342
                SCREW
                - Valid for 2.8 M.T. version
                from £3.63
                from £3.63
                V DAMPER FASTENING BOLT Genuine Maserati Part - New In stock
