007 - timing

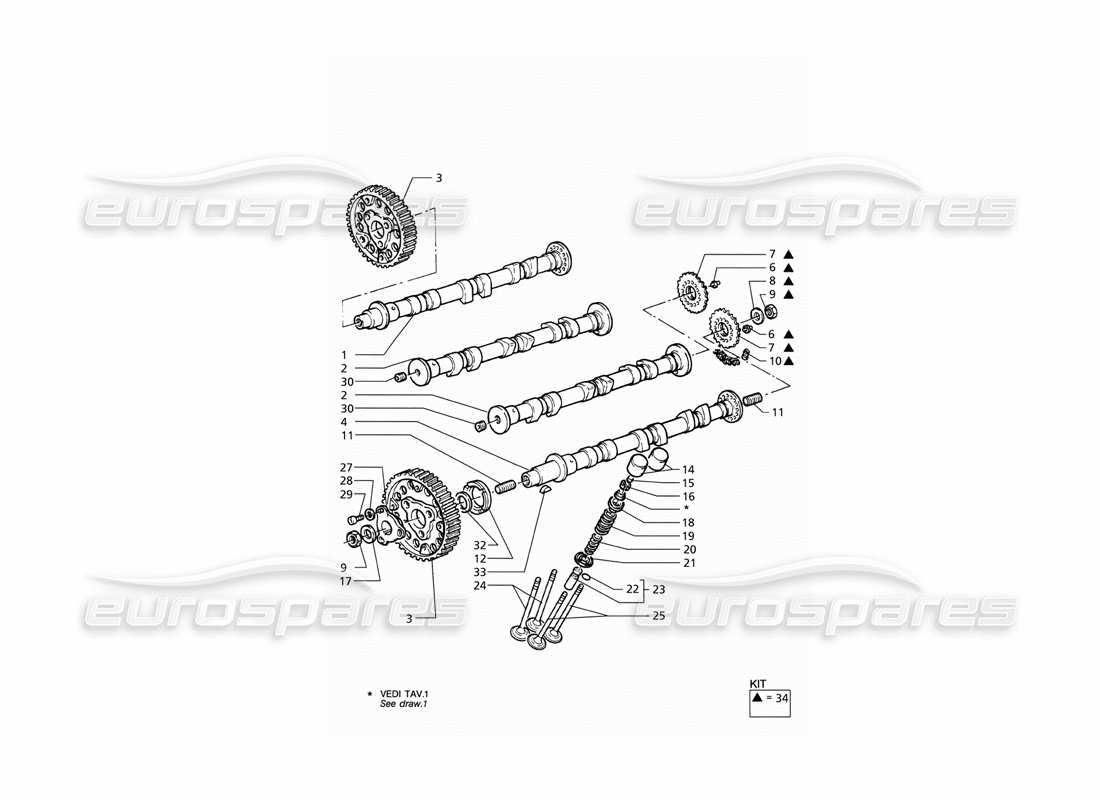

Maserati QTP V6 (1996) Timing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 311053116

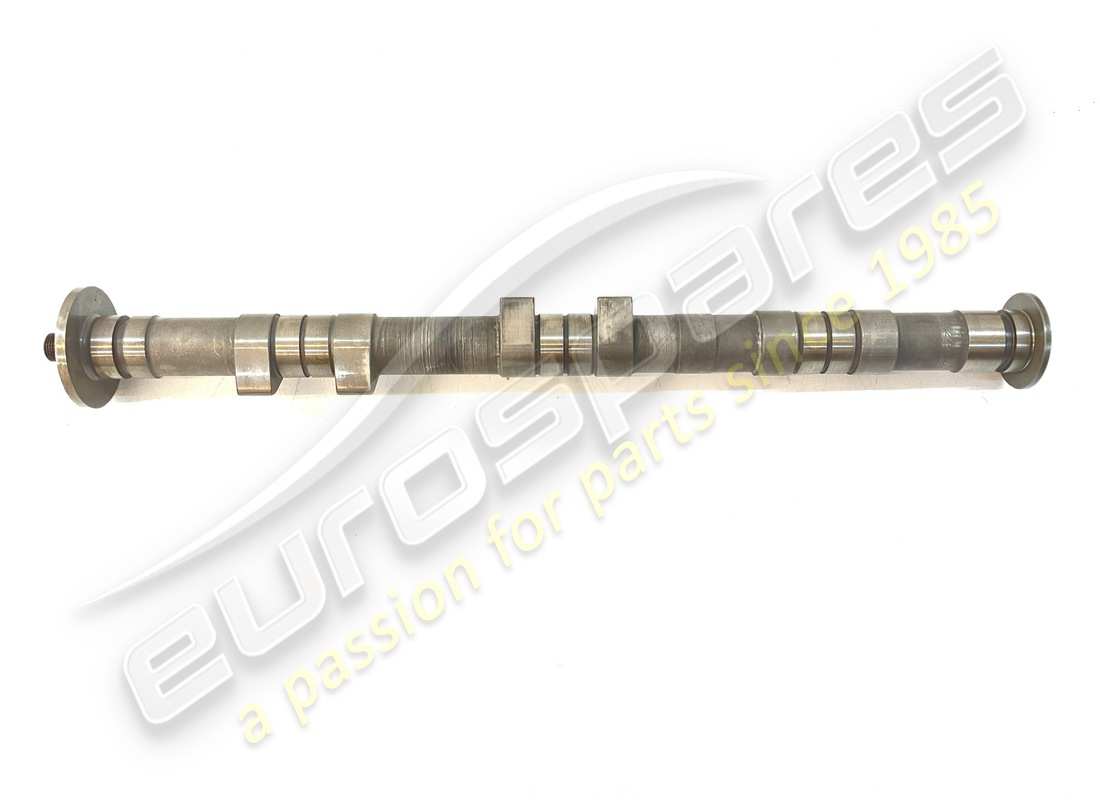

EXHAUST CAMSHAFT, RH HEAD ASSY
from £657.20
from £657.20
# 002
MPN: 311053118
INTAKE CAMSHAFT, ASSY
from £551.25
from £551.25
# 003
MPN: 580035400
PULLEY
from £60.09
from £60.09
# 004
MPN: 311053115
EXHAUST CAMSHAFT, LH HEAD ASSY
from £295.74
from £295.74
# 006
MPN: 311053308
DOWEL
from £12.23
from £12.23
This part replaces part number 475037900 - and 1 more. Click to view details
# 007
MPN: 311053450
PINION
Supersession
Supersession
# 008
MPN: 311053405
WASHER
# 009
MPN: 311053393
NUT
Supersession
Supersession
# 010
MPN: 311053377
CAM CONTROL CHAIN
Use : 310253062 chain kit
Supersession
Supersession
# 011
MPN: 311053402
STUD BOLT
Supersession
Supersession
# 012
MPN: 311053304
CENTERING RING
# 014
MPN: 311053330
VALVES CONTROL BOWL
# 015
MPN: 310620336
VALVE ADJUSTING PIN 2.850
# 015
MPN: 310620337
VALVE ADJUSTING PIN 2.900
# 015
MPN: 310620338
VALVE ADJUSTING PIN 2.950
# 015
MPN: 310620339
VALVE ADJUSTING PIN 3.000
Supersession
Supersession
# 015
MPN: 310620340
VALVE ADJUSTING PIN 3.050
# 015
MPN: 310620341
VALVE ADJUSTING PIN 3.100
# 015
MPN: 310620342
VALVE ADJUSTING PIN 3.150
# 015
MPN: 310620343
VALVE ADJUSTING PIN 3.200
# 015
MPN: 310620344
VALVE ADJUSTING PIN 3.250
# 015
MPN: 310620345
VALVE ADJUSTING PIN 3.300
# 015
MPN: 310620346
VALVE ADJUSTING PIN 3.350
# 015
MPN: 310620347
VALVE ADJUSTING PIN 3.400
# 015
MPN: 310620348
VALVE ADJUSTING PIN 3.450
# 015
MPN: 310620349
VALVE ADJUSTING PIN 3.500
# 015
MPN: 310620350
VALVE ADJUSTING PIN 3.550
# 015
MPN: 310620351
VALVE ADJUSTING PIN 3.600
# 015
MPN: 310620352
VALVE ADJUSTING PIN 4.000
# 015
MPN: 310620373
VALVE ADJUSTING PIN 3.650
# 015
MPN: 310620374
VALVE ADJUSTING PIN 3.700
# 015
MPN: 310620375
VALVE ADJUSTING PIN 3.750
# 015
MPN: 310620376
VALVE ADJUSTING PIN 3.800
from £2.12
from £2.12
# 015
MPN: 310620377
VALVE ADJUSTING PIN 3.850
from £1.65
from £1.65
# 015
MPN: 310620378
VALVE ADJUSTING PIN 3.900
# 015
MPN: 310620379
VALVE ADJUSTING PIN 3.950
# 015
MPN: 310620380
VALVE ADJUSTING PIN 2.125
from £11.07
from £11.07
# 015
MPN: 310620381
VALVE ADJUSTING PIN 2.175
from £2.33
from £2.33
# 015
MPN: 310620382
VALVE ADJUSTING PIN 2.225
from £0.83
from £0.83
# 015
MPN: 310620383
VALVE ADJUSTING PIN 2.275
from £3.08
from £3.08
# 015
MPN: 310620384
VALVE ADJUSTING PIN 2.325
# 015
MPN: 310620385
VALVE ADJUSTING PIN 2.375
# 015
MPN: 310620386
VALVE ADJUSTING PIN 2.425
from £1.31
from £1.31
# 015
MPN: 310620387
VALVE ADJUSTING PIN 2.475
# 015
MPN: 310620388
VALVE ADJUSTING PIN 2.525
# 015
MPN: 310620389
VALVE ADJUSTING PIN 2.575
# 015
MPN: 310620390
VALVE ADJUSTING PIN 2.625
# 015
MPN: 310620391
VALVE ADJUSTING PIN 2.675
# 015
MPN: 310620392
VALVE ADJUSTING PIN 2.725
# 015
MPN: 310620393
VALVE ADJUSTING PIN 2.775
# 015
MPN: 310620395
VALVE ADJUSTING PIN 2.875
# 015
MPN: 310620396
VALVE ADJUSTING PIN 2.925
# 015
MPN: 310620397
VALVE ADJUSTING PIN 2.975
# 015
MPN: 310620398
VALVE ADJUSTING PIN 3.025
# 015
MPN: 310620399
VALVE ADJUSTING PIN 3.075
# 015
MPN: 310620400
VALVE ADJUSTING PIN 3.125
# 015
MPN: 310620401
VALVE ADJUSTING PIN 3.175
# 015
MPN: 310620402
VALVE ADJUSTING PIN 3.225
# 015
MPN: 310620403
VALVE ADJUSTING PIN 3.275
# 015
MPN: 310620404
VALVE ADJUSTING PIN 3.325
# 015
MPN: 310620405
VALVE ADJUSTING PIN 3.375
# 015
MPN: 452032964
VALVE ADJUSTING PIN 2.825
from £3.90
from £3.90
# 016
MPN: 571032500
HALF CONE FOR VALVES
from £0.41
from £0.41
This part replaces part number 578032500 - and 1 more. Click to view details
# 017
MPN: 312453314
WASHER
# 018
MPN: 571032100
UPPER PLATE
from £52.78
from £52.78
# 019
MPN: 310653356
EXTERNAL VALVE SPRING
# 020
MPN: 310653358
INTERNAL VALVE SPRING
# 021
MPN: 475032200
LOWER PLATE
from £2.08
from £2.08
# 022
MPN: 310620314
STOP RING
from £0.76
from £0.76
# 023
MPN: 310653010

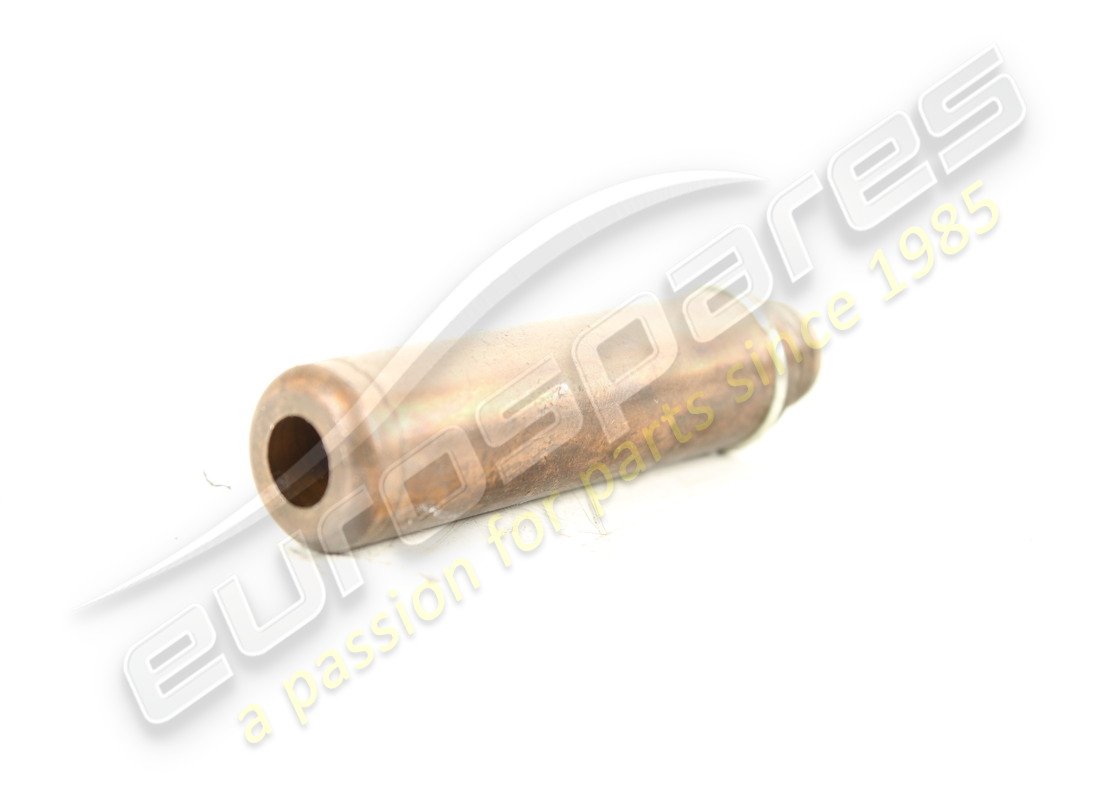

INLET VALVE GUIDE WITH RING
# 023
MPN: 490007000
EXHAUST VALVE GUIDE WITH RING
from £66.26
from £66.26
This part replaces part number 475007000
# 024
MPN: 571031900

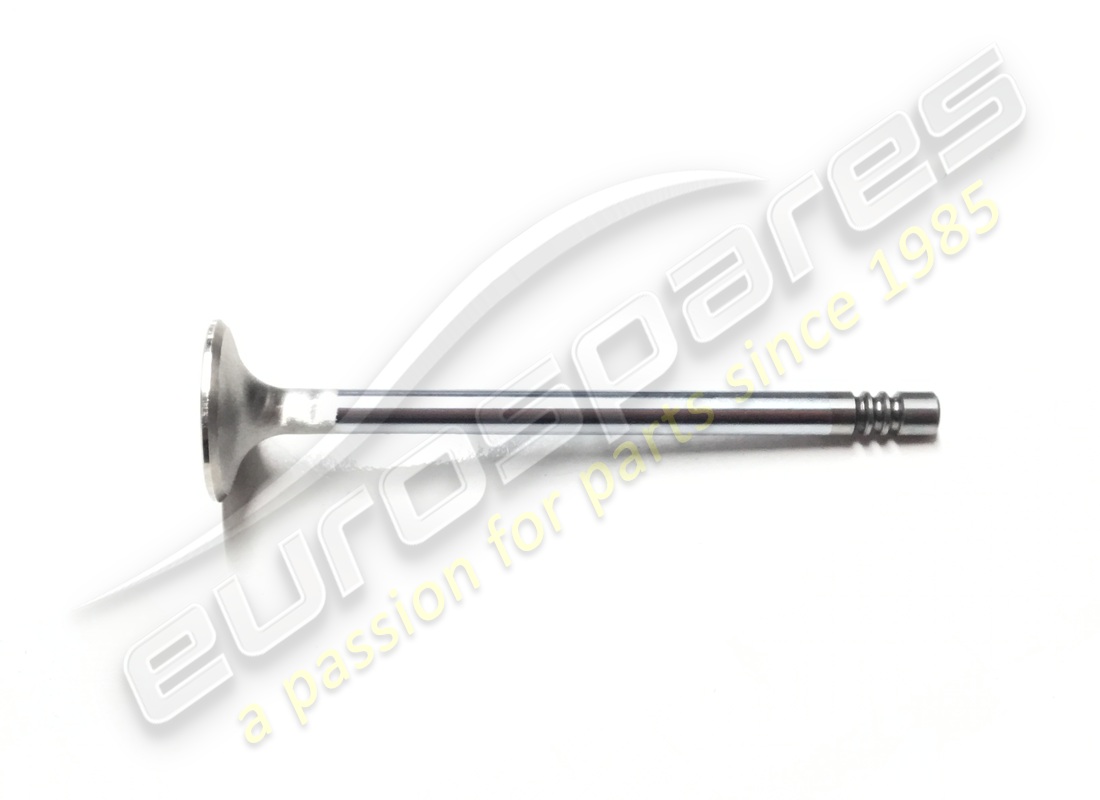

INLET VALVE
3 grooves type
from £52.18
from £52.18
# 025
MPN: 571032000
EXHAUST VALVE
from £52.18
from £52.18
# 028
MPN: 312220411
WASHER
from £0.71
from £0.71
# 029
MPN: 311053394
SCREW
Supersession
Supersession
# 030
MPN: 311053392
PLUG
from £0.80
from £0.80
# 032
MPN: 311053314
SHIM WASHER
from £9.71
from £9.71
# 033
MPN: 311053460
WOODRUFF KEY
from £0.74
from £0.74
# 034
MPN: 310253062
TIMING SYSTEM CHAINS SET
from £924.56
from £924.56
-part-diagram-008.webp "MASERATI QTP V6 (1996) TIMING CONTROL AND COVERS PARTS DIAGRAM")
-part-diagram-008.1.webp "MASERATI QTP V6 (1996) TIMING: HYDRAULIC TENSIONER PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI QTP V6 (1996) OIL PUMP AND WATER PUMP PARTS DIAGRAM")
-part-diagram-009.1.webp "MASERATI QTP V6 (1996) ENGINE OIL COOLING PARTS DIAGRAM")
-part-diagram-010gd.webp "MASERATI QTP V6 (1996) INTAKE MANIFOLD THROTTLE VALVE BODY (RHD) PARTS DIAGRAM")
-part-diagram-010gs.webp "MASERATI QTP V6 (1996) INTAKE MANIFOLD THROTTLE VALVE BODY (LHD) PARTS DIAGRAM")
-part-diagram-011gd.webp "MASERATI QTP V6 (1996) VACUUM SYSTEM (RHD) PARTS DIAGRAM")
-part-diagram-011gs.webp "MASERATI QTP V6 (1996) VACUUM SYSTEM (LHD) PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI QTP V6 (1996) LUBRICATION OF TURBOBLOWERS AND EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-012.1gd.webp "MASERATI QTP V6 (1996) ENGINE COOLING AND CABIN HEATING SYSTEM (RHD) PARTS DIAGRAM")
-part-diagram-012.1gs.webp "MASERATI QTP V6 (1996) ENGINE COOLING AND CABIN HEATING SYSTEM (LHD) PARTS DIAGRAM")
-part-diagram-012.2.webp "MASERATI QTP V6 (1996) BOOST CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-012.3.webp "MASERATI QTP V6 (1996) POP OFF VALVE SYSTEM PARTS DIAGRAM")
-part-diagram-013gd.webp "MASERATI QTP V6 (1996) INJECTION SYSTEM ACCESSORIES (RHD) PARTS DIAGRAM")
-part-diagram-013gs.webp "MASERATI QTP V6 (1996) INJECTION SYSTEM ACCESSORIES (LHD) PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI QTP V6 (1996) AIR FILTER AND DUCTS PARTS DIAGRAM")
-part-diagram-014.1.webp "MASERATI QTP V6 (1996) OIL VAPOUR RECOVERY PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI QTP V6 (1996) HEAT EXCHANGER PIPES LH SIDE PARTS DIAGRAM")
-part-diagram-015.1.webp "MASERATI QTP V6 (1996) HEAT EXCHANGER PIPES RH SIDE PARTS DIAGRAM")
-part-diagram-016.1.webp "MASERATI QTP V6 (1996) IGNITION SYSTEM TIMING: SENSORS PARTS DIAGRAM")
-part-diagram-016gd.webp "MASERATI QTP V6 (1996) IGNITION SYSTEM (RHD) PARTS DIAGRAM")
-part-diagram-016gs.webp "MASERATI QTP V6 (1996) IGNITION SYSTEM (LHD) PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI QTP V6 (1996) DELCO ALTERNATOR PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI QTP V6 (1996) STARTING MOTOR PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI QTP V6 (1996) COOLING LINES AND THERMOSTAT PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI QTP V6 (1996) RADIATOR AND COOLING FANS PARTS DIAGRAM")
-part-diagram-021.1.webp "MASERATI QTP V6 (1996) AIR COMPRESSOR AND BRACKETS PARTS DIAGRAM")
-part-diagram-021gd.webp "MASERATI QTP V6 (1996) AIR CONDITIONING SYSTEM (RHD) PARTS DIAGRAM")
-part-diagram-021gs.webp "MASERATI QTP V6 (1996) AIR CONDITIONING SYSTEM (LHD) PARTS DIAGRAM")
-part-diagram-022gd.webp "MASERATI QTP V6 (1996) EVAPORATION VAPOURS RECOVERY SYSTEM AND FUEL PIPES (RHD) PARTS DIAGRAM")
-part-diagram-022gs.webp "MASERATI QTP V6 (1996) EVAPORATION VAPOURS RECOVERY SYSTEM AND FUEL PIPES (LHD) PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI QTP V6 (1996) FUEL TANK PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI QTP V6 (1996) FRONT EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-024.1.webp "MASERATI QTP V6 (1996) EXHAUST SYSTEM (ONLY JAPAN) PARTS DIAGRAM")
-part-diagram-024.2.webp "MASERATI QTP V6 (1996) REAR EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI QTP V6 (1996) CLUTCH PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI QTP V6 (1996) GETRAG MANUAL TRANSMISSION 6 SPEED PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI QTP V6 (1996) GETRAG TRANSMISSION 6 SPEED: OUTSIDE CONTROLS PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI QTP V6 (1996) AUTOMATIC TRANSMISSION CONVERTER (4HP) PARTS DIAGRAM")
-part-diagram-028.1.webp "MASERATI QTP V6 (1996) AUTOMATIC TRANSMISSION OUTSIDE CONTROLS PARTS DIAGRAM")
-part-diagram-028.2.webp "MASERATI QTP V6 (1996) AUTOMATIC TRANSMISSION (4HP) OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI QTP V6 (1996) PROPELLER SHAFT AND CARRIER PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI QTP V6 (1996) DIFFERENTIAL EXTERNAL PARTS PARTS DIAGRAM")
-part-diagram-030.1.webp "MASERATI QTP V6 (1996) DIFFERENTIAL INTERNAL PARTS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI QTP V6 (1996) STEERING WHEEL WITH AIRBAG PARTS DIAGRAM")
-part-diagram-031.1.webp "MASERATI QTP V6 (1996) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI QTP V6 (1996) STEERING BOX FRONT SUBFRAME PARTS DIAGRAM")
-part-diagram-033gd.webp "MASERATI QTP V6 (1996) POWER STEERING SYSTEM (RHD) PARTS DIAGRAM")
-part-diagram-033gs.webp "MASERATI QTP V6 (1996) POWER STEERING SYSTEM (LHD) PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI QTP V6 (1996) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-034.1.webp "MASERATI QTP V6 (1996) STALIBILIZER BAR PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI QTP V6 (1996) FRONT SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI QTP V6 (1996) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-036.1.webp "MASERATI QTP V6 (1996) REAR SUSPENSION PRE MODIFICATION AND ANTI ROLL BAR PARTS DIAGRAM")
-part-diagram-036.2.webp "MASERATI QTP V6 (1996) REAR SUSPENSION POST MODIFICATION AND ANTI ROLL BAR PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI QTP V6 (1996) REAR SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI QTP V6 (1996) HUBS AND FRONT BRAKES WITH A.B.S. PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI QTP V6 (1996) HUBS, REAR BRAKES WITH A.B.S. AND DRIVE SHAFTS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI QTP V6 (1996) HANDBRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041gd.webp "MASERATI QTP V6 (1996) PEDAL ASSY AND CLUTCH PUMP (RHD) PARTS DIAGRAM")
-part-diagram-041gs.webp "MASERATI QTP V6 (1996) PEDAL ASSY AND CLUTCH PUMP (LHD) PARTS DIAGRAM")
-part-diagram-042gd.webp "MASERATI QTP V6 (1996) ABS HYDRAULIC BRAKE LINES (RHD) PARTS DIAGRAM")
-part-diagram-042gs.webp "MASERATI QTP V6 (1996) ABS HYDRAULIC BRAKE LINES (LHD) PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI QTP V6 (1996) WHEELS RIMS PARTS DIAGRAM")
-part-diagram-044.1.webp "MASERATI QTP V6 (1996) BODY SHELL: FRONT PANEL AND INNER WHEELARCHES PARTS DIAGRAM")
-part-diagram-044gd.webp "MASERATI QTP V6 (1996) BODY SHELL: OUTER PANELS (RHD) PARTS DIAGRAM")
-part-diagram-044gs.webp "MASERATI QTP V6 (1996) BODY SHELL: OUTER PANELS (LHD) PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI QTP V6 (1996) BODY SHELL: SIDE PANELS PARTS DIAGRAM")
-part-diagram-045.1.webp "MASERATI QTP V6 (1996) BODY SHELL: REAR OUTER STRUCTURE PARTS DIAGRAM")
-part-diagram-045.2.webp "MASERATI QTP V6 (1996) BODY SHELL: BOOT FLOOR AND INNER STRUCTURES PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI QTP V6 (1996) BONNET: HINGES AND BONNET RELEASE PARTS DIAGRAM")
-part-diagram-046.1gd.webp "MASERATI QTP V6 (1996) BONNET AND ENGINE COMPARTMENT COVERS (RHD) PARTS DIAGRAM")
-part-diagram-046.1gs.webp "MASERATI QTP V6 (1996) BONNET AND ENGINE COMPARTMENT COVERS (LHD) PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI QTP V6 (1996) BOOT LID: HINGES, BOOT LID RELEASE PARTS DIAGRAM")
-part-diagram-047.1.webp "MASERATI QTP V6 (1996) BOOT: CARPETS PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI QTP V6 (1996) TOOLS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI QTP V6 (1996) FRONT DOORS: HINGES AND INNER CONTROLS PARTS DIAGRAM")
-part-diagram-049.1.webp "MASERATI QTP V6 (1996) REAR DOORS: HINGES AND INNER CONTROLS PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI QTP V6 (1996) FRONT DOORS: WINDOWS AND REGULATORS PARTS DIAGRAM")
-part-diagram-050.1.webp "MASERATI QTP V6 (1996) REAR DOORS: WINDOWS AND REGULATORS PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI QTP V6 (1996) FIXED WINDOWS PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI QTP V6 (1996) EXTERNAL FINISHING BADGES PARTS DIAGRAM")
-part-diagram-052.1.webp "MASERATI QTP V6 (1996) EXTERNAL SEALS PARTS DIAGRAM")
-part-diagram-053.webp "MASERATI QTP V6 (1996) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-054.webp "MASERATI QTP V6 (1996) REAR BUMPER PARTS DIAGRAM")
-part-diagram-055gd.webp "MASERATI QTP V6 (1996) WINDSCREEN WIPER AND WASHER (RHD) PARTS DIAGRAM")
-part-diagram-055gs.webp "MASERATI QTP V6 (1996) WINDSCREEN WIPER AND WASHER (LHD) PARTS DIAGRAM")
-part-diagram-056gd.webp "MASERATI QTP V6 (1996) FRONT LIGHTS (RHD) PARTS DIAGRAM")
-part-diagram-056gs.webp "MASERATI QTP V6 (1996) FRONT LIGHTS (LHD) PARTS DIAGRAM")
-part-diagram-057.webp "MASERATI QTP V6 (1996) REAR LIGHTS PARTS DIAGRAM")
-part-diagram-058.1gd.webp "MASERATI QTP V6 (1996) ELECTRICAL SYSTEM: A.B.S. AND 'KONI' SUSPENSION (RHD) PARTS DIAGRAM")
-part-diagram-058.1gs.webp "MASERATI QTP V6 (1996) ELECTRICAL SYSTEM: A.B.S. AND 'KONI' SUSPENSION (LHD) PARTS DIAGRAM")
-part-diagram-058gd.webp "MASERATI QTP V6 (1996) ELECTRICAL SYSTEM: ENGINE COMPARTMENT (RHD) PARTS DIAGRAM")
-part-diagram-058gs.webp "MASERATI QTP V6 (1996) ELECTRICAL SYSTEM: ENGINE COMPARTMENT (LHD) PARTS DIAGRAM")
-part-diagram-059.1gd.webp "MASERATI QTP V6 (1996) ELECTRICAL SYSTEM: DASHBOARD AND BATTERY (RHD) PARTS DIAGRAM")
-part-diagram-059.1gs.webp "MASERATI QTP V6 (1996) ELECTRICAL SYSTEM: DASHBOARD AND BATTERY (LHD) PARTS DIAGRAM")
-part-diagram-059.2.webp "MASERATI QTP V6 (1996) AUDIO SYSTEM PARTS DIAGRAM")
-part-diagram-059.3.webp "MASERATI QTP V6 (1996) ANTI THEFT SYSTEM PARTS DIAGRAM")
-part-diagram-059gd.webp "MASERATI QTP V6 (1996) ELECTRICAL SYSTEM: BOOT-DOORS-PASSANGER COMPARTMENT (RHD) PARTS DIAGRAM")
-part-diagram-059gs.webp "MASERATI QTP V6 (1996) ELECTRICAL SYSTEM: BOOT-DOORS-PASSANGER COMPARTMENT (LHD) PARTS DIAGRAM")
-part-diagram-060.webp "MASERATI QTP V6 (1996) BORLETTI INSTRUMENTATION PARTS DIAGRAM")
-part-diagram-061gd.webp "MASERATI QTP V6 (1996) SWITCHES AND STEERING LOCK (RHD) PARTS DIAGRAM")
-part-diagram-061gs.webp "MASERATI QTP V6 (1996) SWITCHES AND STEERING LOCK (LHD) PARTS DIAGRAM")
-part-diagram-062.1.webp "MASERATI QTP V6 (1996) INSTRUMENT PANEL : VEHICLES WITH DOUBLE AIRBAG PARTS DIAGRAM")
-part-diagram-062gd.webp "MASERATI QTP V6 (1996) INSTRUMENT PANEL (RHD) PARTS DIAGRAM")
-part-diagram-062gs.webp "MASERATI QTP V6 (1996) INSTRUMENT PANEL (LHD) PARTS DIAGRAM")
-part-diagram-063.webp "MASERATI QTP V6 (1996) CONSOLE PARTS DIAGRAM")
-part-diagram-064.1.webp "MASERATI QTP V6 (1996) INNER TRIMS: PILLARS PARTS DIAGRAM")
-part-diagram-064gd.webp "MASERATI QTP V6 (1996) INNER TRIMS: ROOF (RHD) PARTS DIAGRAM")
-part-diagram-064gs.webp "MASERATI QTP V6 (1996) INNER TRIMS: ROOF (LHD) PARTS DIAGRAM")
-part-diagram-065.1.webp "MASERATI QTP V6 (1996) INNER TRIMS: REAR DOOR PANELS PARTS DIAGRAM")
-part-diagram-065gd.webp "MASERATI QTP V6 (1996) INNER TRIMS: FRONT DOOR PANELS (RHD) PARTS DIAGRAM")
-part-diagram-065gs.webp "MASERATI QTP V6 (1996) INNER TRIMS: FRONT DOOR PANELS (LHD) PARTS DIAGRAM")
-part-diagram-066.webp "MASERATI QTP V6 (1996) FRONT SEAT PARTS DIAGRAM")
-part-diagram-066.1.webp "MASERATI QTP V6 (1996) REAR SEAT UPHOLSTERY PARTS DIAGRAM")
-part-diagram-066.2.webp "MASERATI QTP V6 (1996) SEATS: STRUCTURES AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-067.webp "MASERATI QTP V6 (1996) SEAT BELTS PARTS DIAGRAM")
-part-diagram-068.webp "MASERATI QTP V6 (1996) REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-069.1.webp "MASERATI QTP V6 (1996) PASSENGER COMPARTMENT CARPETS: VEHICLES WITH DOUBLE AIRBAG PARTS DIAGRAM")
-part-diagram-069.2gd.webp "MASERATI QTP V6 (1996) INSULATION (RHD) PARTS DIAGRAM")
-part-diagram-069.2gs.webp "MASERATI QTP V6 (1996) INSULATION (LHD) PARTS DIAGRAM")
-part-diagram-069gd.webp "MASERATI QTP V6 (1996) PASSENGER COMPARTMENT CARPETS (RHD) PARTS DIAGRAM")
-part-diagram-069gs.webp "MASERATI QTP V6 (1996) PASSENGER COMPARTMENT CARPETS (LHD) PARTS DIAGRAM")
-part-diagram-070.1.webp "MASERATI QTP V6 (1996) HEATING PUMP PARTS DIAGRAM")
-part-diagram-070gd.webp "MASERATI QTP V6 (1996) PASSENGER COMPARTMENT VENTILATION (RHD) PARTS DIAGRAM")
-part-diagram-070gs.webp "MASERATI QTP V6 (1996) PASSENGER COMPARTMENT VENTILATION (LHD) PARTS DIAGRAM")
-part-diagram-071.1gd.webp "MASERATI QTP V6 (1996) AUTOMATIC AIR CONDITIONER ASSY (RHD) PARTS DIAGRAM")
-part-diagram-071.1gs.webp "MASERATI QTP V6 (1996) AUTOMATIC AIR CONDITIONER ASSY (LHD) PARTS DIAGRAM")
-part-diagram-071gd.webp "MASERATI QTP V6 (1996) AUTOMATIC AIR CONDITIONER ASSY (RHD) PARTS DIAGRAM")
-part-diagram-071gs.webp "MASERATI QTP V6 (1996) AUTOMATIC AIR CONDITIONER ASSY (LHD) PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI QTP V6 (1996) GASKETS AND SEALS FOR HEADS OVERHAUL PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI QTP V6 (1996) GASKETS AND OIL SEALS FOR BLOCK OVERHAUL PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI QTP V6 (1996) ENGINE BLOCK AND OIL SUMP PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI QTP V6 (1996) FASTENINGS AND BLOCK ACCESSORIES PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI QTP V6 (1996) CRANKSHAFT, PISTONS, CONRODS & FLYWHEEL PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI QTP V6 (1996) CYLINDER HEADS PARTS DIAGRAM")
